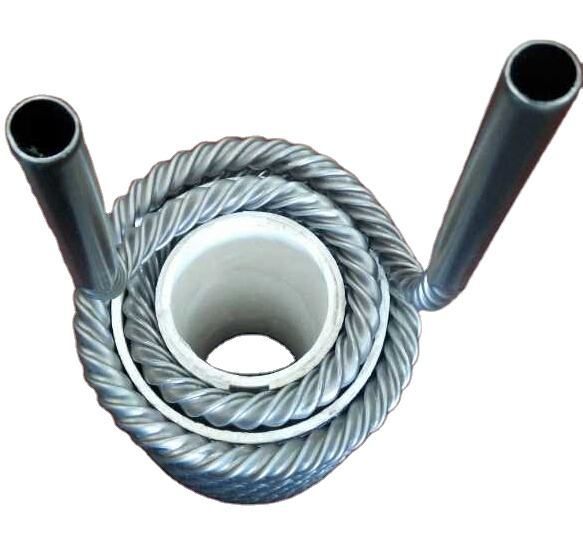

High heat transfer titanium bellows

Product Detail

Water to Water Type:Natural water, sea water, salt water or other corrosive solutionsWall thickness:0.53 mm
Material:titaniumRefrigerant to water type:R22, R134a, R407c, R410a, R417a, etc.
Outer diameter:12.7mmport:Guangzhou, or other
payment terms:L/C, Western Union, D/P, D/A, T/T, Money Gram, Cashfeature:A major advance in heat transfer technology
Name:Titanium bellowsOrigin:Guangdong, China
application:Mariculture, chemical industry, food industry, metallurgy, refrigeration, etc., heat transfer systemSupply capacity:9000 pieces per month
Processing services:weldingtechnology:Welded and seamless, seamless
Packaging Details:1. Strong wooden box 2. As your requestmodel:NT-Ti1256
grade:titaniumthickness:0.55 mm, 0.6 mm, 0.8 mm, 1 mm
type:heat exchanger tubebrand:Nantai
length:1-15 meters without welding, must matchthe inside diameter of:9.52 mm
Outer diameter:9.52mm - 80mm

High heat transfer titanium bellows



Material

Gr1, Gr2 other alloys

outer diameter

9.52mm-50.00mm

wall thickness

0.53 – 2.0 mm

length

15m above or below

temperature range

-50°C -200°C

work pressure

3.5 MPa

use

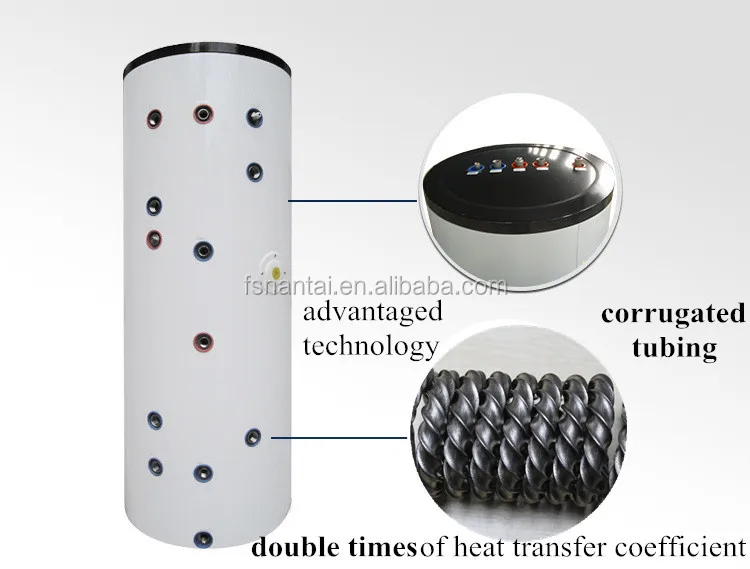

Water tanks, boilers, heat exchange units, absorption refrigerators, turbo refrigerators, screw refrigerators; multi-effect distillation units, etc.

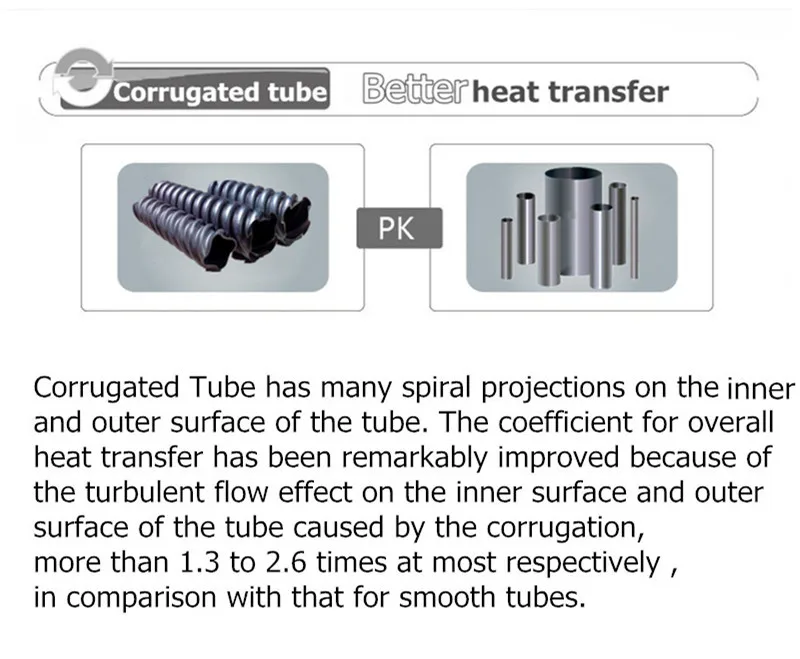

1. High efficiency, the coefficient is as high as 10000 W/m^2*deg.C, and the heat transfer capacity is 1.3-2.6 times that of traditional pipes.



2. The configuration is compact and the footprint is small, which is one-tenth of the traditional equipment.



3. Titanium material, high temperature resistance, pressure resistance, corrosion resistance.



4. The design flux speed is 5.5m/s, and there is less dirt.



5. ASME standard



6. Easy to clean and maintain



7. Large traffic



8. Compact



9. Fully welded structure.



10. Easy to install and durable.

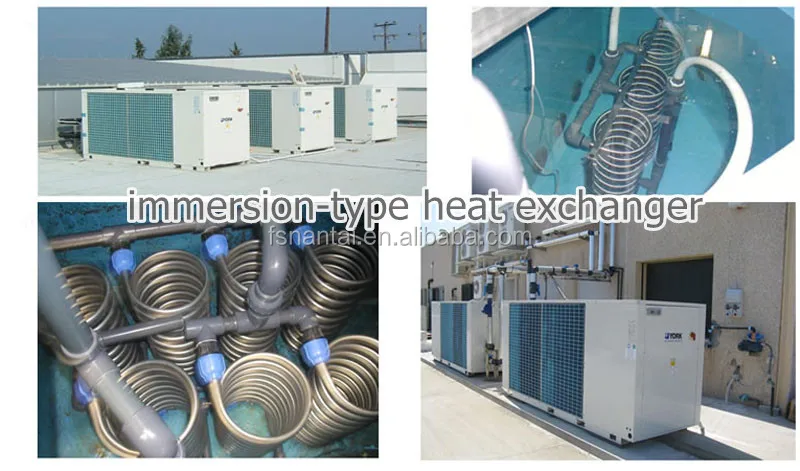

1.food industry: Juices, Beverages, Sauces, Dairy Products, Desserts, Purees, Whole Fruits, Catering, Convenience Foods, Pasteurization.
2.industry: Chemical, petrochemical, polymer, heating, cooling, condensation, crystallization, evaporation, energy recovery.
3.environmental: Wastewater, environmental waste concentration, evaporation, sludge, pasteurization.
4.bioenergy: Bioethanol, biodiesel, biogas, combined heat and power.









1. Your inquiry will be replied within 12 hours.



2. Professional heat exchange engineer service to answer your questions about heat exchange equipment. .



3. Protect your sales area, design concept and all private information.



4. Experienced research and development, produce products according to your requirements.



5. 2 years warranty.



1. Shipping by sea or by air is flexible.

Usually use EMS, UPS, DHL, China Post Air Mail to arrange the shipment.

The package will arrive at your local location within 3~10 days after delivery.



2. Special discounts are available for bulk orders.



3. T/T, L/C and Western Union are available.







We need the following information to quote you:
1. Product name
2. Material
3. Size (ie: outer diameter, wall thickness, length)
4. Quantity
5. Application
6. Drawings of special parts

If you are interested, please feel free to ask us for the latest price.
We welcome sample order. Thanks.
