FRP / Composite Roving Fiberglass Shredder / Shredding Resin Gun / System / Machine

Details of fiberglass and resin spray guns are as follows,



Materials used: calcium carbonate (CaCO3) powder, resin, curing agent (catalyst, catalyst)

1: Maximum injection volume: 15Kg/min

2: Resin injection: 3.5—5Kg/min

3: Glass fiber: 1.5Kg/min

4: Pressure ratio: 18:1

5: Curing agent percentage range: 0.8—3%

6: Working pressure: 0.3—0.6Mpa



Our spray guns are automatic spray guns.

The spray gun can also only use resin.

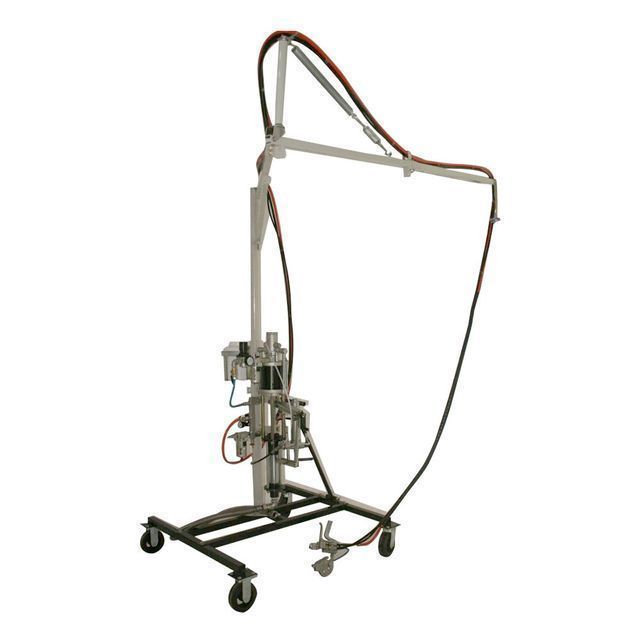

The Fiber Resin Sprayer is a multipurpose system for simultaneously spraying resin and chopped rovings.



introduce:

The Fiber Resin Sprayer is a multipurpose system for simultaneously spraying resin and chopped rovings. The resin and catalyst can be ejected separately by the action of the pump and mixed together in the air. The spray gun only needs to be cleaned several times, which greatly reduces the cleaning frequency and greatly improves the production speed.

advantage:



1. Precise proportional control. Catalyst driven pumps for precise catalyst ratios ensure parts cure at the desired rate.

2. Environmentally friendly. Airless spray reduces evaporation and contamination.

3. Cart and system. The whole system is installed on the chassis of the trolley, which makes the equipment movable and facilitates flexible spraying.

4. Flow management. Roving is guided by boom crutches, smoothing the roving, reducing tangles and increasing uptime.

5. Compact and light weight.

6. American guns are available.

7. One year warranty.
