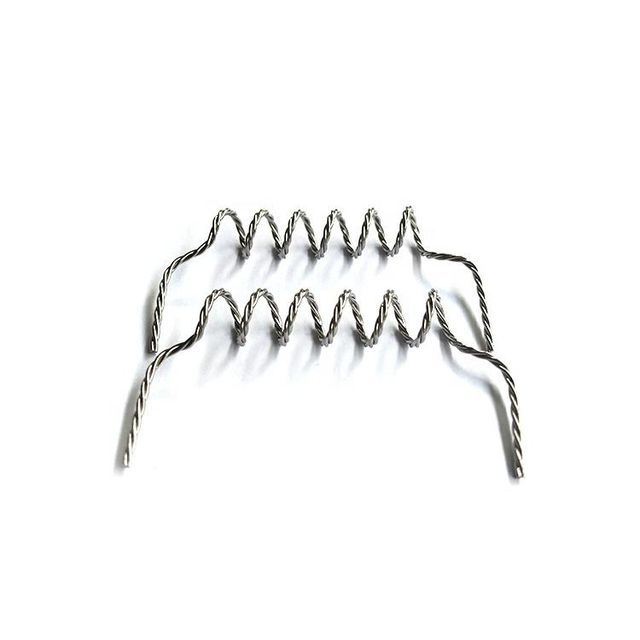

Silver triple tungsten wire for vacuum coating
-
$66.00 / 1 - 49 kilograms
$43.00 / 50 - 99 kilograms
$20.00 / >=100 kilograms - 1 kilogram
- Chengdu Yushi Vacuum Electronic Materials Co., Ltd.
- Sichuan, China
- Mr Eric Yu
Product Detail
| purity: | ≥9995 | Package preview: | |
| port: | Guangzhou, Shanghai | application: | Vacuum metal coating |
| Packaging details: | Carton or wooden box or according to customer requirements | model: | Wall 1 |
| Certificate: | ISO9001 | Supply capacity: | 3000kg per month |
| Tungsten: | AKS doping | surface: | polishing |
| brand: | jade | Material: | W1.W2 |
| Wire Gauge: | 0.01-2.00mm | color: | silver white |
| product name: | Tungsten | Place of origin: | Sichuan Province, China |
| Material: | new | shape: | roll |
| payment terms: | wire transfer |
Plastic coating melts tungsten wire in vacuum coating.
Our advantage

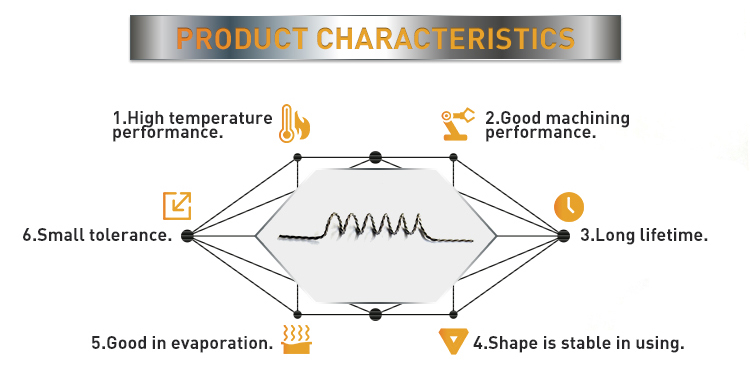

1. Superior performance:Long service life; stable shape when used; small tolerance.
2. High-quality raw materials:Raw materials come from state-owned enterprises. The resistance is stable, the temperature rises quickly, and the evaporation property is good.
3. Professional: sinceyear 1991,exist28 Many years of experience in vacuum tungsten wire production. We have professional research, production and sales teams. Build partnershipsAt least38nation.
4. Service:You can get our quick reply within 24 hours.
Suitable for heating in vacuum metallization. The thin film material is placed in a heater in a vacuum chamber and evaporated by heating it with a heater (tungsten strand) under high vacuum conditions. Mainly used in vacuum coating heating elements such as car lights, mirrors, plastics, ABS, PP, decorations, etc.
The tungsten wire produced by the company is available in diameters ranging from 0.5mm to 1mm.custom madeAccording to customer requirements. we provideFree samples up to 0.2kg.
| Wire gauge | 0.5--1.0mm |
| purity | 99.95% |
| surface | polishing |
| density | 19.35 g/cm3 |
| Material | Tungsten |
| tensile strength | 2800 MPa |
| Tungsten color | silver |
| Diameter tolerance | ±0.02mm |
| boiling point | 5927℃ |
| melting point | 3390℃ |
| chemical composition | watt |
| grade | First grade |
| application | Vacuum coating |
Tungsten has a high melting point, high resistivity, good strength and low vapor pressure. When the mean free path of the vapor molecules is greater than the linear size of the vacuum chamber, the atoms and molecules of the vapor escape from the surface of the evaporation source and are rarely impacted or hindered by other molecules or atoms.
