Heat-resistant isolation insulation ceramic fiber paper gasket directly supplied by the manufacturer

Product Detail

Name:Heat Resistant Isolation Ceramic Fiber Paper SupplierOperating temperature:1450℃
size:RequireUltimate strength (≥MPa):0.3
Place of origin:Shandong Province, Chinaraw material:Ceramic fiber bulk
payment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram, Trade Assuranceport:Qingdao, China
Density (kg/cubic meter):160width:610mm/1220mm
Packaging details:1. Inner plastic bag, outer carton 2. Ordinary carton size: 310x310x620mm (1 roll of heat-resistant paper)chemical composition:Alumina, silica
Thermal Conductivity:0.160~0.180(W/mk)brand:top nine
model:GB/T JQ-104HZSupply capacity:500 tons of heat-resistant paper per month
thing:HZ flame retardant papertype:1260 ceramic fiber paper
Shrinkage (1800°F, 3 hours):≤-3Fiber diameter:3μm-5μm
Density (kg/cubic meter):170-220grade:ST/HP/HA/HZ,HZ (high zirconium)
application:AdiabaticWorking temperature (℃):1150/1250/1350
color:pure whiteMaximum temperature(℃):1260/1350/1450
length:60000-12000mm

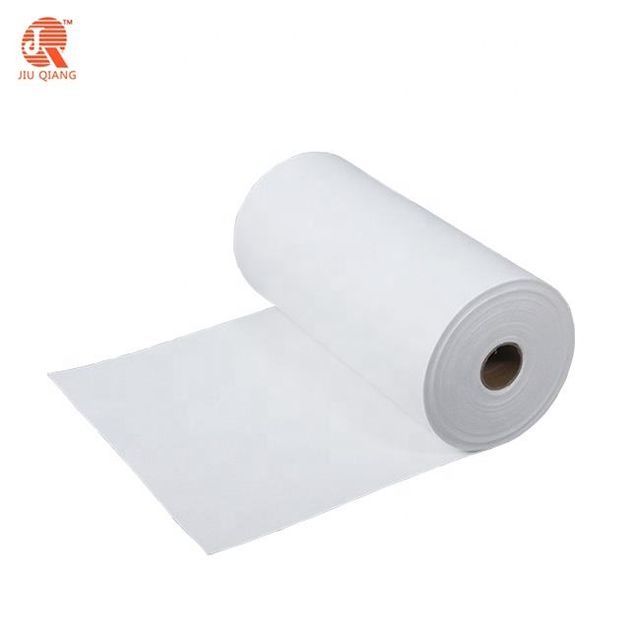

Heat Resistant Isolation Ceramic Fiber Paper Supplier

Product Description

Product ethicsinscription

Jiuqiang ceramic fiber paper is made of high-grade ceramic fiber as raw material and through fiber washing process. Ceramic fiber paper is made of high-purity refractory fiber and is used in high-temperature insulation fields. This ceramic fiber paper can be used in various types of refractory and sealing applications.

Features

1.Light weight and flexible

2. Low thermal conductivity and low heat storage

3. Asbestos-free and anti-corrosion

4.Excellent corrosion resistance

5. Good electrical insulation

6. Low slag ball content and no stratification

Applications

1. Industrial thermal insulation sealing and corrosion-resistant materials,

2. Thermal insulation and electrical insulation materials

3.Insulation materials for instrument equipment

4.Kiln deck insulation covering

Technical data

Technical data

grade standard High aluminum zirconium
Maximum temperature(℃) 1260 1360 1450
Working temperature(℃) 1150 1250 1350
color pure white pure white pure white
Density (kg/m33) 170-220 170-220 170-220
Thermal conductivity (w/mk)

0.07(400℃)

0.09(600℃)

0.12(800℃)

0.069(400℃)

0.088(600℃)

0.110(800℃)

0.068(400℃)

0.087(600℃)

0.100(800℃)

Compressive strength (Mpa) 0.65 0.70 0.75
chemical composition(%) aluminum2oxygen 42-43 51-52 39-40
Silica 53 44 44
Zirconia - - 15-17th
Iron oxide + iron titanate ≤1.2 ≤0.3 ≤0.2
Sodium oxide + potassium oxide ≤0.5 ≤0.3 ≤0.2
Calcium oxide + magnesium oxide ≤0.3 ≤0.3 ≤0.2
Dimensions (mm) length*width*height

90,000*610/1,220*0.5

60,000*610/1,220*1

30,000*610/1,220*2

20,000*610/1,220*3

15,000*610/1,220*4

12,000*610/1,220*5

10,000*610/1,220*6
