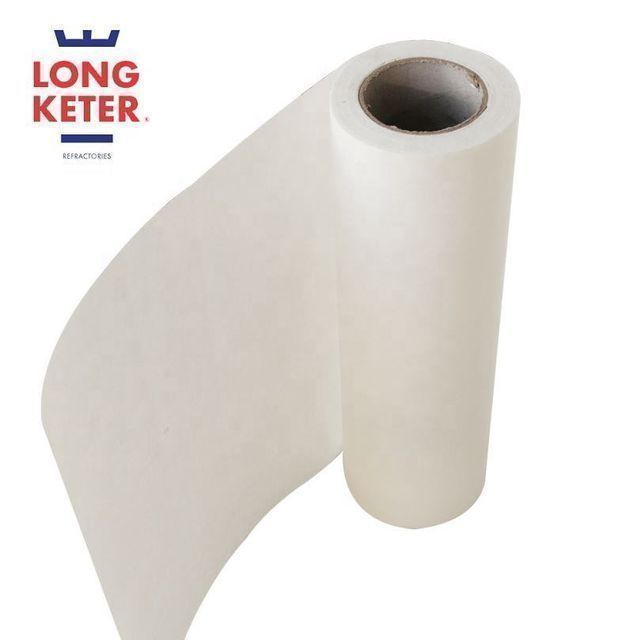

2mm thick 3mm thick refractory ceramic fiber paper

Product Detail

model:LKT1260port:Qingdao
Supply capacity:2000 tons per monthlength:7500-60000mm
grade:Serial port (common)Thermal Conductivity:0.075
width:610-1220mmPackaging Details:Standard export packaging
Operating temperature:1260Fiber Diameter:1
chemical composition:Al2O3+SiO2Ultimate Strength (≥MPa):/
application:insulationOrigin:Shandong China
Density (kg/m3):128Alumina + Silica:96%
brand:LKTpayment terms:L/C, Western Union, D/P, D/A, T/T, paypal
Shrinkage (1800℉, 3 hours):/
Product Description

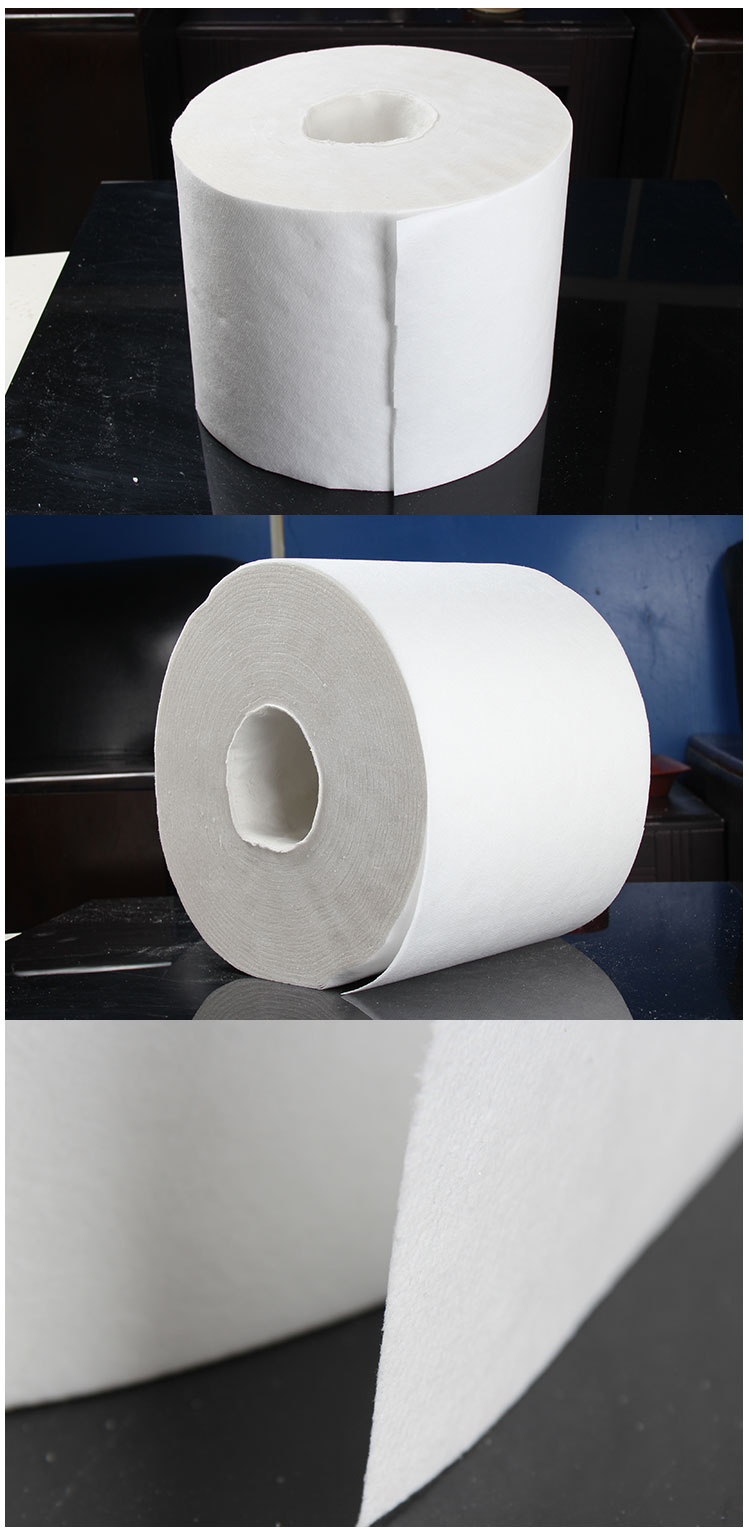

Longcottprovide a comprehensive rangeCeramic fiber paper.LKT ceramic fiber paper is made of high-purity ceramic fiber and mechanized by wet-process inorganic ceramic fiber to achieve continuous production. Advanced production techniques ensure uniform fiber distribution and tight control over thickness and density.

The ceramic fiber paper adds a minimum of carefully selected binders and fires cleanly.

Ceramic Fiber Paper Product Data



Grading temperature (℃)

1260

1430

Density(kg/m³)

200±15

200±15

Organic content (%)

6–8

6–8

Tensile strength (kpa)

1mm≥300; 2mm-6mm≥400

Permanent linear shrinkage (℃*24h)

≤3.5(1000℃)

≤3.5(1200℃)

Thermal conductivity (W/mk)

400°C

0.115-0.121

400°C

0.165-0.175



4000×1220×1

20000×1220×2

15000×1220×3

10000×1220×4

8000×1220×5

40000×610×1

20000×610×2

15000×610×3

10000×610×4

8000×610×5



The main application isceramic fiber paperlisted below:

•Industrial insulation, sealing, protective materials

• Insulation and heat insulation materials for electric heating devices

• Molten Metal Gaskets

•equipment. Insulation, heat insulation material electric heating element

• Fireproof

• Thermal barriers for vehicles and spaceflight

•Expansion joint filler

Features
