UHMWPE bulletproof board

Product Detail

Fineness:200-2400Dtoughness:32-40 g/day
Certification:NIJ, International Organization for Standardizationapplication:ballistic protection
model:KT-F-753payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal
color:whiteusage:Soft and hard armor
density:0.97g/cm3Packaging Details:Carton; Carton size: 165cm(L)*20cm(W)*20cm(H) Packaging details: 1.6m(W)*100m(L) per carton
brand:Katyplace of origin; place of origin:China Shanghai
in stock:Deliverablefeature:Lightweight, UV Resistant, Bulletproof, High Strength, Lightweight
port:ShanghaiMaterial:UHMWPE, UHMWPE fiber
sample:freeSupply capacity:60 tons per month
weight:140g/㎡

Product Description
Product Description

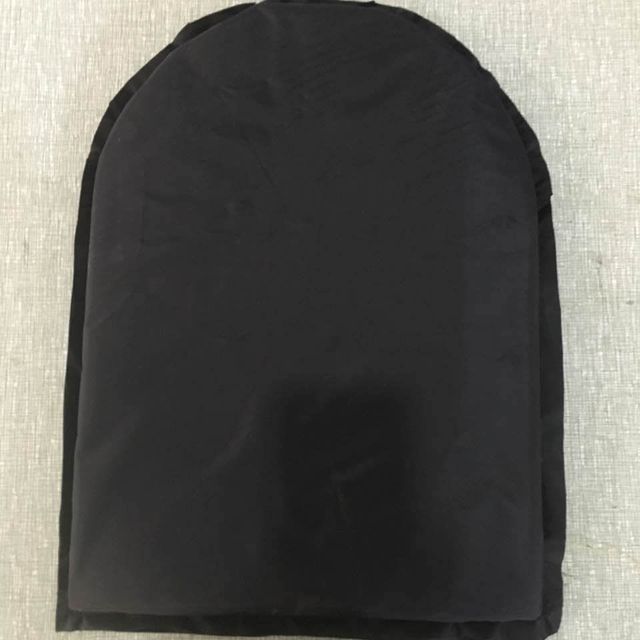

UHMWPE bulletproof board



feature:

1. Made of ultra-high molecular weight polyethylene fiber, one of the strongest fibers in the world;

2. Anti-ultraviolet/alkali/acid;

3. UHMWPE fiber is lighter than [email protected]/cm³;

4. High melting point: 130℃;



5. For bulletproof applications.

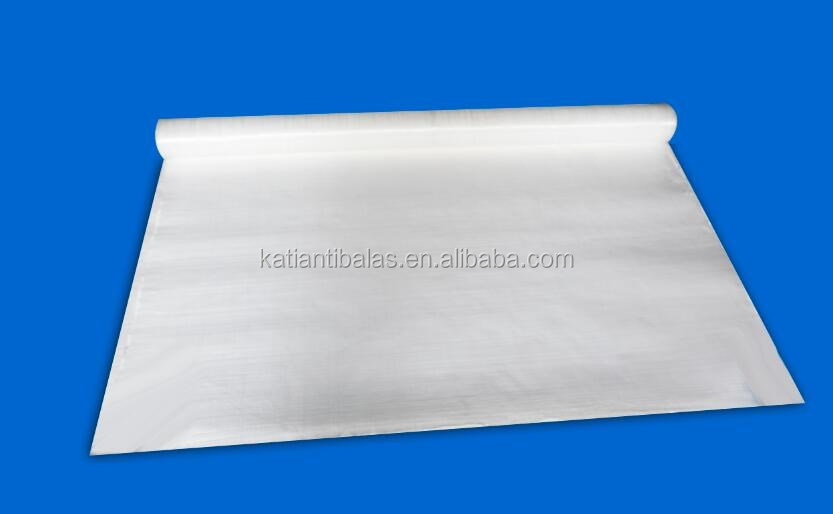

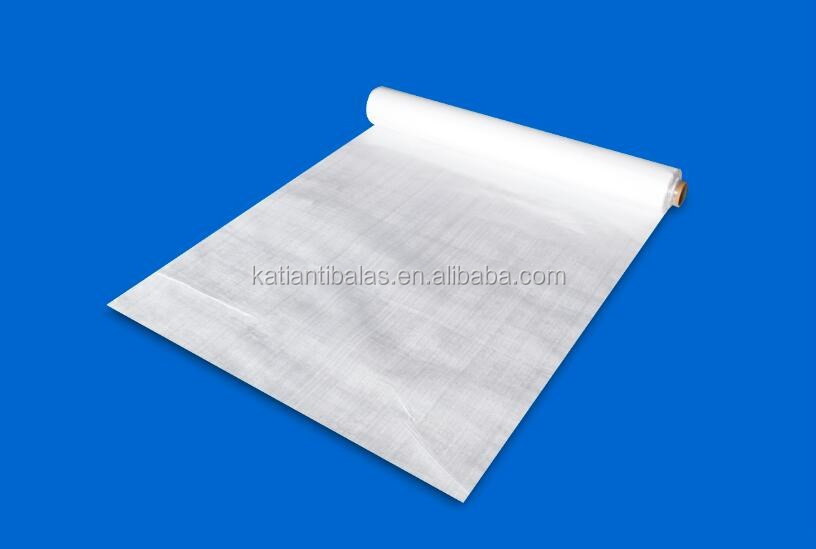

Techron® Ballistic UD Sheet is a unidirectional construction with yarns designed to run parallel to each other. Techron® is widely used to make bulletproof vests, helmets, vehicle armor, boat armor, etc. By integrating Techron® into bulletproof vests, manufacturers can confidently and easily provide enhanced user comfort and protection from bullets and fragments of all kinds, as well as protection from sharp objects.

The protective material needs to absorb kinetic energy in the shortest possible time. Techron®'s high toughness, high energy absorption rate, and high elastic modulus allow for rapid dispersion of deformation waves, making it an ideal protective material. The high number of monofilaments in Techron® materials can also improve synergies. In addition, by making the armor lighter and more comfortable, Techron® can significantly improve the user's experience of wearing the vest.



Hard Armor:

(1) KT-F-755 bulletproof UD sheet can reach NIJ 0101.06 level III for 7.62mm NATO bullet-type M14 automatic rifle, total area density@18kg
(2) KT-F-755 bulletproof UD sheet can reach AK47 type 7.62x39 AK MSC, total area density@20kg


Soft Armor:

KT-F-753
(1) 25 layers can block 9mm parabellum pistol bullets of Uzi type 9mm submachine gun NIJ0101.04 [email protected]
(2) 30 layers can meet the requirements of standard NIJ0101.06 [email protected] IIIA.44

Model

Areal density

thickness

size

KT-F-753

140gsm

0.17mm

1.2m*100m

KT-F-754

160gsm

0.2mm

1.6*100m

KT-F-755

170gsm

0.22mm

1.6*100m
