10D/50D/200D/400D/800D/1600D UHMWPE fiber UHMWPE yarn for rope, fabric or ballistic UD
- $6.00 / >=100 kilograms
- 100 kilograms
- Shenzhen Guodun Armor Technology Co., Ltd.
- Guangdong, China
- Ms Dong L.
Product Detail
Supply capacity: | 1,000,000 kg/month | Material: | UHMWPE, UHMWPE fiber |
Knots per spool: | knotless | Packaging Details: | By carton |
payment terms: | letter of credit, wire transfer | density: | 0.97g/m3 |
brand: | National Shield Armor | port: | Shenzhen |
model: | 800D-2400D UHMWPE Yarn | color: | white |
Breaking percentage: | about 3% | toughness: | uhmwpe yarn 1600d/1380f |
Fracture toughness: | over 38 g/day | Weight per spool: | 0.8Kg-3Kg |
Denier/dtex: | 800D-2400D | place of origin; place of origin: | Guangdong, China |
feature: | High strength, light weight, UV resistance, abrasion resistance, bulletproof | filament: | 240 filaments (1.67dpf) |
application: | sewing, knitting, weaving |

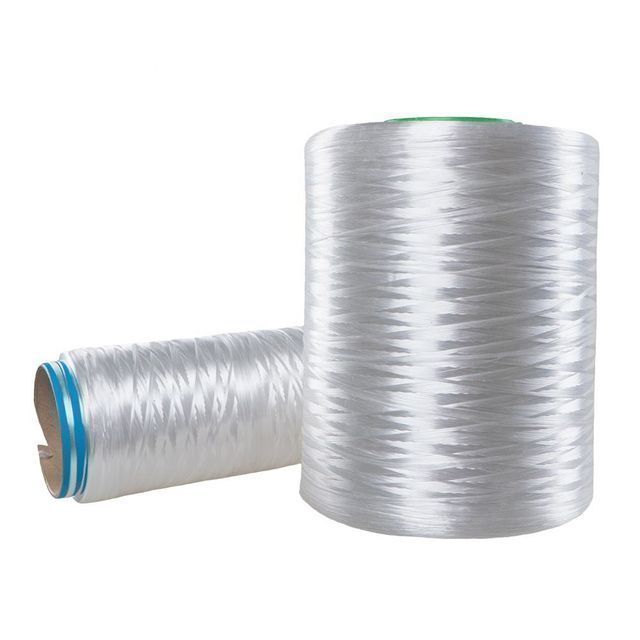

UHMWPE Yarn/UHMwPE Fiber
Product Description
Typical technical characteristics:
1) After 1500 hours of sunshine, the remaining strength is more than 80%.
2) 100% residual strength after 6 months in most chemicals (seawater, gas, etc.).
3) The residual strength of the UHMWPE rope after 1000 load rotation tests is 100%.
4) The rotation time until abrasion resistance fracture is greater than 110 to 103.
5) The rotation time until disconnection exceeds 240 to 103.
6) Annealing strength is 12~18g/d. It's 10 up to 15g/d for collusion.
7) The melting point is around 135-145, with high wear resistance, cutting resistance and tear resistance
8) The color is bright white, and the dyeability is poor.
Standard Delivery Type:
1. Design Outerwear / Woven EN388 Class 5 Cut Resistant Gloves:400D/240F
2. Design and make bulletproof or protective clothing:600D/240F
3. Design to weave the strongest ropes, ropes, fishing nets:1200D/400F, 1600D/440F, 1800D/480F, 2400D/620F
For more details, please contact us for catalogs and test reports.
1) After 1500 hours of sunshine, the remaining strength is more than 80%.
2) 100% residual strength after 6 months in most chemicals (seawater, gas, etc.).
3) The residual strength of the UHMWPE rope after 1000 load rotation tests is 100%.
4) The rotation time until abrasion resistance fracture is greater than 110 to 103.
5) The rotation time until disconnection exceeds 240 to 103.
6) Annealing strength is 12~18g/d. It's 10 up to 15g/d for collusion.
7) The melting point is around 135-145, with high wear resistance, cutting resistance and tear resistance
8) The color is bright white, and the dyeability is poor.
Standard Delivery Type:
1. Design Outerwear / Woven EN388 Class 5 Cut Resistant Gloves:400D/240F
2. Design and make bulletproof or protective clothing:600D/240F
3. Design to weave the strongest ropes, ropes, fishing nets:1200D/400F, 1600D/440F, 1800D/480F, 2400D/620F
For more details, please contact us for catalogs and test reports.
Email: [email protected]
Website: www.guodunarmor.com
