Hastelloy, C-276, C-2000, C-22
-
$45.00 / 100 - 199 kilograms
$40.00 / 200 - 999 kilograms
$30.00 / >=1000 kilograms - 100 kilograms
- Xi'an Dongmeng Steel Co.,Ltd
- Shaanxi, China
- Ms Maria sui
Product Detail
| Packaging details: | Shipping standard packaging | Package preview: | |
| Certificate: | ISO9001 | Place of origin: | China |
| brand: | Dongmeng Steel | delivery time: | 7-10 days |
| Species: | Industrial supplies | standard: | GB, ASTM, EN |
| tolerant: | ±1% | product name: | Hastelloy |
| port: | Qingdao, Tianjin Port, Shanghai Port, etc. | payment terms: | Western Union, wire transfer |
| Material: | Hastelloy | Material grade: | Hastelloy |
| Whether alloy: | Yes | Minimum order quantity: | 100kg |
| Package: | Standard airworthy packaging | grade: | C-276, C-2000, C-22, C-4, B-2, etc. |
| Processing services: | Welding, punching, cutting, bending | application: | Heat exchangers, fluid chemical pumps, etc. |
| Supply capacity: | Annual output 10,000 tons |
Product Description
HastelloyIt is a nickel-based corrosion-resistant, high-temperature alloy, mainly divided into two categories: nickel-chromium alloy and nickel-chromium-molybdenum alloy. It has good corrosion resistance and thermal stability and is mostly used in aviation, petrochemical, chemical industry, etc. Commonly used ones include Hastelloy C-276, Hastelloy C22, Hastelloy B-2, Haynes B-3, Haynes C4, Haynes 230, Haynes 188 and so on.
Types of Hastelloy
Hastelloy C-276 | Hastelloy C22 | Hastelloy C-2000 | Hastelloy C-4 | HastelloyX | |||
Hastelloy B | Hastelloy B-2 | Hastelloy B-3 | Hastelloy G30 | haines 25 | |||
haines188 | Haynes 214 | haines 230 | Haynes 242 | UNS N10276 | |||
UNS N06002 | |||||||
Hastelloy C-276
The alloy has excellent corrosion resistance to most corrosive media in both oxidized and reduced states. Excellent resistance to pitting corrosion, crevice corrosion and stress corrosion cracking. The alloy is suitable for use in a variety of chemical processing industries containing oxidizing and reducing media. Higher molybdenum and chromium content make the alloy resistant to chloride ion attack, and tungsten further improves its corrosion resistance.
Hastelloy C-276 is one of the only materials resistant to moisture chlorine, hypochlorite and chlorine dioxide solutions, and the alloy is resistant to highly concentrated chloride salt solutions such as ferric chloride and copper chloride. Remarkable corrosion resistance.
Corresponding grade
ASTM Hastelloy C276
ASTM N10276
DIN NiCrofer 5916hMoW
National standard 00Cr16Ni60Mo16W4

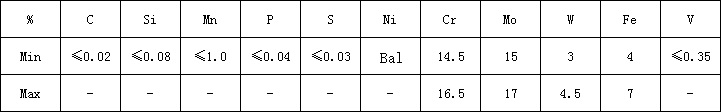

chemical composition

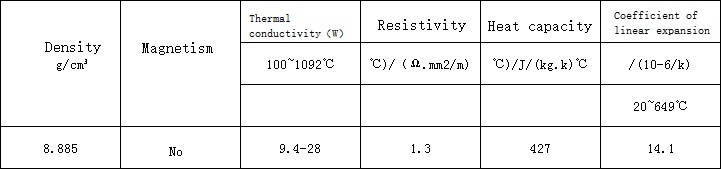

physical properties
Mechanical properties: (mechanical properties are tested at 20℃)
heat treatment | Tensile strengthσb/MPa | Yield strength σp0.2/MPa | Elongation σ5/% | Brinell hardness HBS |
Solution treatment | 690 | Chapter 283 | 40 | / |
Microstructure:
The alloy has a face-centered cubic lattice structure.
Process performance and requirements
1. The lower the sulfur content in thermal processing fuel, the better. The sulfur content in natural gas should be less than 0.1%, and the sulfur content in heavy oil should be less than 0.5%.2. The alloy thermal processing temperature range is 1200℃~950℃, and the cooling method is water cooling or rapid air cooling.
3. Suitable for any traditional welding process, such as tungsten inert gas shielded welding, plasma arc welding, manual sub-arc welding, metal inert gas shielded welding, and molten inert gas shielded welding.
If you would like details about other Hastelloy alloys, please contact our product consultants for more details.
