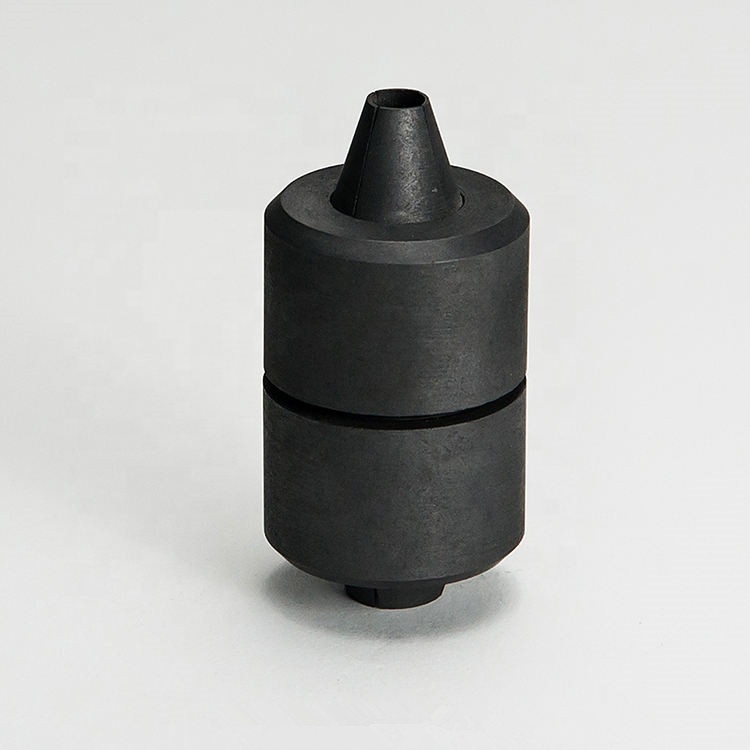

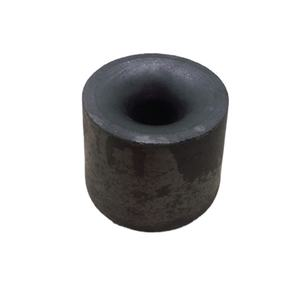

MZ Made in China Graphite Products Graphite Rocket Nozzles for the Aviation Industry

  • $20.00 / 1 - 49 pieces
    $18.00 / 50 - 99 pieces
    $15.00 / >=100 pieces
  • 1 piece
  • Xinghe County Muzi Carbon Co., Ltd.
  • Inner Mongolia, China
  • Ms EMALY LIANG

Product Detail

Resistance (μΩ.m):4.5-12Conductivity:Good thermal and electrical conductivity
Chemical characteristics:Resistant to chemical attackCompressive strength:60-120
type:Graphite moldCraftsmanship:Easy to process and good machining performance
Porosity(%):18-25thapplication:Mechanical seal/forging/forming
Advantage:Good lubricity/conductivityfeature:Has good lubricity and wear resistance
size:As shown in the drawingPackaging details:Wooden box lined with foam board
Material:High purity graphite/electrodeBulk density (g/cm3):1.78-1.95
brand:muziPlace of origin:Inner Mongolia, China
payment terms:wire transferSupply capacity:20,000 pieces per month
density:1.78-1.92model:MZ-GN
port:newportPackage preview:
product name:Graphite molds for forming/forging/melting/castingtechnology:sintering mold
Product Details

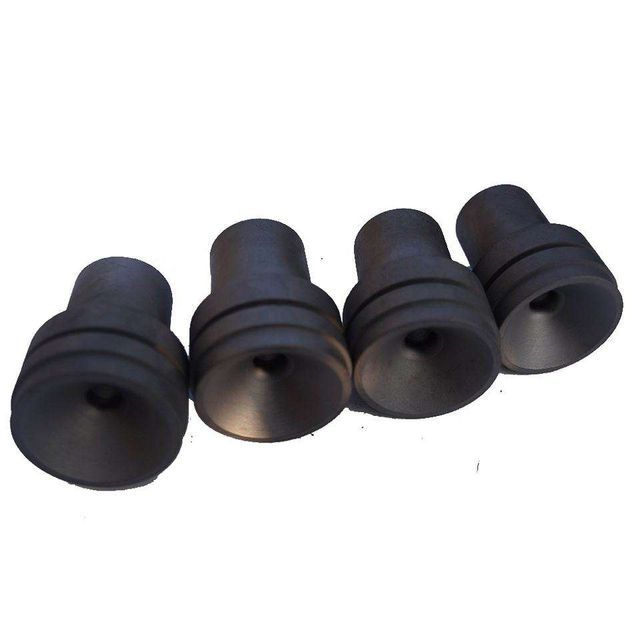

Customized high temperature resistant pure carbon graphite rocket nozzle manufacturer
Graphite properties


1. Low resistance
2. Good electrical and thermal conductivity
3. High antioxidant properties
4. Stronger thermal shock and mechanical shock resistance
5. High mechanical strength
6. High processing precision.

product description

product description

Advantages of graphite plates, boxes, boats, vessels, and crucibles in vacuum sintering furnaces (taking S-NdFeB graphite sintering plates as an example):

1. High temperature resistance: Graphite sintered plates can be used in vacuum or inert gas environments (≤3000°C) and can be used for a long time.

2. Good thermal shock resistance: Frequent entry and exit of the furnace, sudden temperature rise, quenching and rapid temperature rise will not cause cracking of the graphite sintered plate.

3. No deformation at high temperatures: Graphite has no solid to liquid transition process and has low CTE. No softening or deformation occurs at high temperatures. This can ensure that the sintered material does not change in shape and is dimensionally stable.

4. Excellent thermal conductivity: The thermal conductivity of graphite is 3-4 times that of steel. Graphite can also be used as a heater. The use of graphite sintering plates can shorten the sintering time and lower the sintering temperature than iron boxes. Thereby saving energy and reducing consumption, improving production efficiency, reducing production costs and improving economic benefits.

5. Chemical stability: The graphite sintered plate does not react chemically with the heated material in a vacuum or inert gas environment (≤3000°C), and does not agglomerate or penetrate.

6. According to feedback from multiple S-NdFeB magnetic material manufacturers, the use of graphite sintered plates will improve the (BH)m and Hcj of permanent magnet materials.

7. Durable: Each graphite sintered plate can be used for 1.5-2 years under normal working conditions without maintenance.

Precautions for use of vacuum sintering furnace graphite plates, boxes, boats, vessels, and crucibles:

1. Our products have been dried, please keep them dry when using.

2. Handle it with care when using it to avoid human damage.

3. The vacuum degree of the vacuum furnace must be ensured during use.

Product parameters
index
Ash content
(%)
Bulk density
≥(g/cm3)
Compressive strength (Mpa)
Bending strength (Mpa)
Porosity
(%)


GM1
GM11
0.01
1.83
60
28
18
GM12
0.01
1.75
45
25
number 22
GM13
0.01
1.60
30
20
25


GM2
GM21
0.05
1.83
60
28
18
GM22
0.05
1.75
45
twenty three
number 22
GM23
0.05
1.60
30
20
25


GM3
GM31
0.10
1.83
60
28
18
GM32
0.10
1.75
45
twenty three
number 22
GM33
0.10
1.60
30
20
25
Product details display
