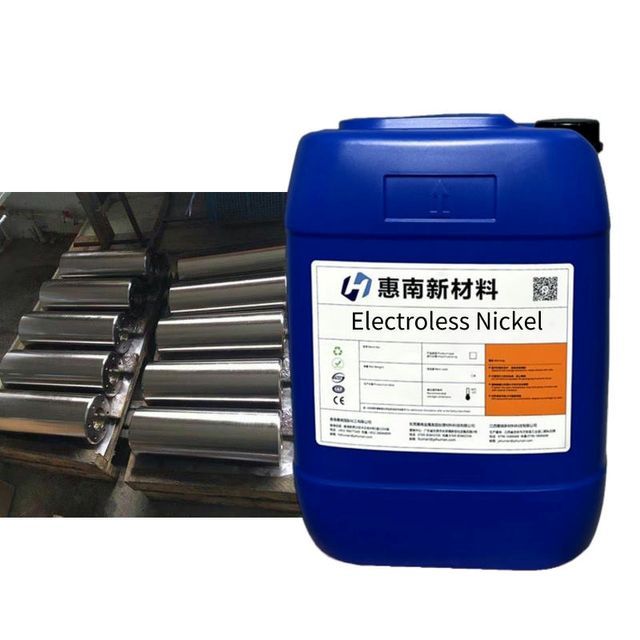

Chemical nickel plating chemicals/chemical nickel plating additives Chemical nickel plating chemicals Chemical nickel plating/nickel brightener

Product Detail

model:80908type:Medium phosphorus chemical nickel plating
Grade Standard:Precision ElectronicsOrigin:China
sample:Free sample 100g EXFTYOperation Mode:Electrochemical metal plating
Brand Name:Huinanapplication:Electronic functional plating
Advantages:Cost saving and environmental protection
Product Description
feature
80908 Electroless nickel plating is an environmentally friendly process that is free of chromium, mercury, lead and cadmium.
Meet all standards of Europe, America, Japan, etc., high speed, deep throwing
Excellent performance, good distribution and stability, long bath life. Bright coating appearance.
The solution is very stable and can easily run continuously for more than 10 cycles. Over 1250µm/dm can be deposited per liter of solution. (One cycle means the total replenishment of nickel consumed)
1. Fast deposition rate, up to 18-26µm/hour.
Greatly improve production efficiency.
2. The coating has high corrosion resistance.
3. High tolerance to plating solution
Impurities.
4. Low porosity.
5. Simple to use and easy to operate.
6. Excellent wear resistance, can reach
Hardness after heat treatment is 1050VHN
treat.
Specification
80908Ak
60 ml/L
80908B
150ml/L
pH
4.6-5.2 Adjust pH with ammonium hydroxide.
temperature:
90-96℃
Product Parameters
Operating conditions:
Solution composition:
1. Clean the plating tank with deionized water.
2. Calculate and fill 50% with deionized water.
3. Add 6% 80908AK and stir evenly
Completely.
4. Add 15% 80908B and stir evenly
Completely.
5. Add the remaining balance of DI
water, stir well.
4. Adjust pH to 6-5.2 with ammonium hydroxide
5. Raise the temperature to 90-96℃ and start electroplating.

Restocking:
The standard nickel content is
After analysis, its content was 6 g/L.
When the nickel content is lower than 1gm/L,
The supplementary additives are as follows:
80908A 10 ml/L
80908C 10 ml/L

According to the supplement
The analysis is as follows:
Nickel Analysis 80908A 80908C
Ni % Ni g/L (ml/L) (ml/L)
100 6.0 0 0
95 5.7 3 3
90 5.4 6 6
85 5.1 9 9
80 4.8 12 12
75 4.5 15 15
70 4.2 18 18
