Product Detail
Product Description

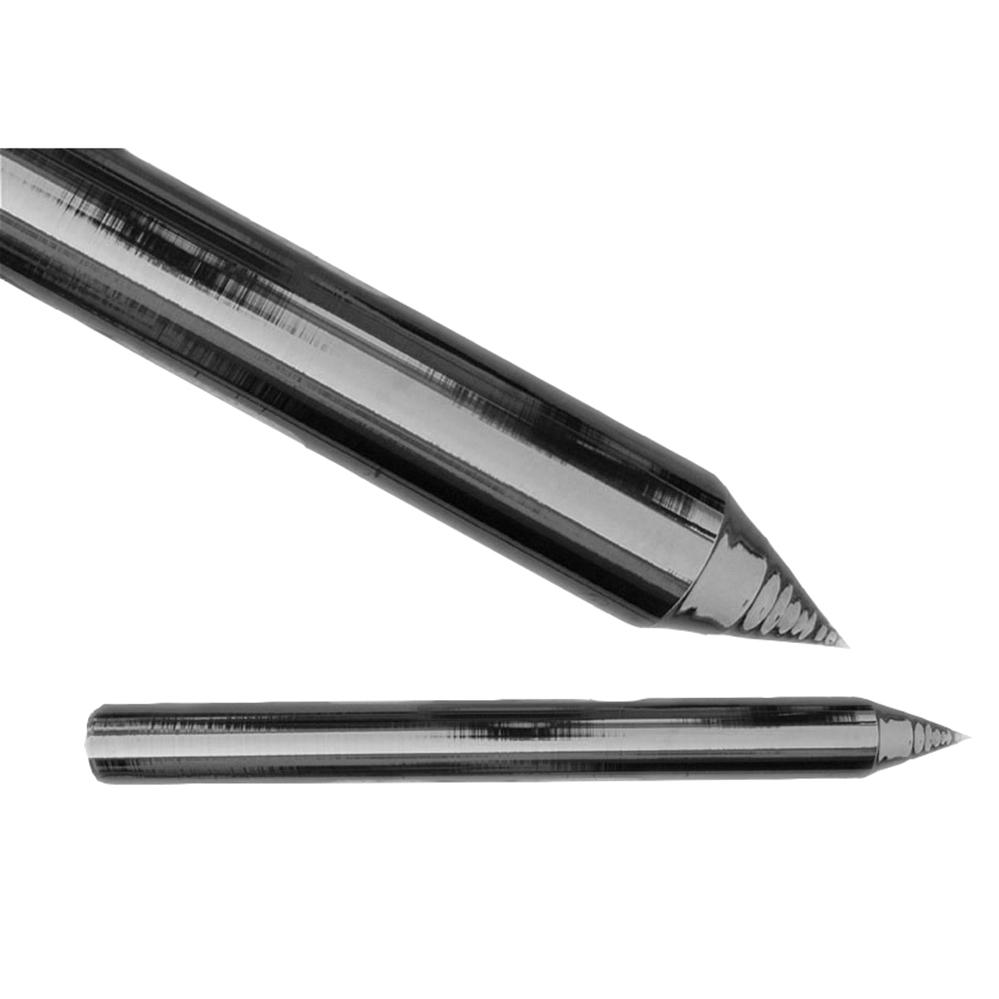

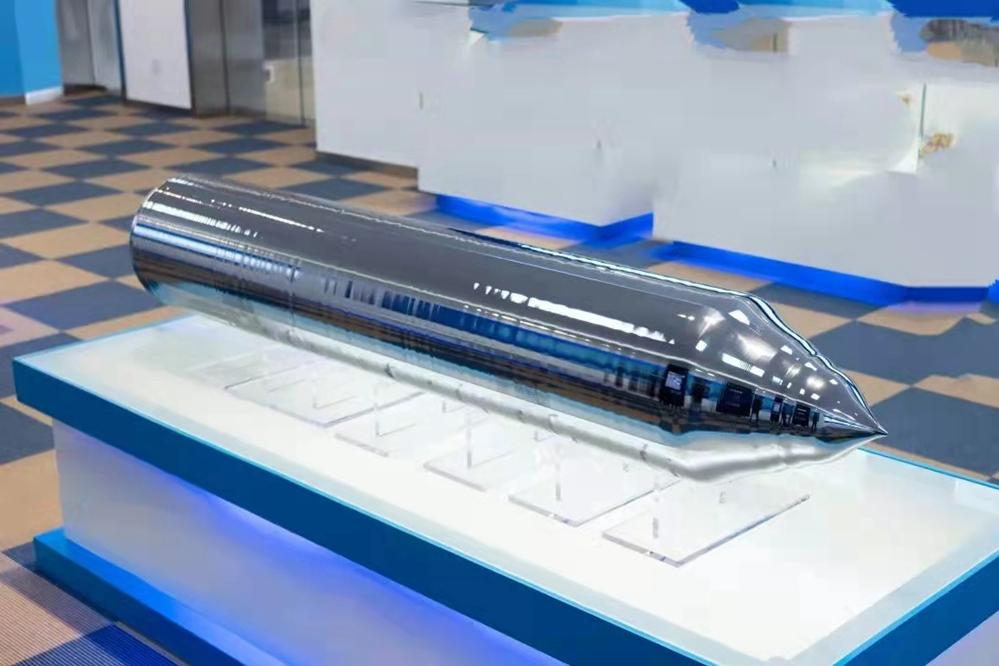

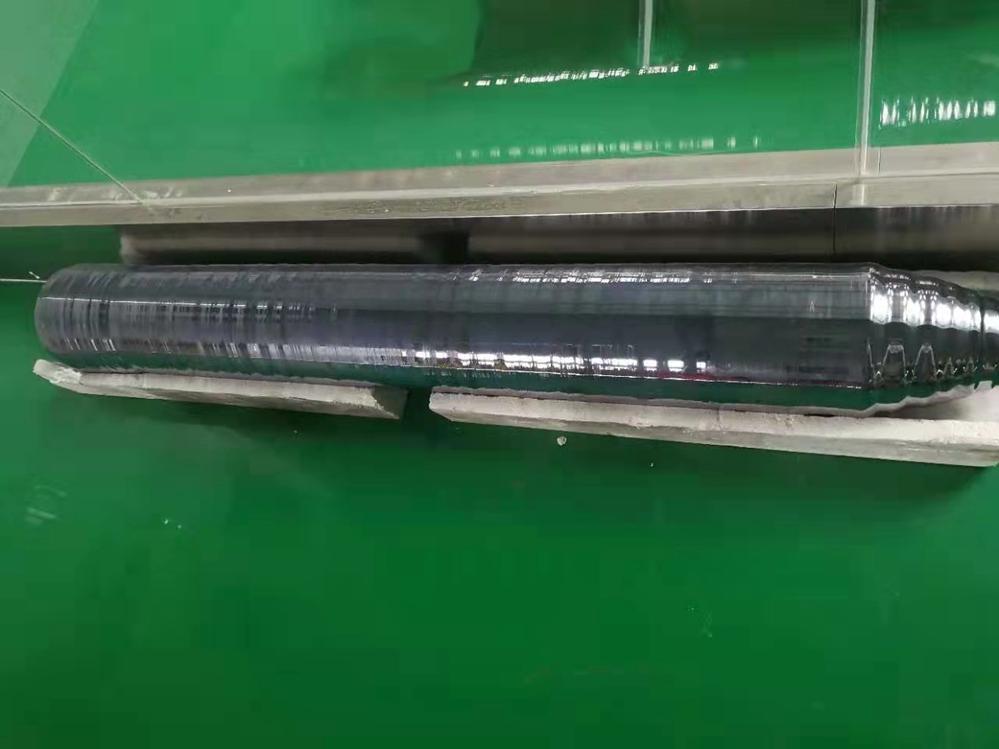

Silicon ingots are key components for the semiconductor and optical industries. PGO TECH offers a variety of standard 150mm silicon ingot options, also known as 6-inch silicon wafers/6-inch silicon ingots, suitable for a wide range of applications.
In the CZ method, polycrystalline silicon raw material is put into a quartz crucible, and the quartz crucible is set in a graphite crucible surrounded by a graphite heater in a crystal pulling chamber. The materials are melted by heating in an argon atmosphere under vacuum and then slowly pulled using a seed crystal. Then pull the ingot. PGO TECH has a large inventory of 150 mm wafers in P<100>, N<100>, P<111> and N<111> types and orientations. Below is a sample of some of the silicon ingots we currently have in stock. In addition, we are committed to meeting our customers' special specifications or standard requirements.
General specifications | ||||||||
diameter | type | dopant | direction | Resistivity (ohms-cm) | ||||
150mm | part number | Boron/phosphorus/arsenic | <100>/<111> | 0.0006-200 | ||||
Sample specifications | ||||||||
diameter | type | dopant | direction | Resistivity (ohms-cm) | ||||
150mm | phosphorus | boron | <100> | 1-5 | ||||
150mm | nitrogen | antimony | <100> | 0.01-0.018 | ||||
150mm | phosphorus | boron | <100> | 1-8 | ||||
150mm | phosphorus | boron | <111> | 0.001-0.002 | ||||
150mm | phosphorus | boron | <100> | 1-100 | ||||
150mm | phosphorus | boron | <100> | 2-8 | ||||
150mm | nitrogen | phosphorus | <100> | 1-10 | ||||
VIEW MORE
