European standard custom size ceramic fiber fireproof gasket braided rope
- 1 piece
- Rosewool Insulation Refractory Co., Ltd.
- Henan, China
- Mr chilli
Product Detail

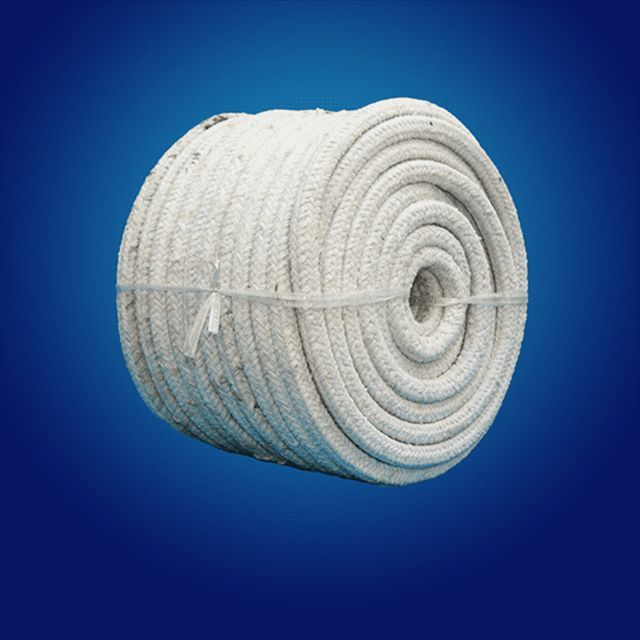

Introduction to ceramic fiber rope:
Density: 500±15kg/cubic meter
Raw materials: Ceramic fiber in bulk
Thickness: according to different needs
Asbestos: 100% asbestos-free
Function: insulation, sealing, filling
Ceramic fiber textiles include ceramic fiber cloth, ceramic fiber belts, twisted ropes, round braided ropes and square braided ropes. All products are made from our premium ceramic fiber material. They can be used in high temperature applications up to 2300°F. The rope is reinforced with fiberglass filaments and optional Inconel/alloy wire. Ceramic fiber textiles (cloth, tape, rope) contain a certain amount of binder material and usually burn at lower temperatures without affecting the insulation properties.
SSJD ceramic fiber rope is a braided fabric made of high-quality ceramic fiber braided yarn. Ceramic fiber ropes can be added with glass fiber and stainless steel wire reinforcements according to different working temperatures and working conditions.
Ceramic fiber rope technical parameters:
|
Grading temperature |
1260℃ |
|||
|
product |
round braided rope |
square braided rope |
||
|
basic materials |
ceramic fiber |
ceramic fiber |
ceramic fiber |
ceramic fiber |
|
Glass fiber reinforced |
stainless steel reinforced |
fiberglass |
stainless steel reinforced |
|
|
Theoretical density (kg/m3) |
500~650 |
500~650 |
500~650 |
500~650 |
|
Specifications (mm) |
50000/10000*25/50 |
10000*(50*50) |
||
|
Moisture content(%) |
≤2 |
|||
|
delivery status |
Rolled |
|||
|
Organic content (%) |
≤15 |
|||
ceramic fiber rope application:
Common Applications: Door sealing or caulking for ovens, furnaces and boilers, expansion joints, cable or pipe wrapping, high temperature seals or gaskets. Widely used in welding, foundries, aluminum and steel plants, boiler insulation and sealing, exhaust systems, shipyards, refineries, power plants and chemical plants.
ceramic fiber ropefeature:
1. Good compressive strength
2. Non-toxic and environmentally friendly
3. Low thermal conductivity and low heat capacity
4. Good acid, oil and water vapor resistance
Notice:Safety first. Follow good safety/industrial hygiene practices during insulation. Wear appropriate personal protective equipment. Read the SDS and literature before specifying and insulating.
