square rope braided with ceramic fibers

  • $3.00 / >=10 kilograms
  • 10 kilograms
  • DKJL Co., Ltd.
  • Beijing, China
  • Ms Cherie Huang

Product Detail

application:adiabaticmodel:1260
Operating temperature:1050Supplier Properties:manufacturer
Supply capacity:5 tons per daytype:round rope
length:20-400M/rollapplication:Replace asbestos rope
place of origin; place of origin:Shandong Chinapack:woven bag
diameter:5-100mmThermal Conductivity:0.20(1000℃)
Fiber Diameter:3-5 micronsgrade:HP (high purity)
color:whiteCertification:ISO9001
Moisture content:<=2%Ultimate strength (≥ MPa):12
Organic content:<=15%Name:Ceramic fiber braided rope
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Escrow of alibabawidth:according to your request
chemical composition:Aluminum Silicatedensity:500-650KG/M3
Packaging Details:Woven bag, carton, or according to customer requirementsport:any Chinese port
Shrinkage (1800°F, 3h):1.5 (1000C)brand:DKJL
thickness:according to your request

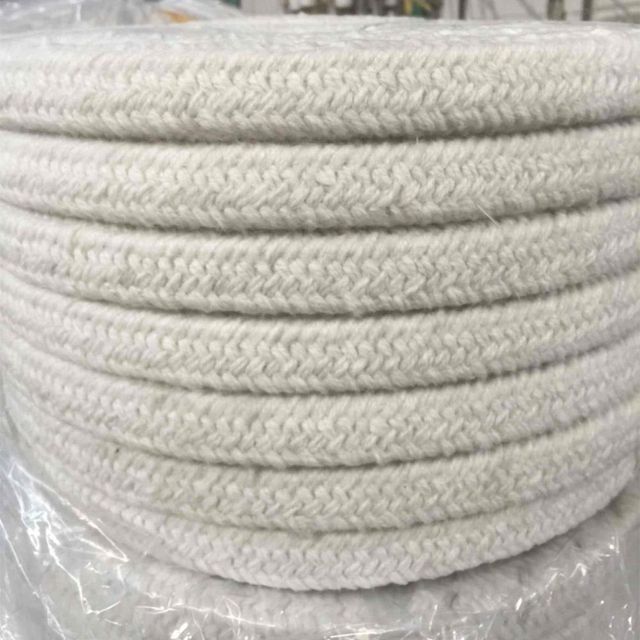

Ceramic fiber braided square rope



Product Description


The ceramic fiber rope is made of special high-strength swinging long fiber with good spinning performance. It is woven by spinning. According to different use temperatures or different use conditions, glass wool, stainless steel or other reinforcing materials are added to enhance the strength of the rope.





According to different processes, ceramic fiber ropes can be divided into round ropes, square ropes and twisted ropes.



Ceramic fiber rope specifications: 6.0mm~50mm

Operating temperature: 800- 1200°C.

Length: 25m, 30m, 50m 1 roll or according to customer requirements.





advantage:

(1) Excellent heat resistance, the continuous use temperature of alloy steel wire rope can reach 1260℃.

(2) It has excellent corrosion resistance to non-ferrous metals such as acid, oil, gas, aluminum and zinc.

(3) Excellent high temperature strength and tensile strength,

(4) Excellent electrical insulation,

(5) Non-toxic and harmless, no adverse effect on the environment.

(6) Excellent chemical stability and thermal stability

(7) Low thermal conductivity and low heat capacity, so that the product has excellent thermal insulation

(8) Resist external mechanical force

(9) Can withstand any thermal shock

(10) No gap is created between modules





application

Ceramic fiber rope (can replace asbestos rope) is widely used in fire prevention, heat insulation, fire prevention, sealing; metallurgy, chemical industry, ceramics, glass, refractory materials, shipbuilding, aerospace, automobile, machinery, electronics, building materials, light industry and other industries Department of friction braking, noise reduction, high temperature filtration

(1) Insulation and sealing of high temperature pipelines

(2) Cable insulation coating

(3) Coke oven opening and sealing

(4) Expansion joint of brick wall of pyrolysis furnace

(5) Electric furnace, oven door seal, boiler

(6) High temperature gas seal

(7) Flexible expansion joint connection;



Technical indicators of ceramic fiber braided rope:



Ceramic fiber twisted rope



strengthen

Diameter (mm)

twisted strands

glass filament

5 to 60

1 or more shares

Glass wire+sswire

5 to 60

1 or more shares





Ceramic fiber round braided rope



strengthen

Diameter (mm)

weave

glass filament

5 to 60

2 or 4 tracks

Glass wire+sswire

5 to 60

2 or 4 tracks





Ceramic fiber square (rectangular) braided rope



strengthen

Diameter (mm)

weave

glass filament

5 to 60

2 or 4 tracks

Glass wire+sswire

5 to 60

2 or 4 tracks





DKJL ceramic fiber product cover

ceramic fiber paper

ceramic fiberboard

Ceramic Fiber Blankets and Felts

ceramic fiber block

Various mechanically anchored ceramic fiber modules

Ceramic fiber textiles (ceramic fiber yarn, cloth, tape, twisted rope and braided rope)

Special-shaped ceramic fiber products/vacuum-formed ceramic fiber products

refractory adhesive



Technical data:

thing

Alumina
+SiO2
%

Alumina
%

Fe2O3
%

K2O
+Na2O
%

Fiber length mm

Fiber diameter μm

Linear change rate %

Bulk density kg·cm-3

Thermal conductivity W·(m·K)-1

Operating temperature

BF100

97

≥45

≤1.1

≤0.4

20~60

3~8

≤3
(1150,6h)

200

≤0.14
(900)

950~100

BF105-110

99

≥52

≤0.12

≤0.1

20~40

2~5

≤4.5
(1300,6h)

220

≤0.22
(900)

1050~1100

BF120

98.5

≥58

≤0.3

≤0.2

20~630

2~5

≤4.5
(1350,6h)

300

≤0.18
(1200)

1200

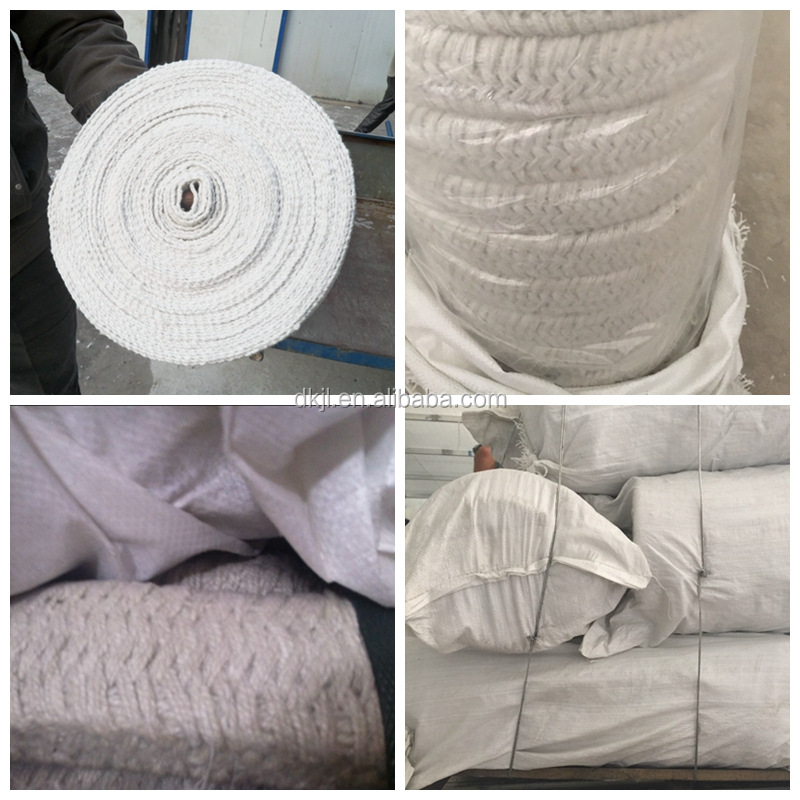

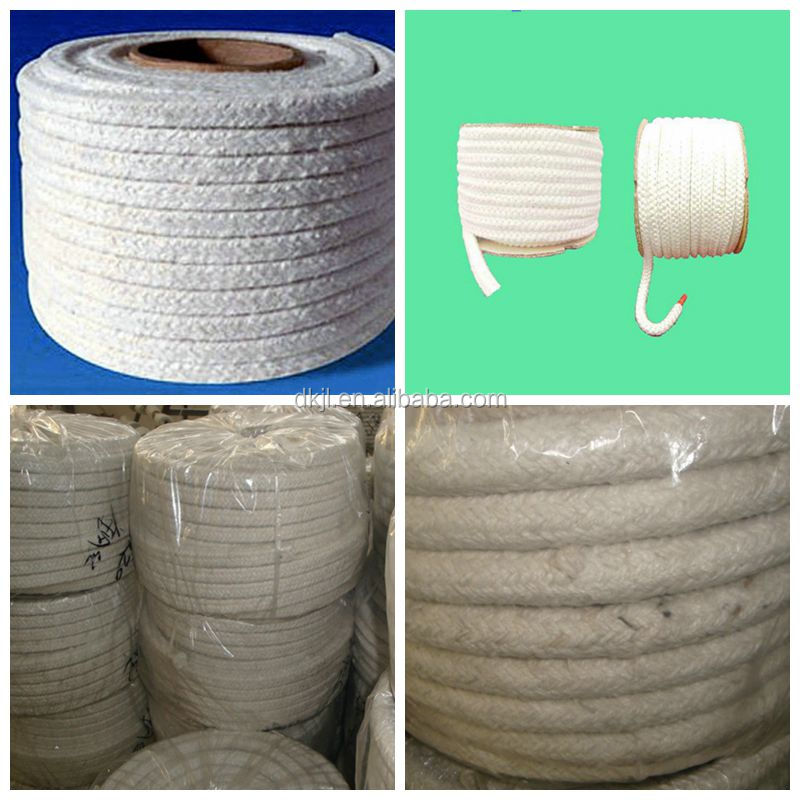

picture of ceramic fiber braided rope



Packaging and Shipping



Packing: woven bag or carton, inner plastic bag

By sea: by boat or train from any port in China,

Samples can be delivered by international express.







Ceramic fiber braided rope packaging
