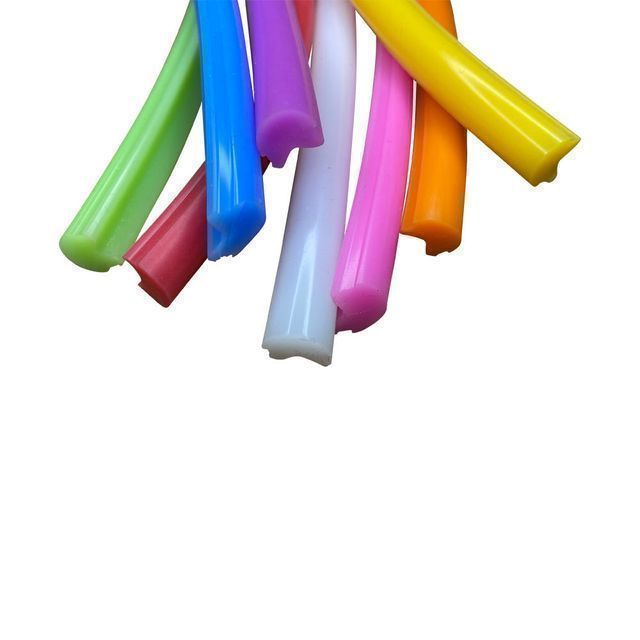

Neon sign material new generation separation led neon sign bendable separation flexible silicone
- $0.60 / >=10 meters
- 10 meters
- Suzhou JHG Advertising Sign Co., Ltd.
- Jiangsu, China
- Ms Flora Jiang
Product Detail
| product name: | silicone tube | port: | Shanghai |
| place of origin; place of origin: | Jiangsu, China | size: | 6/8/12mm |
| payment terms: | Western Union, T/T | MOQ: | 10 m |
| application: | neon sign making | model: | 8mm |
| Supply capacity: | 20000 meters per day | Processing services: | to cut |
| brand: | JHG | color: | 13 colors |
Have you encountered the following problems when making led neon lights?

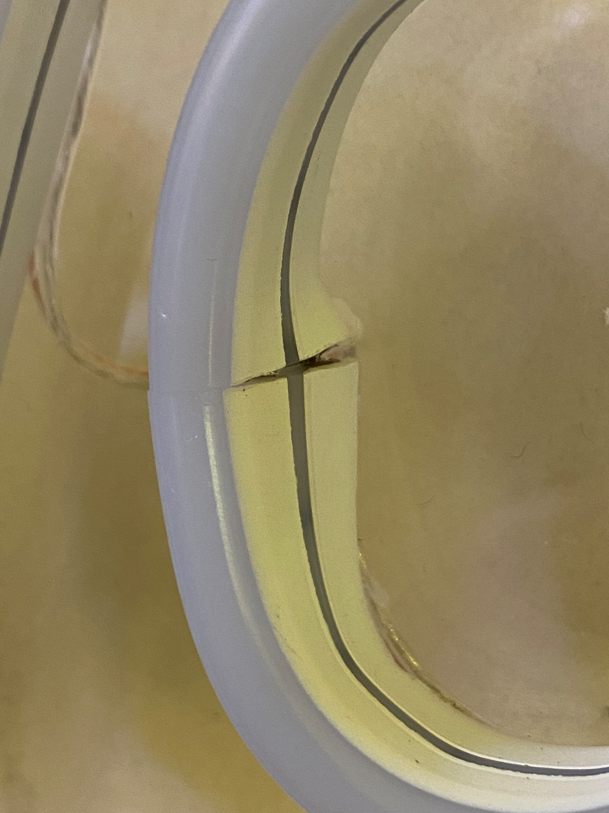

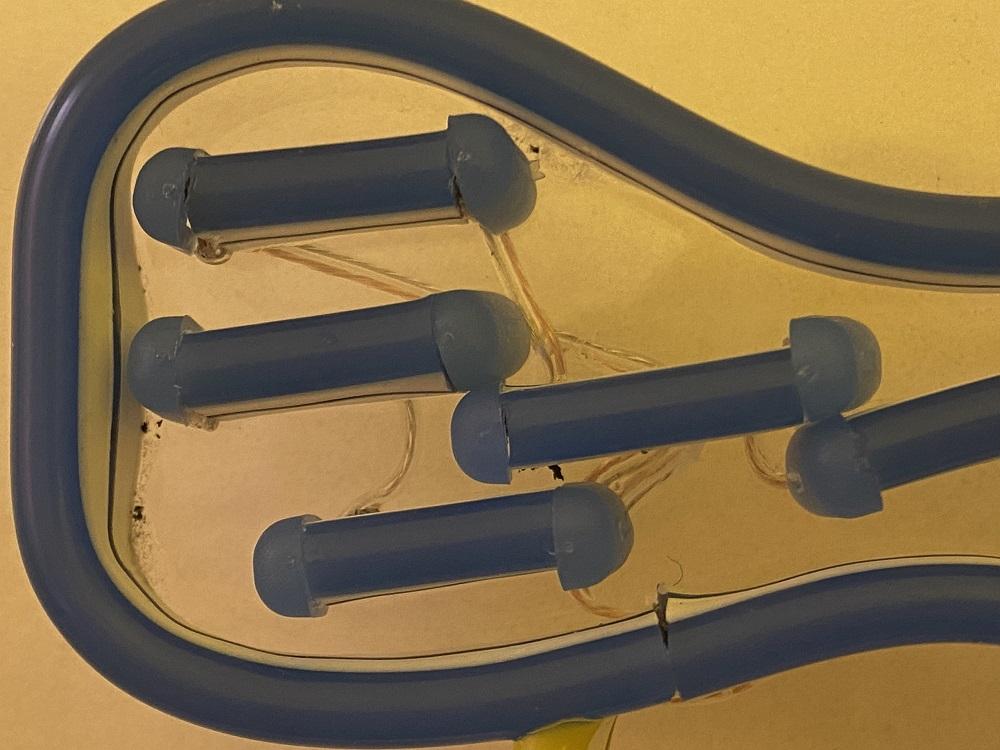

no perfect connection
The interface doesn't look perfect due to the constraints of the wires and the need for glue to hold it together
end cap required
Each individual part of the hose needs to be glued to the end cap, otherwise light leaks will detract from the overall effect.
Cut length limit
Strips have a 1cm or 2.5cm cut limit. It is not easy to make complex or small size designs. and engraving files.
Now we have a second generation LED neon sign making solution!
This allows you to easily create neon signs.

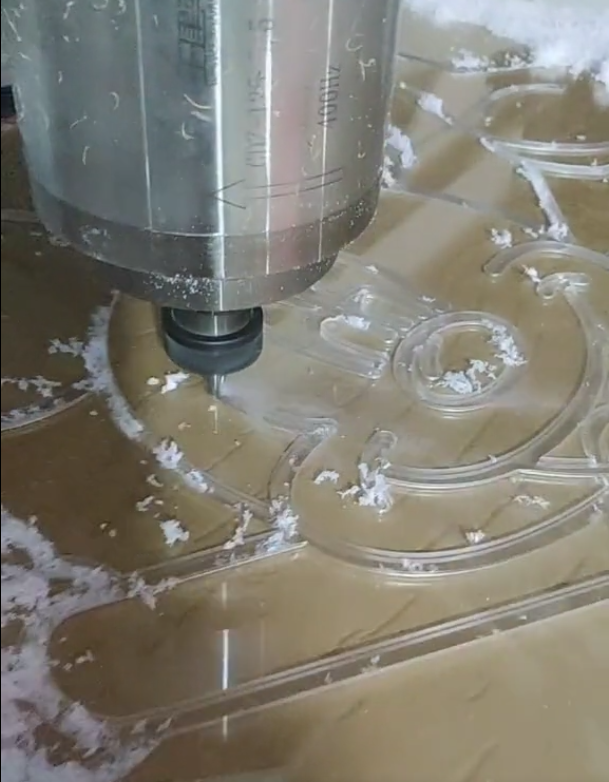

Step 1 - Acrylic Engraving
Engraving the acrylic backplate with our milling cutter
The depth of acrylic carving above 5mm is 4.2mm;
Acrylic engraving depth 5.8mm above 7mm;

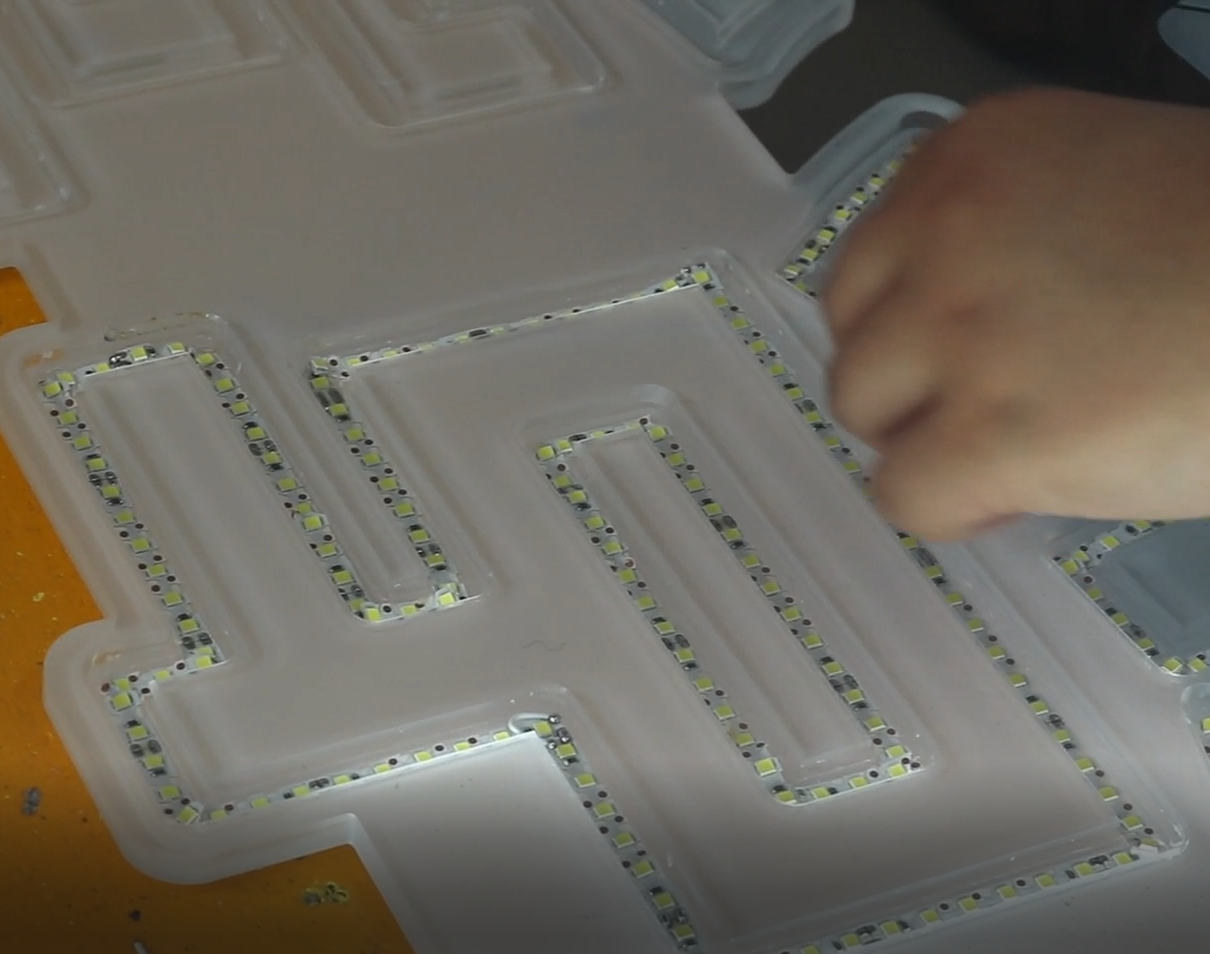

Step 2 - Laying the LED Strips

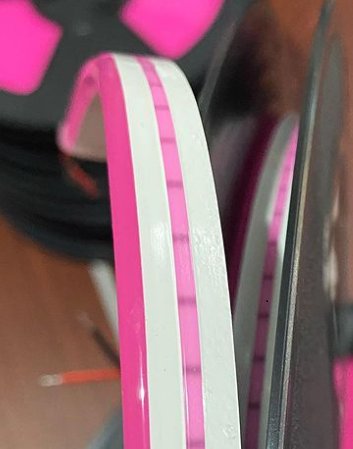

Colorful light strips with colored silicone tubes;
Colored light strip with white silicone tube;
both can work

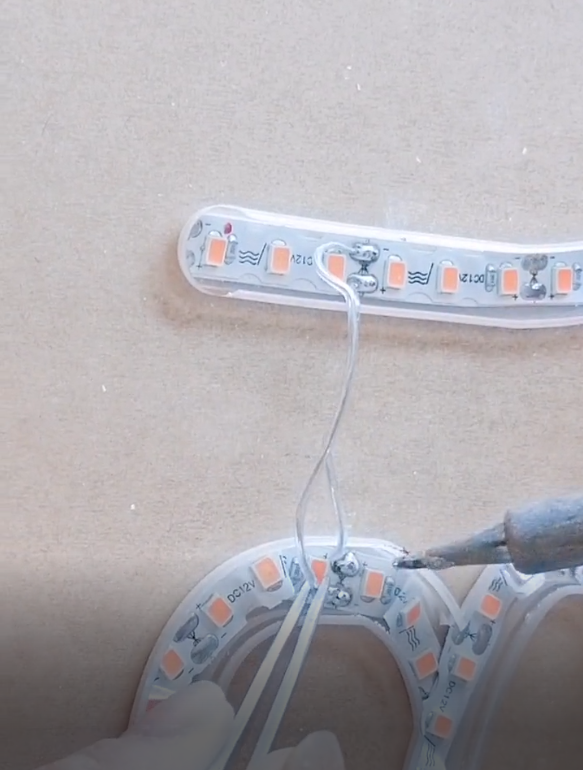

Step 3 - Connecting Wires
Ensure that the solder joints are round and free of burrs, blow off foreign objects on the PCB board, and avoid the risk of short circuit;

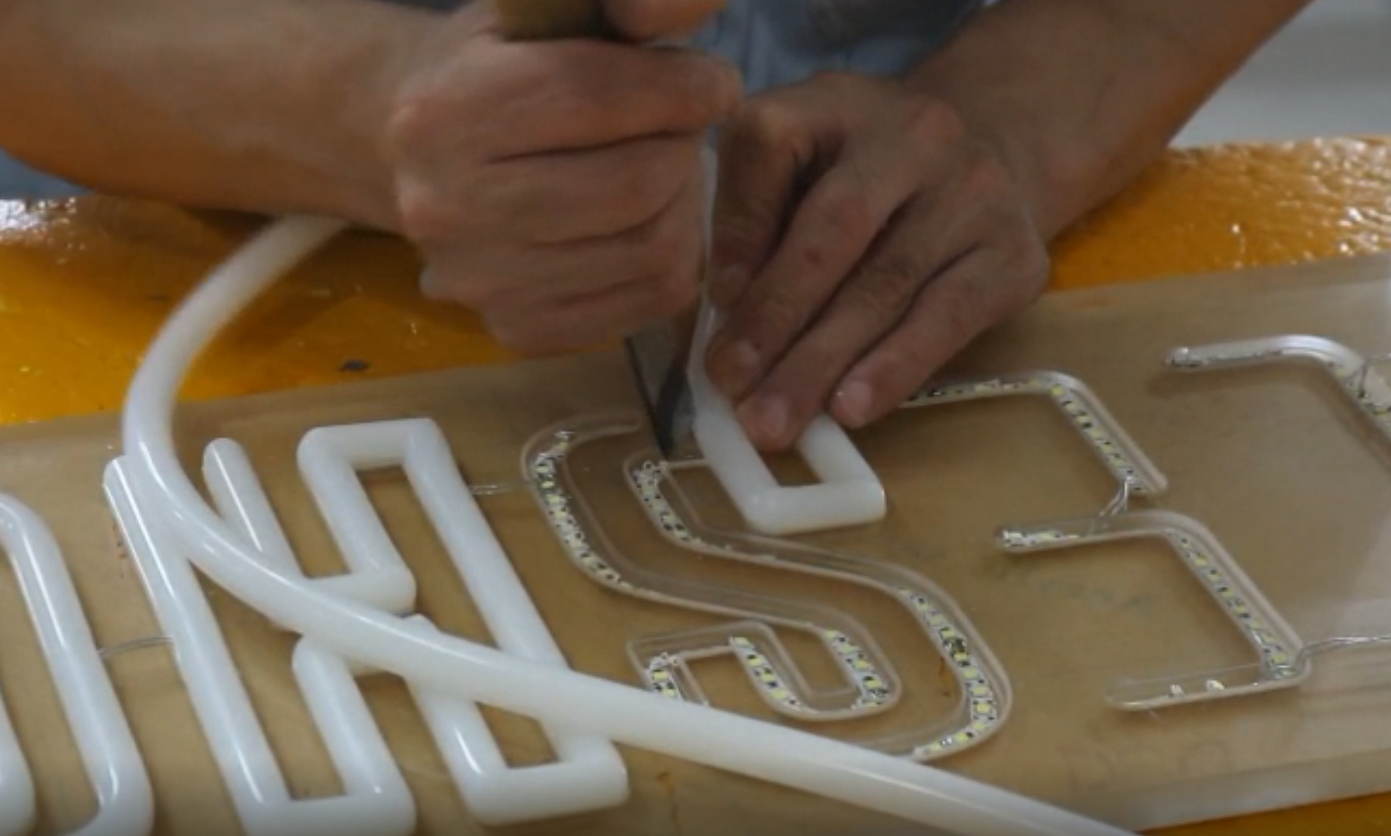

Step Four - Install the Silicone Tubing
Cut silicone tubing with our hand tools;The silicone tube can be locked into the acrylic without any glue process;

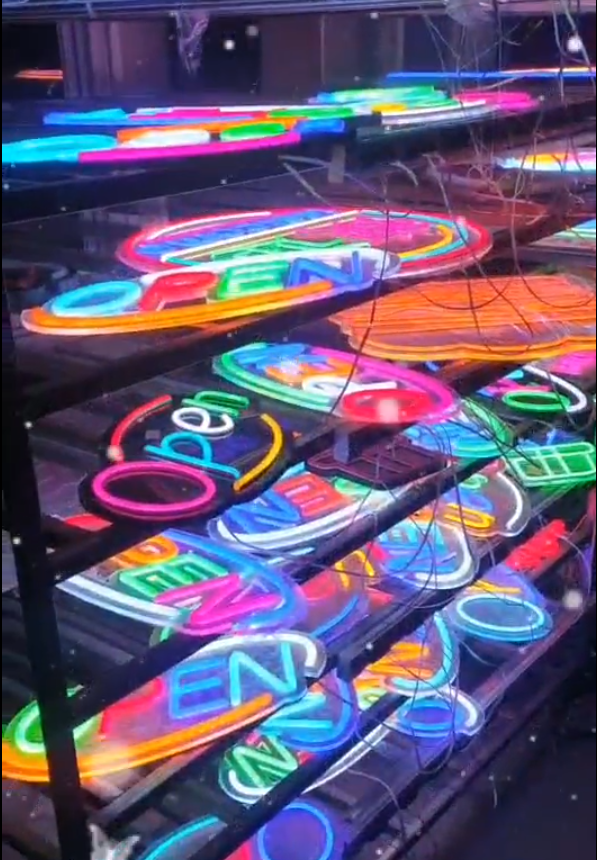

Step 5 - Neon Sign Aging
Aging time: 12-24 hours;When aging, check whether there are black spots on the light strip, and leave all problems to the factory to solve;

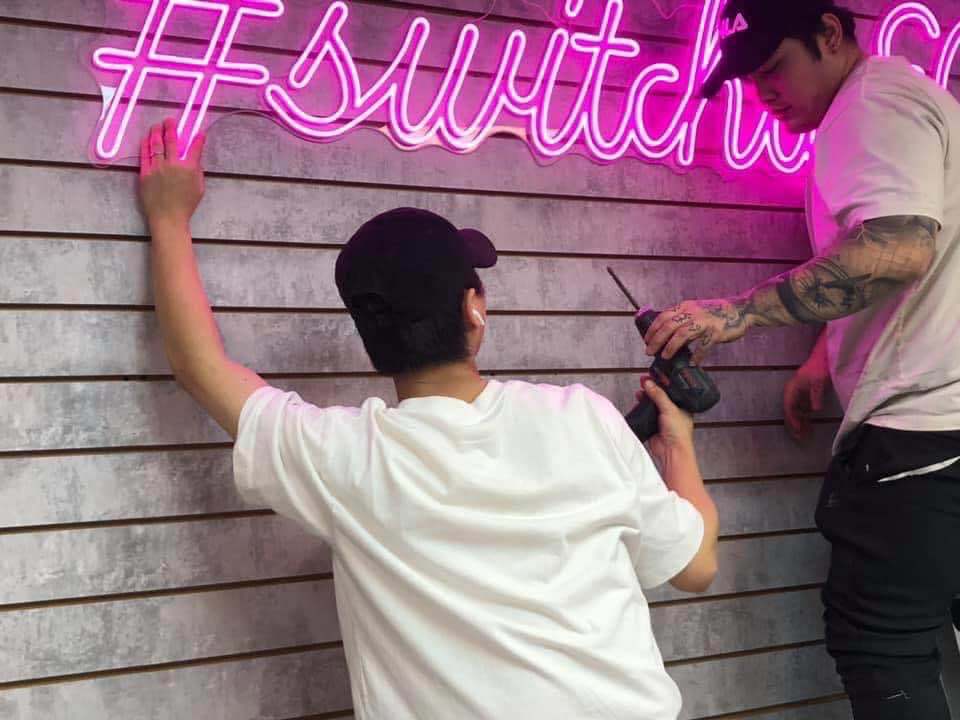

Step Six - Installing the Neon Signs
Common installation methods include ceiling and wall installation. For outdoor use, a waterproof process is required;
Product Description

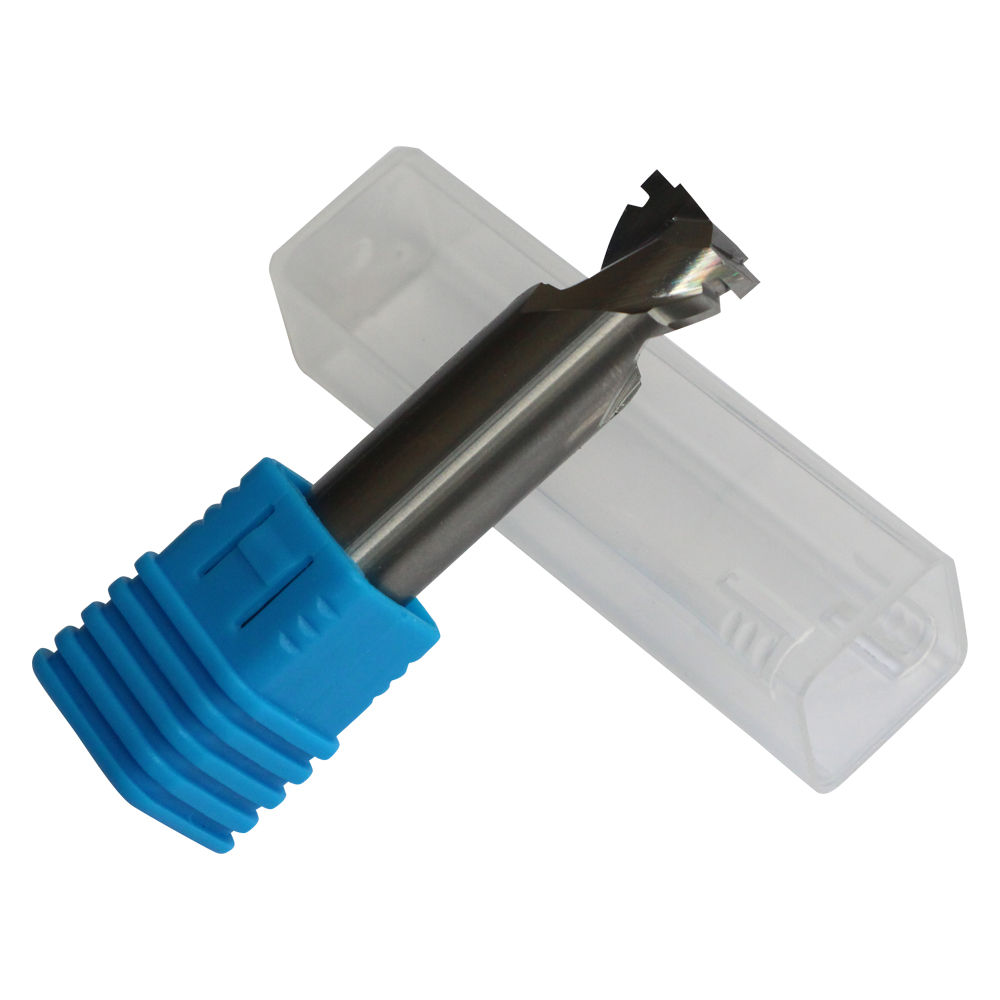

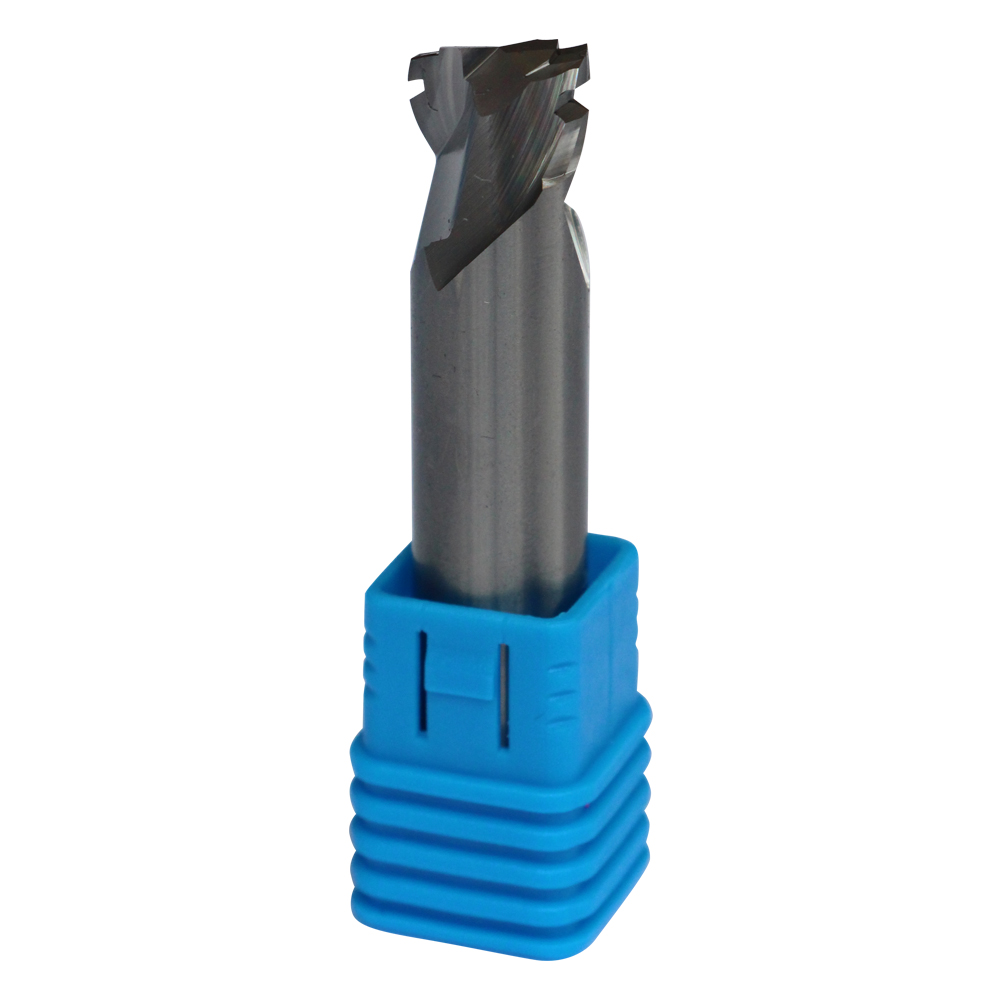

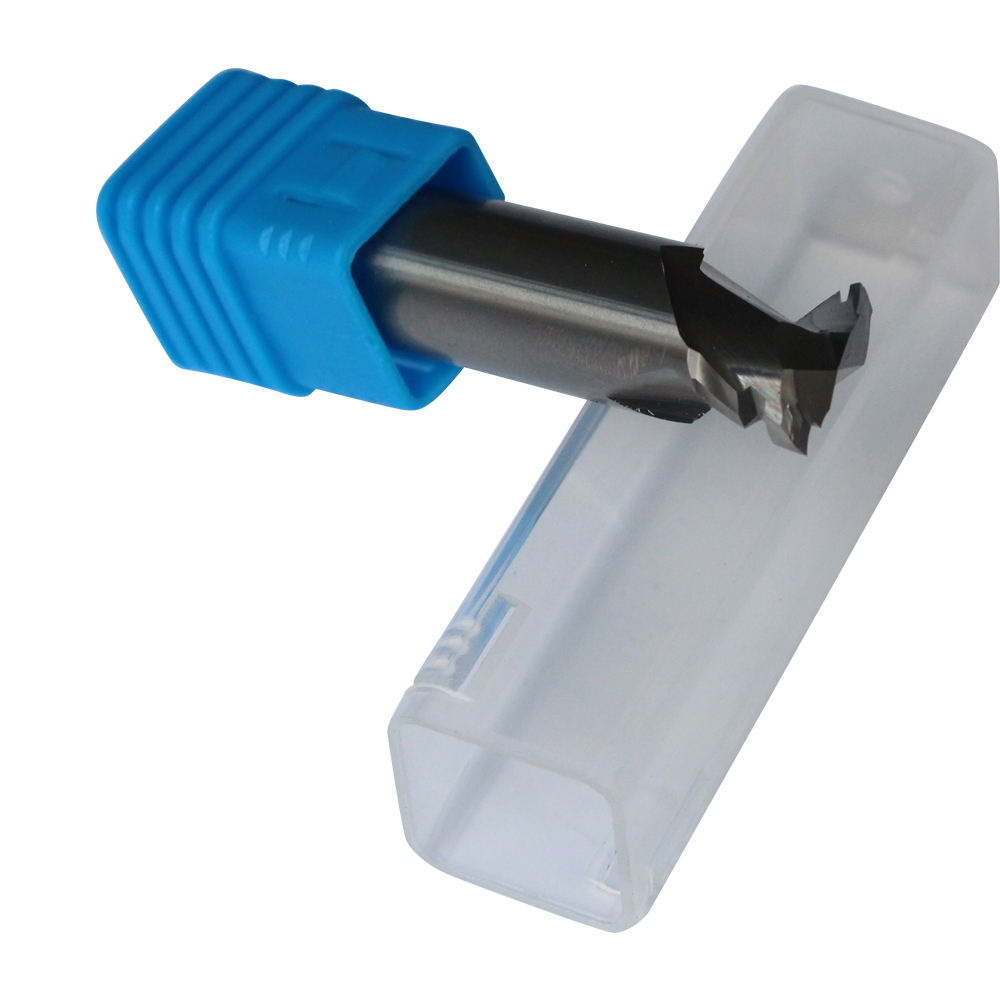

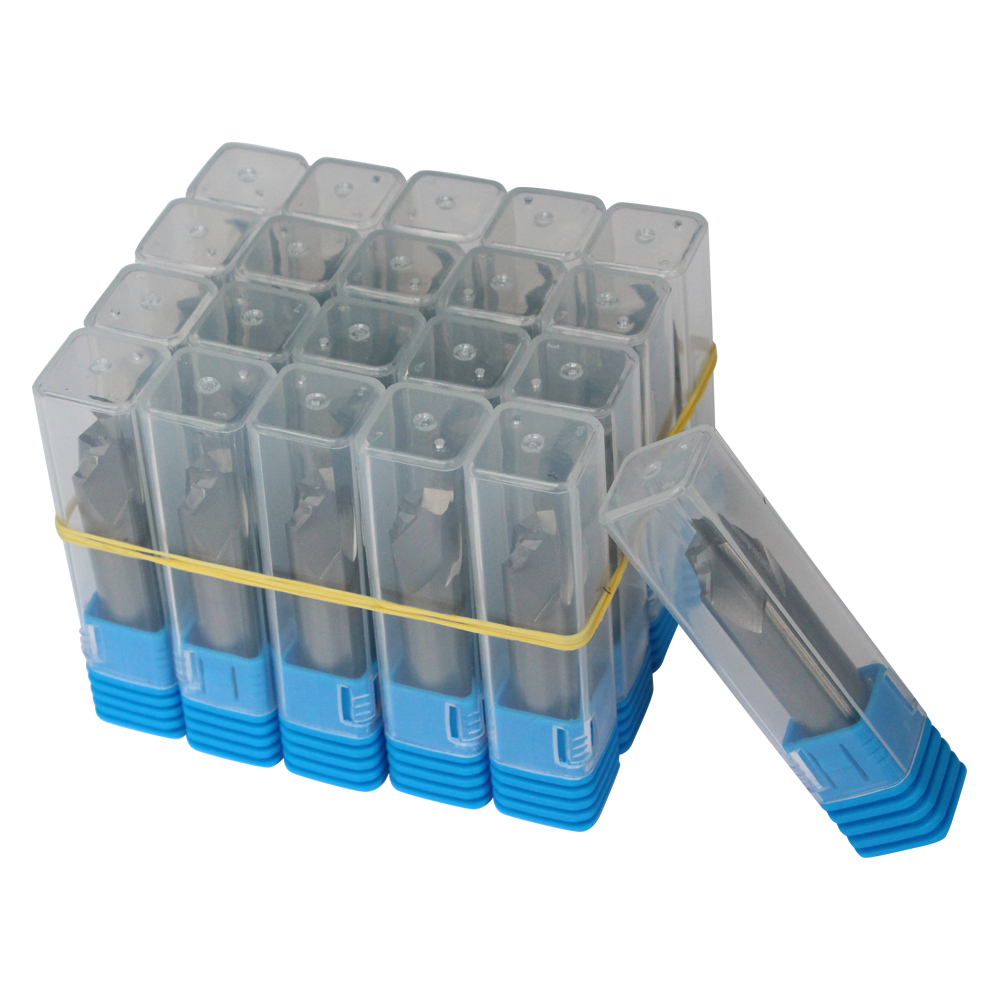

milling cutter
size | Applicable silicone tube size | Shank diameter | Engraving Depth | Applicable acrylic thickness |
6*4.2mm | 6mm tube | 6mm/10mm | 4.2mm | 5 mm |
6*5.8mm | 6mm tube | 6mm/10mm | 5.8mm | 7mm |
8*4.2mm | 8mm tube | 6mm/10mm | 4.2 mm | 5mm |
8*5.8mm | 8mm tube | 6mm/10mm | 5.8mm | 7mm |
12*5.8mm | 12mm tube | 6mm/10mm | 5.8mm | 5 mm |

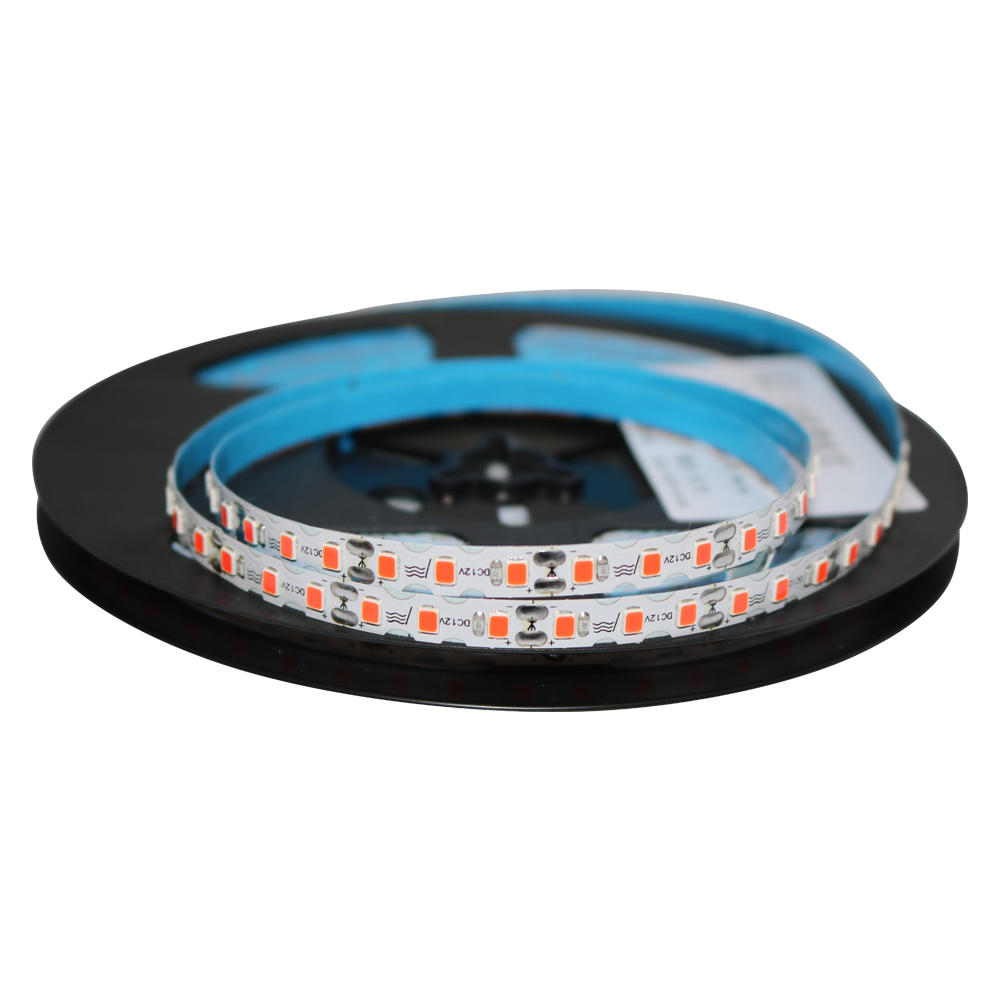

light strip
Voltage | DC 12V | DC 5V | DC 24V |
pack | 10m/roll | 10m/roll | 10m/roll |
Number of lamp beads | 120 pcs/m | 120 pcs/m | 120 pcs/m |
cutting length | 2.5cm/1cm | 2.5cm | 5 cm |
strength | 8 W/m | 8 W/m | 8 W/m |
PCB width | 6.7 mm | 6.7 mm | 6.7 mm |
color | 14 types | 14 types | 9 types |
waterproof glue
appendix

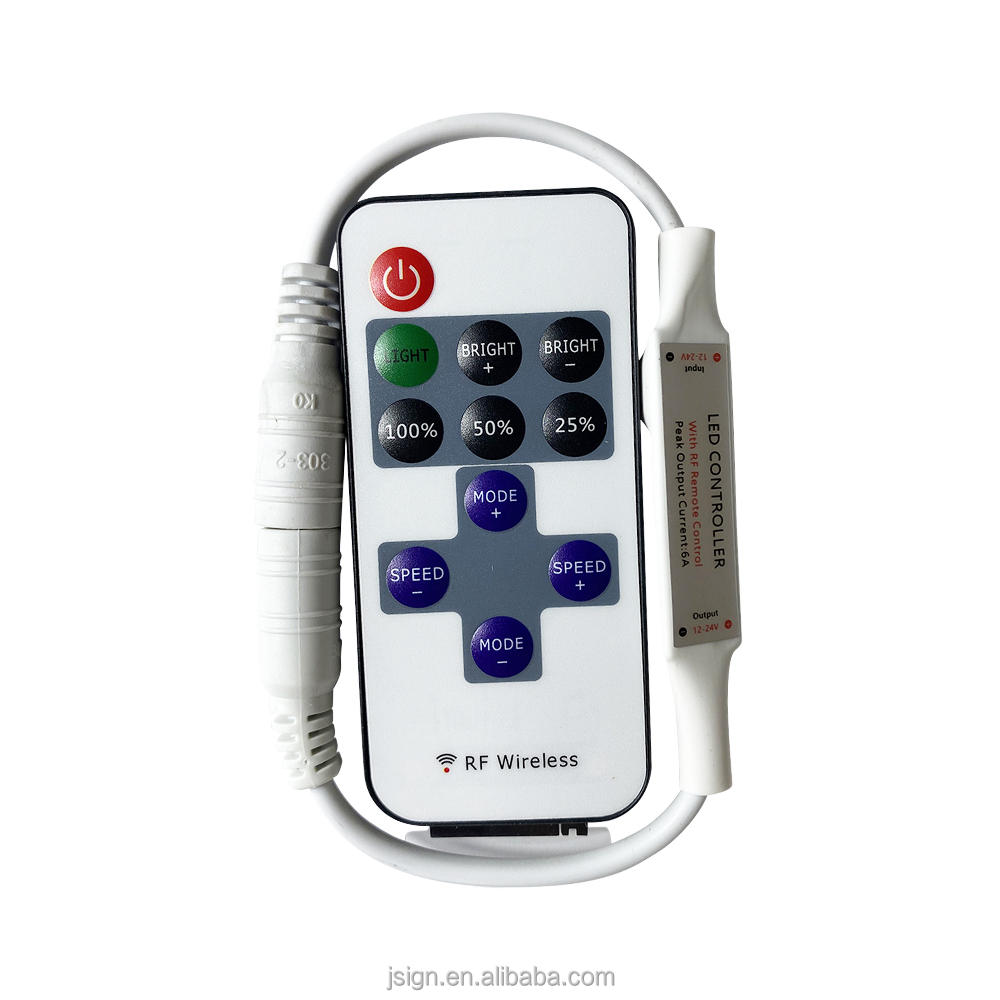

remote dimmer

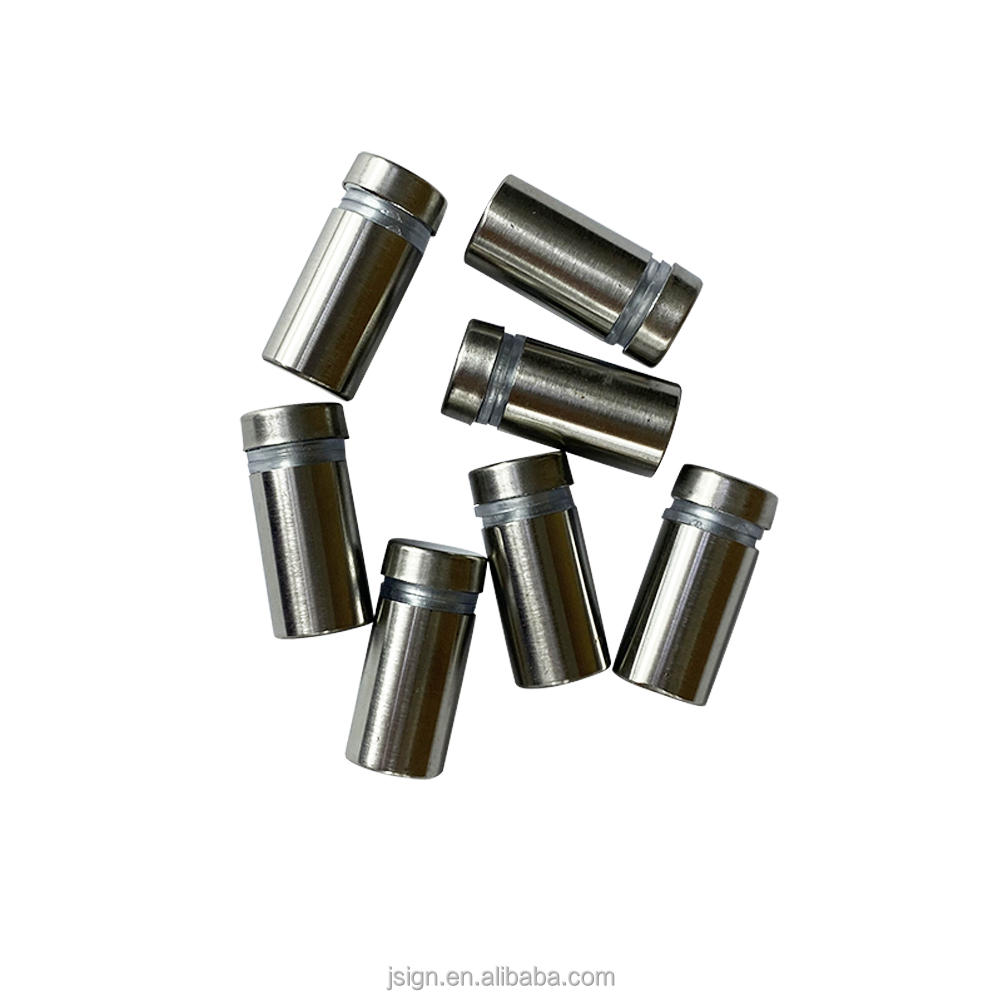

wall mount spacer

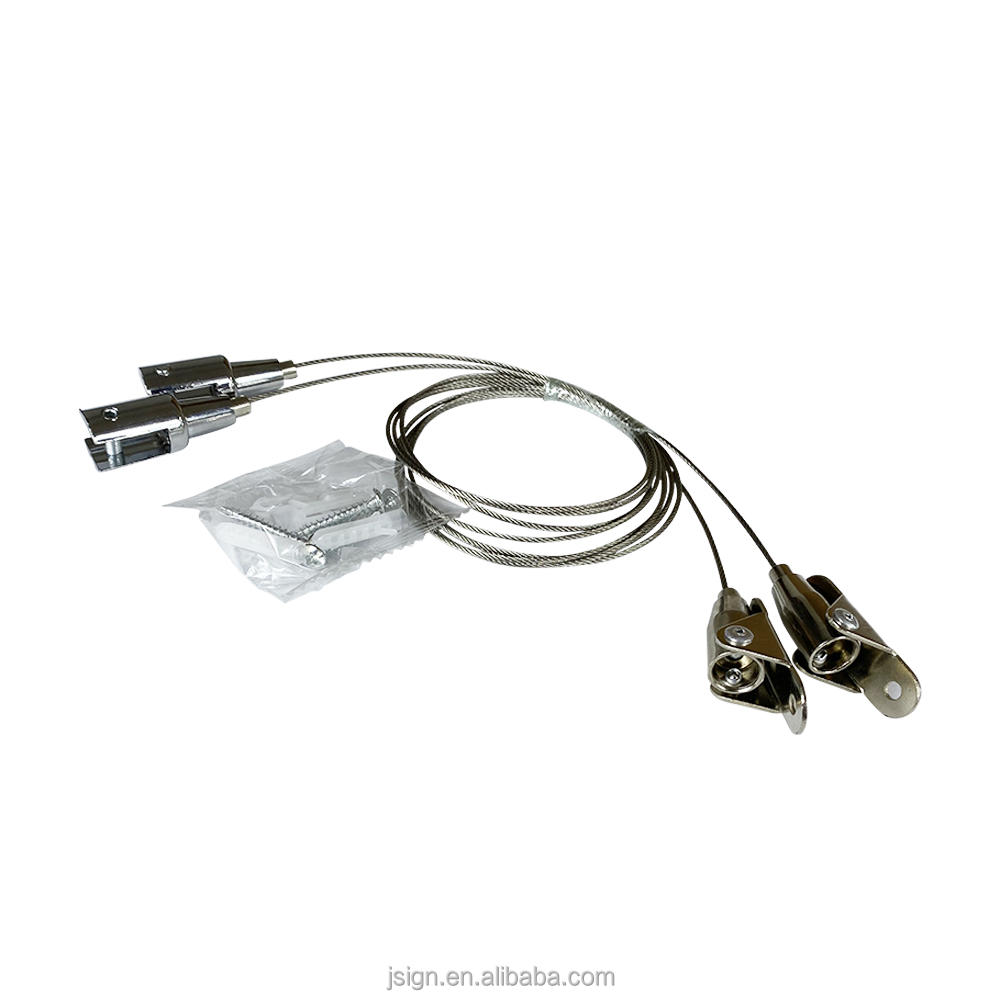

pendant

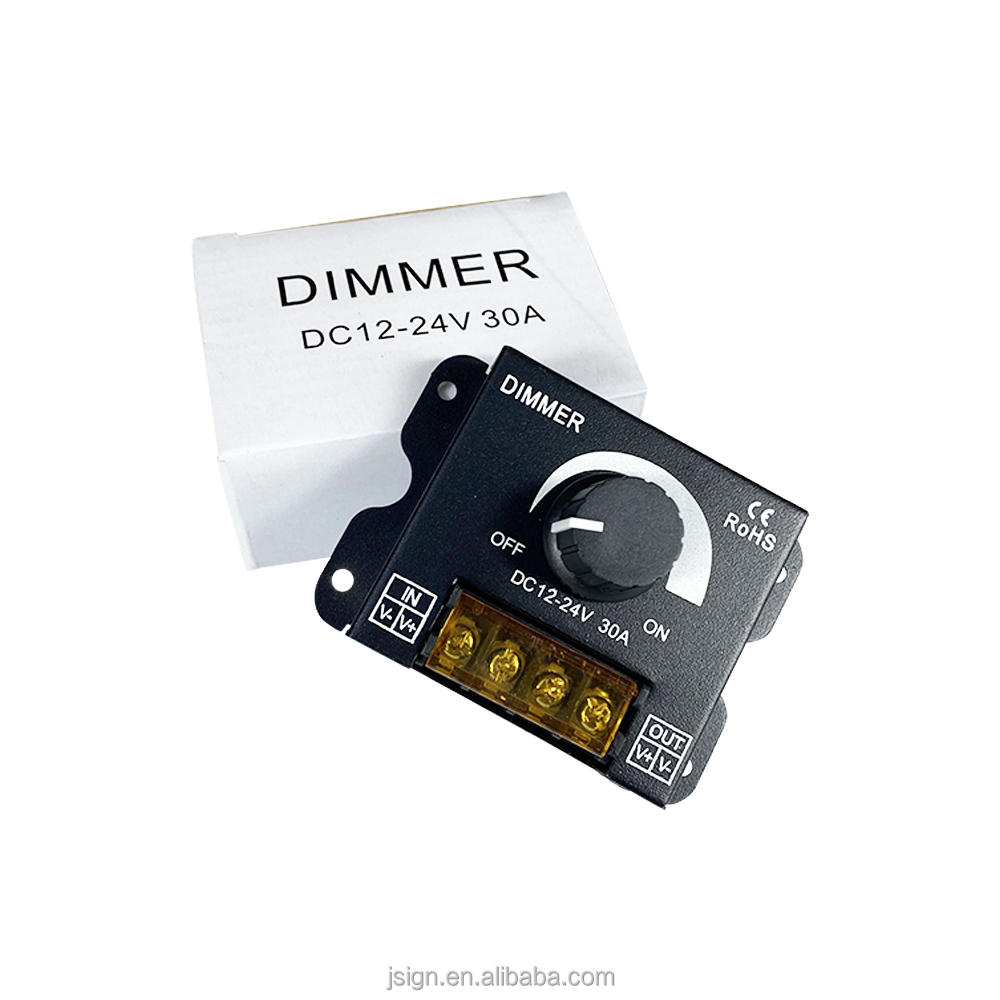

manual dimmer

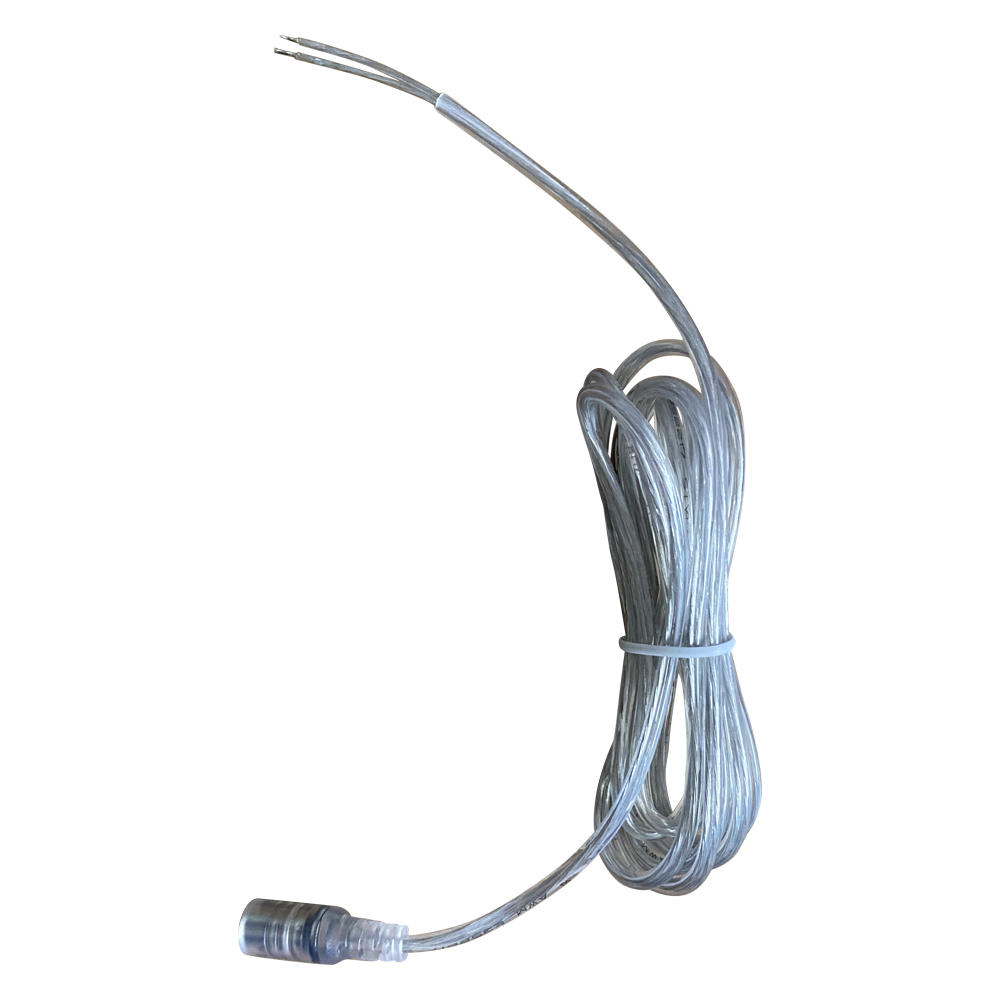

DC connector

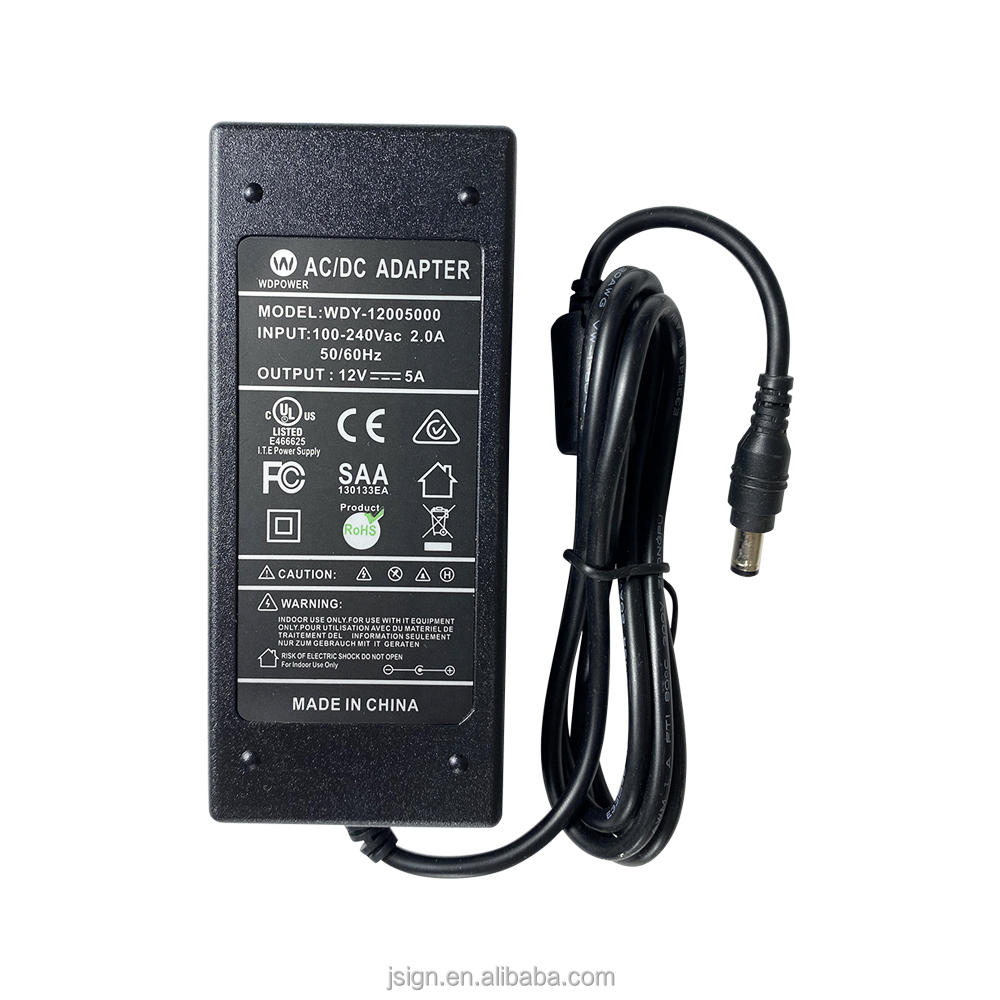

power supply
