FEP PTFE tube insulation Mylar film shrink tube medical insulation heat-resistant material PTFE tube
- $0.10 /meter
- 1 meter
- Shenzhen Yihuiyuan Technology Co., Ltd.
- Guangdong, China
- Mr Bert
Product Detail
| thickness: | as custom | Specification: | as custom |
| size: | as custom | standard: | ISO/ROHS |
| place of origin; place of origin: | Guangdong, China | Package preview: | |
| port: | Shenzhen | Material: | PTFE |
| model: | 23456 | Supply capacity: | 10000 boxes per day |
| brand: | Yihui Garden | length: | as custom |
| color: | White, natural color, brown, red, orange, etc. | purity: | 100% virgin |
| feature: | Corrosion Resistant, Dielectric | place of origin; place of origin: | Dongguan, China |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Packaging Details: | 50*50*45 |
describe:

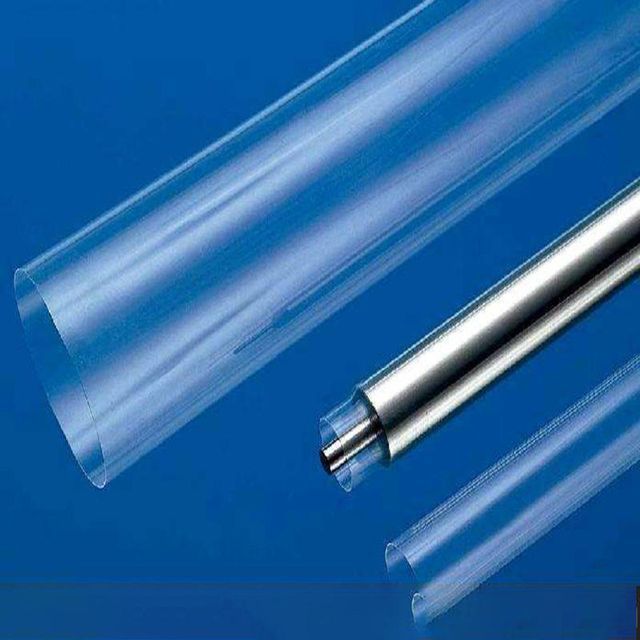

PTFE heat shrink tubing has a very high continuous use temperature (260°C) and excellent chemical resistance. It is available in 1.7:1 and 4:1 shrink ratios, and while it is the best of the entire range of fluoropolymer heat shrink tubing, due to its extremely high shrink temperature (350-450°C), PTFE It is also the hardest to shrink).
application:
High temperature protection.
car.
printing press.
Medical insulation.
Cable insulation.
Features and Benefits:
Wide operating temperature: -60°C to +260°C
anti-UV
Excellent chemical resistance.
Flame retardant UL 94 V0
characteristic:
|
property |
Test Methods |
typical performance |
|
density |
ASTM D792 |
2.12-2.17 g/cm3 |
|
Shore D hardness |
|
60D |
|
Tensile strength (Mpa) |
ASTM D638 |
27-35Mpa |
|
elongation(%) |
ASTM D638 |
280-400% |
|
flammable |
UL94 |
VW-0 |
|
water absorption |
ASTM D570 |
≤ 0.01% |
|
Thermal Conductivity |
ASTM C177 |
0.25 W/m² |
|
Dielectric constant |
Short time ASTM D149 |
30kv/1mm |
|
shrinkage temperature |
|
380°C |
Specification:
PTFE heat shrink tubing:
|
size |
ID |
wall thickness
|
Get back your ID card |
|
Φ1.5 |
1.8±0.2 |
0.07±0.04 |
0.4±0.1 |
|
Φ2.0 |
2.2±0.2 |
0.07±0.04 |
0.5±0.1 |
|
Φ3.0 |
3.2±0.2 |
0.07±0.04 |
0.7±0.15 |
|
Φ4 |
4.3±0.2 |
0.07±0.04 |
1.2±0.2 |
|
Φ5 |
5.5±0.2 |
0.07±0.04 |
1.4±0.2 |
|
Φ6 |
6.3±0.2 |
0.10±0.04 |
1.7±0.2 |
|
Φ8 |
8.3±0.5 |
0.10±0.04 |
2±0.2 |
|
Φ9 |
9 |
0.10±0.04 |
2.3±0.2 |
1. What can you buy from us?
Heat-shrinkable terminals, solder sleeves, insulated terminals, heat-shrinkable tubes, antennas
2. What is the standard production time for each order?
- About 7-15 days production time depends on the product and quantity. Some items are in stock and we can ship them anytime.
3. Can you provide customized packaging?
-Yes, but some items need MOQ to customize the packaging.
4. How long does the shipment take?
- If you buy by air, it will take 5-7 days, and by sea, it will take 20-30 days.
5. Can I see your catalog?
- certainly. We have the most professional catalog here. Or maybe you tell us where you use it, and we'll recommend related products to save you time.
6. Will I get your samples?
- certainly. Samples are free and trust our quality is the best! And we are very professional.
7. Can you provide OEM service?
- of course can. Welcome to establish a long-term cooperative relationship with us. We believe we can provide you with the best OEM service.
8. How can we ensure the quality and delivery time?
- We have deep relationship with Alibaba, they will check our quality and delivery time. So don't worry.
