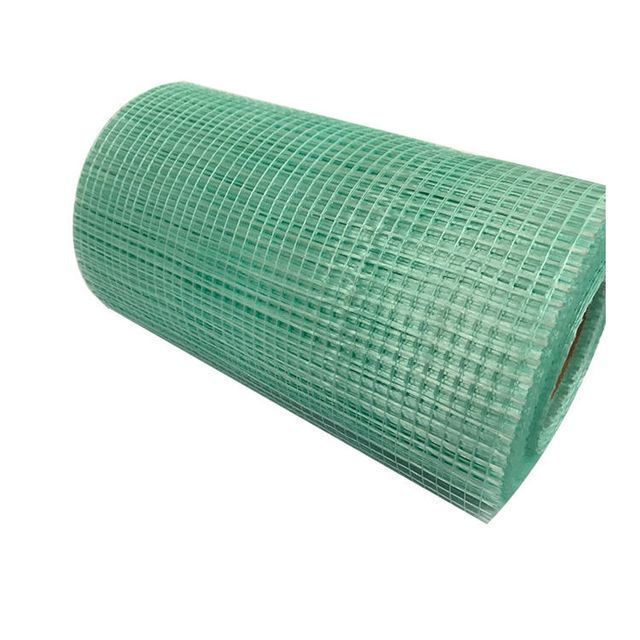

China Fiberglass Mesh Roll 5*5mm Fiberglass Reinforced Mesh Fiberglass Mesh Building Material

  • $0.15 / 5000 - 11999 square meters
    $0.14 / >=12000 square meters
  • 5000 square meters
  • Suqian Yaoxing Fiberglass Co., Ltd.
  • Jiangsu, China
  • Mr yi zhai

Product Detail

weight:70 g/m²brand:shining star
MOQ:50000㎡Braid Type:plain weave
quality:gradepayment terms:L/C, T/T
length:20cm*50m, 20cm*90mplace of origin; place of origin:Jiangsu, China
Certificate:ISO9001application:wall material
port:Lianyungangwidth:20cm
Packaging Details:Shrink film bag per roll, cartonmodel:YX21007
Yarn type:C-glassproduct name:Fiberglass Mesh
Grid size:5mm*5mm, 5mm*5mmSupply capacity:5,000,000 square meters per month
Alkali content:Moderate
Product Description



describe:
Glass fiber mesh cloth is made of glass fiber yarn as the base cloth and coated with alkali-resistant latex. It has the characteristics of good alkali resistance and high tensile strength of warp and weft.
application:
1. Wall reinforcement materials (such as glass fiber wall mesh cloth, GRC wallboard, EPS wallboard for thermal insulation, gypsum board, asphalt)
2. Strengthen cement products.
3. Used for granite, mosaic, marble back net, etc.
4. Waterproof membrane, asphalt roofing.



Model YX21007
color any
Material glass fiber
length 20cm*50m, 20cm*90m





Technical Parameters:



Do not. width tex         grid size          density pieces/square inch to weave resin content weight
  Meter through weft Warp (mm) Weft (mm) through weft Leno % g/m2
1 0-2.1 32x2 204 5 5 5±0.5 5±0.5 Leno 20±2 65±3
2 0-2.1 50x2 255 5 5 5±0.5 5±0.5 Leno 18±2 80±3
3 0-2.1 100x2 306 5 5 5±0.5 5±0.5 Leno 18±2 125±3
4 0-2.1 134x2 357 5 5 5±0.5 5±0.5 Leno 18±2 145±3
5 0-2.1 134x2 408 5 5 5±0.5 5±0.5 Leno 18±2 160±3
6 0-2.1 50x2 204 4 5 5±0.5 5±0.5 Leno 18±2 80±3
7 0-2.1 100x2 255 4 5 6±0.5 5±0.5 Leno 18±2 110±3
8 0-2.1 134x2 306 4 5 6±0.5 5±0.5 Leno 18±2 145±3
9 0-2.1 32x2 201 4 4 6±0.5 6±0.5 Leno 18±2 80±3
10 0-2.1 100x2 204 4 4 6±0.5 6±0.5 Leno 18±2 120±3
11 0-2.1 134x2 255 4 4 6±0.5 6±0.5 Leno 18±2 150±3
12 0-2.1 134x2 306 4 4 6±0.5 6±0.5 Leno 18±2 165±3
13 0-2.1 50x2 306 5 6 5±0.5 4±0.5 Leno 18±2 80±3
14 0-2.1 100x2 357 5 6 5±0.5 4±0.5 Leno 18±2 120±3
15 0-2.1 255x2 408 10 10 2.5 2.5 Leno 18±2 110±3
16 0-2.1 255x2 561 10 10 2.5 2.5 Leno 18±2 125±3
17 0-2.1 375x2 561 10 10 2.5 2.5 Leno 18±2 145±3
18 0-2.1 33x2 45 2.8 2.8 9±0.5 9±0.5 Leno 21±2 50±3
19 0-2.1 33x2 67 2.8 2.8 9±0.5 9±0.5 Leno 21±2 60±3





 Product advantages:
1. Good chemical stability: alkali resistance, acid resistance, waterproof, cement erosion resistance and other chemical corrosion, strong resin binding force, easily soluble in styrene.
2. Exquisite craftsmanship includes applying a sufficient amount of alkali-resistant glue. Our glue can still maintain 60-80% of its strength after 28 days of testing, thus ensuring high strength, high strength and light weight.
3. Our glass fiber yarn is provided by the world's best glass fiber yarn manufacturer, a famous Chinese group. It has 20% extra strength and beautiful surface than ordinary fiberglass yarn.
4. Strength retention >90%, elongation <1%, durability over 50 years.
5. Good dimensional stability, good rigidity and smoothness, not easy to shrink and deform, good positioning, good impact resistance, not easy to tear. Fire prevention, heat insulation, sound insulation, etc.
