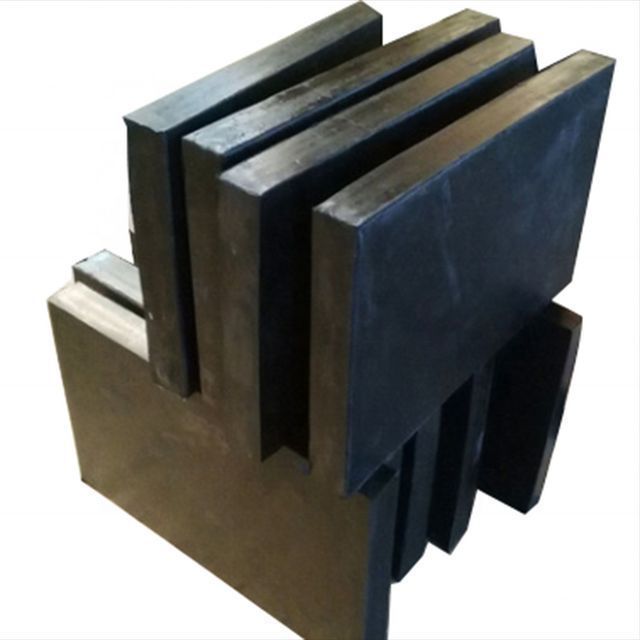

Custom Size Bridge Bearing Pad Laminated Neoprene Block Vibration Pad

Product Detail

sample:usableapplication:Bridges, roads, railways, etc.
Advantage:high quality, low costMOQ:10
Supply capacity:10000 sets per weekmodel:XY-RP-001
feature:Vibration, Sound and Shock Isolation and Absorptionpayment terms:L/C, T/T

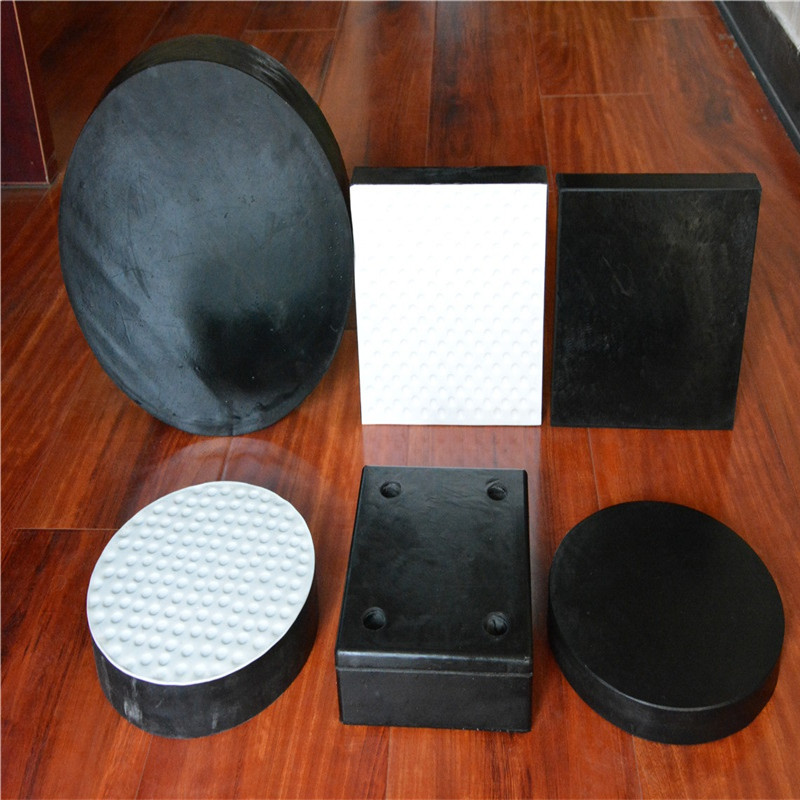

shape:round, rectangularPackaging Details:Generally, we use ziplock bags or bubble film plus cartons, and wooden pallets or wooden boxes if necessary.
product name:bridge bearingport:Tianjin
brand:Xu YuanPackage preview:
color:BlackMaterial:rubber, steel
Processing services:formingplace of origin; place of origin:Hebei china
Product Description

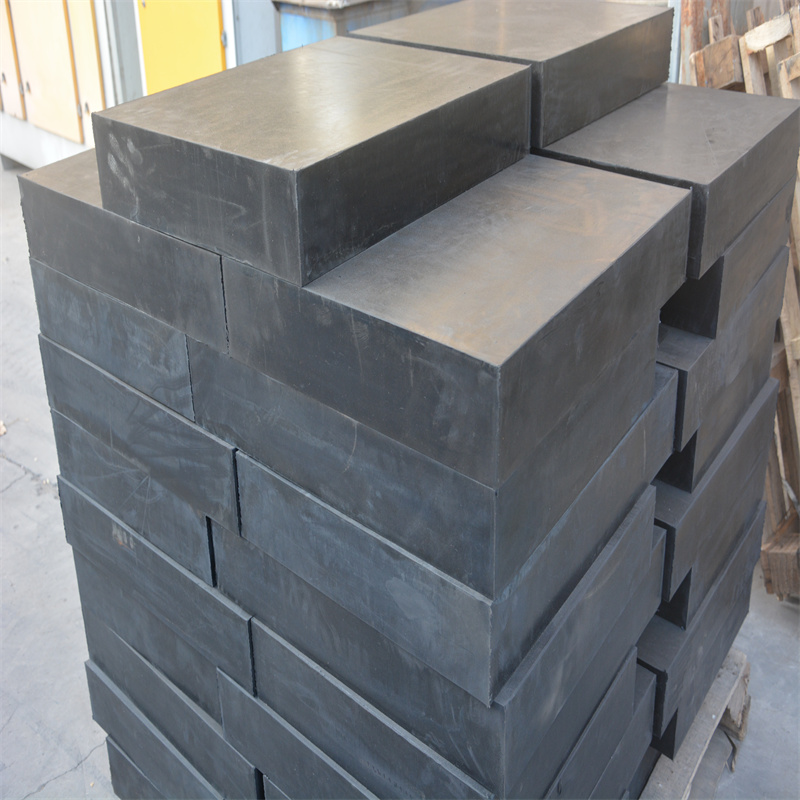

Premium Rubber Bridge Bearing Pads
1) Material: multi-layer natural rubber
2) Certificate: ISO, CE
3) Features: It has sufficient vertical stiffness to support vertical loads, and can transmit the pressure of the superstructure to the abutment. 4) The size can be produced according to your requirements.

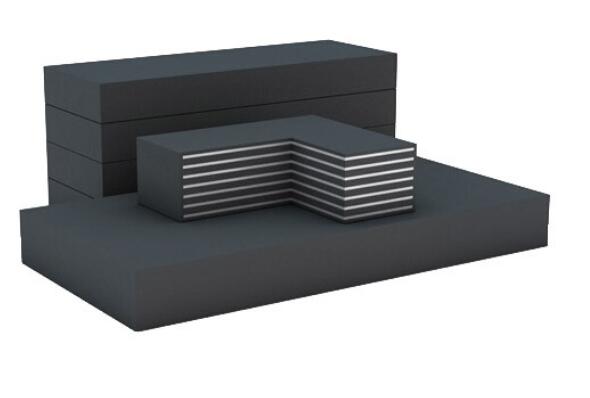

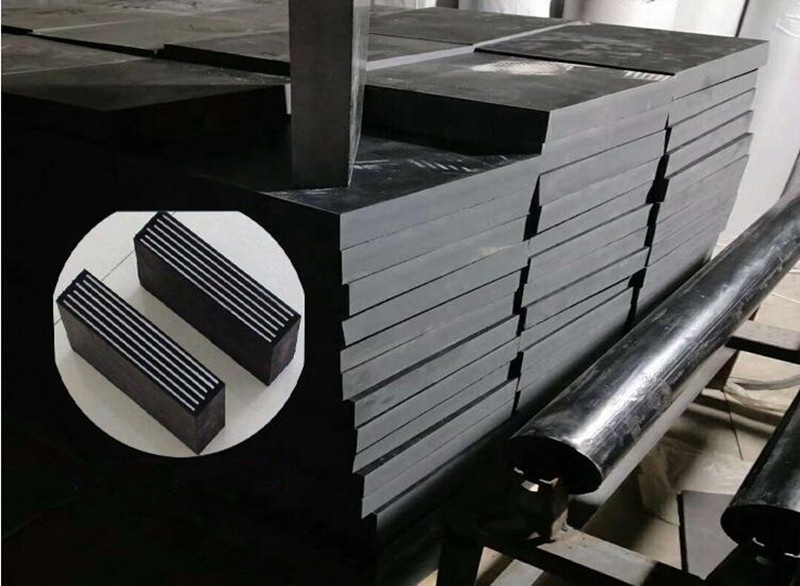

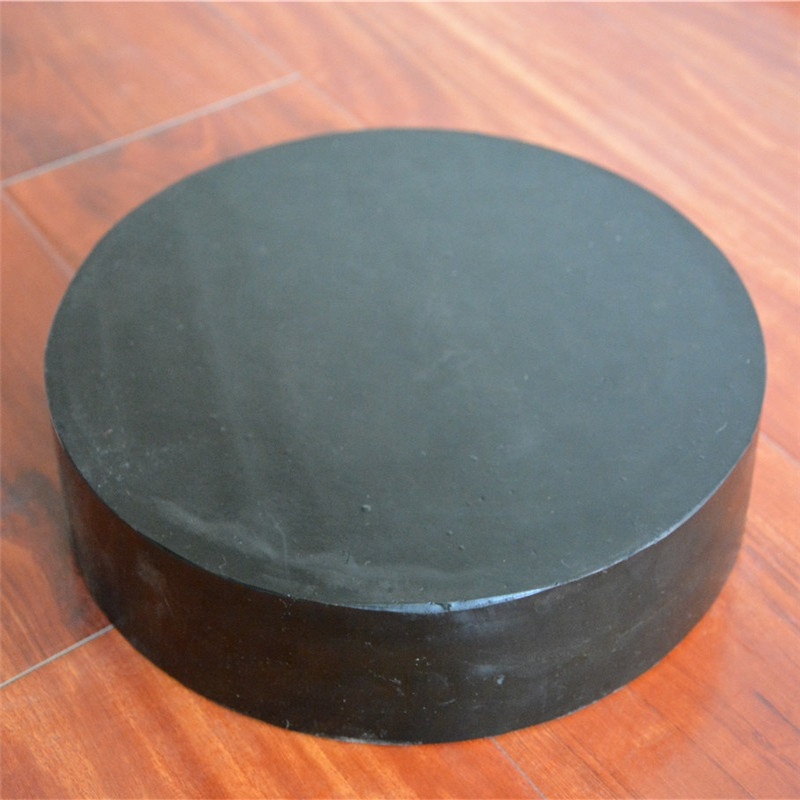

Reinforced or non-reinforced elastomeric bearing pads
Elastic bearing, also known as elastic bearing, is a kind of bridge bearing. According to the structure
Elastomer bearings can be divided into reinforced elastomer bearings and non-reinforced elastomer bearings.
Reinforced elastomers can be further divided into laminated bearing pads and PTFE sliding elastomer bearings. Non-reinforced elastic bearings, also known as sliding elastic bearings, are generally used for small-displacement bridges with simple structures.

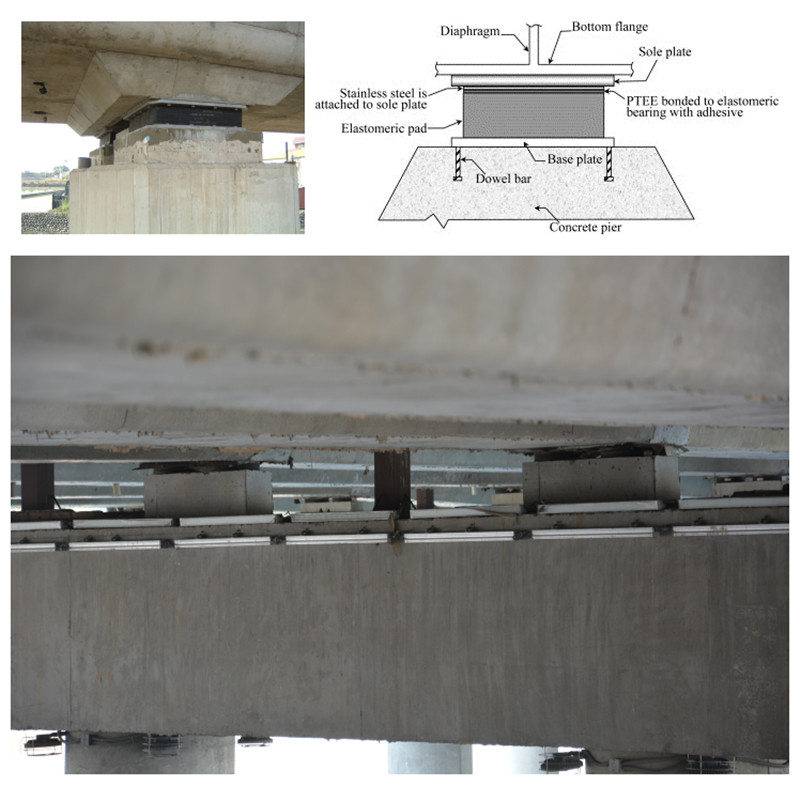

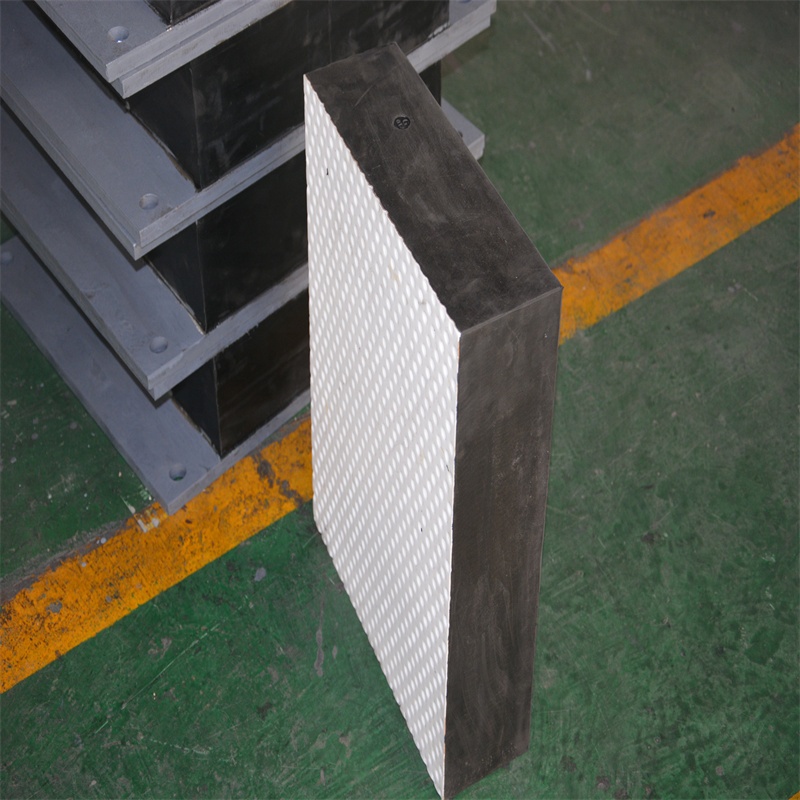

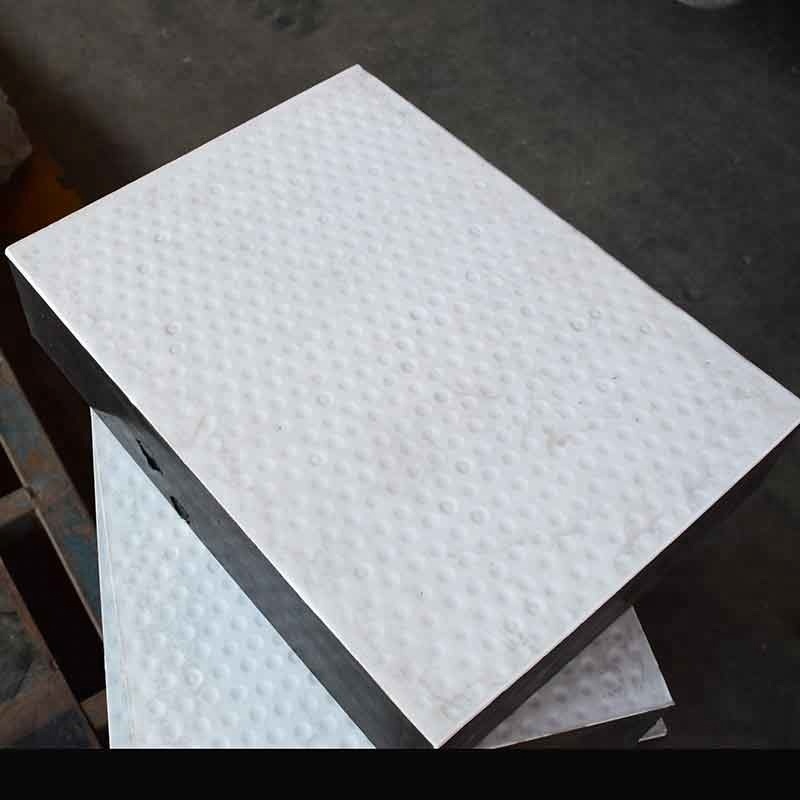

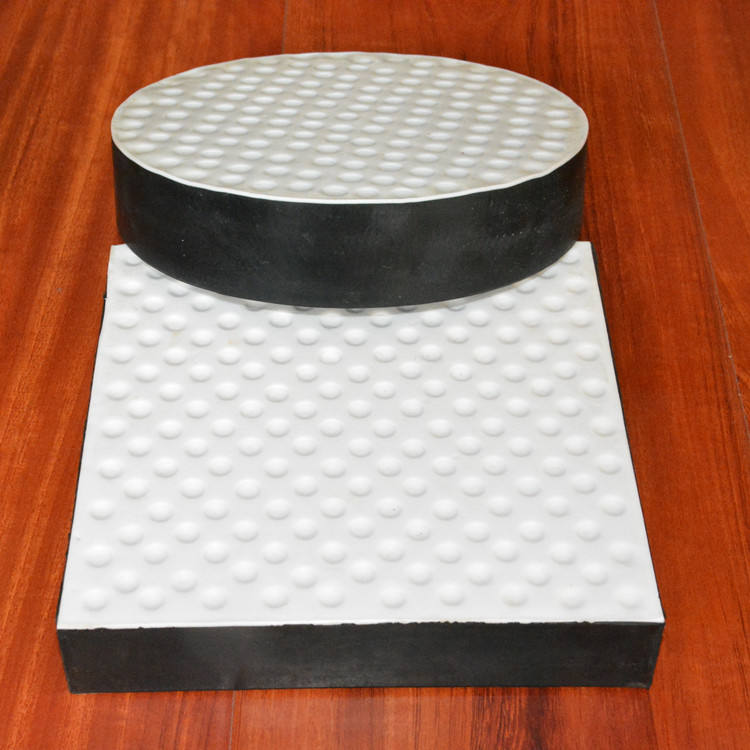

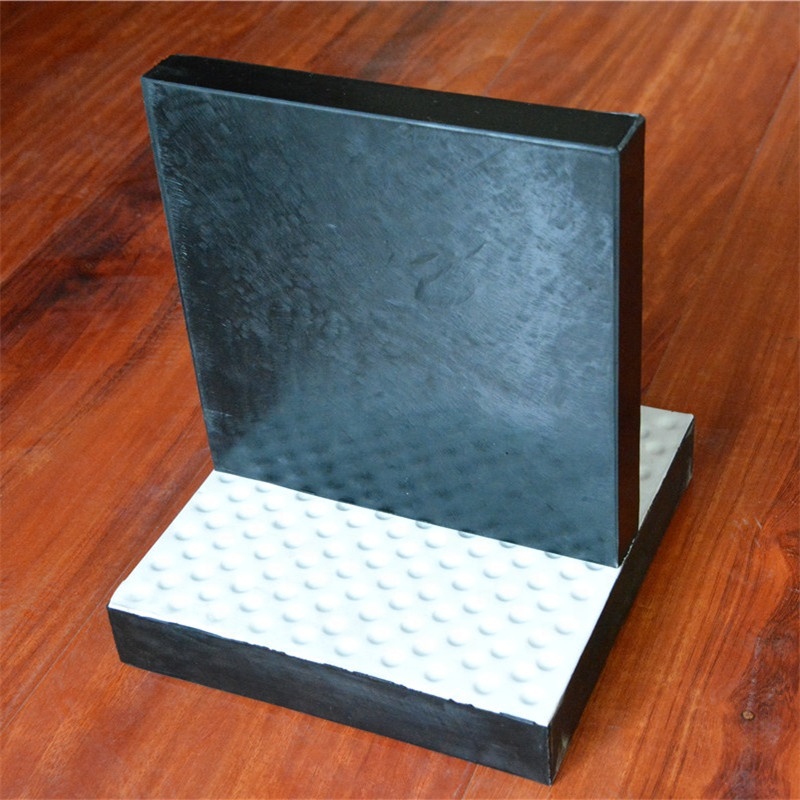

PTFE plain elastic bearings - free sliding
Polytetrafluoroethylene sliding elastic bearing is a kind of elastic bearing pad, which is made by adhering a layer of polytetrafluoroethylene with a thickness of 1.5mm to 3mm on the surface of the laminated elastic bearing pad. Compared with the laminated elastomer bearing, a layer of polytetrafluoroethylene with low friction coefficient is added, so that the beam end can slide freely on the bearing surface, and the horizontal displacement is not restricted. PTFE sliding elastic bearings are suitable for bridges with medium and small loads and large displacements.
physical properties
thing
index
Ultimate compressive strength Ru(Mpa)
≥70
Compression modulus of elasticity E(Mpa)
E±EX20%
Elastic shear modulus G1(Mpa)
G±GX15%
Angle tangent tanθ
concrete bridge
steel bridge
≥1/300
≥1/500
Find the coefficient of friction between PTFE plate and stainless steel surface (grease)
≤0.03
application

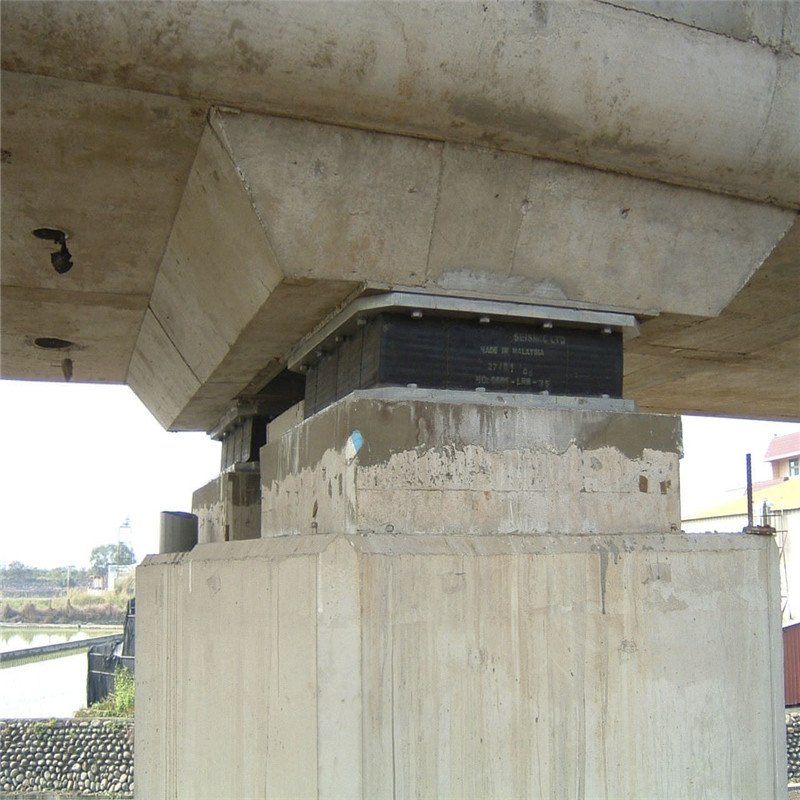

Elastic bearings are suitable for long-span, multi-span continuous beams, simply supported beams and large displacement bridges with continuous slab structures. It can also be used as a slider for continuous beam pushing and T-beam lateral sliding.
