PTFE coated fiberglass woven fabric

Product Detail

brand:StatesSupply capacity:10000 square meters per week
Yarn count:Warp/WeftAlkali content:Alkali-free
weight:520 g/m²Braid Type:plain weave
width:1250mmstyle:clearly
Room temperature:-140-260Packaging Details:Standard export carton and plywood pallet
payment terms:L/C, T/T, Western Unionuse:High temperature resistant
place of origin; place of origin:Jiangsu, Chinasupply type:Made to order
Material:PTFE + glass fiberdensity:60/58
Yarn type:Alkali free glassSurface treatment:PTFE coating
Package preview:port:Shanghai, Ningbo port
Process:knittedpattern:coating

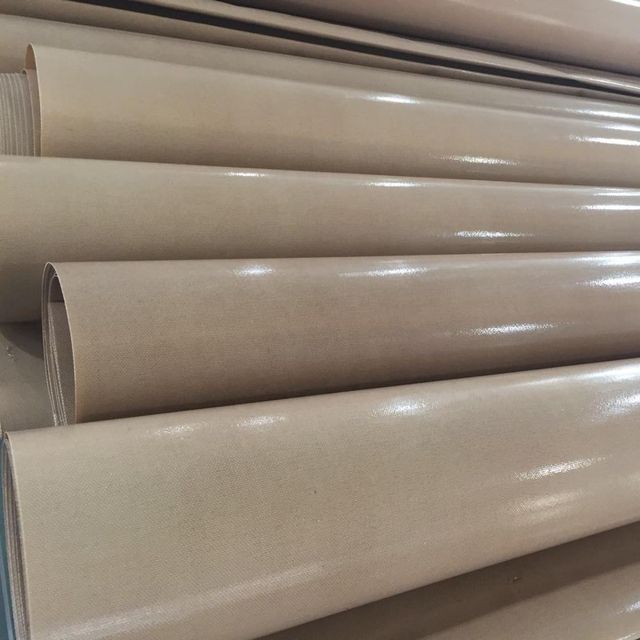

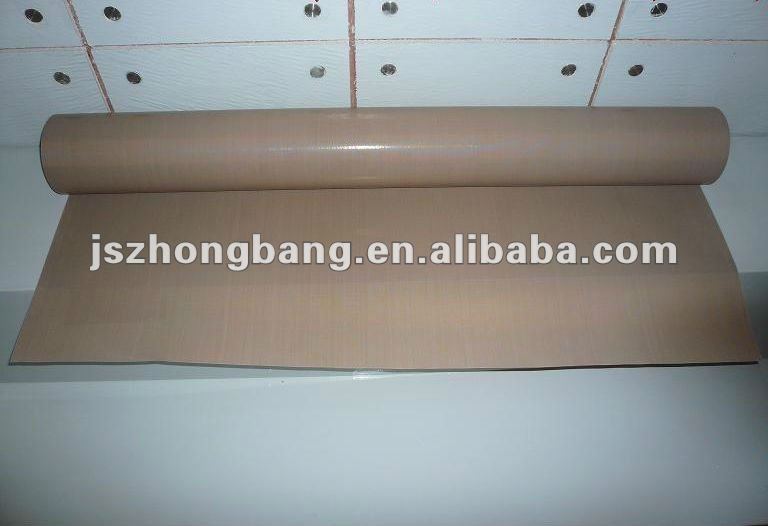

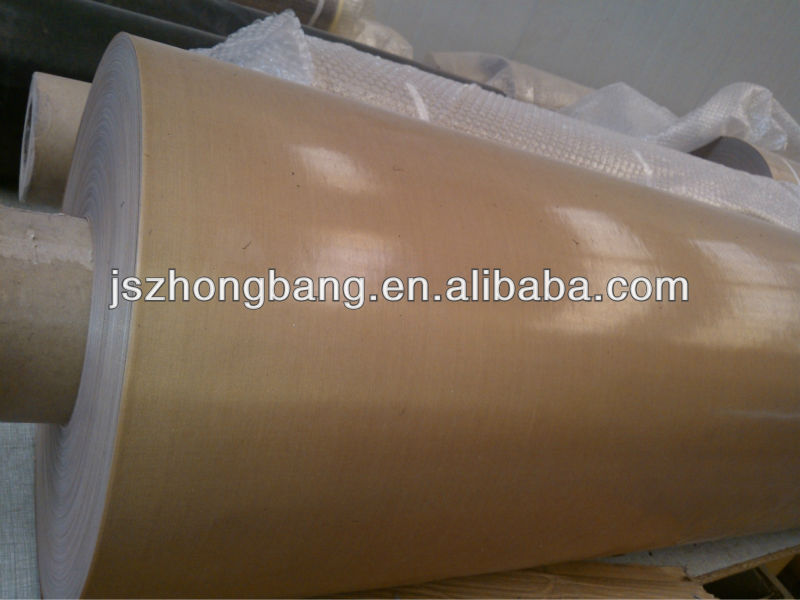

PTFE-coated fiberglass cloth is made of high-performance glass fiber impregnated with PTFE. It is a new product with high performance and multi-morphological functions of composite materials.



Main capabilities and features:

1) Good heat resistance, about 280 degrees
2) Non-stick, smooth on both sides
3) Width: 125cm, we can cut it, and the size can be customized according to customer requirements. If you have other requirements, please contact us directly.



Scope of application:

1. Used as a variety of high temperature resistant liners, such as microwave oven liners, oven liners, or other liners;

2. Plastic welding, welding cloth for solder; plastic patch, film, heat-sealing tape;

3. Adhesive-resistant internal gaskets, buffer pads, covering cloths, and conveyor belts; depending on the thickness, they can be used as conveyor belts, adhesive tapes, and sealing tapes for various dryers;

4. High insulation and heat-resistant casing

5. It is used as cladding or wrapping material in petroleum and chemical industries, as wrapping material, insulating material, high temperature resistant material in electrical industry, as desulfurization material in power plants, etc.



thing color thickness maximum width weight tensile strength temperature
9008AJ Brown 0.08mm 1250mm 160 g/m² 550/450N/5CM -140-260ºC
9008BJ Black 0.08mm 1250mm 165 g/m² 550/450N/5CM -140-260ºC
9008Y Black 0.08mm 1250mm 180 g/m² 550/450N/5CM -140-260ºC
9013AJ Brown 0.13mm 1250mm 260 g/m² 1100/1000N/5CM -140-260ºC
9013BJ Black 0.13mm 1250mm 265 g/m² 1100/1000N/5CM -140-260ºC
9013Y Black 0.13mm 1250mm 265 g/m² 1100/1000N/5CM -140-260ºC
9015AJ Brown 0.15mm 1250mm 380 g/m² 1200/1100/N5CM -140-260ºC
9018AJ Brown 0.18mm 1250mm 380 g/m² 1800/1700N/5CM -140-260ºC
9018BJ black 0.18mm 1250mm 390 g/m² 1800/1700N/5CM -140-260ºC
9025AJ Brown 0.25mm 2800mm 520 g/m² 2100/1800N/5CM -140-260ºC
9025BJ Black 0.25mm 2800mm 540 g/m² 2100/1800N/5CM -140-260ºC
9030AJ Brown 0.30mm 2800mm 610 g/m² 2800/2400N/5CM -140-260ºC
9030BJ Black 0.30mm 2800mm 510 g/m² 2800/2400N/5CM -140-260ºC
9035AJ Brown 0.35mm 3200mm 660 g/m² 2600/2300N/5CM -140-260ºC
9035BJ Black 0.35mm 3500mm 680 g/m² 2600/2300N/5CM -140-260ºC
9040AJ Brown 0.40mm 4000mm 780 g/m² 3000/2500N/5CM -140-260ºC
9040BJ Black 0.40mm 4000mm 820 g/m² 3000/2500N/5CM -140-260ºC
9065AJ Brown 0.65mm 4000mm 1150 g/m² 4400/4000N/5CM -140-260ºC
9090AJ Brown 0.90mm 4000mm 1550 g/m² 6000/5000N/5CM -140-260ºC
9090BJ Black 0.90mm 4000mm 1650 g/m² 6000/5000N5CM -140-260ºC
