Factory direct low price centrifugal ductile iron pipe
-
$750.00 / 1 - 49 pieces
$599.00 / 50 - 99 pieces
$449.00 / >=100 pieces - 1 piece
- Shandong Runhai Steel Co., Ltd.
- Shandong, China
- Ms Lucy Fu
Product Detail
| Material: | Ductile Iron | brand: | Runhai Ductile Iron Pipe |
| product name: | Ductile Iron Pipe | pull: | ≥420MPa |
| Yield force (≥MPa): | ≥300Mpa | type: | seamless |
| Certification: | ISO, CE, etc. | hardness: | 230HB |
| Tube Wall Thickness: | ≥300Mpa | color: | black, red, blue |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | sample: | usable |
| Processing services: | Welding, punching, cutting, bending, decoiling | Advantage: | fast delivery time |
| MOQ: | 1 ton | Origin: | Shandong China |
| port: | Qingdao, Tianjin, Shanghai | Package preview: | |
| Package: | Standard Shipping Packing | Packaging Details: | Factory standard export seaworthy packaging |
| Supply capacity: | 100,000 tons per month | model: | DN80~2600mm |
| Outer coating: | Zinc + asphalt paint | standard: | ISO2531/EN545/EN598 |
| length: | 6m/5.7m/8.15m,5.7M/6M or as required | application: | Urban water supply, water diversion pipe, agricultural use, etc. |
| shape: | round after round |
China ISO2531 EN545 EN598 DCI K9, C40, C30, C25 Ductile Iron Pipe
Product parameters
All specifications can be customized according to customer requirements | ||
product name | Ductile Iron Pipe | |
size: | DN80~2600mm | |
Material: | Ductile iron GGG50 | |
pressure: | PN10, PN16, PN25, PN40 | |
class: | K9, K8, C25, C30, C40 | |
length: | 6m, cut to 5.7m | |
Inner coating: | A). Portland cement mortar lining | |
b). Anti-sulfate cement mortar lining | ||
C). High alumina cement mortar lining | ||
d). Fusion bonded epoxy coating | ||
e). Liquid epoxy paint | ||
F). black asphalt painting | ||
Outer coating: | A). Zinc + bitumen (70 micron) spray paint | |
b). Fusion bonded epoxy coating | ||
C). Zinc aluminum alloy + liquid epoxy paint | ||
standard: | ISO2531, EN545, EN598, etc. | |
Certificate: | ISO9001, BV, WRAS, BSI | |
Package: | bundled, bulk | |
application: | Water supply engineering, drainage, sewage, irrigation, water pipelines, etc. | |
Nominal diameter | wall thickness | ||||||||||||||
DN | pipeline | Accessories | |||||||||||||
Class C | K8 | K9 | K10 | K12 | K12 | K14 | |||||||||
80 | 4.4 | 6.O | 6.0 | 7.0 | 8.1 | ||||||||||
100 | 4.4 | 6.1 | 7.2 | 8.4 | |||||||||||
125 | 4.5 | 6.3 | 7.5 | 8.8 | |||||||||||
150 | 4.5 | 6.3 | 7.8 | 9.1 | |||||||||||
200 | 4.7 | 6.4 | 8.4 | 9.8 | |||||||||||
250 | 5.5 | 6.8 | 7.5 | 9.0 | 9.0 | 10.5 | |||||||||
300 | 6.2 | 6.4 | 7.2 | 8.0 | 9.6 | 9.6 | 11.2 | ||||||||
350 | 6.3 | 6.8 | 7.7 | 8.5 | 10.2 | 10.2 | 11.9 | ||||||||
400 | 6.5 | 7.2 | 8.1 | 9.0 | 10.8 | 10.8 | 12.6 | ||||||||
450 | 6.9 | 7.6 | 8.6 | 9.5 | 11.4 | 11.4 | 13.3 | ||||||||
500 | 7.5 | 8.0 | 9.0 | 10.0 | 12.0 | 12.0 | 14.0 | ||||||||
600 | 8.7 | 8.8 | 9.9 | 11.0 | 13.2 | 13.2 | 15.4 | ||||||||
700 | 8.6 | 9.6 | 10.8 | 12.0 | 14.4 | 14.4 | 16.8 | ||||||||
800 | 9.6 | 10.4 | 11.7 | 13.0 | 15.6 | 15.6 | 18.2 | ||||||||
900 | 11.6 | 11.2 | 12.6 | 14.0 | 16.8 | 16.8 | 19.6 | ||||||||
1000 | 12.6 | 12.0 | 13.5 | 15.0 | 18.0 | 18.0 | 21.0 | ||||||||
1200 | 13.6 | 13.6 | 15.3 | 17.0 | 20.4 | 20.4 | 22.8 | ||||||||
1400 | 15.7 | 15.2 | 17.1 | 19.0 | 22.8 | 22.8 | 26.6 | ||||||||
1500 | 16.7 | 16.0 | 18.0 | 20.0 | 24.0 | 24.0 | 31.0 | ||||||||
1600 | 17.7 | 18.8 | 18.9 | 21.0 | 25.2 | 25.2 | 29.4 | ||||||||
1800 | 19.7 | 18.4 | 20.7 | 23.0 | 27.6 | 27.6 | 32.2 | ||||||||
2000 | 21.8 | 20.0 | 22.5 | 25.0 | 30.0 | 30.0 | 35.0 | ||||||||

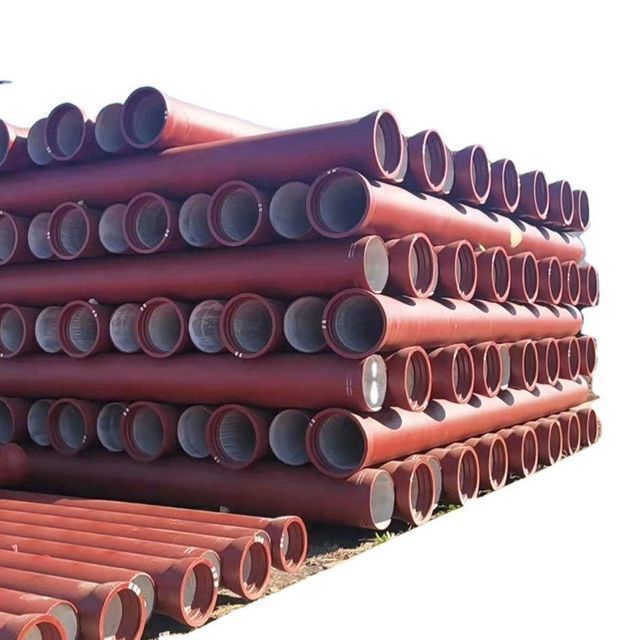

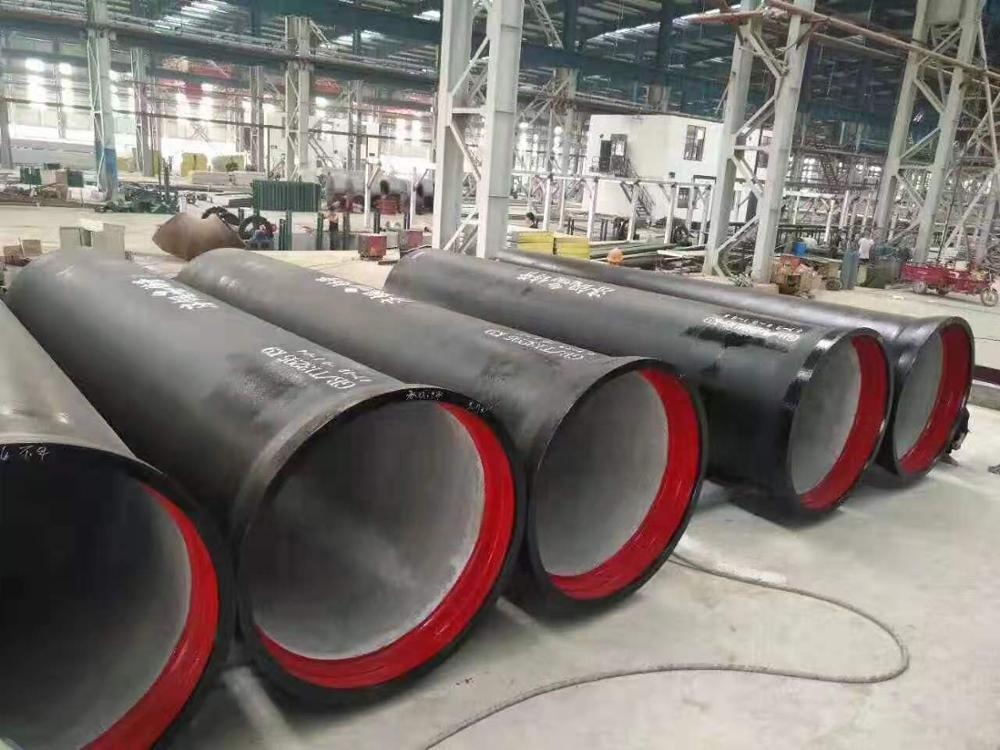

product display
1. Internal pressure resistance: Centrifugal ductile iron has the essence of iron and the performance of steel, so ductile iron pipes have excellent safety performance compared with pipes made of other materials. The design working pressure is much higher than that of other material pipes, the safety factor is high, and the possible burst pressure is 3 times of the working pressure.
2. External pressure resistance: High pressure resistance, can exempt the requirements of pipe bed and protective cover, so that pipe laying is reliable and economical.

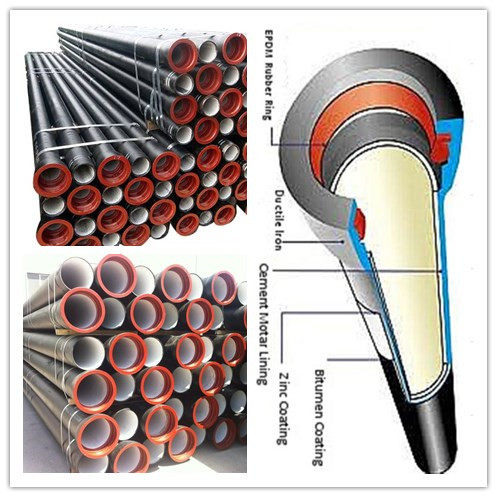

3. Inner anti-corrosion layer: The inner layer of the ductile iron pipe is centrifugally sprayed with cement mortar. Cement lining complies with international standards
Standard ISO4179, to ensure that the mortar is strong and smooth. The motor coating does not fall off, does not scale, and has a uniform thickness, ensuring that the drinking water transported by the pipeline is well protected.
Standard ISO4179, to ensure that the mortar is strong and smooth. The motor coating does not fall off, does not scale, and has a uniform thickness, ensuring that the drinking water transported by the pipeline is well protected.
4. Protective coating: Zinc spraying on ductile iron pipes actively protects pipes through the electrochemical action of zinc and iron. With high chlorinated resin coatings, pipes will receive enhanced corrosion protection. The amount of zinc sprayed on the surface of each pipe is not less than 130g/m², which meets the ISO8179 standard. It is also possible to increase the thickness of the galvanized layer or spray the zinc-aluminum alloy layer according to customer requirements.

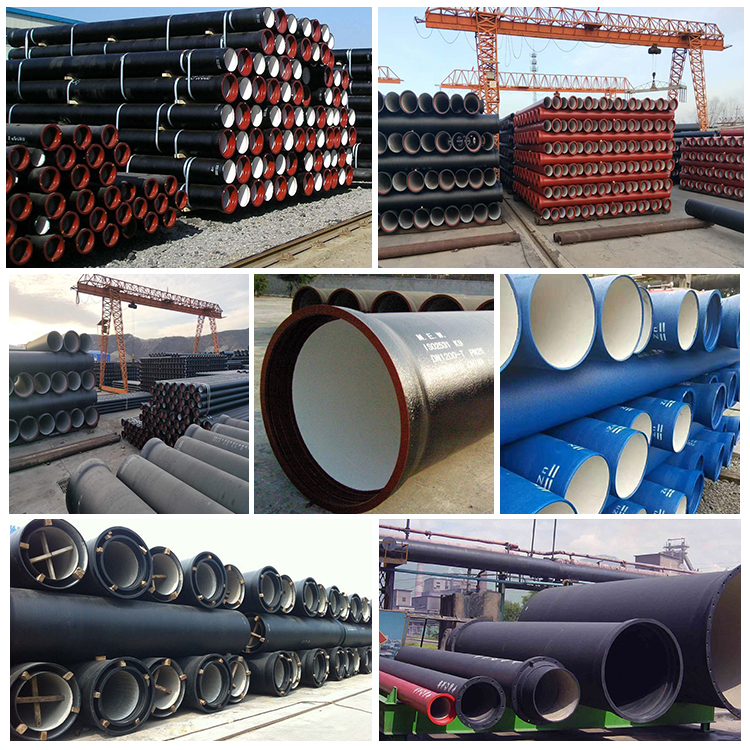

Product Details

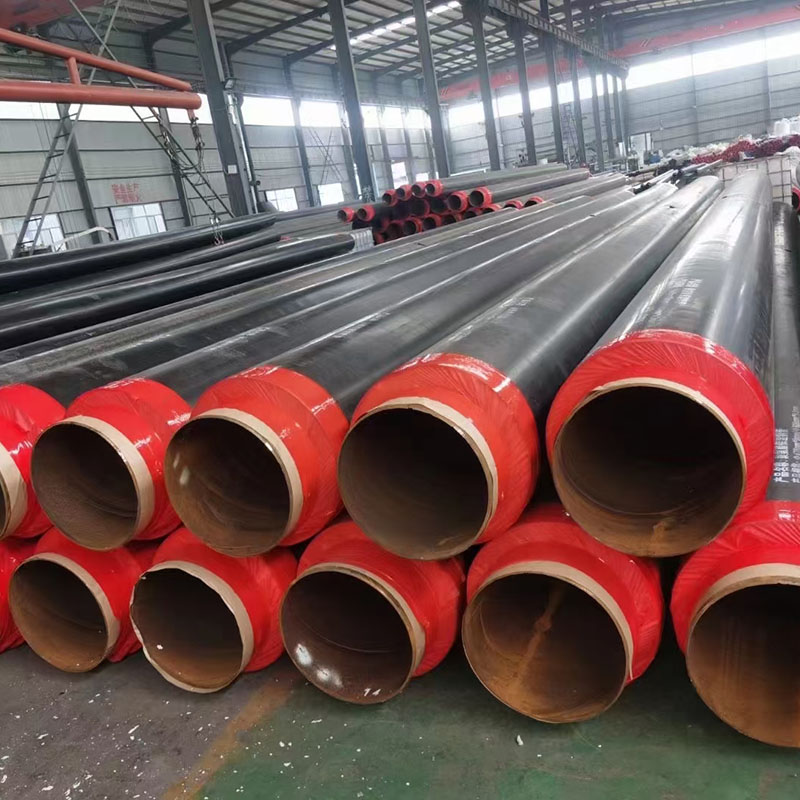

carbon steel pipe
Ductile iron pipes range in diameter from 80mm to 1600mm and are suitable for potable water delivery
and distribution (according to BS EN 545) and sewage disposal (according to BS EN 598). Ductile iron pipe is simple to connect and can be laid in all weather conditions, often without the option of backfilling. Its high safety factor and ability to adapt to ground movements make it an ideal piping material for a wide range of applications.
and distribution (according to BS EN 545) and sewage disposal (according to BS EN 598). Ductile iron pipe is simple to connect and can be laid in all weather conditions, often without the option of backfilling. Its high safety factor and ability to adapt to ground movements make it an ideal piping material for a wide range of applications.

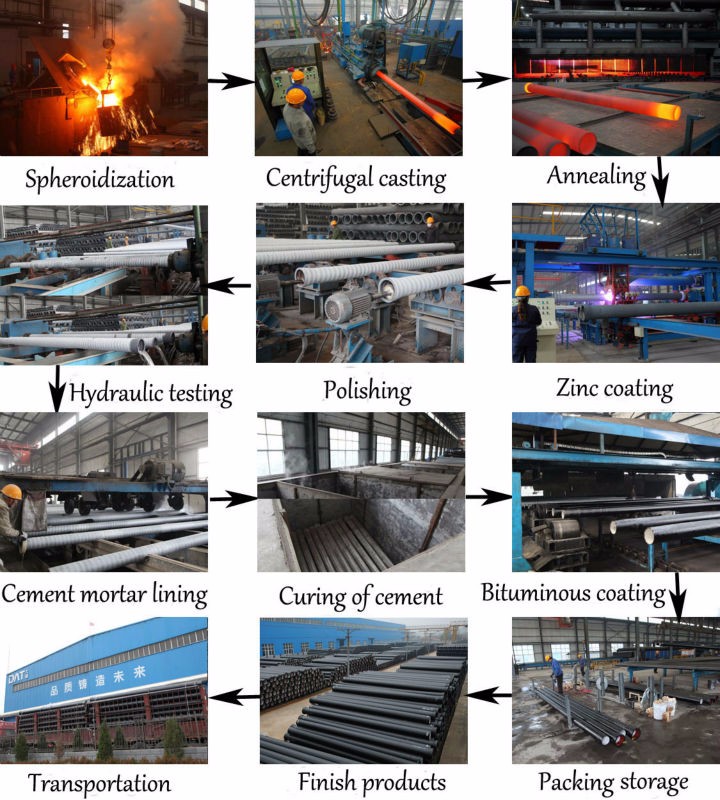

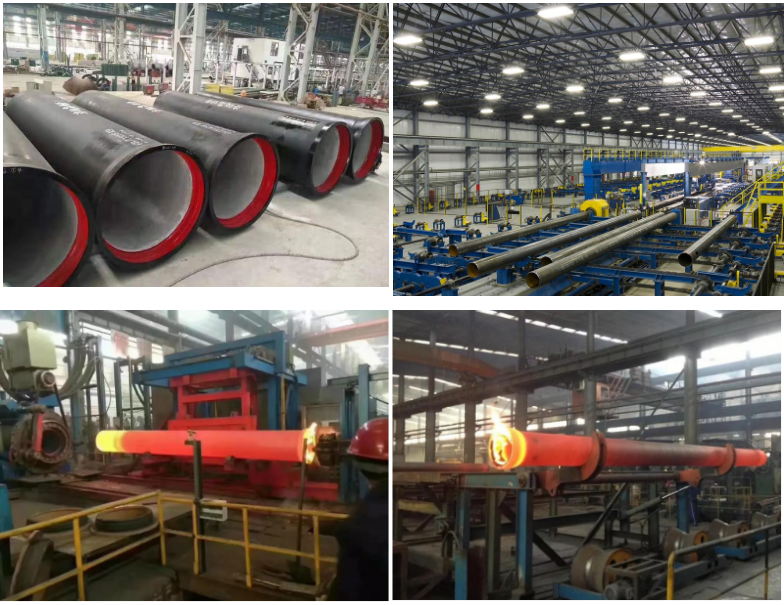

product process
The production of our Ductile Iron Pipes is strictly regulated and all pipes we produce are fully tested to international standards to ensure we only supply the highest quality products.

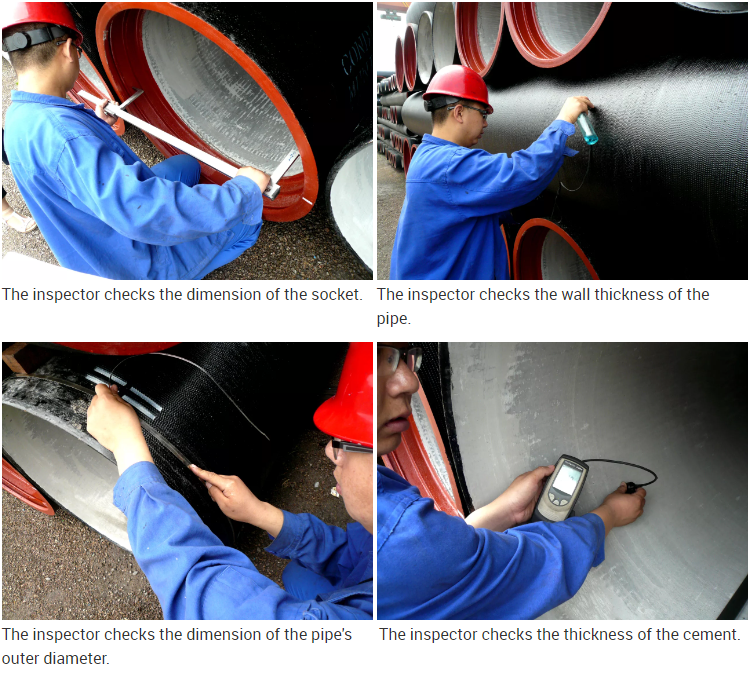

product testing
Company Profile
Shandong Runhai Iron and Steel Co., Ltd. is located in Jinan City, Shandong Province, with a registered capital of 51.17 million yuan. It is a professional steel sales company integrating domestic trade and foreign trade. Our hot selling items include
Stainless steel sheet/tube/coil, carbon steel sheet/tube/coil, galvanized steel sheet/tube/coil, aluminum sheet/coil/tube, PPGI/PPGL, copper sheet/tube and aluminum sheet/tube, pre-painted steel coil, roof panel, HIU corner Beams, special-shaped steel, round steel, iron wire, etc.
Products are widely used in chemical, pharmaceutical, electric power, railway, automobile, papermaking, construction engineering and other fields.
The company has long-term and close trade relations with well-known domestic iron and steel enterprises such as Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel, and Jinxi Iron and Steel.
The company has advanced WMS and CRM management systems to ensure that customers have no worries in the whole process of product consultation, procurement, ordering and use!
Over the years, the company has won the trust of customers with high-quality products,
Great service and super low prices. Favored by the majority of customers, the products are exported to all over the world! Thanks to the support of new and old customers, Runhai people will work harder and enterprising, and return more customers with better and more efficient services! We have set up a central warehouse in Tai'an, Shandong Province, China, with dozens of processing lines and sufficient inventory.
We can guarantee the quality and quantity to provide you with the shortest delivery cycle; at the same time, our company has nearly dozens of experienced technical consulting teams. In order to allow you to choose the right product model, we have established a first-class marketing team and first-class efficiency and service!
Stainless steel sheet/tube/coil, carbon steel sheet/tube/coil, galvanized steel sheet/tube/coil, aluminum sheet/coil/tube, PPGI/PPGL, copper sheet/tube and aluminum sheet/tube, pre-painted steel coil, roof panel, HIU corner Beams, special-shaped steel, round steel, iron wire, etc.
Products are widely used in chemical, pharmaceutical, electric power, railway, automobile, papermaking, construction engineering and other fields.
The company has long-term and close trade relations with well-known domestic iron and steel enterprises such as Shandong Iron and Steel, Tangshan Iron and Steel, Handan Iron and Steel, and Jinxi Iron and Steel.
The company has advanced WMS and CRM management systems to ensure that customers have no worries in the whole process of product consultation, procurement, ordering and use!
Over the years, the company has won the trust of customers with high-quality products,
Great service and super low prices. Favored by the majority of customers, the products are exported to all over the world! Thanks to the support of new and old customers, Runhai people will work harder and enterprising, and return more customers with better and more efficient services! We have set up a central warehouse in Tai'an, Shandong Province, China, with dozens of processing lines and sufficient inventory.
We can guarantee the quality and quantity to provide you with the shortest delivery cycle; at the same time, our company has nearly dozens of experienced technical consulting teams. In order to allow you to choose the right product model, we have established a first-class marketing team and first-class efficiency and service!
certified
application
1. Ductile iron pipe for water delivery:
Product standard: BS EN545:2002, ISO2531:1998
1) The pipes are supplied in standard lengths of 5.5/6.0m, also in short lengths to the respective standard.
2) In addition to K9 grade pipes, we also provide K7, K8, K10, K12 grade pipes.
3) The thickness can be determined by the formula e=K (0.5+0.001DN)
4) PFA (Permissible Working Pressure) is the internal pressure, excluding surges, that the component can safely withstand
permanent service.
5) PMA (allowable maximum operating pressure) is the maximum internal pressure that a component can withstand, including surge
In a relatively short period of time, when fixed above ground or laid and backfilled underground to measure
Pipeline integrity and tightness.
1) The pipes are supplied in standard lengths of 5.5/6.0m, also in short lengths to the respective standard.
2) In addition to K9 grade pipes, we also provide K7, K8, K10, K12 grade pipes.
3) The thickness can be determined by the formula e=K (0.5+0.001DN)
4) PFA (Permissible Working Pressure) is the internal pressure, excluding surges, that the component can safely withstand
permanent service.
5) PMA (allowable maximum operating pressure) is the maximum internal pressure that a component can withstand, including surge
In a relatively short period of time, when fixed above ground or laid and backfilled underground to measure
Pipeline integrity and tightness.
2. Ductile iron pipes for sewers:
Product standard: BS EN598:2002
Quality checks at every stage of manufacturing:
1) Strict selection of raw materials is an indispensable requirement for the production of high-quality ductile iron pipe fittings.
2) We produce liquid metal suitable for the manufacture of ductile iron pipes. The liquid metal is further processed in an induction furnace.
It is then modularized with magnesium and transferred to a centrifugal rotary casting machine.
3) Pipes are heat treated, galvanized, hydrotested, tested, cement mortar lined and coated
Bituminous coating.
4) Strictly maintain and record process inspection and quality control at all points in the production cycle
As ISO9001 quality system.
Product standard: BS EN598:2002
Quality checks at every stage of manufacturing:
1) Strict selection of raw materials is an indispensable requirement for the production of high-quality ductile iron pipe fittings.
2) We produce liquid metal suitable for the manufacture of ductile iron pipes. The liquid metal is further processed in an induction furnace.
It is then modularized with magnesium and transferred to a centrifugal rotary casting machine.
3) Pipes are heat treated, galvanized, hydrotested, tested, cement mortar lined and coated
Bituminous coating.
4) Strictly maintain and record process inspection and quality control at all points in the production cycle
As ISO9001 quality system.
exhibition
Customer visit

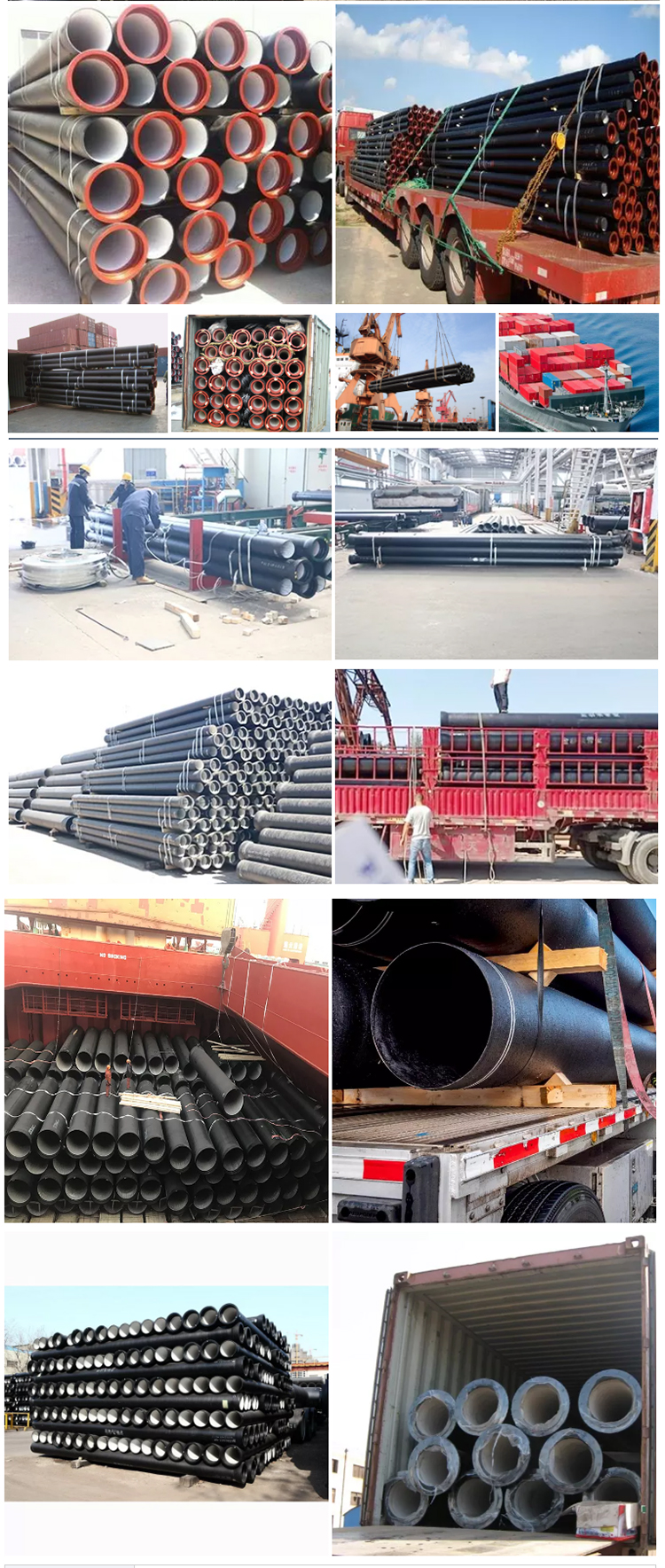

Packaging and Shipping
■ DN80-DN300: usually bundled;
■ DN350-DN2000: generally in bulk;
■ Pipes are secured with blocks, blocks, nails and wire rope during transport and are padded on the sides to prevent movement
instruct;
■ Shipment of bulk cargo or containers, inland transport trucks or trains.
■ DN350-DN2000: generally in bulk;
■ Pipes are secured with blocks, blocks, nails and wire rope during transport and are padded on the sides to prevent movement
instruct;
■ Shipment of bulk cargo or containers, inland transport trucks or trains.

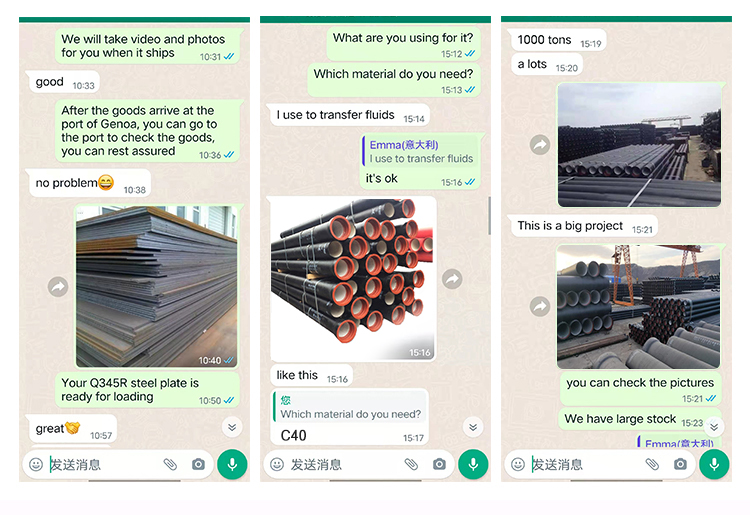

Customer Feedback
FAQ
1. Q: Why choose us?
A: We are a steel enterprise integrating industry and trade. Our company has been engaged in the steel business for more than ten years. We have international experience and are professional. We can provide customers with various high-quality steel products
2.Q: Can you provide OEM/ODM service?
Answer: Yes. Please feel free to contact us for more details.
3. Q: What about your payment term?
A: Our usual payment methods are T/T, L/C, D/A, D/P, Western Union, MoneyGram, and the payment method can be customized through negotiation with customers.
4. Q: Do you accept third party inspection?
A: Yes, we absolutely accept.
5. Q: How do you guarantee your products?
A: Each product is produced by a certified workshop and inspected piece by piece according to national QA/QC standards. We can also issue warranty to customers to guarantee the quality.
6. Q: Can we visit your factory?
Answer: Warmly welcome. Once we have your schedule, we will arrange a professional sales team to follow up your case.
7.Q: Can you provide samples?
A: Yes, for the regular size, the sample is free, but the buyer needs to pay the shipping cost.
8. Q: How can I get your quotation?
A: You can leave us a message, we will reply every message in time. Or we can chat online through Trademanager. You can also find our contact information on the contact page.
2.Q: Can you provide OEM/ODM service?
Answer: Yes. Please feel free to contact us for more details.
3. Q: What about your payment term?
A: Our usual payment methods are T/T, L/C, D/A, D/P, Western Union, MoneyGram, and the payment method can be customized through negotiation with customers.
4. Q: Do you accept third party inspection?
A: Yes, we absolutely accept.
5. Q: How do you guarantee your products?
A: Each product is produced by a certified workshop and inspected piece by piece according to national QA/QC standards. We can also issue warranty to customers to guarantee the quality.
6. Q: Can we visit your factory?
Answer: Warmly welcome. Once we have your schedule, we will arrange a professional sales team to follow up your case.
7.Q: Can you provide samples?
A: Yes, for the regular size, the sample is free, but the buyer needs to pay the shipping cost.
8. Q: How can I get your quotation?
A: You can leave us a message, we will reply every message in time. Or we can chat online through Trademanager. You can also find our contact information on the contact page.
