pvc-o water supply pipe 500mm cheap pvc pipe
- $0.60 / >=6 meters
- 6 meters
- Hebei Wanlitai Olive Pipe Co., Ltd.
- Hebei, China
- Ms Jacquie Zuo
Product Detail
| Working pressure: | PN8-PN20 | Material: | PVC |
| model: | WLT-031 | connect: | Docking fusion |
| Original Equipment Manufacturer: | accept | Supply capacity: | 100,000 tons/year |
| place of origin; place of origin: | Hebei china | Packaging Details: | Standard export packaging, or according to customer requirements |
| thickness: | 1.8mm-21.6mm | Name: | Olive PVC Pipe |
| standard: | ISO16442-2016 | brand: | olives |
| length: | 6m, 9m or customized | feature: | Biaxial Orientation |
| life: | over 50 years | port: | Tianjin Xingang |
| Processing service: | forming, cutting | color: | blue |
| application: | water delivery | Certification: | Indian Air Force |
| payment terms: | L/C,T/T,Western Union,MoneyGram,Paypal | Specification: | 500mm |
| Operating temperature: | -25℃ to 95℃ |
Product Description
Oriented PVC O pipe

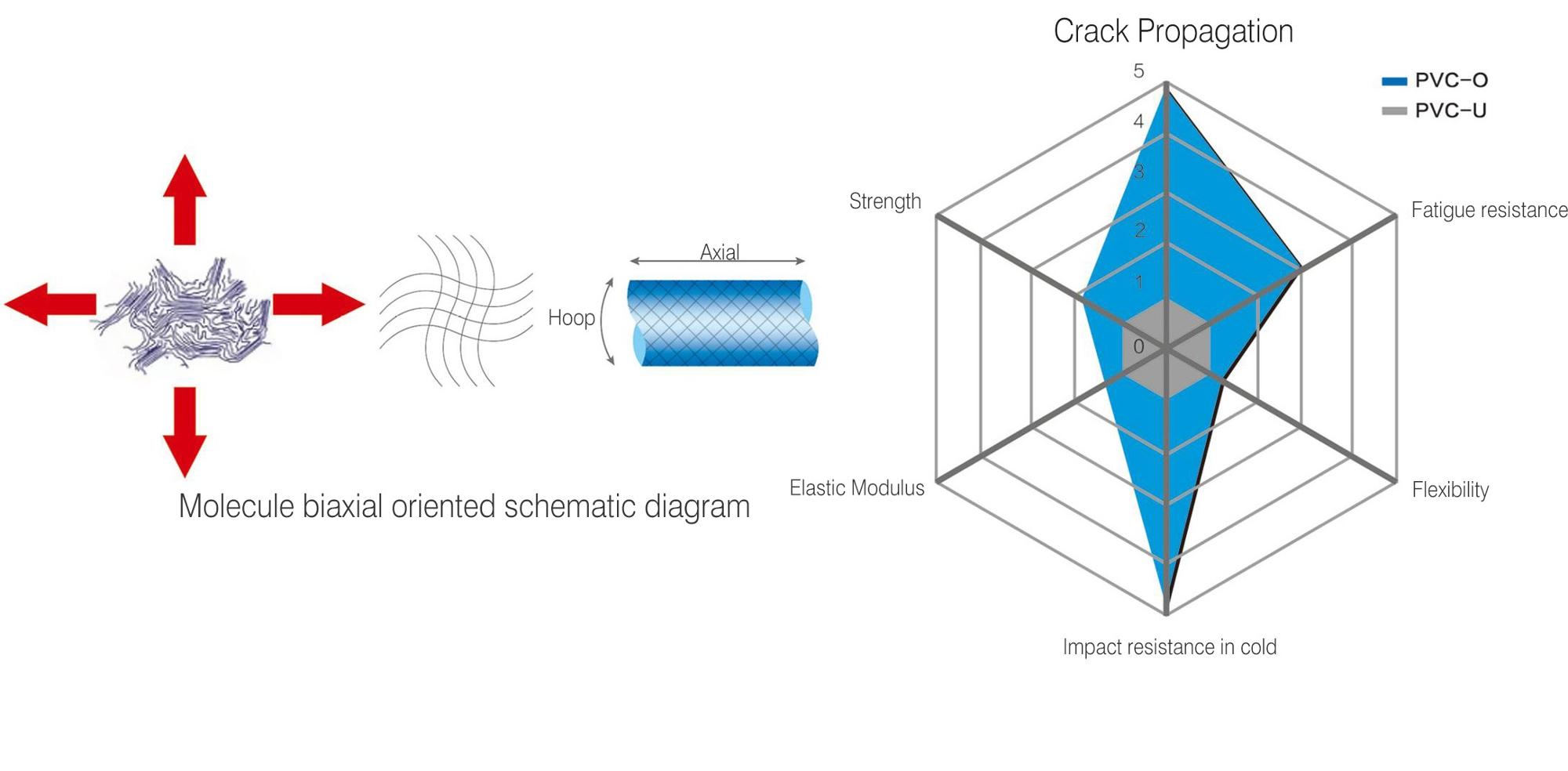

PVC-O pipeAlso known as biaxially stretched PVC pipe. Under certain pressure, temperature and speed conditions, through the hoop and axial stretching of the material, it can be seen at a glance. The process of molecular orientation greatly improves the physical and mechanical properties of PVC. The strength of PVC-O pipe is 2 times that of PVC-U, and the impact resistance and cold resistance are 5 times that of PVC-U pipe. PVC-O pipe is the most advanced high-pressure water conveying pipe in the world.

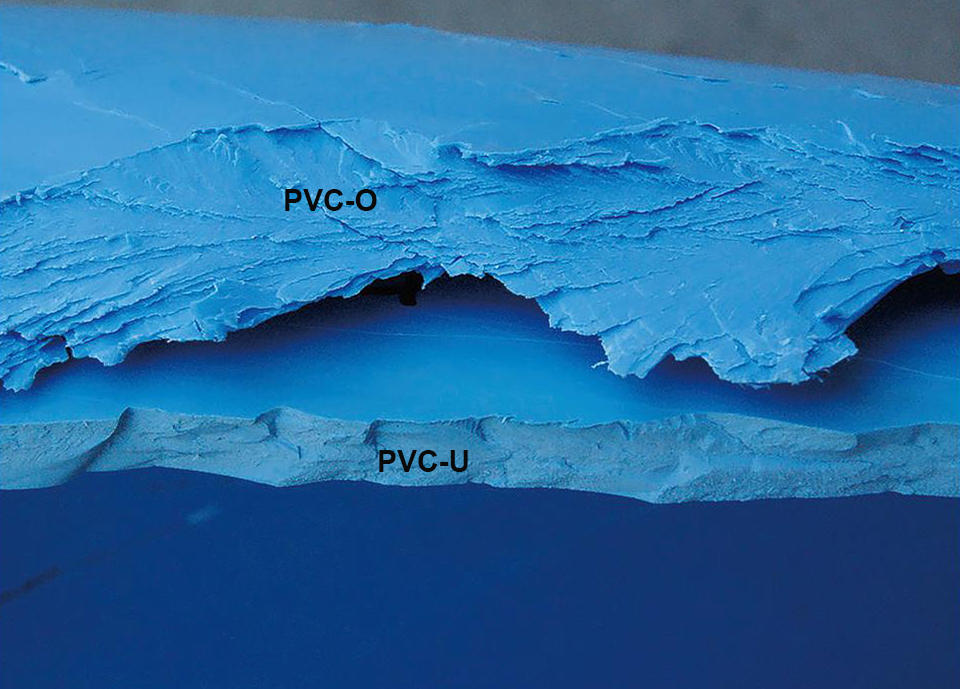

Crack propagation
fatigue resistance

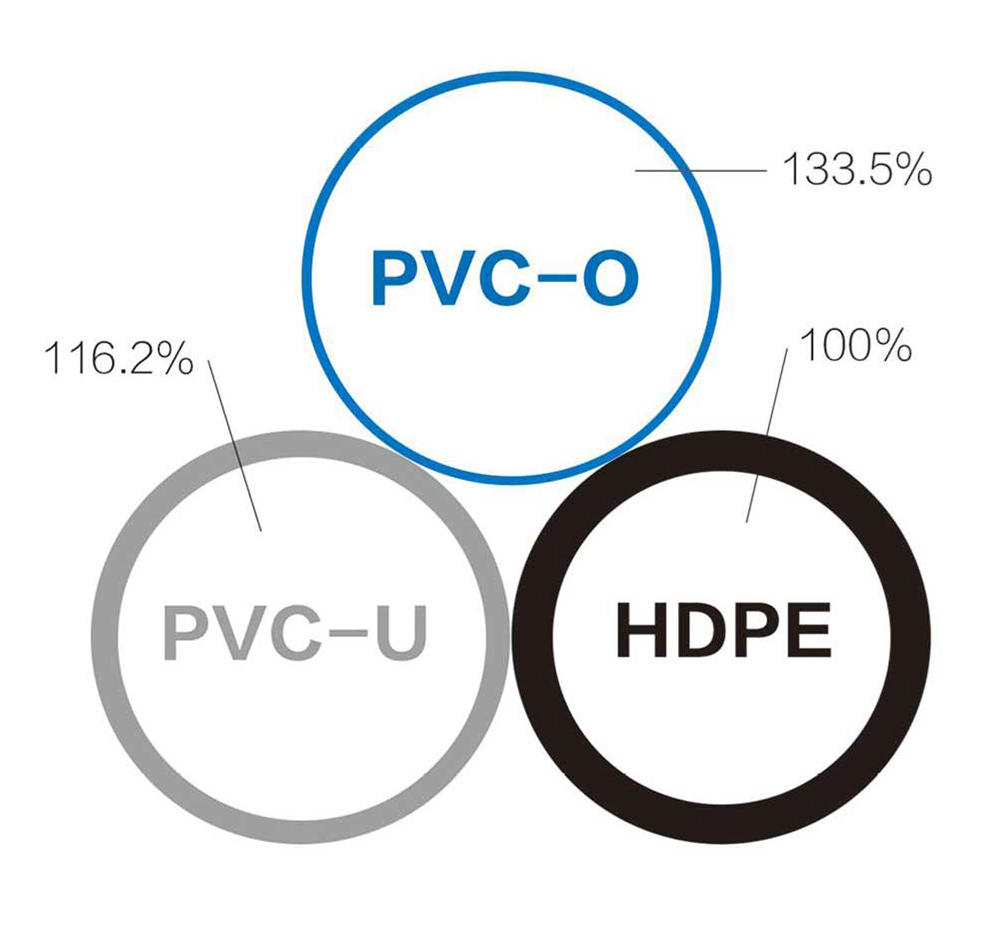

High hydraulic capacity
maximum flexibility
Class 450 C=1.4 | Class 450 C=1.6 | ||||||||
PN | 1.0Mpa (Class 400 C=1.6 0.8Mpa) | 1.25Mpa (Class 400 C=1.6 1.0Mpa) | 1.25Mpa | 1.6Mpa | 2.0Mpa | ||||
Nominal diameter | Wall thickness mm | Wall thickness mm | Wall thickness mm | Wall thickness mm | Wall thickness mm | ||||
110 | 1.8 | 2.2 | 2.4 | 3.1 | 3.8 | ||||
125 | 2.0 | 2.5 | 2.8 | 3.5 | 4.3 | ||||
140 | 2.2 | 2.8 | 3.1 | 3.9 | 4.8 | ||||
160 | 2.5 | 3.2 | 3.5 | 4.4 | 5.5 | ||||
180 | 2.8 | 3.6 | 4.0 | 5.0 | 6.2 | ||||
200 | 3.2 | 3.9 | 4.4 | 5.5 | 6.9 | ||||
225 | 3.5 | 4.4 | 5.0 | 6.2 | 7.7 | ||||
250 | 3.9 | 4.9 | 5.5 | 6.9 | 8.6 | ||||
280 | 4.4 | 5.5 | 6.2 | 7.7 | 9.6 | ||||
315 | 4.9 | 6.2 | 6.9 | 8.7 | 10.8 | ||||
355 | 5.6 | 7.0 | 7.8 | 9.8 | 12.2 | ||||
400 | 6.3 | 7.9 | 8.8 | 11.0 | 13.7 | ||||
140 | 7.0 | 8.8 | 9.9 | 12.4 | 15.4 | ||||
500 | 7.8 | 9.8 | 11.0 | 13.7 | 17.1 | ||||
560 | 8.8 | 11.0 | 12.3 | 15.4 | 19.2 | ||||
630 | 9.9 | 12.3 | 13.8 | 17.3 | 21.6 | ||||

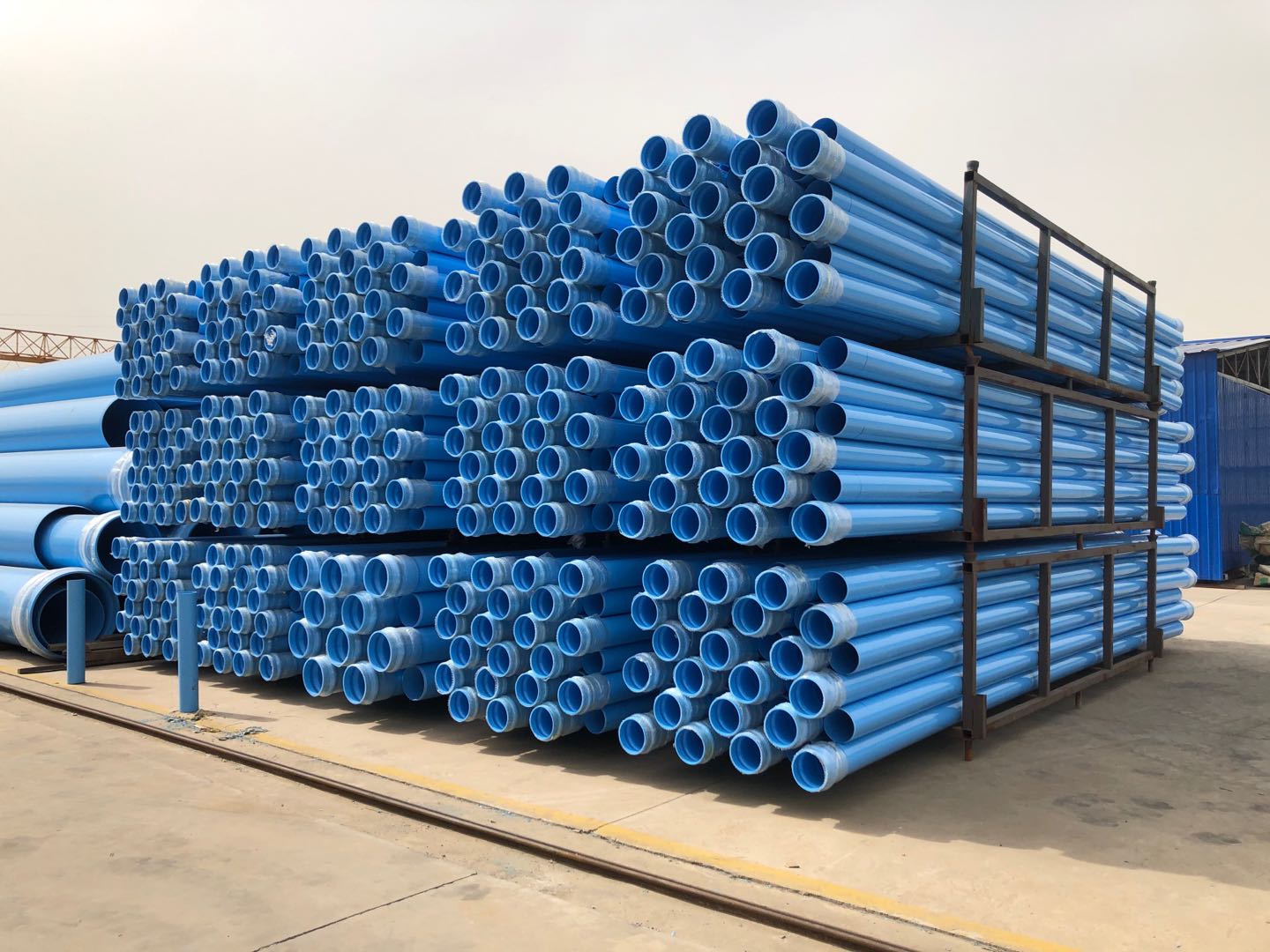

detailed picture
