Wire Braided Teflon Flexible Metal Teflon Hose

Product Detail

cover:stainless steel braidtemperature range:-60°C to +260°C
standard:SAE 100R14, ISO9001place of origin; place of origin:Tianjing, China
Minimum order quantity:5 metersSpecification:20mm-1400mm
Processing service:forming, cuttingsample:free
payment terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypalmodel:all kinds
length:100mbrand:Hoyt
Specification:1/2" to 4"Packaging Details:Braided belt or as your request
product name:Wire Braided Flexible Metal PTFE Hoseapplication:Steam, weak base, acid, hot oil, gas
business type:own factoryport:Tianjin
Packaging Preview:Supply capacity:500000 m/month
thickness:2.5mmMaterial:Teflon, Teflon

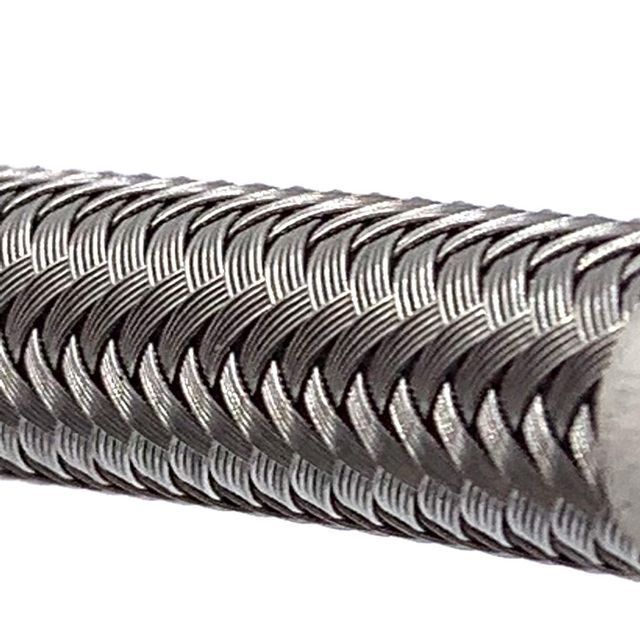

Wire Braided Teflon Hose Flexible Metal Hose PTFE



Product Description


tube:PTFE (polytetrafluoroethylene)

strengthen:A stainless steel braid

Application range:Average pressure application of hydraulic oil in high temperature and corrosive media PTFE hose winding stainless steel wire and connection method

Instructions

The user should appropriately select the type of quick coupling according to the operating requirements and the characteristics of the joint (including working pressure, medium performance and flow, temperature, corrosive and ambient temperature, quantity and type of connecting pipes, etc.).

Specification


normalizePTFE Hose Teflon Tube

Specification. Inner diameter of inner tube Outer diameter of inner tube Braided outer diameter Wettable powder minute. Bendius
(mm) (mm) (mm) (Kilogram) /mm ±3mm
1/8. 3.2 5.5 6.5 314 45
3/16. 4.8 6.7 8 256 76
1/4. 6.4 7.8 8.8 230 81
5/16. 7.9 10 11.5 194 131
3/8. 9.8 11.6 12.8 162 182
1/2. 12.7 15 16.5 90 211
5/8. 15.9 18 20 80 252
3/4. 19 21.4 twenty three 70 312
7/8. 22.25 24.65 26.4 60 421
1 25 28 30 50 489

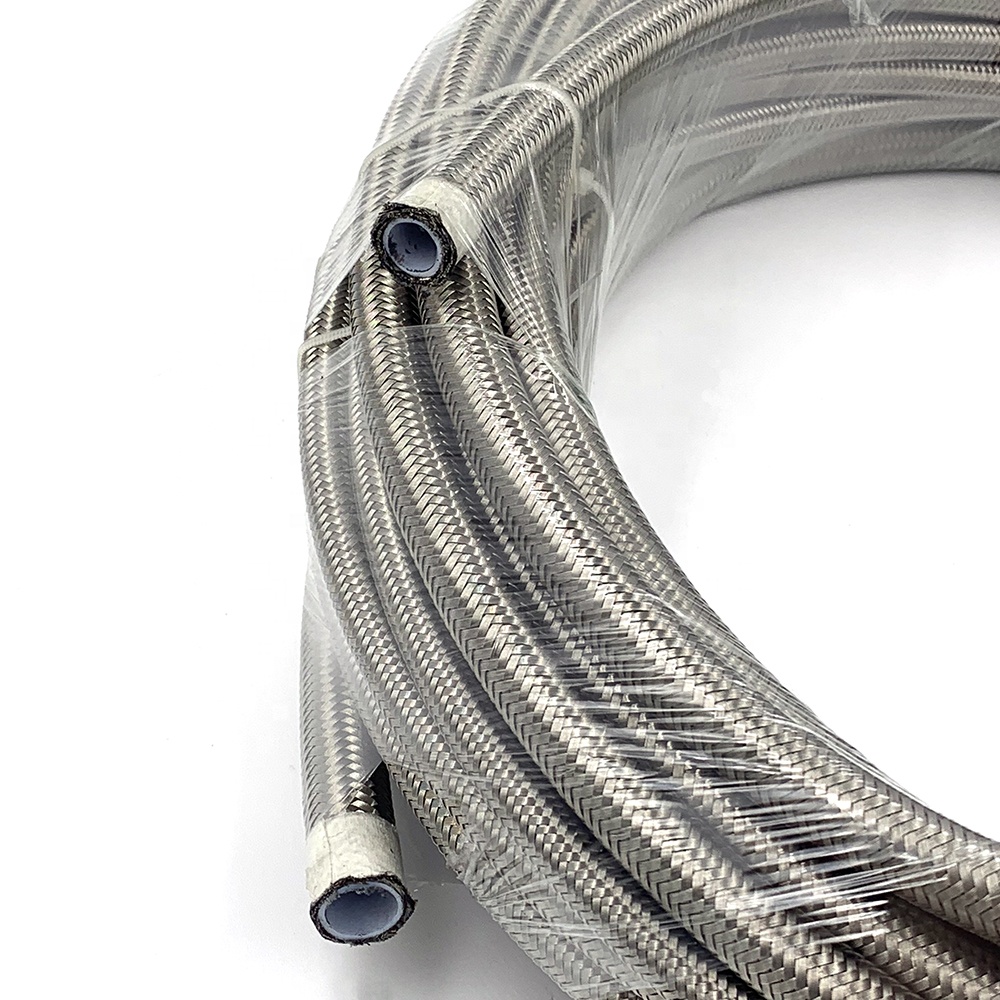

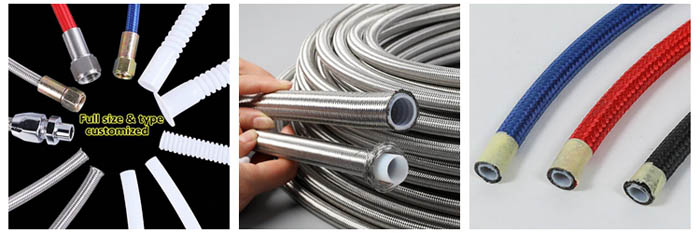

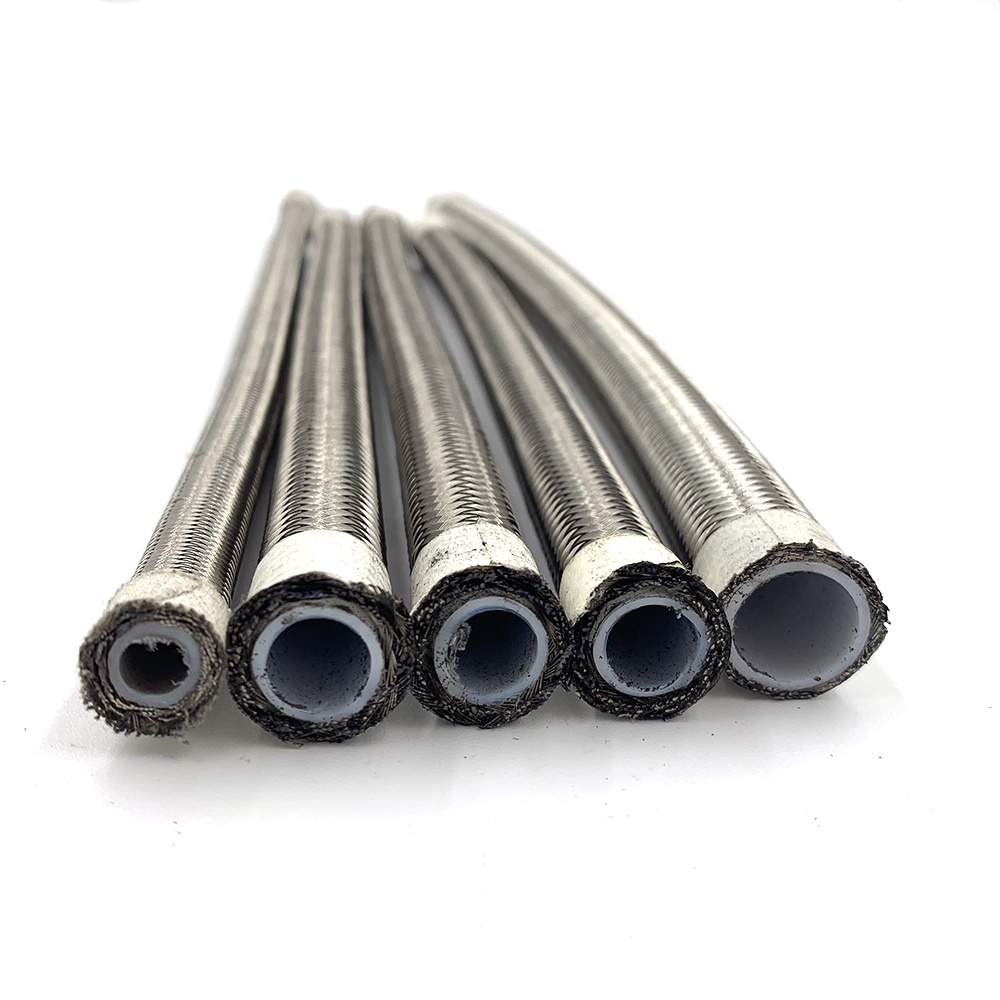

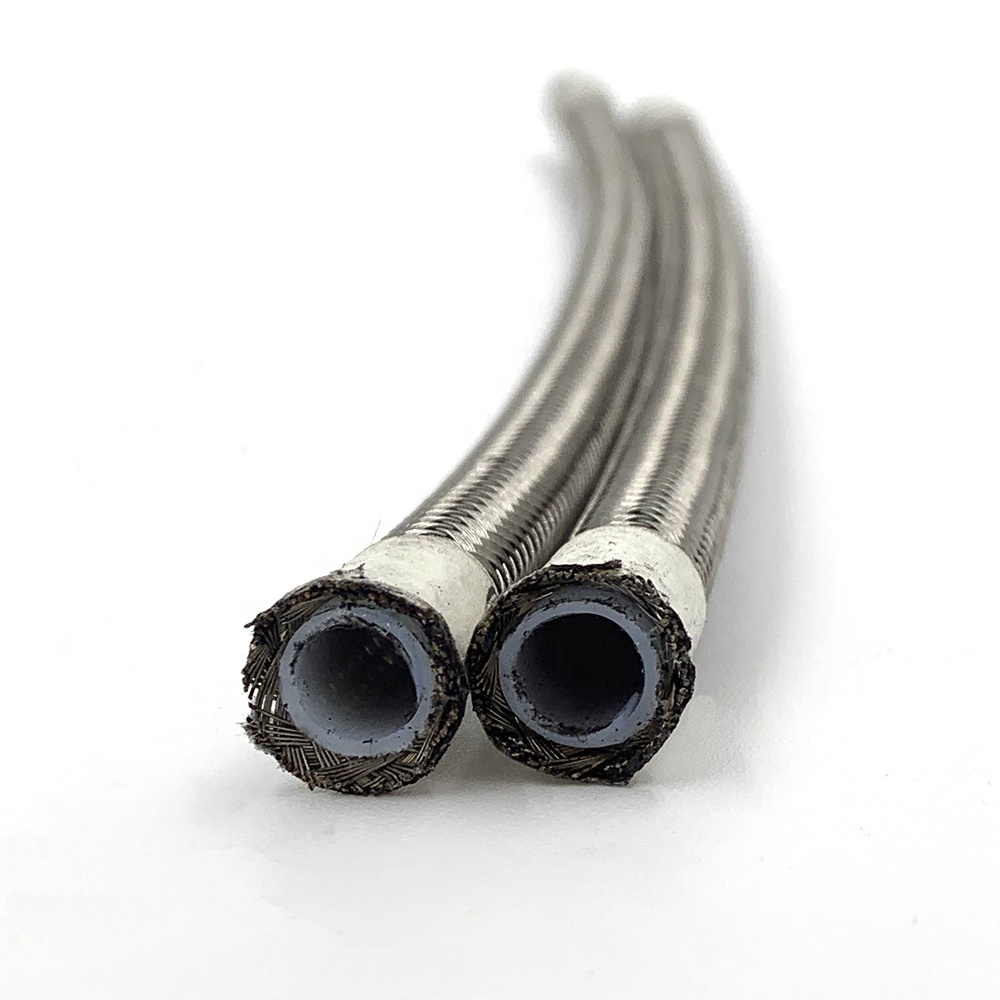

picture display

Wire Braided Teflon Flexible Metal Teflon Hose





Packaging and Shipping

Packaging and Shipping

1. Length 20m/roll, 40M/roll, 50m/roll, 100m/roll, etc.
2. Quality testing 100% pressure tested and leak tested before packing.
3. Packaging Standard export packing or according to customer's special request.
4. Delivery The exact delivery time depends on the item and quantity.







Our advantage

A. More than 12 years export experience

B. Advanced equipment

C. Highly skilled workers

D. Strict scientific management

Certificate



our service

1. We can provide OEM service

2. We can provide free samples to our customers

3. We can crimp hose assemblies for our customers.

4. We welcome customers to visit our factory to better understand our production

customer visit



Welcome to visit your company





Pre-sale:

1. All inquiries will be replied within 8 hours. 7D/24H service.

Please feel free to contact us via Skype, email or TM.

2. Strong technical team and professional sales.

After sales:

1. All goods will be tested and adjusted before shipment. You can drive it directly.

2. 12 months warranty

3. After the warranty period, the parts that need to be repaired or replaced should be paid for
