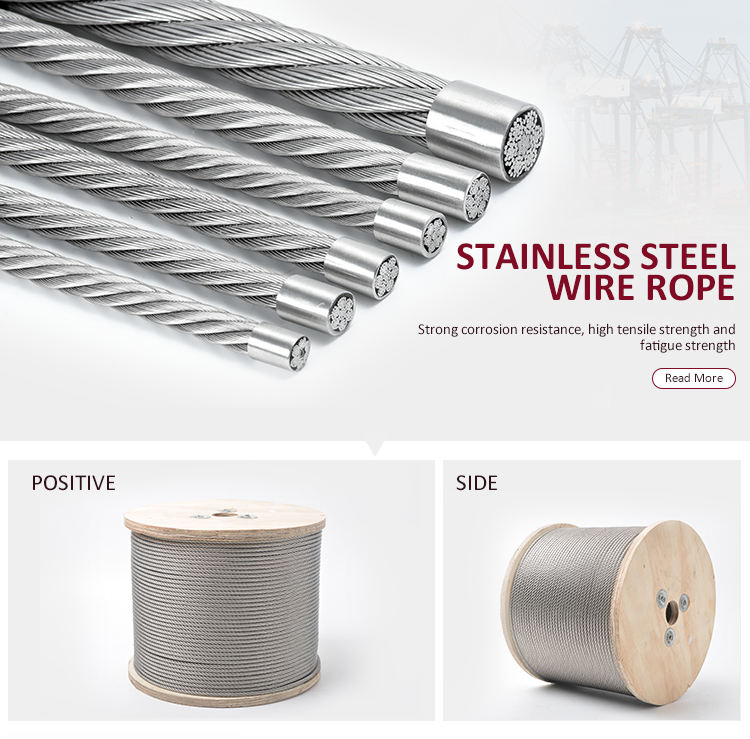

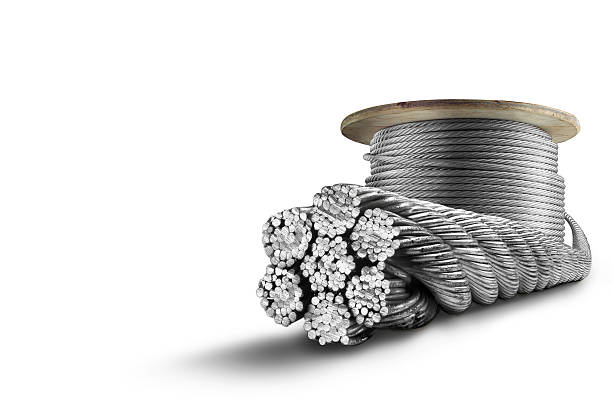

9/16 7*19 AISI 304 316 ss stranded cable various specifications stainless steel wire rope
-
$0.18 / 10000 - 49999 meters
$0.16 / 50000 - 99999 meters
$0.15 / >=100000 meters - 10000 meters
- Jiangsu Haiboer Metal Products Co., Ltd.
- Jiangsu, China
- Mr Jackson Jiang
Product Detail
| place of origin; place of origin: | Jiangsu, China | brand: | Hypor |
| Surface treatment: | bright and smooth | Supply capacity: | 6000000 m/month |
| grade: | 304 series, AISI 304 AISI316 | model: | stainless steel wire rope |
| tensile strength: | 1570 N/MM2, 1770 N/MM2 | Steel grade: | 304,316,316L |

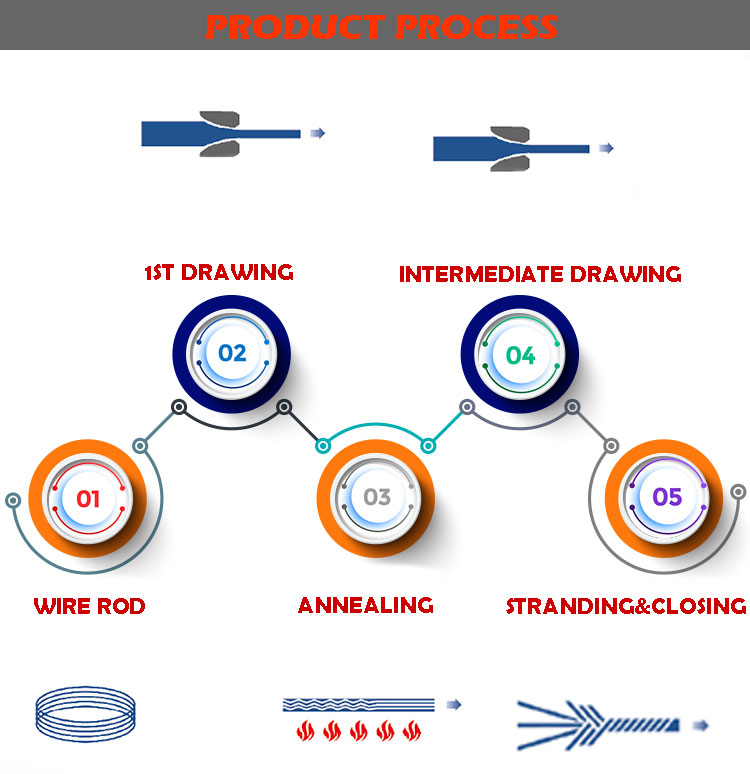

| Craft: | Cold drawn or annealed | tolerant: | ±1% |
| delivery time: | 15-21 days | sample: | available |
| payment terms: | L/C,D/P,D/A,T/T | Minimum order quantity: | 100kg |

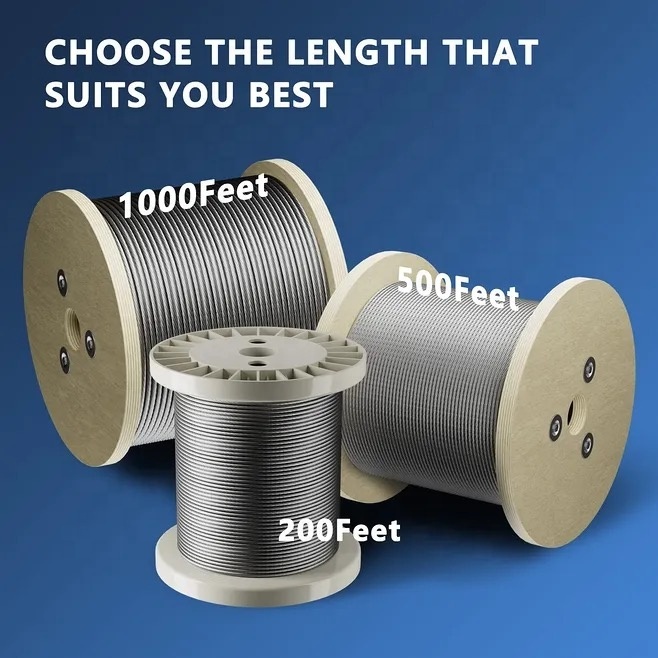

| length: | 200/500/1000/2000 meters | diameter: | 0.3mm-28mm |
| standard: | Aisi,ASTM,GB,JIS,Other | application: | Multi-application |
| Certification: | ISO9001:2015 | Packaging Preview: | |
| Processing service: | Bending, welding, uncoiling, punching, cutting | C content (%): | ≤0.008 |
| quality: | high quality | put up: | 1*7 7*7 7*19 1*19 |
| Packaging Details: | The stainless steel wire ropes are all packed in clean plywood reels, which are coiled on plywood pallets for easy loading and unloading. Clear plastic film is also covered to avoid dirt and water. | Silicon content (%): | ≤1 |
| port: | Shanghai |
Product Description
standard | Aisi,ASTM,GB,JIS,Other |
brand | Hypor |
tolerant | ±0.03mm |
Processing service | welding, cutting |
steel grade | 304, 316, 316L |
surface treatment | bright and smooth |
delivery time | 15-21 days |
diameter | 0.3mm-28mm |

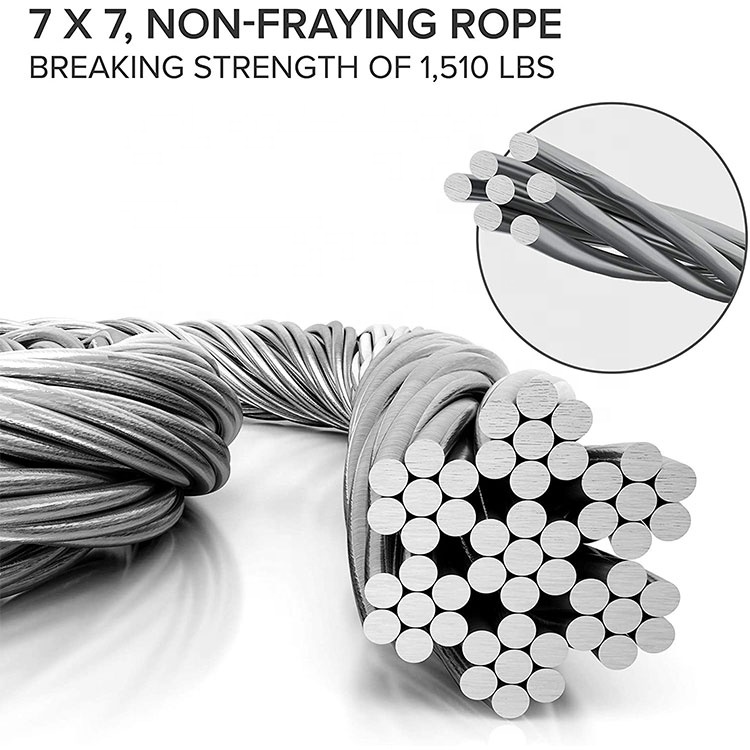

put up | 1*7 7*7 7*19 1*19 |
Product parameters
product structure | Diameter (mm) | Reference weight (KG/100M) | Minimum breaking load (KN) | product structure | Diameter (mm) | Reference weight (KG/100M) | Minimum breaking load (KN) |
1×7 | 0.8 | 0.26 | 0.41 | 7×7 | 1 | 0.39 | 0.56 |
1 | 0.4 | 0.62 | 1.5 | 0.88 | 1.37 | ||
1.2 | 0.58 | 0.95 | 1.8 | 1.27 | 1.83 | ||
1.5 | 0.9 | 1.6 | 2 | 1.57 | 2.25 | ||
1.8 | 1.3 | 2 | 3 | 3.53 | 5.07 | ||
2 | 1.6 | 2.9 | 4 | 6.28 | 9.01 | ||
2.5 | 2.5 | 3.8 | 5 | 9.82 | 14.09 | ||
3 | 3.6 | 6.37 | 6 | 14.14 | 20.29 | ||
4 | 6.4 | 9.5 | 8 | 25.15 | 36.07 | ||
5 | 10 | 14.7 | 10 | 39.3 | 56.36 | ||
6 | 14 | 18.6 | 12 | 56.59 | 81.16 | ||
1×19 | 0.8 | 0.31 | 0.53 | 7×19 | 3 | 3.6 | 5 |
1 | 0.49 | 0.82 | 4 | 6.4 | 9.8 | ||
1.2 | 0.71 | 1.07 | 5 | 10 | 15 | ||
1.5 | 1.11 | 1.85 | 6 | 14.4 | twenty one | ||
1.8 | 1.6 | 2.67 | 8 | 25.6 | 36 | ||
2 | 1.98 | 3.3 | 10 | 40 | 55 | ||
2.5 | 3.09 | 5.16 | 12 | 56.5 | 79 | ||
3 | 4.45 | 7.43 | 14 | 78.4 | 108 | ||
4 | 7.92 | 13.21 | 16 | 102 | 140 | ||
5 | 12.37 | 21.64 | 18 | 129 | 180 | ||
6 | 17.82 | 29.72 | 20 | 160 | 220 | ||
8 | 52.8 | 52.8 | twenty two | 193 | 260 | ||
10 | 82.4 | 82.5 | twenty four | 230 | 320 |
FAQ
1. What are your delivery terms?
we acceptEXW, FOB, CIFWait. You can choose the most convenient one or
Cost effective for you.
2. Are you a factory or a commercial company?
we aremanufacturerBased in China2007.
3. When can I get a quotation?
we usually citewithin 12 hoursAfter we receive your inquiry. If you desperately want to get
price, please call us or let us know in your email so we can prioritize your enquiry.
4. How soon can I receive the samples?
After you pay for the sample and approve the layout, in most cases the sample will be ready for delivery3-5 days. Samples will be sent to youby courier, you can use yourown courierIf you do not have an account, please prepay with us.
5. What kind of documents do you accept for printing?
PDF, Core Drawing, Adobe Illustrator.
6. Do you accept OEM?
yes we acceptOEMandODM.
we acceptEXW, FOB, CIFWait. You can choose the most convenient one or
Cost effective for you.
2. Are you a factory or a commercial company?
we aremanufacturerBased in China2007.
3. When can I get a quotation?
we usually citewithin 12 hoursAfter we receive your inquiry. If you desperately want to get
price, please call us or let us know in your email so we can prioritize your enquiry.
4. How soon can I receive the samples?
After you pay for the sample and approve the layout, in most cases the sample will be ready for delivery3-5 days. Samples will be sent to youby courier, you can use yourown courierIf you do not have an account, please prepay with us.
5. What kind of documents do you accept for printing?
PDF, Core Drawing, Adobe Illustrator.
6. Do you accept OEM?
yes we acceptOEMandODM.
