Price of Type 2 steel sheet piles supplied by Tianjin Steel Plant
-
$711.00 / 5 - 24 pieces
$693.00 / 25 - 49 pieces
$500.00 / >=50 pieces - 5 pieces
- Jiangsu Tisco Industrial Co., Ltd.
- Jiangsu, China
- Ms Amy Wang
Product Detail
| port: | Shanghai, Tianjin, any port in China | tolerant: | ±10% |
| Key words: | SY295 sheet pile | application: | Building Construction |
| Invoicing: | by theoretical weight | MOQ: | 5 metric tons |
| Material: | Q235/Q345/SS400/ST37-2/ST52/Q420/Q460/S235JR | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| Package preview: | grade: | SY295,SY390 | |
| product name: | Sheet pile | standard: | National standard |
| shape: | shape pile | Processing services: | Bending, welding, decoiling, punching, cutting |
| Advantage: | low cost | technology: | hot rolled cold rolled |
| Alloy or not: | Unalloyed | expiration of pay: | 30% down payment 70% against |
| delivery time: | 8-14 days | length: | 9M 12M 15M 18M |
| Packaging Details: | With wooden pallet, standard shipping package or according to customer requirements | Supply capacity: | 5000 tons per month |
| Origin: | Tianjing, China |
Specification
product name | Steel pipe (U-shaped cold-rolled steel sheet piles of different profiles) |
standard | AiSi, ASTM, DIN, GB, JISEN10249, EN10248, JIS A 5523 and JIS A 5528, ASTM A328 / ASTM A328M |
length | 9 12 15 20 m as required Max.24m |
width | 400-750mm as required |
thickness | 6-25mm |
Material | Q234B/Q345B JIS A5523/SYW295, JISA5528/SY295, SYW390, SY390, etc. |
shape | U,Z,L,S,Pan,Flat,hat profiles |
application | Cofferdam/river flood diversion and treatment/ Water Treatment System Fence/Flood Wall/ Breakwaters / Coastal berms / Tunnel cuts and tunnel shelters / Breakwater/Weir Wall/Fixed Slope/Retaining Wall |
steel grade | SGCC/SGCD/SGCE/DX51D/DX52D/S250GD/S280GD/S350GD/G550/SPCC S275,S355,S390,S430,SY295,SY390,Grade50,Grade55,Grade60,A690 |
technology | Cold Formed Interlocks or Clutches |
Product Description
Steel sheet pile specifications

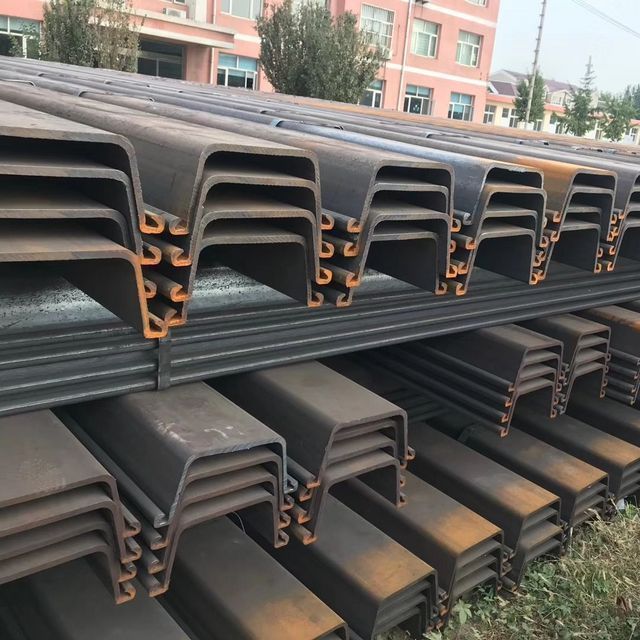

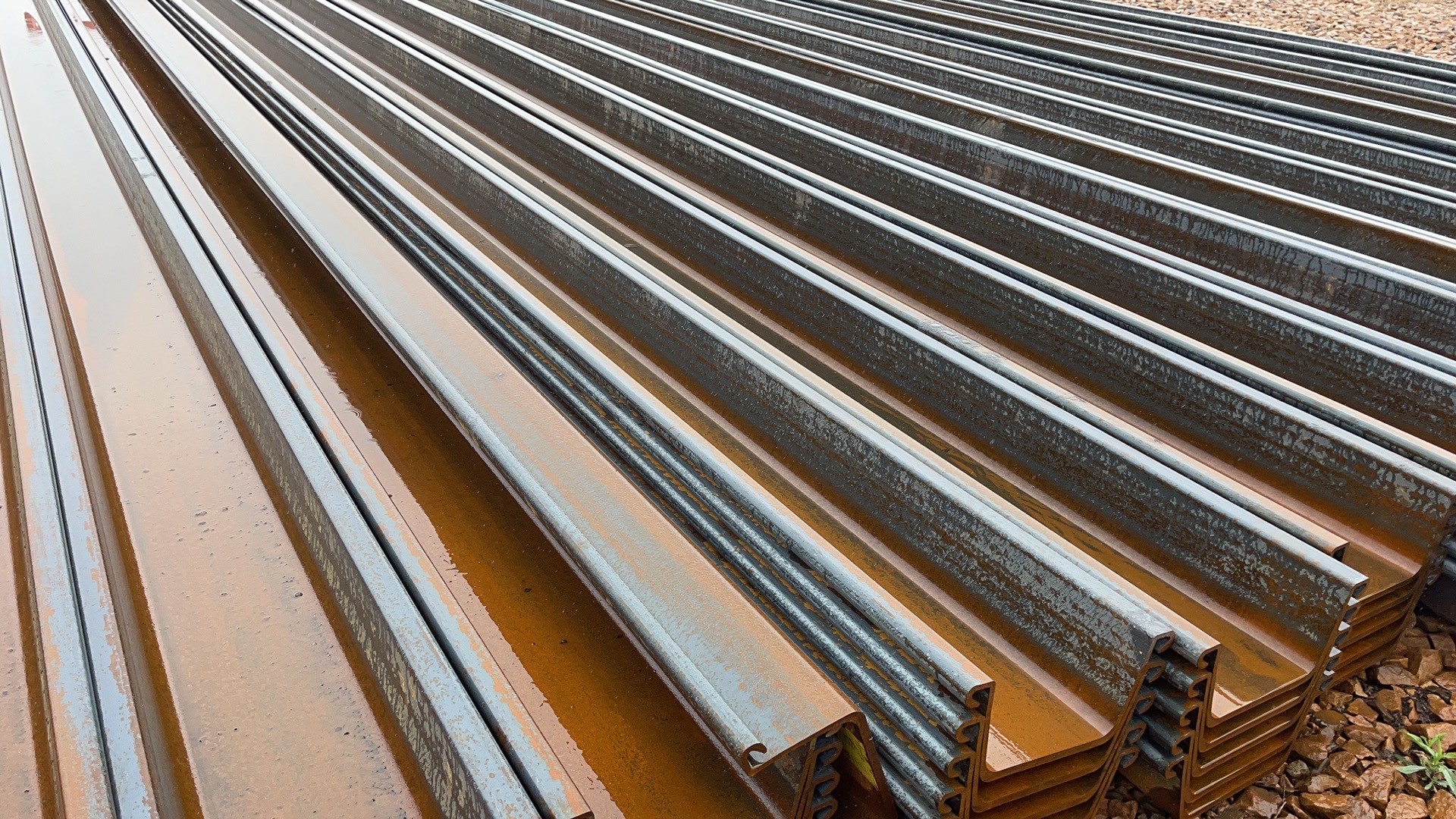

National standard U-shaped steel sheet pile
National standard U-shaped steel sheet pile
1. Flexible design, high section modulus and mass ratio.
2. The rigidity of the sheet pile wall is increased, and the displacement and deformation are reduced.
3. Large width, effectively saving hoisting and piling time.
4. As the section width increases, the water-stop performance is improved.
5. More excellent corrosion resistance.
2. The rigidity of the sheet pile wall is increased, and the displacement and deformation are reduced.
3. Large width, effectively saving hoisting and piling time.
4. As the section width increases, the water-stop performance is improved.
5. More excellent corrosion resistance.
size | Each piece | ||||||||
Specification | width (mm) | High (mm) | Thick (mm) | Sectional area (square centimeters) | weight (kg/m) | ||||
400×85 | 400 | 85 | 8.0 | 45.21 | 35.5 | ||||
400×100 | 400 | 100 | 10.5 | 61.18 | 48.0 | ||||
400×125 | 400 | 125 | 13.0 | 76.42 | 60.0 | ||||
400×150 | 400 | 150 | 13.1 | 74.40 | 58.4 | ||||
400×170 | 400 | 170 | 15.5 | 96.99 | 76.1 | ||||
600×130 | 600 | 130 | 10.3 | 78.7 | 61.8 | ||||
600×180 | 600 | 180 | 13.4 | 103.9 | 81.6 | ||||
600×210 | 600 | 210 | 18.0 | 135.3 | 106.2 | ||||
750 | 204 | 10.0 | 99.2 | 77.9 | |||||
750 | 205.5 | 11.5 | 109.9 | 86.3 | |||||
750 | 206 | 12.0 | 113.4 | 89.0 | |||||
Z type steel sheet pile:
1. Flexible design, high section modulus and mass ratio.
2. The rigidity of the sheet pile wall is increased, and the displacement and deformation are reduced.
3. Large width, effectively saving hoisting and piling time.
4. As the section width increases, the water-stop performance is improved.
5. More excellent corrosion resistance.
2. The rigidity of the sheet pile wall is increased, and the displacement and deformation are reduced.
3. Large width, effectively saving hoisting and piling time.
4. As the section width increases, the water-stop performance is improved.
5. More excellent corrosion resistance.
Specification | width (mm) | High (mm) | Thick tons (mm) | thick s (mm) | weight (kg/m) |
SPZ12 | 700 | 314 | 8.5 | 8.5 | 67.7 |
SPZ13 | 700 | 315 | 9.5 | 9.5 | 74 |
SPZ14 | 700 | 316 | 10.5 | 10.5 | 80.3 |
SPZ17 | 700 | 420 | 8.5 | 8.5 | 73.1 |
SPZ18 | 700 | 418 | 9.10 | 9.10 | 76.9 |
SPZ19 | 700 | 421 | 9.5 | 9.5 | 80.0 |
SPZ20 | 700 | 421 | 10.0 | 10.0 | 83.5 |
SPZ24 | 700 | 459 | 11.2 | 11.2 | 95.7 |
SPZ26 | 700 | 459 | 12.3 | 12.3 | 103.3 |
SPZ28 | 700 | 461 | 13.2 | 13.2 | 110.0 |
SPZ36 | 700 | 499 | 15.0 | 11.2 | 118.6 |
SPZ38 | 700 | 500 | 16.0 | 12.2 | 126.4 |
SPZ25 | 630 | 426 | 12.0 | 11.2 | 91.5 |
SPZ48 | 580 | 481 | 19.1 | 15.1 | 140.2 |

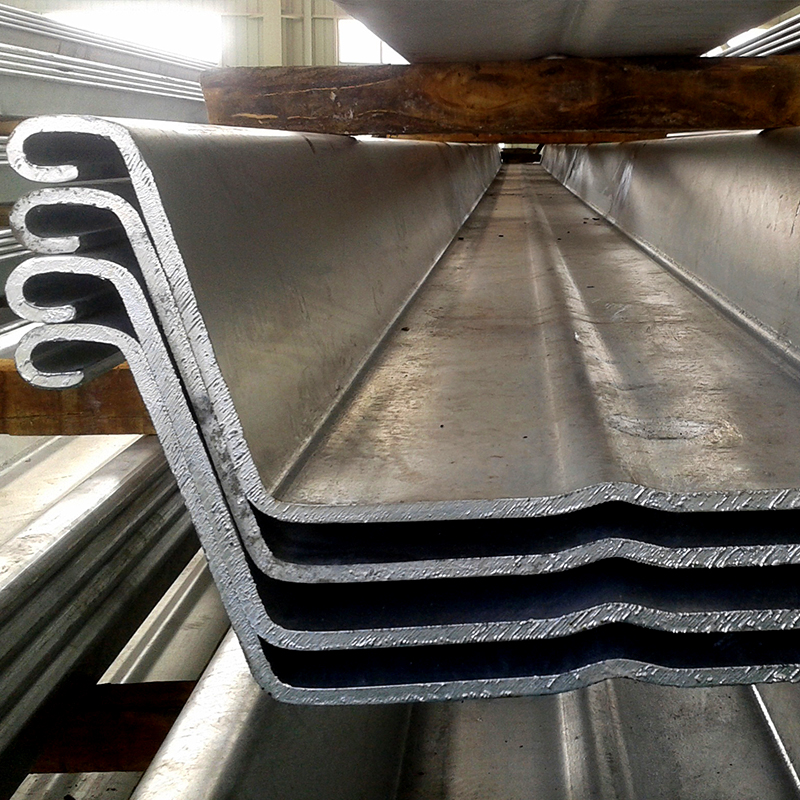

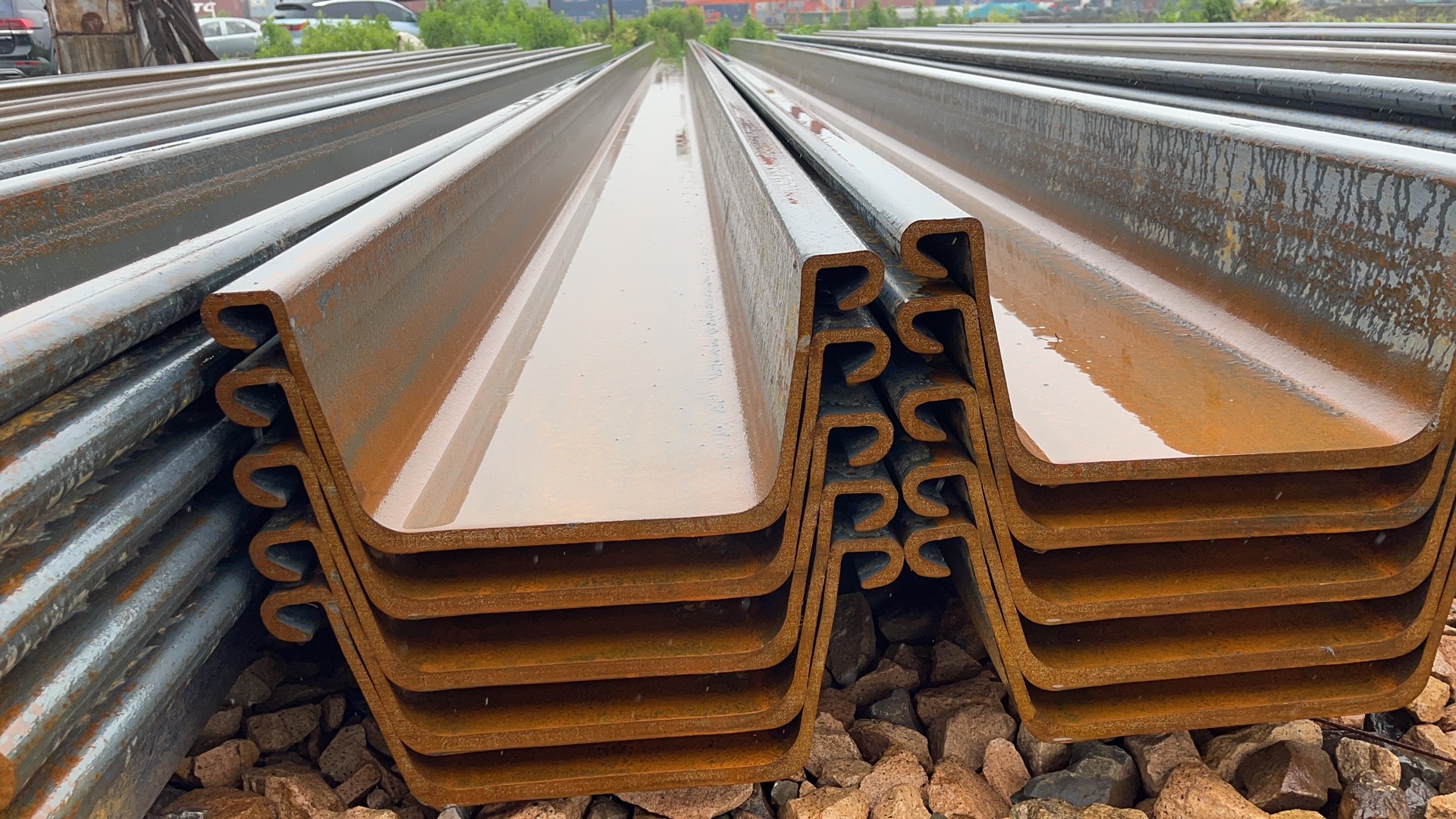

U-shaped steel sheet pile is the most common steel sheet pile, which has the remarkable characteristics of high strength and waterproof. exist
In bridge construction, U-shaped steel sheet piles have gradually played an important role and are favored by engineers. Sheet pile
Our factory has first-class quality, advanced technology forging
In bridge construction, U-shaped steel sheet piles have gradually played an important role and are favored by engineers. Sheet pile
Our factory has first-class quality, advanced technology forging

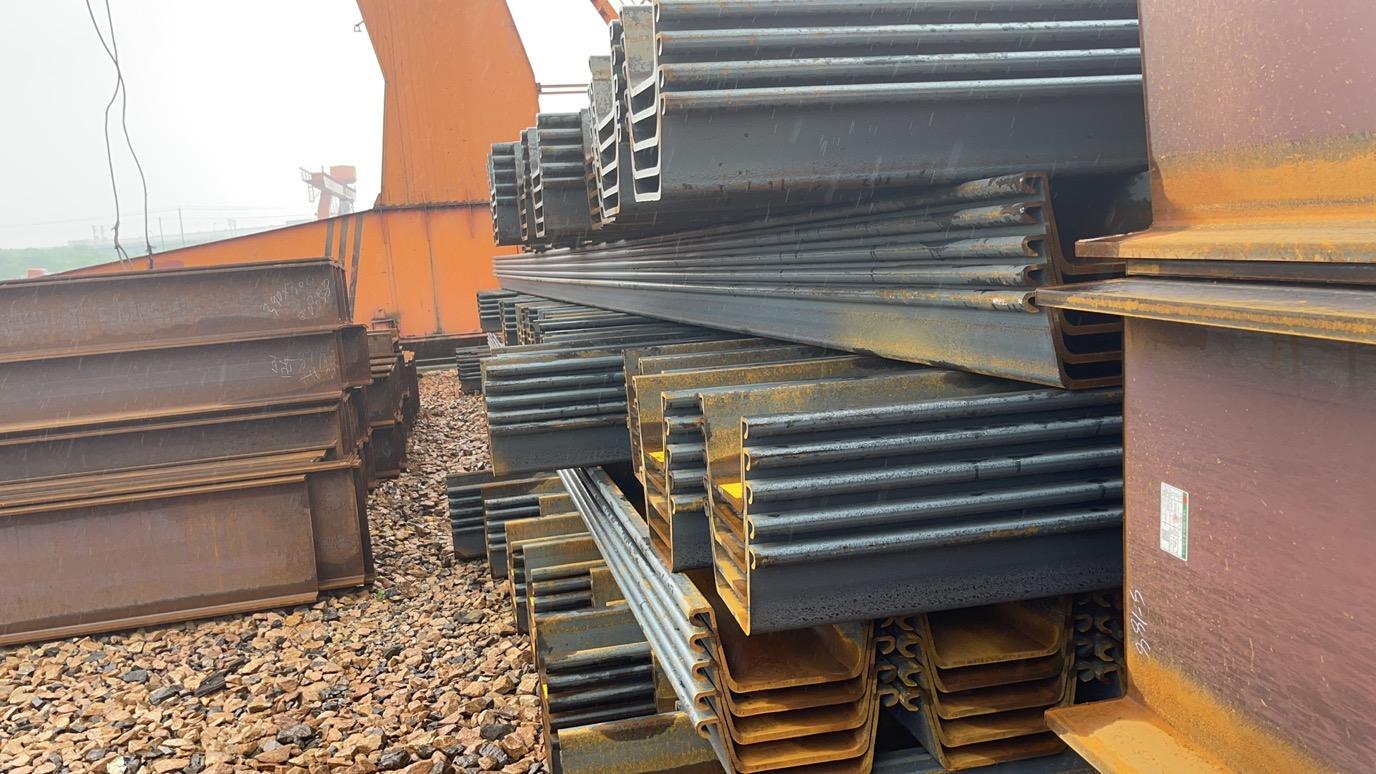

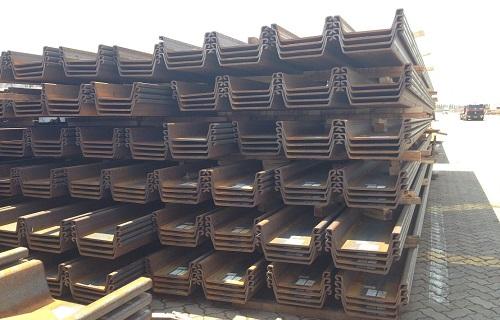

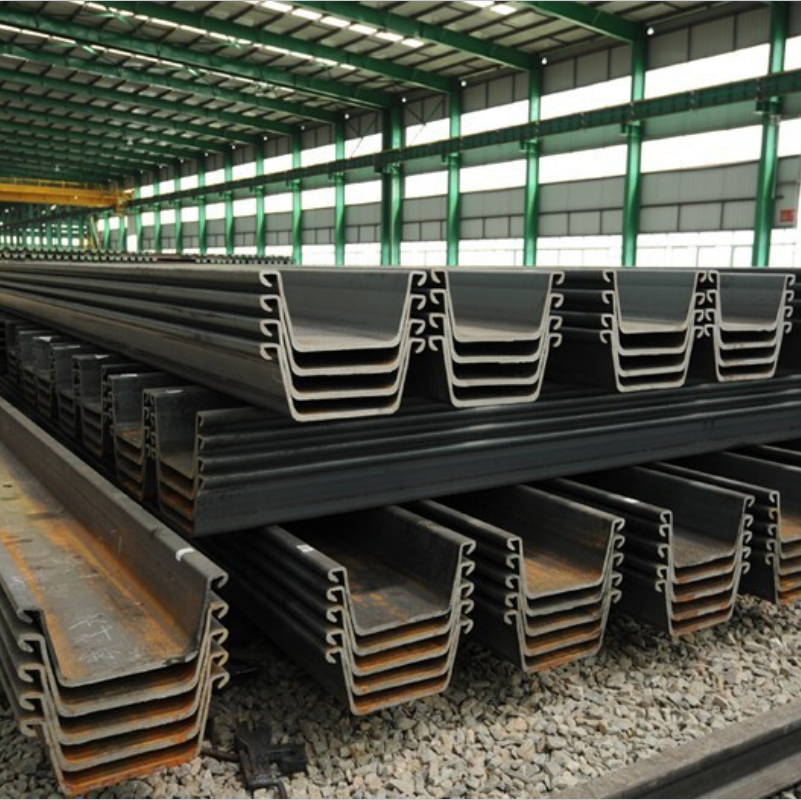

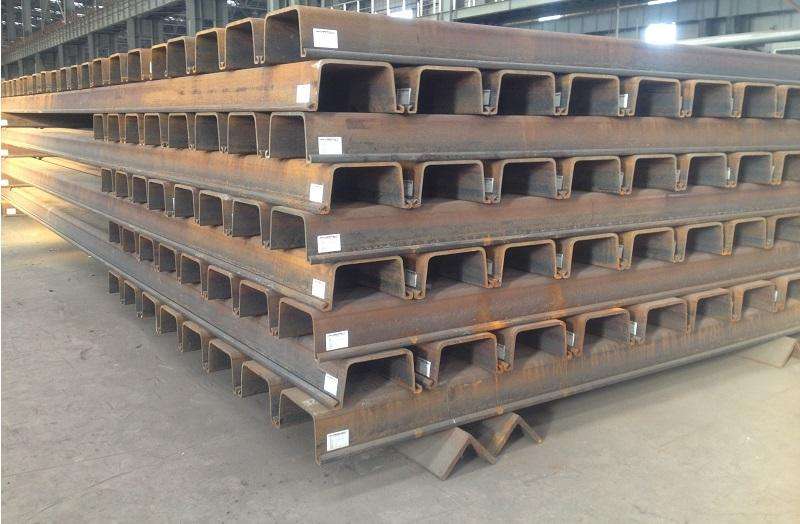

storehouse

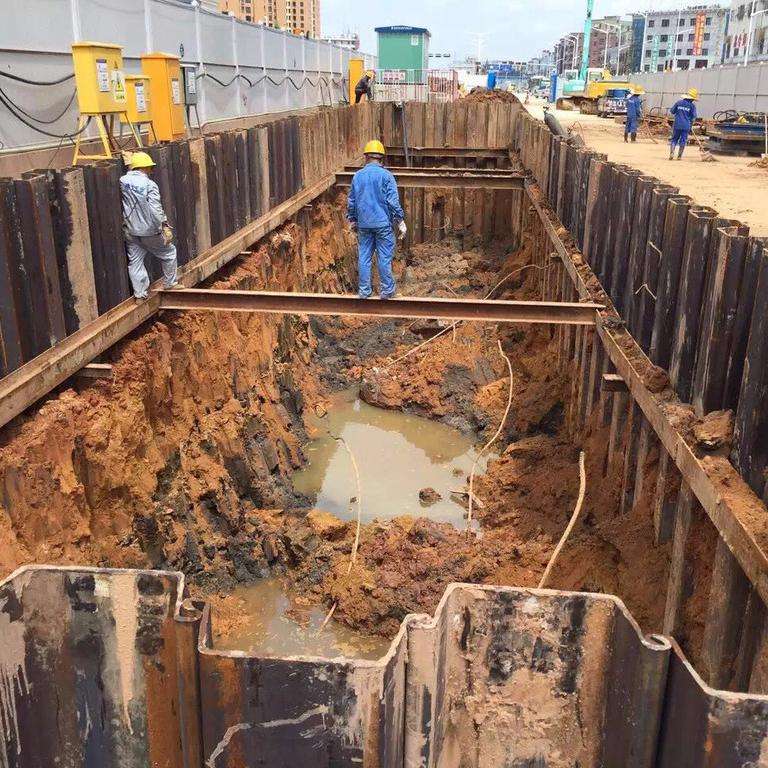

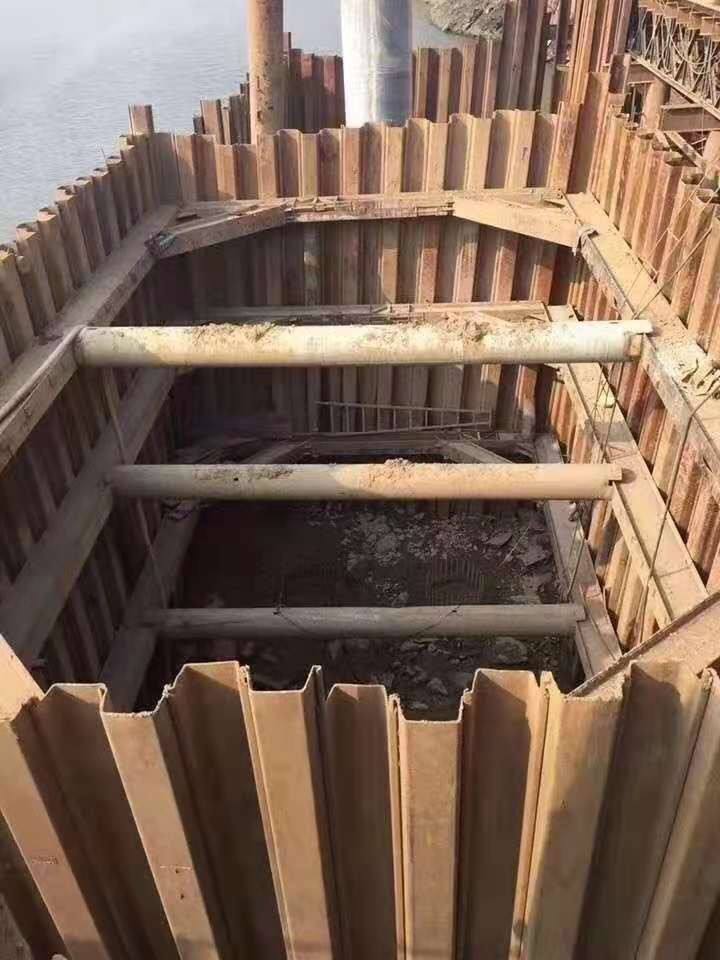

application
1. Wharf wall, sound insulation wall, etc. For water conservancy projects.
2. Used for retaining walls and parking equipment in waterway civil engineering.
3. Used for the control of water conservancy construction pollution.
2. Used for retaining walls and parking equipment in waterway civil engineering.
3. Used for the control of water conservancy construction pollution.
