0.05mm pure titanium foil china price per kg
-
$34.00 / 1 - 9 kilograms
$26.00 / 10 - 49 kilograms
$18.00 / >=50 kilograms - 1 kilogram
- Baoji Dynamic Trading Co.,Ltd
- Shaanxi, China
- Mr Jim Zhang
Product Detail
| port: | Qingdao. Shanghai. Shenzhen Guangdong | width: | 10~400mm |
| surface: | Polishing, pickling, sandblasting | Packaging Details: | The plywood shell is then strapped with steel straps. In long-distance transportation, packaging will make the goods more secure. |
| finishing: | Pickling, machining, sandblasting | Processing services: | Cutting, bending, welding, decoiling, cutting, punching |
| Supply capacity: | 10000 kg per month | Material: | GR1, GR2, GR5, GR7, GR9, GR12 |
| product name: | Pure titanium grade 2 thin titanium foil | standard: | ASTM B265, AMS, ASTM 4911 |
| brand: | Chicken rice cloud | length: | 500-6000mm, cut as required |
| grade: | GR1 GR2 GR5, GR1, GR2, GR5 | application: | industrial |
| Advantage: | Corrosion resistance, high strength, light weight. | payment terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| density: | About 4.51g/cm3 | type: | Titanium Foil Titanium Bar |
| Origin: | Shaanxi | Package preview: | |
| Ti (min): | 99% | color: | primary color |
| model: | Titanium foil |
Product Description

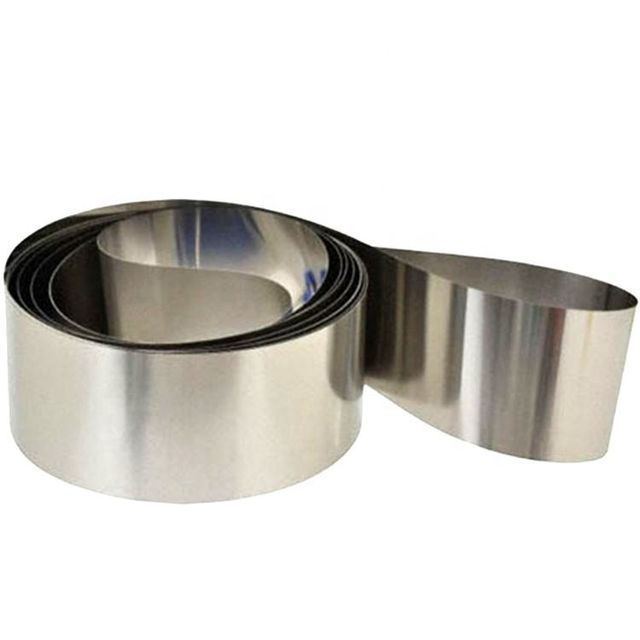

♠Titanium foil is a titanium plate, strip, roll or sheet with a thickness less than or equal to 0.1mm. The maximum width of rolled titanium foil is about 600mm.
♠ The width of the titanium foil is cut according to the user's requirements. But the wider it is made, the more productive it is.
♠Titanium foil is mainly used in aerospace, navigation, nuclear power, electronics, chemical industry, petroleum, precision manufacturing, medical and pharmaceutical, etc.
| describe | Titanium Foil/Titanium Strip |
| Material |
Gr1, Gr2, Gr3, Gr4, Gr5, Gr7, Gr6, Gr9, Gr11, Gr12 ,Gr16, Gr17, Gr25
TA0, TA1, TA2, TA5, TA6, TA7, TA9, TA10, TB2, TC1, TC2, TC3, TC4 |
| standard | ASTM B265, ASME SB265, DIN17851, TiA16Zr5Mo1.5, JIS4100-2007, GB3461-2007 |
| size |
Thickness: 0.01-2.0mm Width: 0.7-240mm Length: on request |
| MOQ | 1kg/kg |
| equipment used | CNC lathes, milling machines, machining centers, thread rolling machines, magnetic needle polishing machines |
| feature |
1. High corrosion resistance 2. Low density 3. Non-ferromagnetic 4. Good biocompatibility |
| pack | Standard export packing, suitable for all kinds of transportation, or as per requirement. |
| application |
1. Based on high strength, the tensile strength of titanium products can reach 180Kg/mm². 2. Titanium and titanium alloys in the aviation industry are called "space metals"; in addition, In the shipbuilding industry, chemical industry, manufacturing machinery parts, Communication equipment, cemented carbide, etc. are increasingly widely used 3. In addition, because titanium alloy has good compatibility with the human body, So titanium alloy can also be used as artificial bone. |
chemical composition:
| work(%) | C | no | iron | Europe | h | Al | V | titanium |
| GR1 | ≤0.08 | ≤0.03 | ≤0.20 | ≤0.18 |
≤0.015 |
- | - | bal. |
| GR2 | ≤0.08 | ≤0.03 | ≤0.30 | ≤0.25 | ≤0.015 | - | - | bal. |
| GR5 | ≤0.10 | ≤0.05 | ≤0.30 | ≤0.20 | ≤0.015 | 5.50-6.80 | 3.50-4.50 | bal. |
Stretch requirements:
| grade | tensile strength | Yield strength 0.2% offset | elongation at 2 in.or 50mm min.% |
Bending test | ||||||||
| minimum value | minimum value | minimum value | maximum | Less than 0.070 inches (1.8 mm) thick | 0.070 to 0.187 inches (1.8 to 4.75mm) thickness |
|||||||
| Kissy | MPa | Kissy | MPa | Kissy | MPa | |||||||
| 1 | 35 | 240 | 20 | 138 | 45 | 310 | twenty four | 1.5T | 2T | |||
| 2 | 50 | 345 | 40 | 275 | 65 | 450 | 20 | 2T | 2.5T | |||
| 3 | 65 | 450 | 55 | 380 | 80 | 550 | 18 | 2T | 2.5T | |||
| 4 | 80 | 550 | 70 | 483 | 95 | 655 | 15 | 2.5T | 3T | |||
