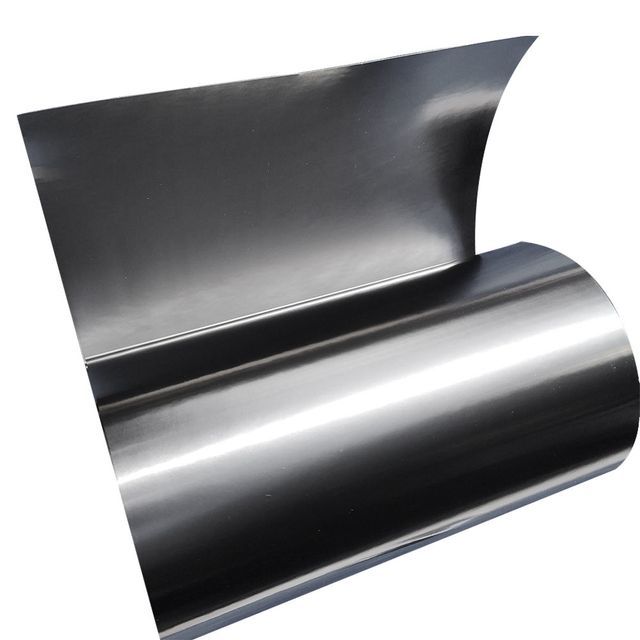

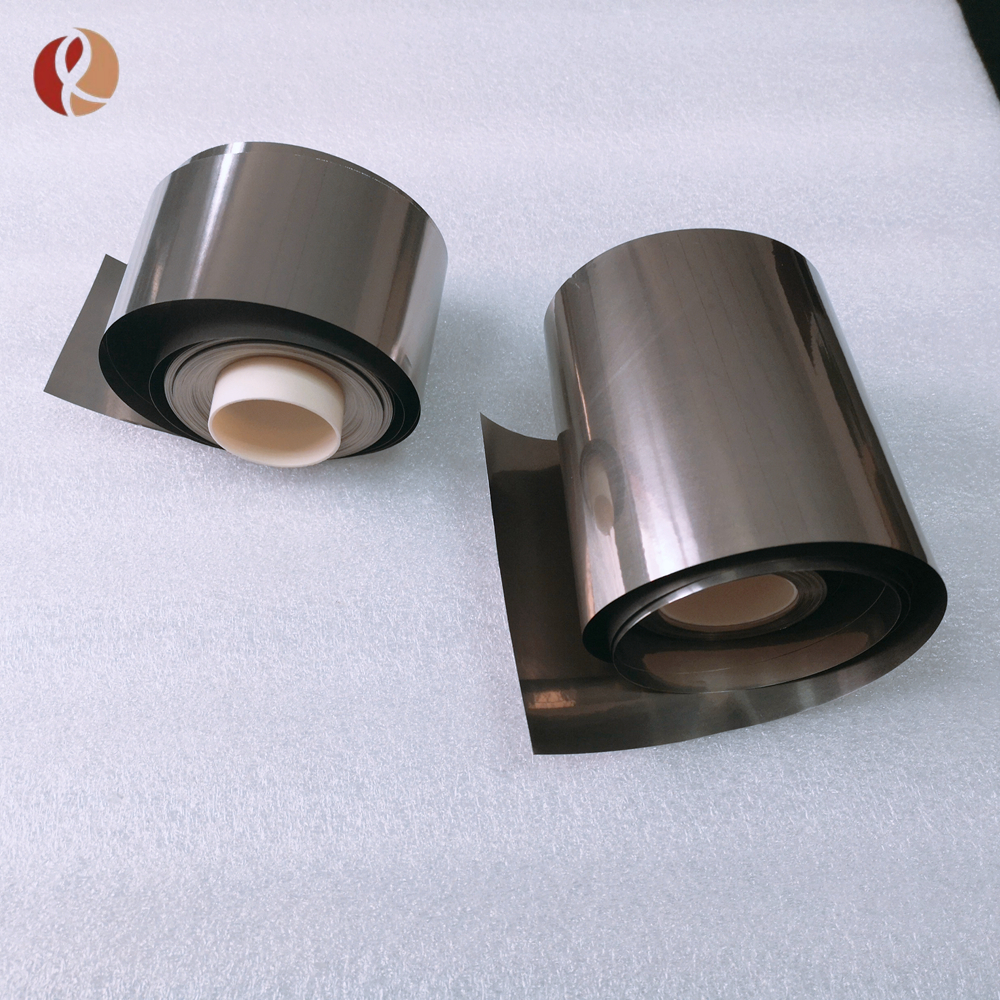

Cold rolled gr2 titanium foil and strip for sound film

Product Detail

application:Machining, welding, batteries, high-precision machinerypayment terms:L/C, Western Union, T/T, Alipay
brand:Yunchimodel:YZ-titanium foil
width:6-500mmMaterial testing certificate:EN10204.3.1
density:4.51 g/cm3technology:cold rolled
standard:ASTM B265grade:level 2
Supply capacity:50 tons per monthstock:Fast delivery
Origin:Shaanxi, Chinaproduct name:Cold rolled gr2 titanium foil and strip
length:According to your requestslength:200 mm according to customer requirements
application:industrialsurface:pickling polished rolling
Ti (min):99.2Processing services:customizable

Cold rolled gr2 titanium foil and strip for sound film



Product Description



product name
Titanium Foil/Titanium Plate/Titanium Sheet/Titanium Strip/Titanium Coil
standard
ASTM B265 / ASME SB265 / AMS 4911 / ASTM F67 / ASTM F136 / ISO 5832-2 / ISO 5832-3
Titanium type
Commercial Pure (CP)/Titanium Alloy
grade

Gr1 Gr2 Gr3 Gr4 Gr5 Gr6 Gr7 Gr9 Gr11 Gr12 Gr23 Ti15333

BT1-00 BT1-0 BT1-2

thickness
0.025-75mm
length
cut as required
technology
hot rolled or cold rolled
surface
Surface pickling or polishing, sandblasting surface
application
Aviation, navigation, petrochemical industry, industry, equipment manufacturing, medical treatment, automobile, sports



1. Chemical requirements
grade N(≤) C(≤) height (≤) Iron (≤) O(≤) Aluminum (≤) V(≤) Palladium (≤) Molybdenum (≤) Nickel (≤) titanium
GR1 0.03 0.08 0.015 0.2 0.18 / / / / / ball
GR2 0.03 0.08 0.015 0.3 0.25 / / / / / ball
GR3 0.05 0.08 0.015 0.3 0.35 / / / / / ball
GR4 0.05 0.08 0.015 0.2 0.4 / / / / / ball
GR5 0.05 0.08 0.015 0.4 0.2 5.5~6.75 3.5~4.5 / / / ball
GR7 0.03 0.08 0.015 0.3 0.25 / / 0.12~0.25 / / ball
GR9 0.03 0.08 0.015 0.25 0.15 2.5~3.5 2.0~3.0 / / / ball
GR12 0.03 0.08 0.015 0.3 0.25 / / / 0.2~0.4 0.6~0.9 ball
GR23 0.05 0.08 0.012 0.25 0.13 5.5~6.5 3.5~4.5       ball



2. Tensile requirements
grade Tensile strength (≥) Yield strength (≥)) Elongation (≥)%)
ksi MPa ksi MPa
GR1 35 240 20 138 twenty four
GR2 50 345 40 275 20
GR3 65 450 55 380 18
GR4 80 550 70 483 15
GR5 130 895 120 828 10
GR7 50 345 40 275 20
GR9 Post-90s 620 70 483 15
GR12 70 483 20 345 18
GR23 120 828 110 760 10









application



equipment



Packaging and Shipping



main products



Our advantage





exhibition

Hannover Messe and CeMAT in April 2018.

Alvin Liu and Alex Huo, the leaders of Yunchi Titanium, participated in the official opening ceremony of the Hannover Fair in Germany.
