Very soft magnetic alloy metal foil/sheet

Product Detail

Origin:Jiangsu, ChinaNickel (minimum):80
brand:NKPackaging Details:Cartons, pallets, bobbins, coils (also depends on customer's requirements)
application:industrial magnetstrip:0.5*5.0mm-5.0*250mm
payment terms:L/C, Western Union, T/TUltimate Strength (≥MPa):standard
standard:GB/ASTM/AISI/ASMEmodel:mumetal, permalloy, 1j85 supermalloy
Resistance (μΩ.m):standardPowder or not:not powder
Material:main ingreadientElongation (≥ %):standard
port:ShanghaiHealth status:bright, annealed, soft
Supply capacity:2000 tons per yearribbon:0.05*0.2-2.0*6.0mm
grade:FerronickelProcessing:accept
electric wire:0.018-10mmtype:Nickel belt
Certificate:ISO 9001



Product Details

Permalloy 80 sheets
Grades: 1j50, 1j79, 1j85, 1j86

Shape: Wire, Rod/Rod, Strip, Sheet, Tube
Straight and solid winding
long service

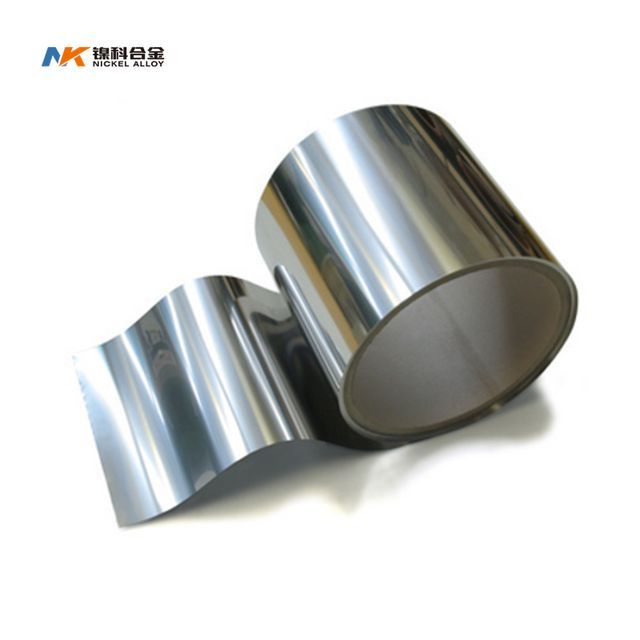

                                       Soft magnetic alloy μ metal foil/sheet

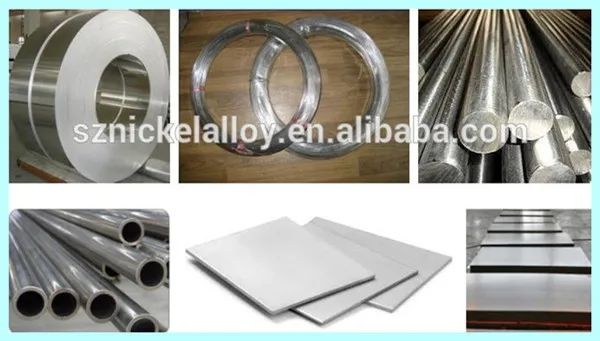

Our products are available in the following formsStrip, plate, strip, rod, tube and rod.





wood metal



wood metalBeing 80% nickel, with the addition of iron and molybdenum as the main elements, this alloy offers extremely high initial magnetic permeability. It has only moderate resistance to moisture and atmospheric corrosion and is primarily used in transformer cores, but is known for its magnetic properties and can be used to shield electrical components from magnetic fields. "HYMU 80" has a minimum DC permeability of 80,000 at a flux density of 40 Gauss when heat treated in accordance with the recommended procedures and tests of ASTM 596



chemical composition



weight% you copper chromium small P silicon manganese C mo iron
Hymu 80 (Comp1) 79.0-80.6     0.008 0.02 0.42 0.95 0.03 3.8-5 rem
Military N 14411C (Comp2) 75.0-77.0 4.0-6.0 3.0 0.02 0.02 0.50 1.8 0.05



Physical Properties (Annealed Condition)



Specific gravity - 8.7g/cm
Curie Temperature - 830°F (410°C)
Resistivity, 349 ohm circ mil/foot 0.55 ohm mm²m
Density lbs/in3 - 316
Thermal Conductivity - 134 btu-inch/ft hour °F 0.32 W/cm °C
Coefficient of Thermal Expansion, in./in. °F x 10 (-******)
7.2 in/in °F x 10-6 between 70 and 400F
13cm/cm/°C 10-6 between 30 and 204°C



FeNi soft magnetic alloy (GBn198-1988)



grade and chemical composition



type

grade

chemical composition(%)

C≤

P≤

S≤

manganese

silicon

you

chromium

limited company

mo

copper

iron

High magnetic

Conductivity

1J46

0.03

0.020

0.02

0.60~1.1

0.15~0.3

45.0~46.5







≤0.20

balance

1J50

0.30~0.6

0.15~0.3

49.0~50.5







≤0.20

1J77

0.03

0.020

0.02

0.30~0.60

0.15~0.3

75.0~78





3.9~4.5

4.80~6



1J76

0.30~0.60

0.15~0.3

75.0~76.5

1.80~2.2



4.80~5.2

high school

permeability

Soft magnetic

alloy

1J79

0.60~1.1

0.30~0.50

78.5~80.0





3.80~4.10

≤0.20

1J80

0.60~1.1

1.10~1.5

79.0~81.0

2.6~3.0





≤0.20

1J85

0.30~0.60

0.15~0.3

79.0~81.0





4.80~5.20

≤0.20

1J86

≤1.00

≤0.30

80.5~81.5





5.80~6.2












Product sizes are:

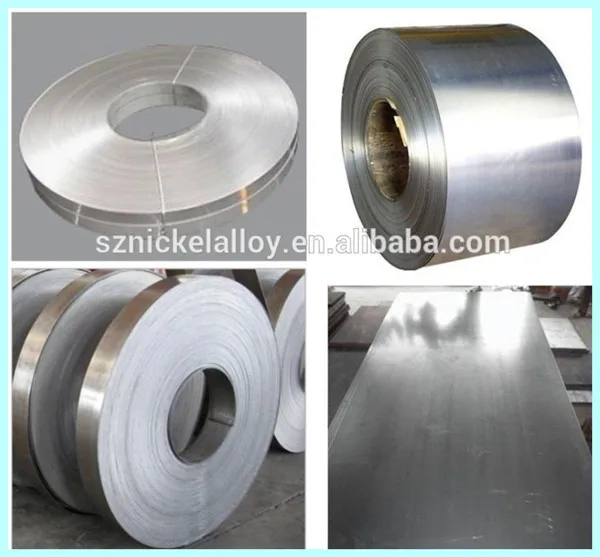

Cold-rolled steel strip: 0.1mm-3.0mm×≤420mm
Hot forging material: diameter 5.5mm--250mm, square: 40mm240mm×40mm240mm
Cold drawn wire: 0.1mm-18mm
Hot rolled plate 3.0mm-60.0mm×1000mm*2000mm

Seamless pipe: φ6mm~φ219mm×0.5mm~18mm

Welded pipe: φ1mm~φ120mm×0.1mm~10mm




Applications

mumetal shielding plate

High performance cores such as toroids and laminates

Magnetic shielding protects sensitive components from external magnetic fields

magnetic sensor

current sensor

Any delicate application requiring high permeability magnetic material with low coercive field and low loss, ranging from low frequency to 1MHz

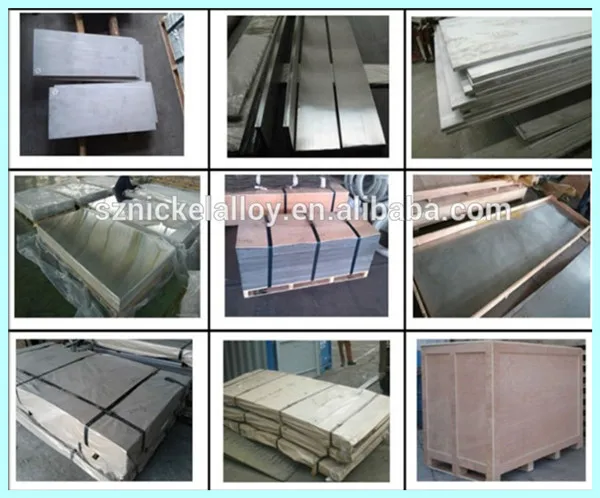

Product packaging

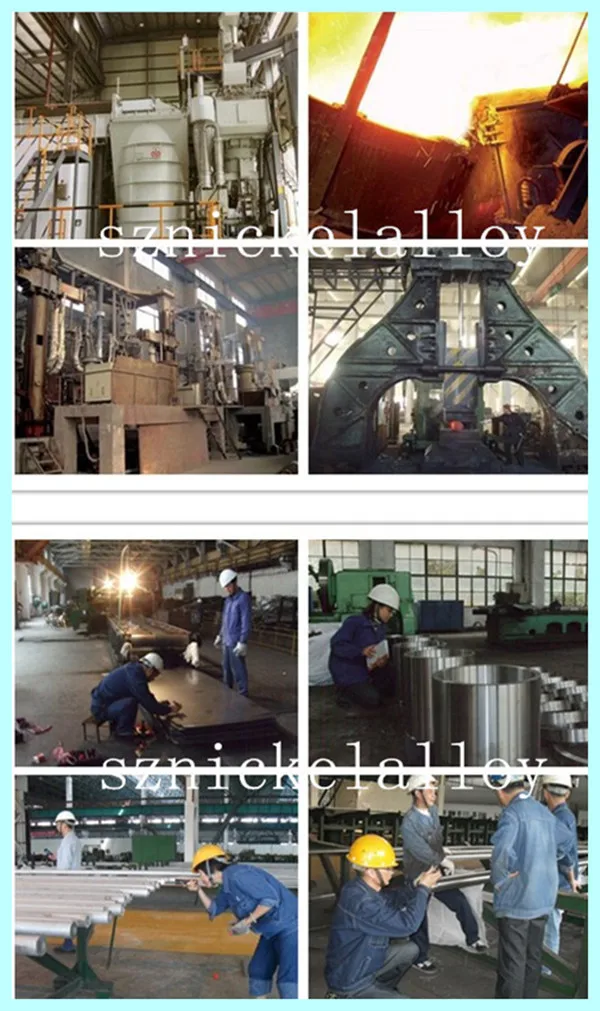

Product process

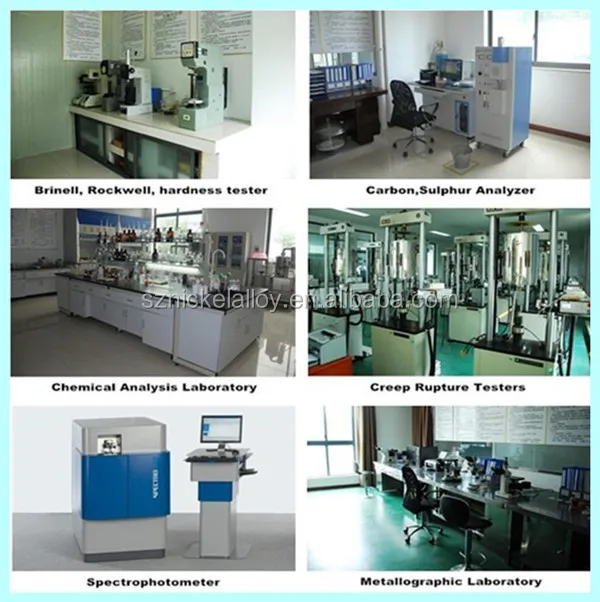

test equipment





Certificate



Why choose SZNK heat-resistant alloy



All of our raw materials are made from high-quality materials, not recycled materials. We have over 25 years experience in manufacturing resistance heating alloys.



In the market, not all nickel-chromium alloys have standard chemical composition and stable electrical resistance. Professionalism and reliability are the soul of our business.



1) We have achieved consistent production from smelting to finished products, and we are able to provide satisfactory products.



2) We have world-advanced German ALD-VIDP1000-8000KG vacuum induction furnace and Japanese wire drawing machine.



3) With our skilled winding technology, we have successfully enlarged the winding weight on the bobbin. For example, even ultra-fine wire with a diameter of 0.04 mm can be transported on 3 - 4 kg spools, instantly increasing your productivity.



4) In order to prevent the wire from loosening, we have introduced the developed tension control system in the wire take-up machine and double wire machine.

We think you can look forward to a smooth offline.



5) 4 tandem rolling mills are used in our strip (rolling line) manufacturing.



Why us:



• Good production process quality control, ISO9001:2008, SGS, BV certification.



• Excellent quality and competitive price, OEM available.



• Wide range of stock or custom sizes available.



• The whole process from material to finished product can be traced.



our service:



• Your inquiries about our products and prices will be responded within 24 hours.



• Well-trained and experienced staff will of course answer all your inquiries professionally and in English.



• OEM is very welcome. We have a strong R&D team here to help.



• Provide good after-sales service, please come back if you have any questions.
