Aramid UD Bulletproof Vest Bulletproof Fabric

Product Detail

Function:Bulletproof aramid fabricPackaging Details:Carton; Carton size: 165cm(L)*20cm(W)*20cm(H) Packaging details: 1.6m(W)*100m(L) per carton
Supply Type:stock itemweight:140g-300g/㎡,100-350G
style:UDport:Shanghai
Yarn count:200D 400D 1000D 1500D 3000Dusage:Soft and hard armor
width:58/60"density:50-300g/m2
application:bulletproof clothpattern:UD
Certification:NIJ, ISO, ASTM, ULProduct Category:Aramid fabric
Supply capacity:70 tons per monthCraft:weave
size:1.6m*100min stock:Deliverable
use:Aerospace, Automotive, Militaryfeature:Bulletproof, chemical resistant, flame retardant, thermal insulation, non-conductive, radiation resistant
payment terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,PaypalMaterial:Aramid, 100% para-aramid
type:Aramid fabricsample:free
model:KT-Fcolor:yellow
Product Description

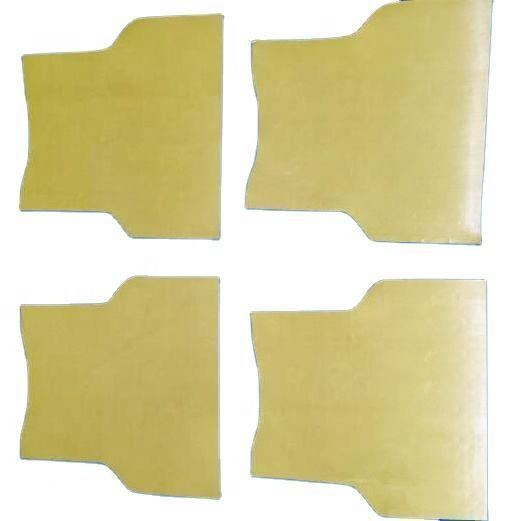

Aramid UD Bulletproof Vest Bulletproof Fabric


feature:

1. Made of aramid fiber;

2. Alkali/acid resistance;


3. Low creep;


4. High decomposition temperature @500℃;


5. For bulletproof applications.


Tarentex® ballistic UD sheet is a unidirectional structure with yarns designed to run parallel to each other. Tarentex® is widely used to make bulletproof vests, helmets, vehicle armor, boat armor, etc. By integrating Tarentex® into bulletproof vests, manufacturers can confidently and easily provide enhanced user comfort and protection from a wide range of bullets and fragments, as well as protection from sharp objects.

The protective material needs to absorb kinetic energy in the shortest possible time. Tarentex®'s high toughness, high energy absorption rate, and high elastic modulus allow for rapid dispersion of deformation waves, making it an ideal protective material. The high number of monofilaments in Tarentex® materials can also improve synergies. In addition, by making armor lighter and more comfortable, Tarentex® can significantly improve the user's experience of wearing the vest.


Hard Armor:

(1) KT-F-673 bulletproof UD sheet can reach NIJ 0101.06 level III for 7.62mm NATO bullet-type M14 automatic rifle, total area density@20kg/㎡
(2) KT-F-673 bulletproof UD sheet can reach AK47 type 7.62x39 AK MSC, total area density@23kg/㎡


Soft Armor:

KT-F-675
(1) 28 layers can block Uzi 9mm submachine gun NIJ0101.04 IIIA type 9mm parabellum pistol @3.9kg/㎡
(2) 34 floors can meet the level IIIA.44 requirements of standard NIJ0101.06 [email protected]/㎡

Model

Areal density

thickness

size

KT-F-675

140g/㎡

0.17mm

1.6m*100m

KT-F-677

160g/㎡

0.2mm

1.6*100m

KT-F-673

170g/㎡

0.22mm

1.6*100m

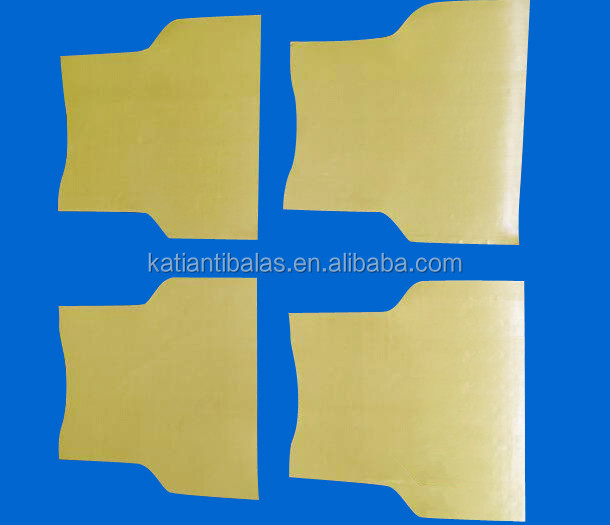

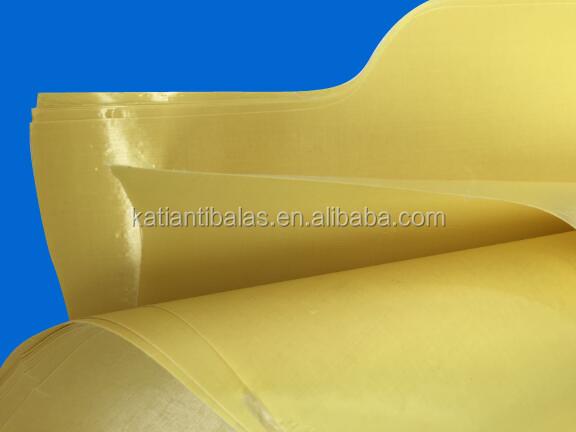

detailed image

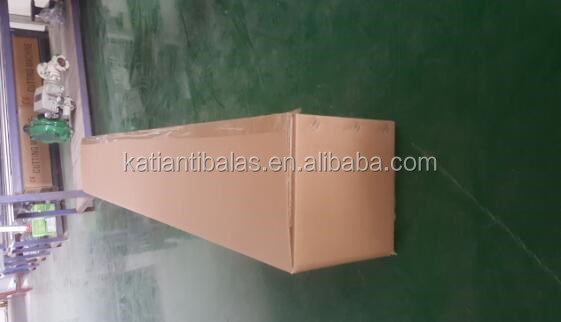

Packaging and Delivery

Carton size: 165cm*20cm*20cm


Mailing method:

1. Shipping

2. Air freight

3. Via DHL, Fedex or TNT

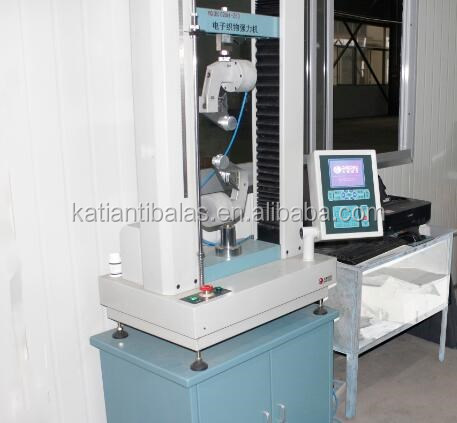

R & D Center
