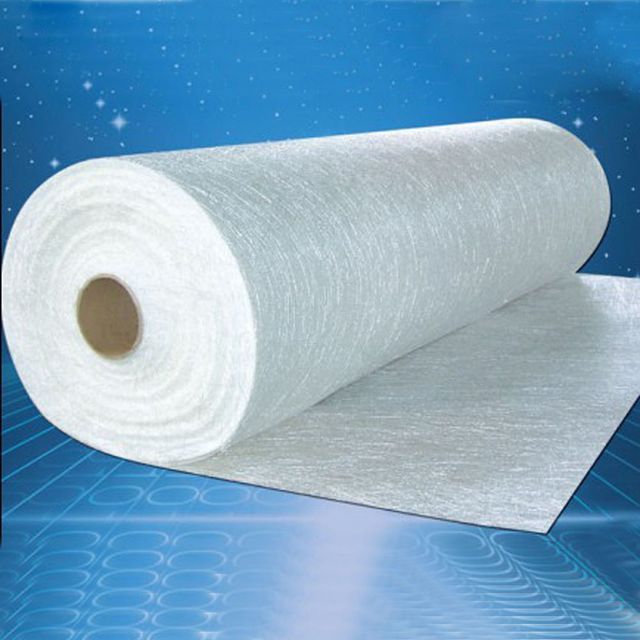

Fiberglass Sheet Raw Materials

Product Detail

Compatible resins:VE EP, vinyl ester, epoxy and phenolic resinsFiberglass Type:Alkali free glass
Mat Type:stitched stamp padGlass type:Electronic Glass CSM
Packaging Details:Each roll is packed in a polybag and put into export carton.port:Shanghai
Area Weight:225g, 300g, 375g, 450g, 600g, 900g/m2.Origin:Jiangxi, China
application:boats, bathrooms, auto parts, cooling towersmodel:EMC300/450/600
payment terms:L/C, Western Union, T/Twidth:1040mm, 1250mm, etc.
feature:high strengthProcessing services:to cut
technology:E-glass Chopped Strand Mat, Glass Chopped Strand Mat (CSM)Supply capacity:66,000 tons of glass fiber sheet raw materials per month
Binder Type:lotions and powdersSoftness:soft
brand:Beihai, Chinaproduct:Fiberglass Sheet Raw Materials
color:white

Fiberglass Sheet Raw Materials



Product List



Product Category
powder binder emulsion adhesive




describe

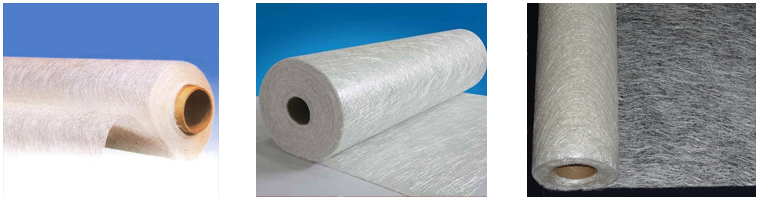

Glass Fiber Chopped Strand Mat-Secondemulsion adhesive

E-Glass Emulsion Chopped Strand Mats are made of randomly distributed chopped strands held more tightly by emulsion binders. It is compatible with UP, VE, EP resins. It is compatible with UP, VE, EP, PF resins. Roll widths range from 50mm to 3300mm. Additional requirements for wetting and decomposition times are available upon request. It is designed for hand lay-up, filament winding, compression molding and continuous lamination processes.

Features:

    1)Decomposes rapidly in styrene

2) High tensile strength, can be used in hand lay-up process to produce large-area parts

3) Good wetting and fast soaking in resin, fast air penetration

4) Superior acid corrosion resistance



There are two types of glass fiber chopped strand mats: powder binder and emulsion binder.



Get samples and quotes








product specification

property Area weight moisture content Size content Breaking strength width
  (%) (%) (%) (N) (mm)
property IS03374 ISO3344 ISO1887 ISO3342 50-3000
EMC80E ±7.5 ≤0.20 8-12 ≥40
EMC100E ≥40
EMC120E ≥50
EMC150E 4-8 ≥50
EMC180E ≥60
EMC200E ≥60
EMC225E ≥60
EMC300E 3-4 ≥90
EMC450E ≥120
EMC600E ≥150
EMC900E ≥200
  • Special specifications can be produced according to customer requirements.




related categories

view related categories

3D fiberglass woven fabric

Fiberglass direct roving

Fiberglass aggregate roving

AR glass fiber roving

Glass fiber chopped strands for thermoplastics

Glass Fiber Chopped Strands for BMC

Grinding Glass Fiber Powder

Fiberglass Seamed Combination Pads

Glass Fiber Chopped Strand Mat

Woven roving

Fiberglass Paper Towel Pads

Fiberglass needle felt

Fiberglass Thermoplastic Products

FRP products

SMC products




transport and storage

Unless otherwise specified, chopped strand mat should be stored in a dry, cool place, protected from rain. It is recommended that the room temperature and humidity be kept at 15°C~35°C and 35%~65% respectively.

Package

Each chopped strand mat is wound on a paper tube with an internal diameter of 76 mm, and the mat roll is 275 mm in diameter. Pad rolls are wrapped in plastic film and then packed in cardboard boxes or wrapped in kraft paper. Volumes can be placed vertically or horizontally. For shipping, rolls can be packed directly into cans or placed on pallets.

application

End uses include ships, plumbing fixtures, automotive components, chemically resistant piping, storage tanks, cooling towers and building components.

our service

  • Your inquiry will be replied within 24 hours
  • free sample
