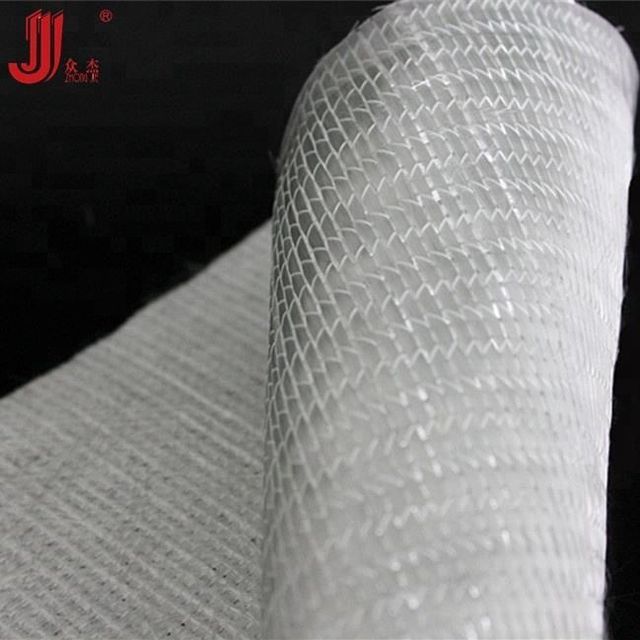

ECR Glass Biaxial Fiberglass Combination Mat ELTM600/450 for Vacuum Infusion

  • $1.00 / 1000 - 2999 kilograms
    $0.95 / 3000 - 7999 kilograms
    $0.93 / 8000 - 17999 kilograms
    $0.90 / >=18000 kilograms
  • 1000 kilograms
  • Changzhou Zhongjie Composites Co., Ltd.
  • Jiangsu, China
  • Mr Jason Gu

Product Detail

Product Category:Biaxial fiberglass composite matPackaging Details:1. Rolls, 62.5kgs per roll, packed into cartons per carton. 2. Normally there are 16 rolls in each pallet 3. The maximum load in a 20ft container is 18 tons
Package preview:Origin:Jiangsu, China
product structure:0/90 degree fabric + chopped shredsUse process:Vacuum infusion, hand lay-up, RTM, etc.;
brand:ZhongjieProduct number:ELTM600/450
port:Shanghai Port, Ningbo Port, Changzhou Port, Yiwu City, etc.;product design:2 layers, polyester yarn stitching
Supply capacity:2000 metric tons per monthSoftness:Excellent
model:ELTM600/450technology:Chopped Fiberglass Mat (CSM)
Processing services:to cutMOQ:1000 kg
product weight:1050 g/m2 (+/-5%)Customs code:7019310000
Mat Type:combination padpayment terms:L/C, T/T
Package:Roll carton packing, per palletFiberglass Type:Alkali free glass
application:FRP shell/cover, wind nacelle, boats and yachts, etc.;
Product Description

Biaxial fiberglass composite mat features:

  • The warp and weft structure simplifies the molding process and improves work efficiency

  • Good formability, easy to remove air bubbles

  • Rapid and complete wetting in resin for increased productivity

  • Good mechanical properties, high strength parts

  • Uniform tension of parts, reducing weight of FRP products

Product Category:
ECR glass biaxial fiberglass composite mat
Zhongjie code:
ELTM600/450
unit weight:
1050 g/m²2(+/-5%)
raw material:
Glass fiber direct roving, glass fiber aggregate roving, polyester yarn
Process:
Biaxial fiberglass composite mat made of fiberglass roving with 0/90 degree alignment layer stitched with polyester yarn chopped strand
0/90 degree density:
598 g/m²2(biaxial fabric)
Stamp Density:
439 g/m²2
Polyester yarn:
13g/m32
Package width:
1270mm is the regular size, other sizes are 200-3200mm can be produced
Moisture content:
≤0.15%
Sizing agent/coupling agent:
Silane
Wet speed reference:
≤60/sec
Use process:
Vacuum infusion, hand lay-up, RTM, molding, etc.;
Applicable resin:
Polyester resin, vinyl resin, epoxy resin, phenolic resin, etc.;
application:
FRP covers/shells, wind energy, boats and yachts, storage tanks, etc.;
