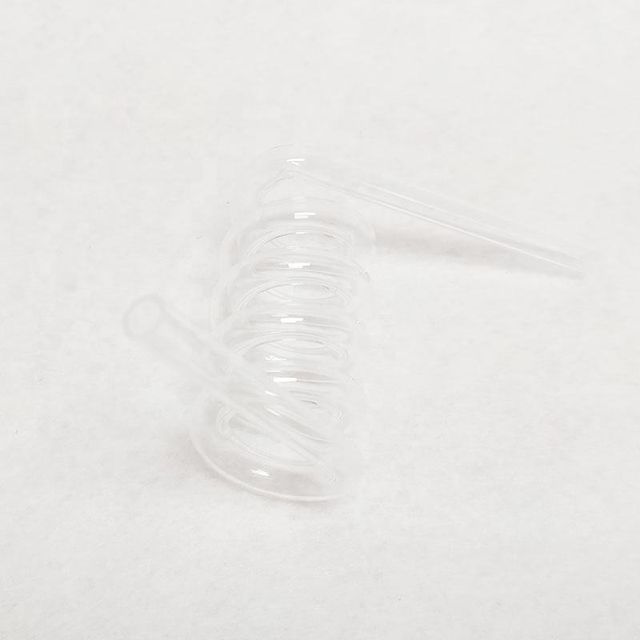

Fused Silica Coils for Condensers

Product Detail

usage:molded or centrifugal partsSupply capacity:10000 pieces per week
type:Clear quartz tube, clear, transparentbrand:Yunnuo
Processing services:Bending, punching, cuttingOrigin:China Shanghai
Outer diameter:custom madePackaging Details:Carton or plywood box
color:whitePackage preview:
payment terms:T/T, Western Union, MoneyGramproduct name:Transparent quartz glass tubes, bushings, bushings
Closed end shape:round, flatapplication:for the lighting industry or semiconductor
density:2.2Ozone content:Ozone free
feature:High temperature and high pressureshape:Tubular, pipe, casing, bushing, bushing
model:YNQCT-038Advantage:Good thermal insulator, blocks infrared (IR) radiation
Material:SiO2 >99.9%, silicon dioxide, silicon oxide (IV)Surface treatment:polishing
End type:Open OBE at both ends, closed COE at one endport:Shanghai
Product Description
Transparent quartz glass products

Quartz glass is a single-component glass of silica, which is usually divided into two categories: transparent quartz glass and opaque quartz glass (fused silica). Transparent quartz glass has only a few bubbles and has high optical uniformity and transparency. It is made of silicon tetrafluoride melted at high temperature in a crystal box. The content of SIO2 is above 99.95%, and the content of high-purity quartz glass is 99.999%. . Opaque quartz glass is made of veined quartz and quartz sand, which are melted at high temperature. It contains over 99.5% SIO2.

feature:
1. High temperature resistance
The softening point temperature of quartz glass is about 1730°C, it can be used for a long time at 1100°C, and the maximum temperature can reach 1450°C for short-term use.

2. Corrosion resistance
Quartz glass has almost no chemical reaction with other acids except hydrofluoric acid. Its acid resistance is 30 times that of ceramics and 150 times that of stainless steel, especially its chemical stability at high temperature is unmatched by any other engineering materials.

3. Good thermal stability
Quartz glass has an extremely small coefficient of thermal expansion and can withstand severe temperature changes. Quartz glass is heated to about 1100°C, and it will not burst when placed in room temperature water.

4. Good light transmission performance
Quartz glass has good light transmission performance in the entire spectral band from ultraviolet to infrared, and the visible light transmittance is above 93%, especially in the ultraviolet spectral region, the maximum transmittance can reach more than 80.

5. Good electrical insulation performance
The resistance value of quartz glass is equivalent to 10,000 times that of ordinary glass. This is an excellent electrical
Insulating material, which has good insulating properties even at high temperatures.

application:
Quartz glass is widely used in electric light sources, semiconductors, optical communications, military industry, metallurgy,
Building materials, chemical industry, machinery, electric power, environmental protection and other fields due to its excellent physical and chemical properties.
thing
value
density
2.2 g/cm3
Compressive strength
1100 MPa
Bending strength
67 MPa
tensile strength
48MPa
Poisson's ratio
0.14-0.17
Young's modulus
72000MPa
modulus of rigidity
31000 MPa
Moh's hardness
5.5-6.5
Specific heat (20-350C)
670 J/kg
Thermal conductivity (20C)
1.4W/mC
Refractive index
1.4585
Resistivity
7x107 Ω.cm
Dielectric strength
250-400Kw/cm
Dielectric constant
3.7-3.9
Product Range:
1. Quartz glass tube (outer diameter 1-450MM, wall thickness 0.5-20mm)
2. Quartz glass rod (OD 1.5-80MM)
3. Quartz glass plate (various shapes, transparent, frosted, perforated)
4. Laboratory quartz products
5. Quartz instruments and other custom items
mode of transport
By express or by air
For small packages, gross weight <68 kg or 100 kg. >68kg, better by air.
sea ​​route
For bulk packaging, gross weight >100kg or bulky.
railway
According to customer requirements.
Product packaging
