Large diameter quartz glass tubes, quartz tube reactors, quartz test tubes Transparent glass tubes of different sizes

Product Detail

shape:Quartz tube closed at one endpurity:99.99%
size:custom madeOrigin:China
payment terms:L/C, T/T, Western Unioncolor:Transparent or opaque, clear and transparent
Packaging Details:Inner layer of white foam paper + plastic foam board, outer layer of woodport:Qingdao
length:100mm-2500mmSurface treatment:polishing
Wall thickness:1mm-5.0mmtype:Clear Quartz Tube
brand:Vantage GlassOzone content:Ozone free
Shipping Details:Within 7-15 days after we receive the depositmodel:Quartz tube
density:2.2 g/cm3Supply capacity:100000 pieces per month
Outer diameter:3-300mmapplication:Chemical industry, heater and light fields

Large diameter quartz glass tubes, quartz tube reactors, quartz test tubes Transparent glass tubes of different sizes

Product Description

Quartz glass tube It can continuously machine pull and automatically control the pipe. The glass has typical characteristics such as high purity, good light transmission, controllable size, and low OH. It is the first choice for heat-resistant materials for halogen lamps and mercury lamps. , Quartz lamps such as metal halide lamps. Glass with outer diameter 3-300mm, wall thickness 1.0-5.0mm and length 100-2500mm can be provided. CPK's good exhaust pipes are suitable for high-speed assembly line production. According to customer requirements, deep processing such as edge trimming, fire throwing, bending, and pipe clamping can be carried out. The OH- content can be controlled within 20ppm/15ppm/10ppm/5ppm/2ppm according to customer requirements. Require.



Physical properties:

silica99.99%
Density: (g/cm3)2.2
Mohs Hardness (Pa)6.6
Melting point:1732°C
Operating temperature:1100°C
Maximum temperature achievable in a short time:1450°C
Acid resistance:30 times that of ceramics, 150 times that of stainless steel
Visible light transmittance:More than 93%
Transmittance in the ultraviolet spectral region:80%
resistance:10,000 times that of ordinary glass
Annealing point:1180°C
Softening Point:1630°C
Strain point:1100°C



size:

inner diameter x outer diameter

(mm)

thickness

(mm)

inner diameter x outer diameter

(mm)

thickness

(mm)

inner diameter x outer diameter

(mm)

thickness

(mm)

1x3

1

10.5x12.75

1.13

30x33

1.5

1.2x3

0.09

11x13

1

32x35

1.5

1.6x3

0.7

11.7x14.1

1.2

34x28

2

2x3

0.5

12x14

1

35x38

1.5

2x4

1

12.75x15

1.13

37x40

1.5

2x6

2

13x15

1

38x44

3

2.3x2.6

0.6

15x17

1

38.1x42.1

2

2.35x3.65

0.65

15x18

1.5

40x43

1.5

2.35x4

0.83

16x18

1

42x45

1.5

2.35x4.35

1

18x20.5

1.25

45x48

1.5

3x5

1

18x21.6

1.8

47x50

1.5

4x6

1

19x25

3

48x52

2

5x7

1

20x25

1

50x54

2

6x8

1

20x22.8

1.4

50x55

2.5

6x10

2

20x23

1.5

53x57

2

7x9

1

20.2x23

1.4

55x59

2

7.75x9.75

1

22x25

1.5

57x61

2

7.8x10

1

22x25.3

1.65

60x64

2

8x10

1

22x25.8

1.9

63x67

2

8x12

2

23x26

1.5

65x69

2

8.5x10.5

1

25x27.5

1.25

66x70

2

9x11

1

25x28

1.5

68x72

2

9x11.8

1

25x28.8

1

70x80

2.5

10x12

1

27x30

1.5

etc.





Dimensional tolerance

scopeouter diameter

outer diameter

weight

siding

not round

Bow\1220mm

≤6mm

±2.0%

±10%

12%

2.00%

2.5mm

6.00-15.00mm

±1.25%

±8%

10%

1.50%

2.5mm

15.00-20.00mm

±1.25%

±10%

15%

1.50%

2.5mm

20.00-25.00mm

±1.25%

±10%

15%

1.50%

3.0mm

25.00-30.00mm

±1.35%

±12%

15%

1.5%

3.0mm

30.00-80.00mm

±1.5%

±14%

15%

2.00%

3.0 mm

80.00-100.00mm

±1.0%

±0.5mm

15%

2.00%

3.0 mm

100.00-120.00

±1.5%

±0.8mm

15%

2.00%

3.0mm

120.00-160.00

±1.8%

±1.0mm

20%

2.50%

3.0 mm

160.00-180.00

±3.0%

±1.0mm

25%

2.50%

3.0mm

180.00-200.00

±4.0%

±1.5mm

25%

2.50%

3.0mm

200.00-240.00

±4.0%

±1.5mm

25%

2.50%

3.0mm

240.00-280.00

±6.0%

±2.0mm

25%

2.50%

3.0mm

Above 280.00

±8.0%

±3.0mm

25%

2.50%

3.0 mm



Chemical composition (ug/g)

chromium

Ge

iron

magnesium

titanium

gallium

Al

sodium

plum

Potassium

0.1

0.4

1.5

0.4

0.1

0.8

16

2.3

0.5

2



application:

This product is mainly used in electric light sources, electrical appliances (electricity), semiconductors, optical communications, military industry, metallurgy, building materials, chemicals,

Machinery, electricity, environmental protection and other fields.

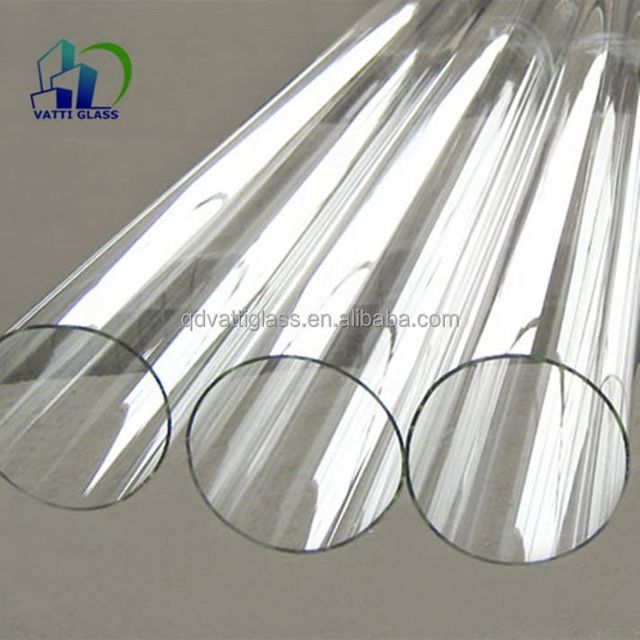

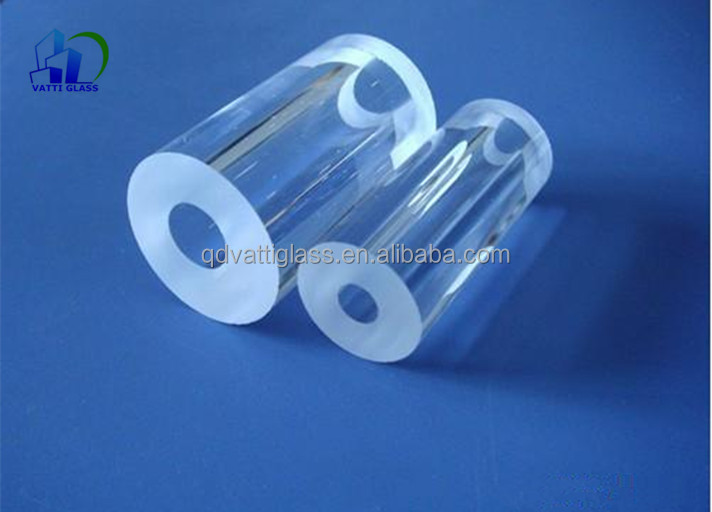

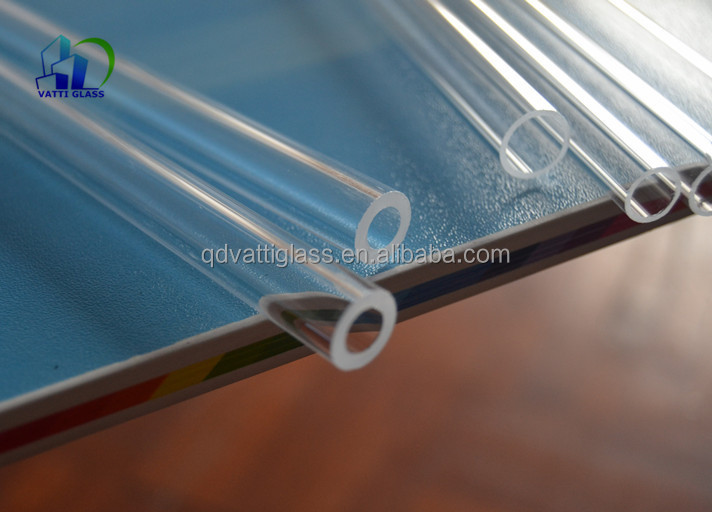

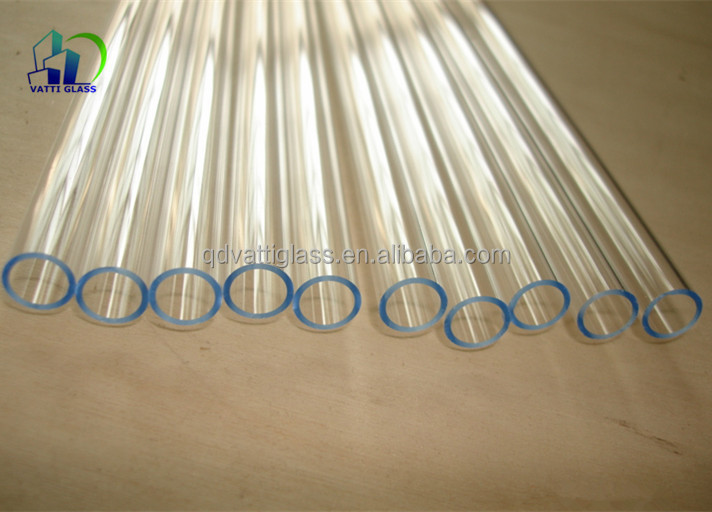

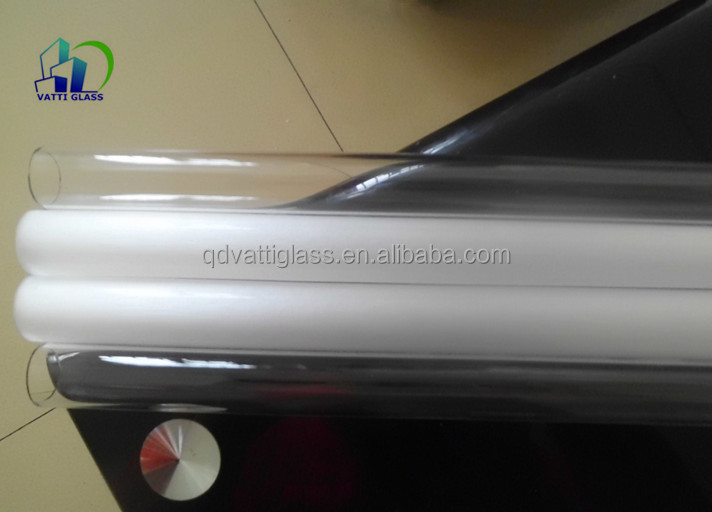

product display
