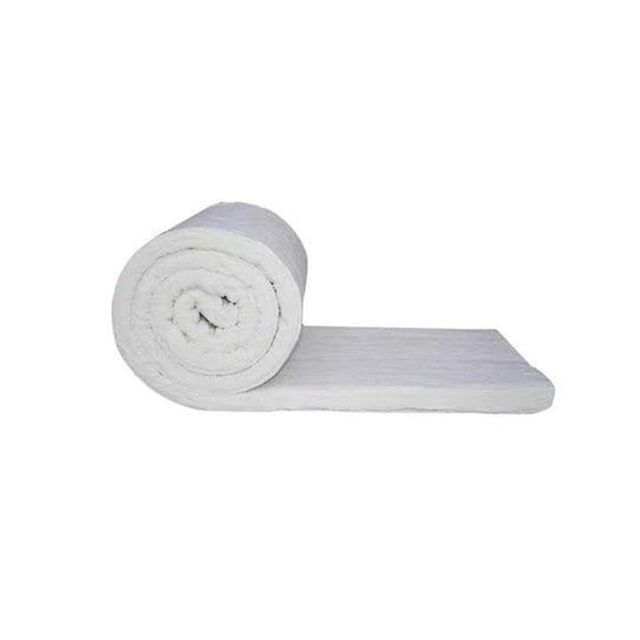

White ceramic fiber cloth/blanket/product/paper
-
$10.00 / 5 - 99 rolls
$6.00 / >=100 rolls - 5 rolls
- Dalian Huayu Refractories International Co., Ltd.
- Liaoning, China
- Ms Julia Guo
Product Detail
| density: | 500kg/cubic meter | brand: | Hyde |
| length: | 30 meters | Thermal Conductivity: | 0.09~0.20W/m |
| Shrinkage (1800℉, 3 hours): | 0.5% | Operating temperature: | 1050 |
| width: | 1 meter | application: | insulation |
| Packaging Details: | Waterproof plastic film + export woven bag + tray 15 rolls/tray | port: | Tianjin; Qingdao; Dalian; Shanghai. |
| model: | 1260 ceramic fiber cloth | Origin: | Liaoning, China |
| Operating temperature: | 1050 | Maximum temperature resistance: | 1260 |
| chemical composition: | Alumina + Silica | Fiber Diameter: | 2~4 microns |
| size: | 2mm*1.2m*30m/roll | weight: | 30kg/roll |
| color: | white | Ultimate Strength (≥MPa): | 0.09 |
| payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Supply capacity: | 500,000 kilometers per month |
| grade: | ST (Standard) |
grade | Common | standard | High purity | high aluminum | zirconium | ||||||
Classification temperature (°C) | 1000 | 1260 | 1260 | 1300 | 1430 | ||||||
Serving temperature (°C) | ≤1000 | 1150 | 1200 | 1260 | 1400 | ||||||
Density (kg/m3) | 220-500 | 220-500 | 220-500 | 220-500 | 220-500 | ||||||
Thermal Conductivity By average temperature (W/mk) (density 285kg/m3) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃) | 0.085(400℃) 0.132(800℃) 0.180(1000℃ | ||||||
Compressive strength (Mpa) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | ||||||
chemical industry work (%) | Aluminum oxide | 44 | 46 | 47-49 | 52-55 | 32-33 | |||||
Al2O3+SiO2 | 96 | 97 | 99 | 99 | - | ||||||
Al2O3+SiO2+ZrO2 | - | - | - | - | 17-18 | ||||||
Zirconia | - | - | - | - | 15-17 | ||||||
Ferric oxide | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | ||||||
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | ||||||
Dimensions (mm) | Other sizes and shapes under working conditions | ||||||||||
Ceramic fiber cloth is a fabric woven from high-quality ceramic fiber yarn produced by our company. it can be used in high temperature
Applications up to 1000° C. The cloth is reinforced with fiberglass filaments and optional stainless steel wire. it contains a
A certain amount of binder material, which usually burns at a lower temperature, does not affect the insulating properties.
Applications up to 1000° C. The cloth is reinforced with fiberglass filaments and optional stainless steel wire. it contains a
A certain amount of binder material, which usually burns at a lower temperature, does not affect the insulating properties.
Typical applications 1. Industrial furnace wall lining and masonry insulation layer 2. Heat insulation of high temperature and high heat equipment 3. Aerospace, shipbuilding industry heat insulation, fire prevention, sound insulation 4. Boiler and heater combustion chamber
