custom ferrite magnet motor Y35 Y40 Y46 C8 C12/speaker/water meter/ferrite magnet manufacturer custom ceramic magnet

Product Detail

Packaging Details:Standard Package Magnet Shield Packagetype:Everlasting
Synthetic:Ferrite Magnetsplace of origin; place of origin:Zhejiang, China
Material:SrO, BaO, Fe2O3Processing service:cutting, forming
payment terms:L/C, T/T, Western Union, PayPalapplication:industrial magnet
color:BlackApplication use:Water meters, speakers, motors, stators, generators, etc.
custom made:Acceptable according to your drawingstolerant:±1%
shape:Disc, Ball, Ring, Block, Bar, Triangle, Segment/Tile, Cylinder, Custom, BlockSupply capacity:Annual output of 10,000 tons of ferrite magnets
model:Y30 Y35 Y38 Y44 Y46 C8 C12grade:Ferrite magnets Fe2O3, Fe3O4
port:Shenzhen Ningbo Shanghai Qingdao



custom ferrite magnet motor Y35 Y40 C8 C12/speaker/water meter/ferrite magnet manufacturer custom ceramic magnet



Ferrite Magnets

Amoeba Magnetic offers all types of magnet solutions.

Our advantage is high technology, high standard, special magnet,

custom magnets and more

Below is a small selection of our technical advantage magnets

(Ordinary simple magnets are not in the list below).



Water Meter Ferrite Magnet, LoudSpeaker Ferrite Magnet, Motor Ferrite Magnet

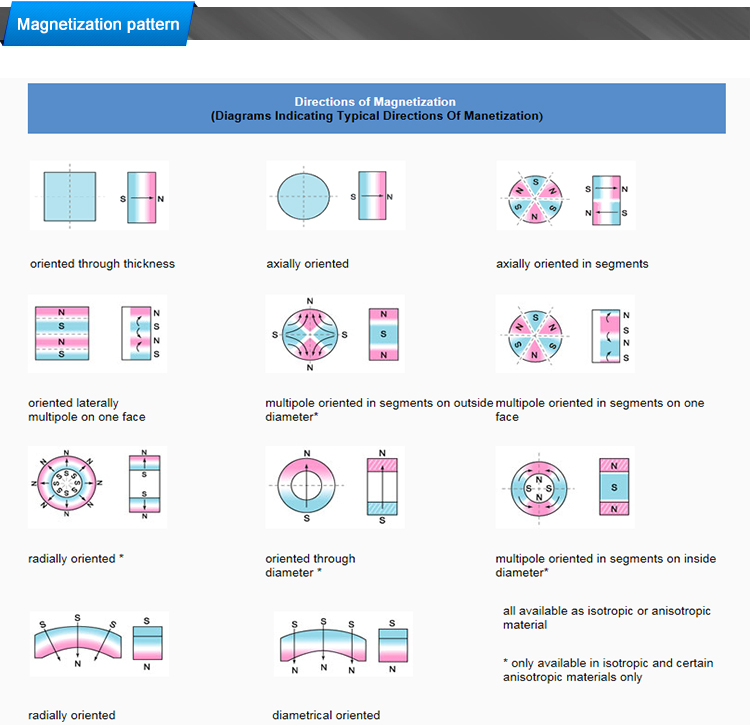

Single pole/1 pole magnetization/3 pole magnet/5 pole magnet

tilted magnetization

Multipole Ferrite Magnets

radial magnetization



Magnetic drive

Manganese-zinc ferrite magnet processing

Magnet gear (replaces traditional gear)

Large Magnet/Small Magnet

Special-shaped special-shaped magnet

Magnetic separator bar plate 12000gs 17000 Gauss

5 tons of 5000kg lifting magnet (rated lifting capacity)

450mm suspension height (conveyor suspension magnet)

All kinds of magnetic powder

magnetized water

600℃ high temperature magnet

Dielectric electromagnet



Tight and precise tolerances

The tolerance of NdFeB sintered magnet can meet +-0.01mm

(Industry average tolerance is +-0.05)

Grade N35-N56

5400 Gauss NdFeB Magnet

Y30-Y46 grade ferrite magnet

C8-C15 Ceramic Magnets

various shapes

Magnetic Assembly Equipment Tools

High Power Magnets, Alnico Magnets, Bonded NdFeB Magnets with Competitive Prices





Soft Magnet:

Produce CSC cores at competitive prices

All kinds of soft magnets, iron silicon aluminum powder, mpp, iron powder,

Mega flux, high flux, ferrite cores, including KDM, etc.

Low permeation material meets US and Korean standards,

We can make some special cores that no one else can.

Custom soft core and inductive transformers



serial number Bromine (Gs) Hemoglobin (Oe) Hcj (Oe) (BH) Maximum (MGOe) Comment
1 2000~2350 1650~2000 2700~3300 0.8~1.1 Y10T,C1
2 2000~2220 1570~1760 2760~2890 0.8~1.1 HF8/22
3 ≥3600 ≥2100 ≥2250 ≥2.9 Y25
4 ≥3800 2600±150 2700±150 ≥3.3 Y30, C5
5 ≥3400 3230±150 4000±150 2.75±0.2 C7
6 ≥3800 ≥2750 ≥2900 ≥3.4 Y30BH,C8
7 ≥3800 ≥2850 ≥3000 ≥3.45 Y30H-1
8 3850±100 2950±150 3050±150 3.6±0.2 C8A
9 ≥4000 2750±150 2850±150 ≥3.8 Y35,4​​2B
10 ≥3750 3100±150 3400±150 ≥3.2 3750/3400
11 4000±100 3300±150 3400±150 3.6±0.2 40/34, C10, Y32H, 28/26
12 4000±100 3400±150 3500±150 3.7±0.2 40/35
13 ≥3900 ≥3000 ≥3100 ≥3.6 35H,40/34
14 ≥4000 ≥2200 ≥2300 ≥3.8 42B, Y35
15 ≥4000 ≥3400 ≥3600 ≥4.0 44 hours, 41/38
16 4100±100 2900±150 3050±150 ≥3.8 41/31
17 4100±100 3100±150 3200±150 4.0±0.2 41/32
18 4100±100 3150±150 3350±150 4.0±0.2 41/34
19 ≥4000 ≥3150 ≥3300 ≥3.8 41/35
20 ≥4000 ≥3250 ≥3400 ≥3.8 41/36
twenty one 4150±100 2950±150 3100±150 ≥3.8 42/31, Y33
twenty two ≥4100 2900±150 3100±150 ≥3.8 C8B
twenty three 4000±100 3450±150 3600±150 3.8±0.2 40/36
twenty four ≥3900 ≥3350 ≥3500 3.8±0.2 40/37
25 4000±100 3600±150 3800±150 3.8±0.2 40/38
26 3900±100 3500±150 3900±150 3.6±0.2 39/39
27 4000±100 3550±150 4000±150 4.0±0.2 40/40
28 4100±100 3550±150 4000±150 4.1±0.2 41/40
29 4050±100 3600±150 4100±150 4.1±0.2 41/41,C12,Y30H-2
30 ≥4000 ≥3800 ≥4450 4.2±0.2 41/46
31 4150±100 3200±150 3300±150 4.2±0.2 42/34
serial number Bromine (Gs) Hemoglobin (Oe) Hcj (Oe) (BH) Maximum (MGOe) Comment
32 4200±100 3250±150 3400±150 4.2±0.2 42/35
33 4250±100 3250±150 3400±150 4.2±0.2 43/35
34 ≥4100 ≥2500 ≥2700 3.8±0.2 42/29
35 4200±100 3650±150 3950±150 4.2±0.2 42/40
36 4200±100 3600±150 4100±150 4.2±0.2 42/41
37 4200±100 3800±150 4300±150 4.2±0.2 42/43
38 ≥4100 ≥3800 ≥4450 4.2±0.2 42/46
39 4200±50 3700±150 3850±100 4.2±0.2 43/39
40 4250±100 3700±150 4050±150 4.2±0.2 43/41
41 ≥4200 ≥3800 ≥4350 4.4±0.2 43/45
42 ≥4200 ≥3850 ≥4450 4.4±0.2 43/46
43 ≥4300 ≥3050 ≥3150 4.4±0.2 44/33
44 ≥4300 ≥3100 ≥3250 4.4±0.2 44/34
45 ≥4300 ≥3150 ≥3300 4.4±0.2 44/35
46 ≥4300 ≥3700 ≥3900 4.4±0.3 44/40
47 ≥4300 ≥3800 ≥4050 4.5±0.2 44/42
48 ≥4300 ≥3850 ≥4200 4.5±0.2 44/44
49 ≥4300 ≥3900 ≥4400 4.6±0.2 44/46
50 ≥4400 ≥3800 ≥4050 4.5±0.2 45/42
51 ≥4400 ≥3900 ≥4200 4.6±0.2 45/44
52 ≥4400 ≥3900 ≥4400 4.6±0.2 45/46

It is magnetized with high remanence and consists of iron and oxides of barium or strontium. In the magnetic saturation state, they conduct magnetic flux well and have high permeability. This allows these so-called ceramic magnets to store stronger magnetic fields than iron itself.

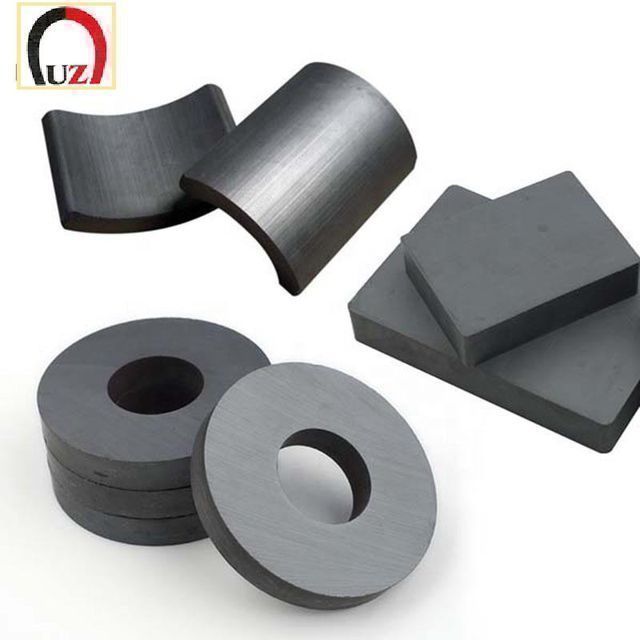

Basic shape, can be customized

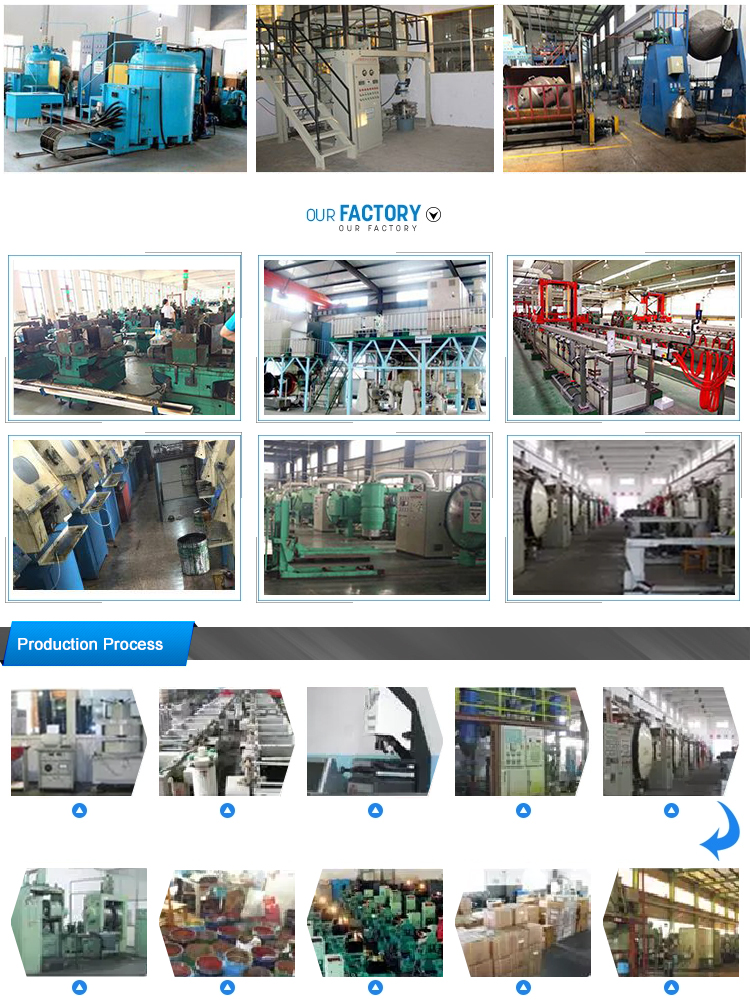

Professional Magnet Manufacturer: Chengdu Amoeba Magnetic Industry Co., Ltd. (Amoeba) is a factory established in 1990 with assets of 250,000,000 yuan. The company covers an area of ​​16,440 square meters, has more than 2,000 employees, 8 production plants, 2 branches, and 1 professional testing center. We have passed ISO9001:2000, QS900 quality system certification and TS16949 quality control system.



We mainly produce sintered and bonded NdFeB, SmCo, AlNiCo and ferrite magnets. The company's annual production capacity is 2,000 tons of sintered NdFeB, 800 tons of bonded NdFeB, 500 tons of AlNiCo magnets, 10,000 tons of ferrites, and 4,500 tons of magnetic cores. We can produce high energy products such as N55, N52, N48H, N46SH, N45, 42M, 42H. We have a license to export to the United States.

We have a technical team to develop molds according to customers' requirements. Our R&D center can also design different magnetic products according to customer's application. The Chongqing branch specializes in the production of soft ferrites: Mn-Zn, Ni-Cu-Zn, Mg-Zn, Nizn series and E, U, G, RM, PQ, LP and other magnetic components. Soft ferrite materials include RM2.3KD, RM2.4KD, RM10K, BF, etc. Among them, RM2.3KD and RM2.4KD are the same as the materials PC40 and PC44 of TDK Corporation in Japan. We have an annual production capacity of 2000 tons and more than 1000 magnets of different sizes. More than 80% of amoeba magnetic products are exported to the United States, Europe and Southeast Asia, with an annual export volume of 80 million yuan. With efficient and efficient e-commerce services and a supporting system of mass production, quality assurance, and after-sales service, we provide customers with the best quality services.

Our factory is located in Sichuan Province, which is one of the most professional magnetic material production bases in China. Based on the convenient and perfect supporting services of magnetic materials in Sichuan Province, our factory provides the best quality products for customers all over the world with the most competitive price and delivery time!

VIEW MORE

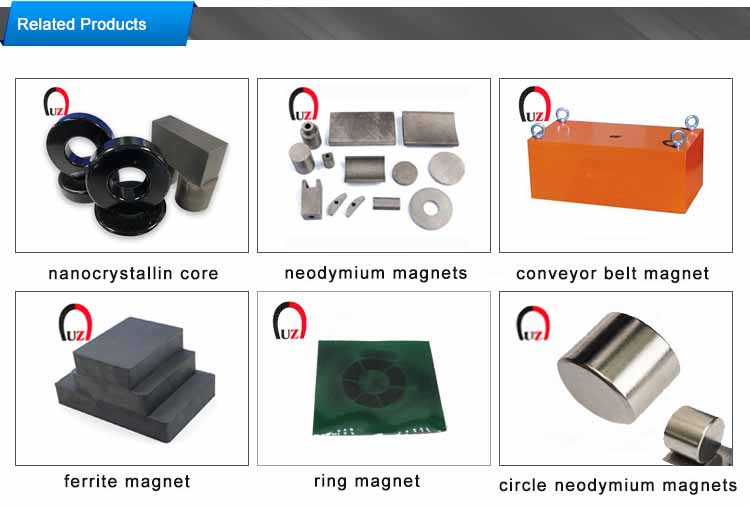

Related Products
