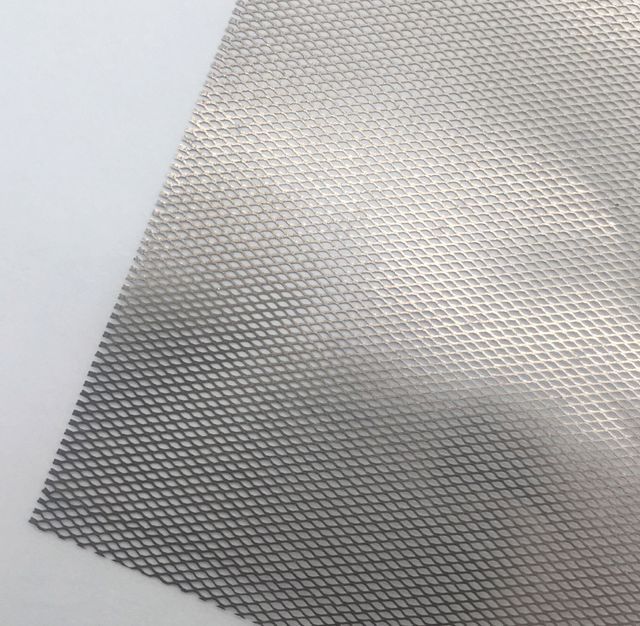

0.05mm-10.15mm platinum-coated ultra-thin titanium mesh for water splitting

Product Detail

Is there powder:not powderycoating:platinum
technology:Sandblasting, pickling, brushingproduct name:Platinized titanium wire mesh anode
model:rct-tmgrade:Group 1/Group 2
usage:Titanium anode for electrolyzed ionized waterbrand:randomized controlled trial
Key words:Platinum titanium mesh anodeTitanium anode Ti content:99.6%
application:Water (brine and seawater) treatment.port:Shanghai or Tianjin
Supply capacity:Monthly supply of 50,000 pieces of 4.5*12.5 mm platinum-plated titanium mesh anodeTitanium content (%):99.6%
Origin:Shaanxi, ChinaMatrix:Titanium Grade 1 Grade 2
Titanium anodized coating treatment:oxidation and bakingtype:Titanium platinum anode
Package preview:Titanium anode current density:2000A/square meter
payment terms:L/C, Western Union, D/P, D/A, T/TTitanium anode coating:Iridium, ruthenium iridium, etc.
Packaging Details:The inner layer is plastic or paper, and the outer layer is carton or plywood box, or according to customer needs.
Product Description

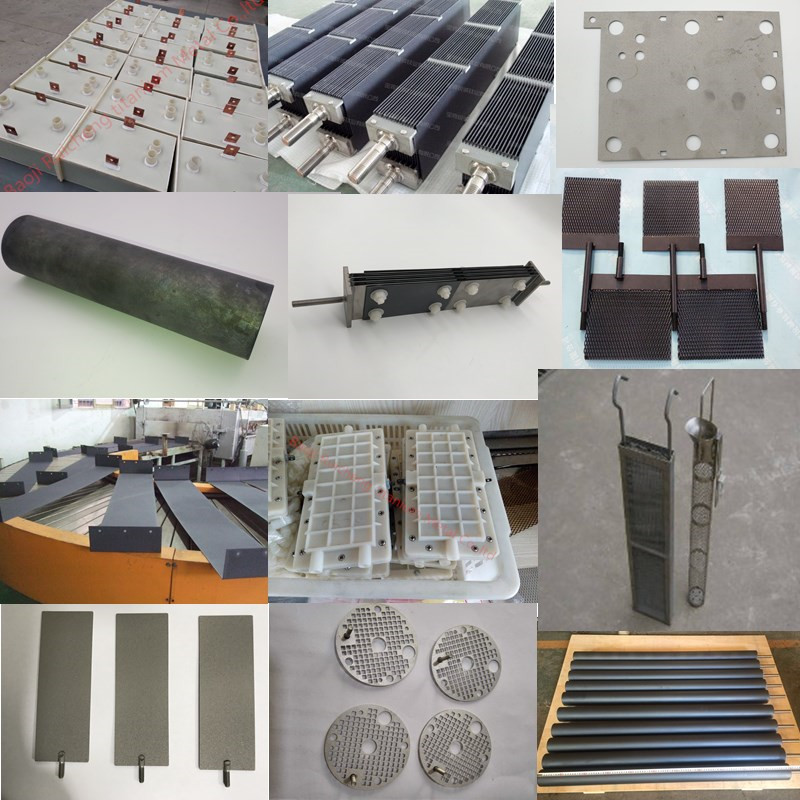

    Titanium Anode & Electrode
Titanium anode belongs to anodic oxidation, which is the anode of titanium-based titanium-based oxide coating. According to the different catalytic coatings on the surface, it can be divided into the functions of oxygen analysis and chlorine analysis. Generally speaking, electrode materials should have good electrical conductivity, small change in pole distance, high corrosion resistance, good mechanical strength and processability, long life, low cost, and good electrocatalytic performance for electrode reactions. At present, titanium is the best metal to meet the above comprehensive requirements. Generally, Gr1/Gr2 titanium is used.
Classification
Ruthenium plating
infrared coating
platinum coating
matrix
Gr1 Gr2 Titanium
coating
RuO2/RuO2+IrO2+X
Iron oxide + tantalum oxide5
platinum
Specification
·Rod type: diameter 10~50mm
· Wire type: diameter 0.5~10mm
· Tubular: 10~200mm in diameter
· Plate type: thickness 0.5~5mm

· Mesh type: thickness 0.5-2.0mm
scope
Current range: <2000A/m2 Working temperature: 25-50C Ru-Ir content: 10-15g/m2 Coating thickness: 3-10um Operating environment: PH value 0-14 (neutral electrolyte solution recommended)
Current range: <2000A/m2 Working temperature: 25-60C Ir content: 10-15g/m2 Coating thickness: 3-10um Operating environment: PH value 0-14
Current range: <5000A/m2 Working temperature: 25-80C Platinum content: 3-30g/m2 Coating thickness: 0.3-3um Operating environment: PH value 0-14
introduce
The surface of the product is black, the coating is uniform, the binding force is strong, the chlorine potential is low, the service life is long, and the current efficiency is high.
The surface is black, and has the characteristics of uniform coating, firm combination, low oxygen evolution potential, acid resistance, corrosion resistance, long service life, and large passing current.
The surface of the product is silver-gray, and the Pt content is 99%. It has the characteristics of high corrosion resistance, stable high-voltage operation, high electrolysis efficiency, energy saving, and no secondary pollution.
Application field
Chlor-alkali industry, chlorate industry, ionized water electrolysis, food tableware electrolysis, food tableware disinfection, electrolysis of seawater to produce chlorine, circulating water descaling, electric decolorization, sewage treatment, etc.
Metal foil, electrolytic plating, cathodic protection, organic electrolytic synthesis, cyclone electrolysis, hydrometallurgy, HHO generation, sewage treatment, etc.
Electrolyzed ionized water, acid oxidation potential water, electroplating, hydrogen generator, etc.

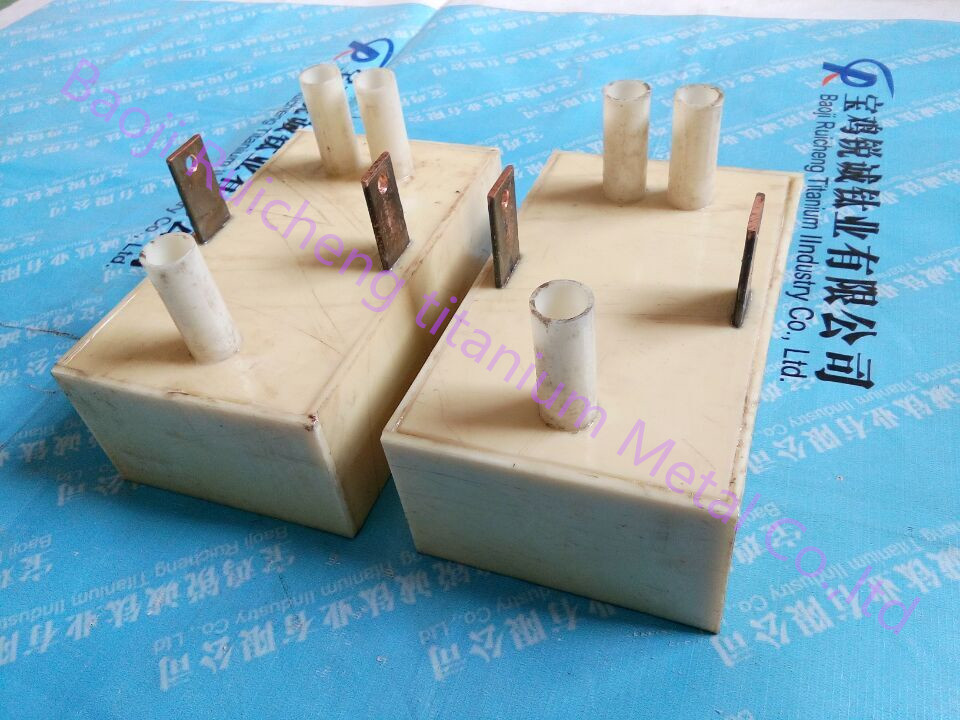

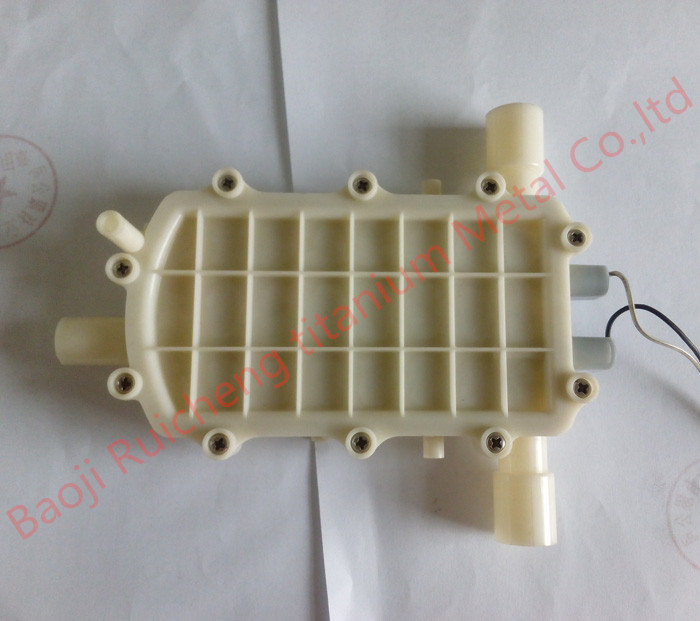

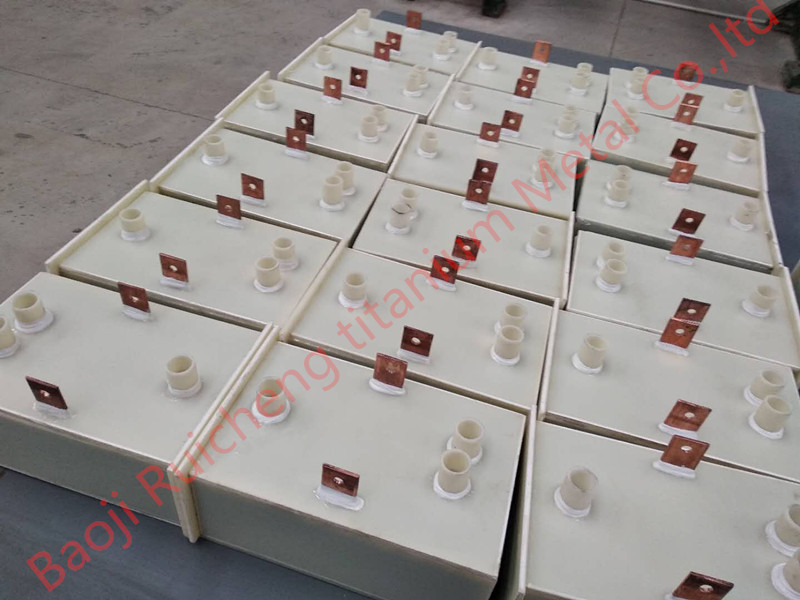

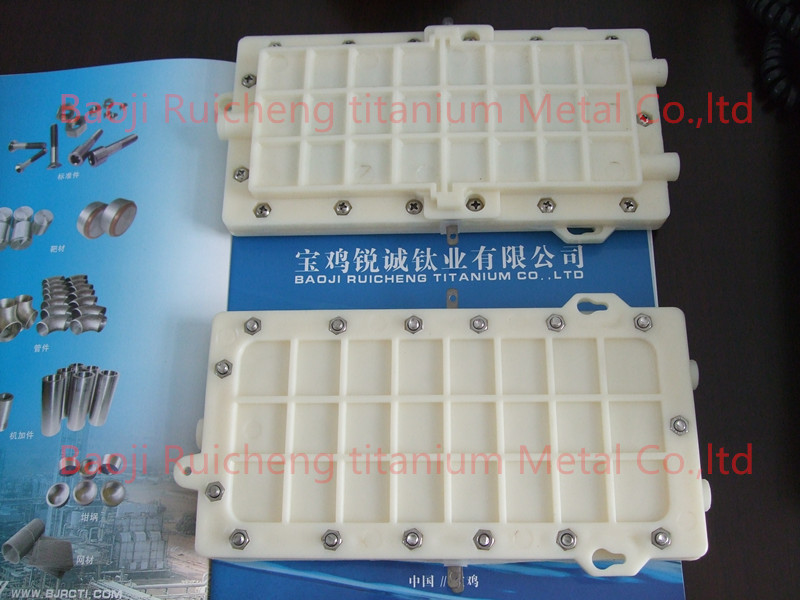

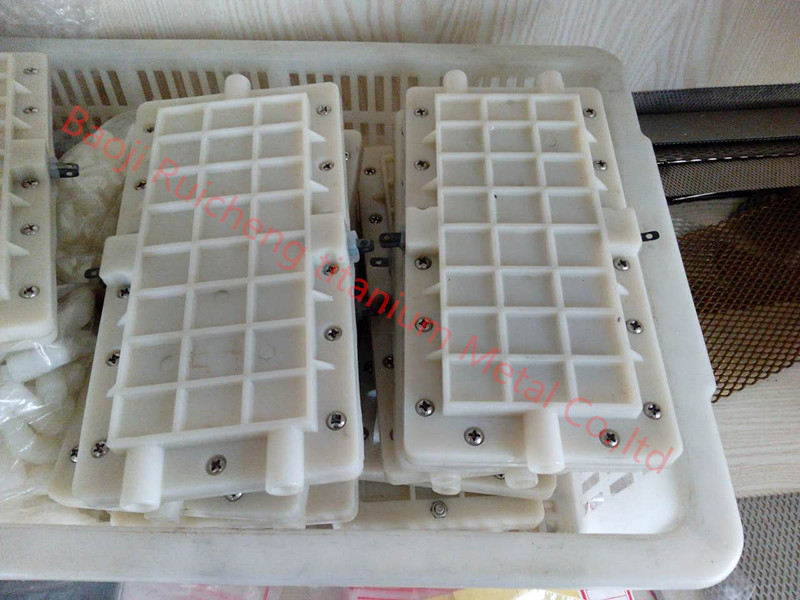

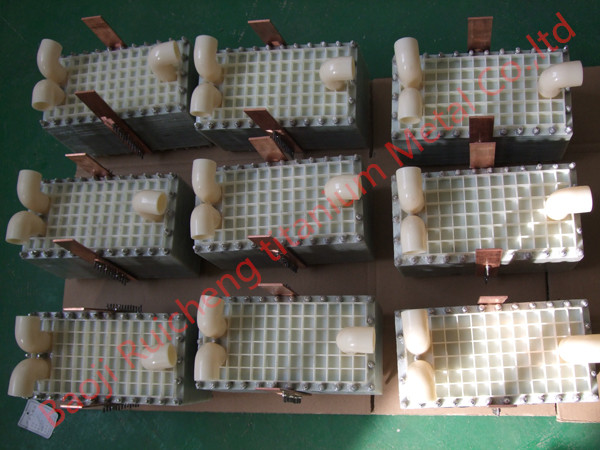

Electrolyzer
The large-scale electrolytic cell developed and put into production by our factory in February 2010 has a water treatment capacity ranging from 120L/H to 3T/H, a pH value of 4.5-9.5, advanced technical indicators, and a successful test. At present, the project has passed the authoritative identification of relevant state departments.
Name
size
coated metal
PH value or hydrogen content
processing power
power range
small electrolyzer
110*220*20
Ruthenium iridium
5-10.5
120 liters/hour
0-12V 0-3A
medium electrolyzer
110*160*100
Ruthenium iridium
2.6-12.5
1500 liters/hour
0-24V 0-25A
large electrolyzer
110*160*150
Ruthenium iridium
2.6-12.5
3000 liters/hour
0-24V 0-40A
small electrolyzer
Electrolyzer
platinum
5-10.5
120 liters/hour
0-12V 0-3A
medium electrolyzer
Electrolyzer
platinum
2.6-12.5
1500 liters/hour
0-24V 0-25A
large electrolyzer
Electrolyzer
platinum
2.6-12.5
3000 liters/hour
0-24V 0-40A
Hydrogen-rich electrolyzer
135*85*25
platinum
1400ppb
80 liters/hour
0-12V 0-5A

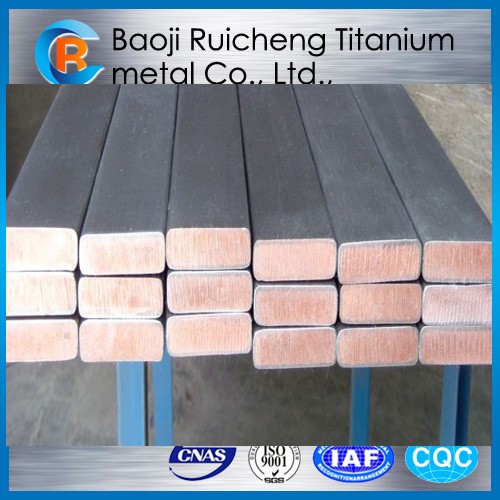

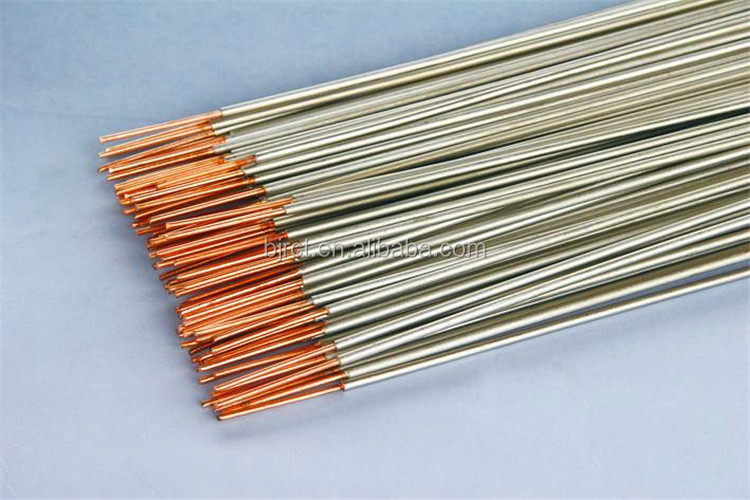

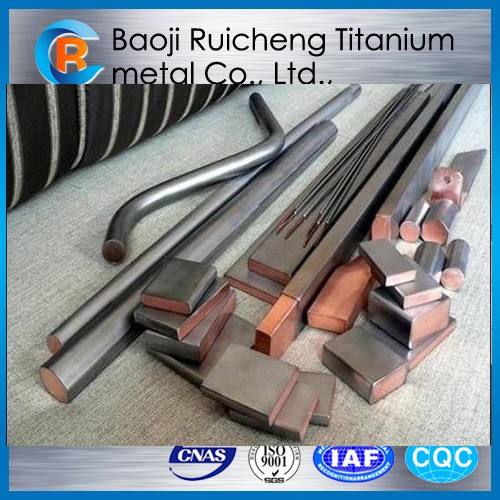

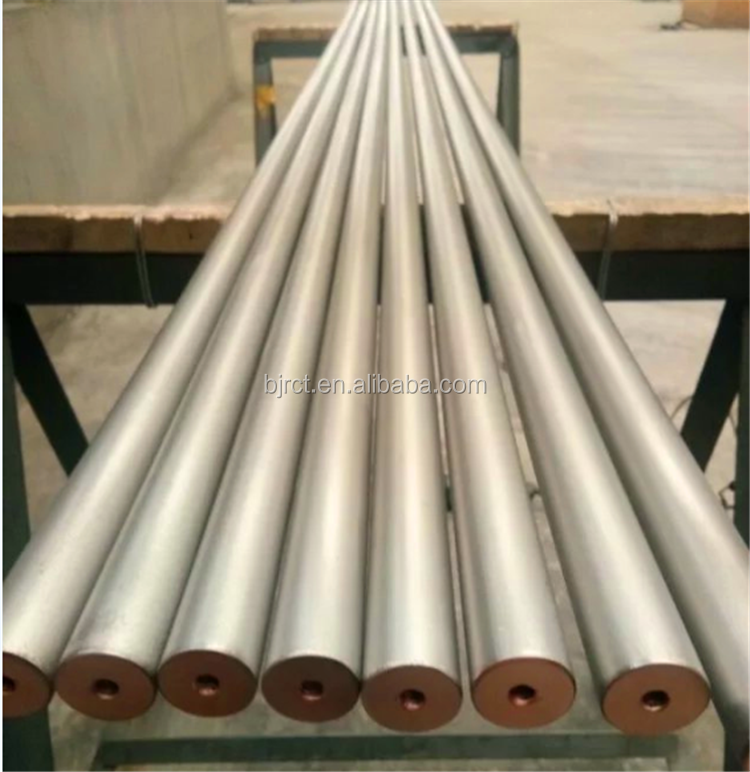

Titanium clad copper rodIt is a two-way metal composite rod coated with a certain thickness of titanium layer (generally 1.0mm-1.2mm) around the copper rod. According to its cross-sectional geometry, it is mainly divided into round, flat, square, rectangular and drum-shaped. .
product
Material
Specifications (mm)
standard
Application field
Titanium copper composite rod
Gr1 Gr2 Titanium Tu1 Copper
Width 10-120 Thickness 6-20 Length<7000; Circle: D6.35-78 Length<7000;
ASTM B338
Electroplating, electrolysis industry, hydrometallurgy industry, PCB industry, power chemical industry, water treatment industry, marine engineering industry, etc.

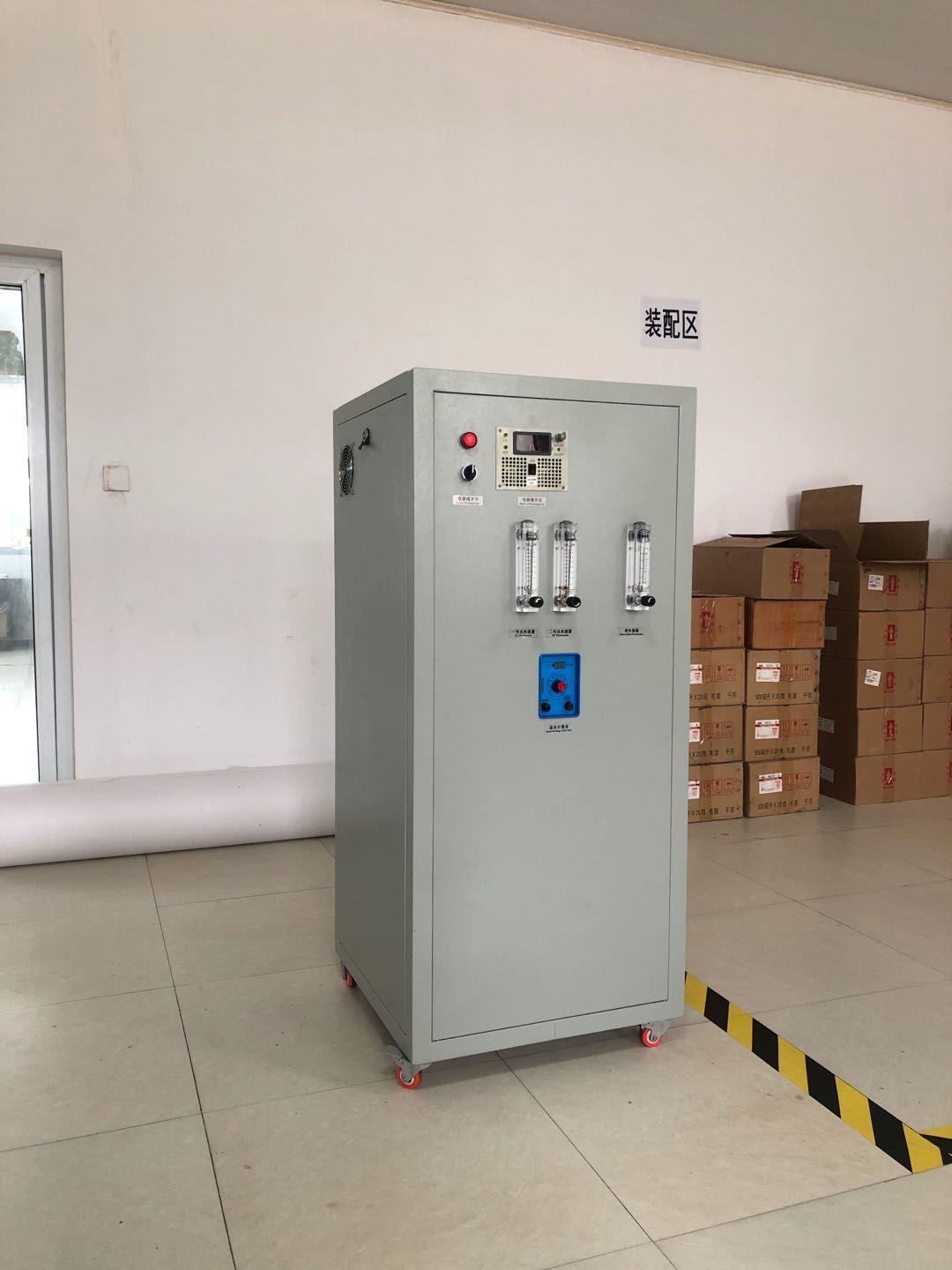

RC-002 HClO Generator It is a new type of equipment for on-site production of HClO solution, suitable for all kinds of HClO disinfection places. Using electrochemical activation (ECA) technology, only salt and water are used as raw materials, and a high-concentration and high-stability HClO solution is produced through a ceramic nano-diaphragm electrolytic cell. The pH value can be freely adjusted between 2.0-12.0, the available chlorine concentration is 50-800ppm, and the oxidation-reduction potential value (ORP) is greater than 1100mv. RC HClO is stored in airtight and shading at room temperature for one year, and its effective chlorine concentration and chlorine content will not drop by more than 6%, and the entire production process has no potential hazards.
project
unit
refer to
maximum output
L/h
500
active chlorine
ppm/L
20-800
PH value
pH
2.0~12
Maximum current
A
60
Maximum power
watt
1800
Q
V
220, 50-60 Hz
temperature
25 (+/-15)
degree of protection
intellectual property
55
Maximum continuous running time
h
20
size
mm
600×600×1300
saline cell volume
L
50
