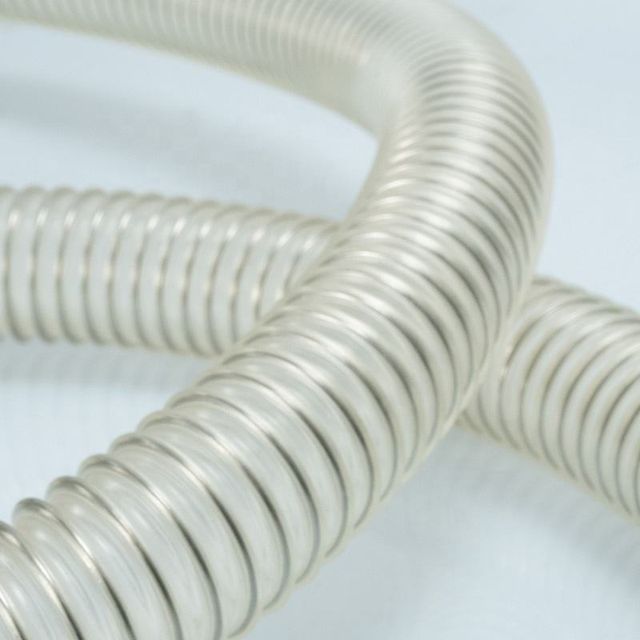

Hot sale steel high elastic steel wire reinforced flexible PU hose for wood processing machinery industrial piping

Product Detail

Origin:Shandong Province, ChinaPackage preview:
color:to clearapplication:painting
vacuum:0.50 barOverpressure:2.00 bar
MOQ:10 mproduct name:polyurethane hose
model:GS041payment terms:L/C, D/P, D/A, T/T, PayPal
Material:Polyurethanebrand:yum
Plastic molding type:Rotational moldingProcessing services:forming
Key words:hoseSupply capacity:100,000 meters per week
the inside diameter of:75mmthickness:5mm

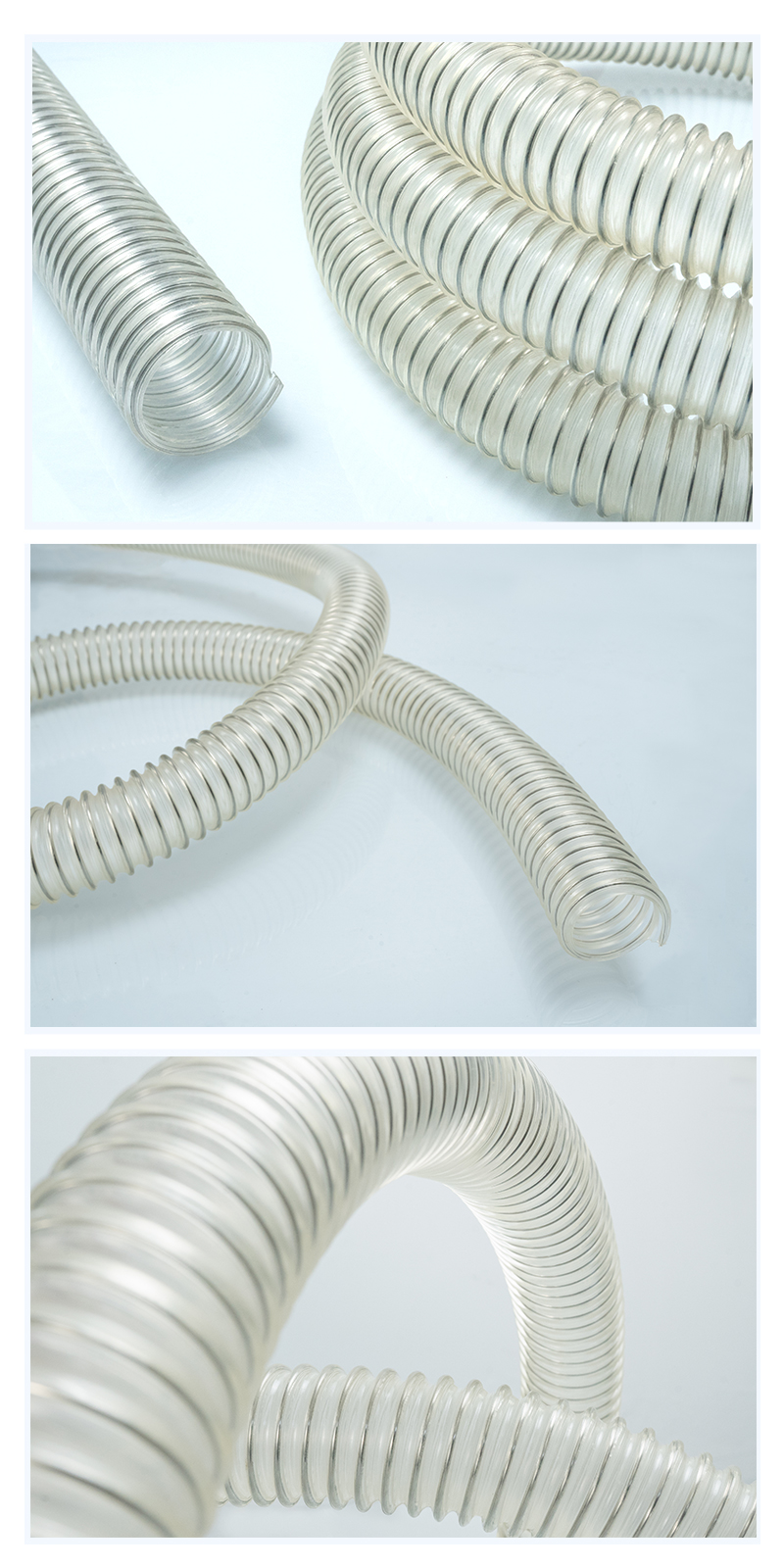

product display
Advantages of TPU hose:
1. The hardness is better than PVC or rubber, it can be very soft or very hard.
2. It has good bearing capacity, wear resistance and impact resistance, and can be used in the mining industry where large particles are collected.
3. Excellent resistance to cold and heat (-40°C~+90°C, 120°C for a short time).
4. Aging resistance, oil resistance, hydrolysis resistance and mold resistance. The resilience is also much better than others.
5. No irritating smell, environmental protection, food and drug safety.
We have more product information, if you need to know, you can contact us, we will send you more detailed product information.

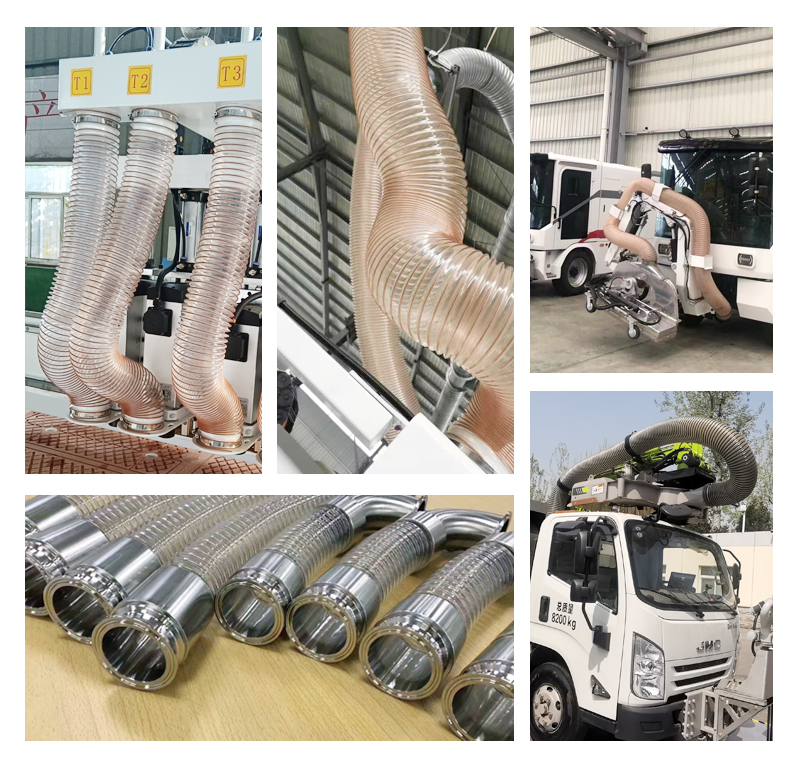

application:
1. Agriculture: irrigation, mobile sprinkler irrigation, drip irrigation, and can also be used for various agricultural machinery, such as cotton pickers, seeders, fertilization conveyors, grain elevators, etc.
2. Industry: all kinds of industrial dust removal machinery, such as material conveying, quartz powder, glass fragments, etc. Primary air system.
3. Construction: floor grinder, paint gun, etc.
4. Sewage treatment: sewage transportation and filtration.
5. Fishery: oxygen delivery, water filtration.
Inner diameter (mm)
Wall thickness (mm)
Overpressure (bar)
Vacuum (mm)
Standard length (m)
50
0.40
0.695
0.240
10/20
60
0.40
0.600
0.200
10/20
64
0.40
0.535
0.170
10/20
70
0.40
0.490
0.160
10/20
75
0.40
0.470
0.150
10/20
80
0.40
0.435
0.120
10/20
90
0.40
0.390
0.100
10/20
100
0.40
0.350
0.080
10/20
110
0.40
0.330
0.075
10/20
120
0.40
0.290
0.070
10/20
125
0.40
0.280
0.055
10/20
150
0.40
0.175
0.045
10/20
175
0.40
0.165
0.040
10/20
200
0.40
0.130
0.030
10/20
225
0.40
0.115
0.025
10/20
250
0.40
0.105
0.015
10/20
300
0.40
0.100
0.010
10/20
material selection
Application field
PU (Polyurethane)
Hoses for the food and pharmaceutical industries
TPU (thermoplastic polyurethane)
Hoses for wood processing
TPEE (thermoplastic polyester elastomer)
Hose, fittings and safety clip systems for silo vehicles
PVC (polyvinyl chloride resin)
Hoses for exhaust extraction
nylon
Industrial Vacuum Cleaner Hose
We have more product information, if you need to know, you can contact us, we will send you more detailed product information.
