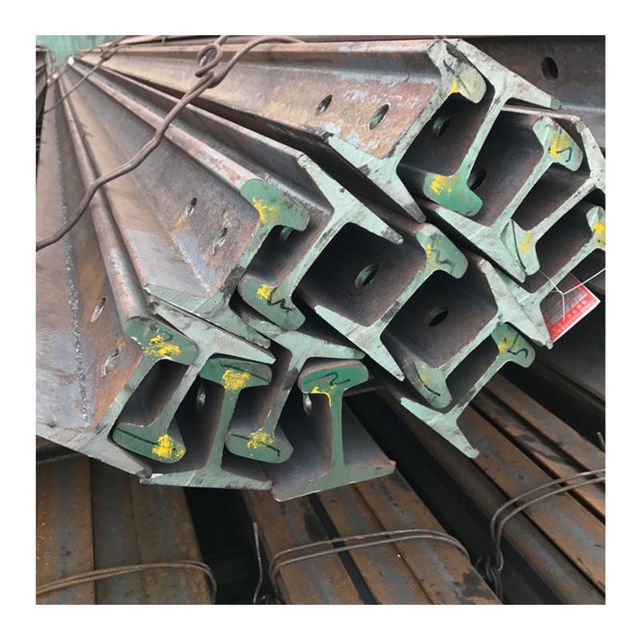

43 kg steel rail for heavy truck rail chassis
-
$730.00 / 1 - 19 pieces
$680.00 / 20 - 49 pieces
$630.00 / >=50 pieces - 1 piece
- Shandong Xinpeng Steel Co., Ltd.
- Shandong, China
- Mr Jianwang Cui
Product Detail
| Packaging Details: | Standard export waterproof packaging, suitable for various transportation, or as required. | Supply capacity: | 10000 tons per month |
| Origin: | Shandong Province, China | Whether alloy: | Unalloyed |
| MOQ: | 1 ton | delivery time: | 8-14 days |
| Secondary or not: | non-secondary | tolerant: | ±1% |
| application: | railway railway | Bottom width: | 114/132/150/120 mm |
| size: | custom request | grade: | U71Mn 50Mn |
| Rail height: | 134/140/152/176mm | weight: | 50kg/month, 8.42-118.1kg/month |
| Package preview: | product name: | Railway rail application heavy rail | |
| model: | RL-001 | Material: | Production of steel DIN rails |
| usage: | railway mining | Certification: | ISO9001-2008 |
| standard: | Ace, ASTM, DIN, GB, JIS, EN, bs, Ace | Head Width: | 68/70/73/80/100mm |
| port: | Shanghai/Tianjin/Qingdao/Rizhao | Web Thickness: | 13/14.5/15.5/16.5mm |
| pack: | Airworthy standard packaging | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram |
| type: | heavy rail | Serve: | 24-hour service |
| brand: | Xinpeng | Bolt hole diameter: | 30mm |
| length: | 12.5-25m |
"Light rail" in urban rail transit corresponds to "subway". The trams and rail wheel trains in the urban public transport system are completely different from the light rail trains in the urban rail transit technology, so they do not belong to the light rail system. Light rail in urban rail transit refers to a train that uses an automatic signal system to run on a straddle-type monorail train.
1. Knowledge of heavy rails: rails with a nominal weight of more than 30kg per meter. Both railway rails and crane rails are heavy rails.Railway rails: used for laying railways. To withstand the pressure, impact load and friction of train operation, it needs sufficient strength and certain toughness. The quality requirements are strict. In addition to the guarantee of its chemical composition, it also requires the inspection of mechanical properties, drop weight test and acid leaching of low-magnification tissue.Crane track:That is, the crane track, which has a lower height and a larger head width and waist thickness, only requires checking the chemical composition and tensile strength. For laying crane and trolley tracks.2. Light rail knowledge:The nominal weight per meter is less than or equal to 30kg rail. The quality requirement of light rail is lower than that of steel rail, only its chemical composition, tensile strength, hardness and drop weight test are required to be tested.
The main purpose:Light rail is mainly used to lay temporary transportation lines and light locomotive lines in forest areas, mining areas, factories, and construction sites.
(1) Light rail type, material: Q235, 55q; specifications: 30kg/m, 24kg/m, 22kg/m, 18kg/m, 15kg/m, 12kg/m, 8kg/m. (2) Heavy rail type, material: 45mn, 71mn; specifications: 50 kg/m, 43 kg/m, 38 kg/m, 33 kg/m. (3) Lifting track type, material: U71mn; specification: Qu70 kg/m, QU80 kg/m, QU100 kg/m, QU120 kg/m.

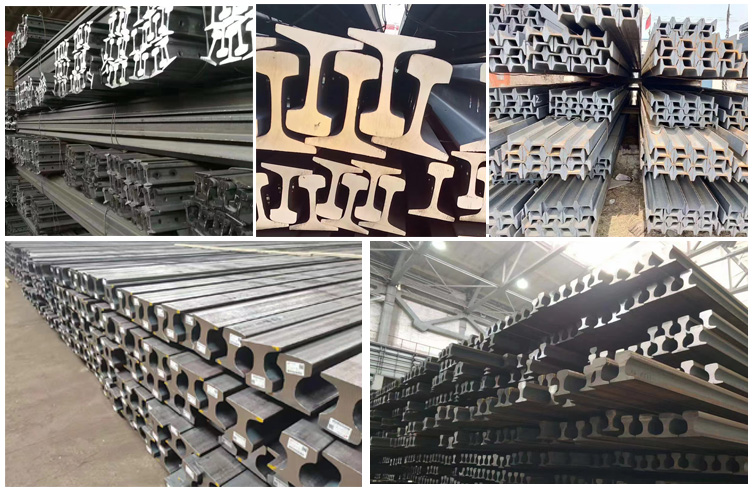

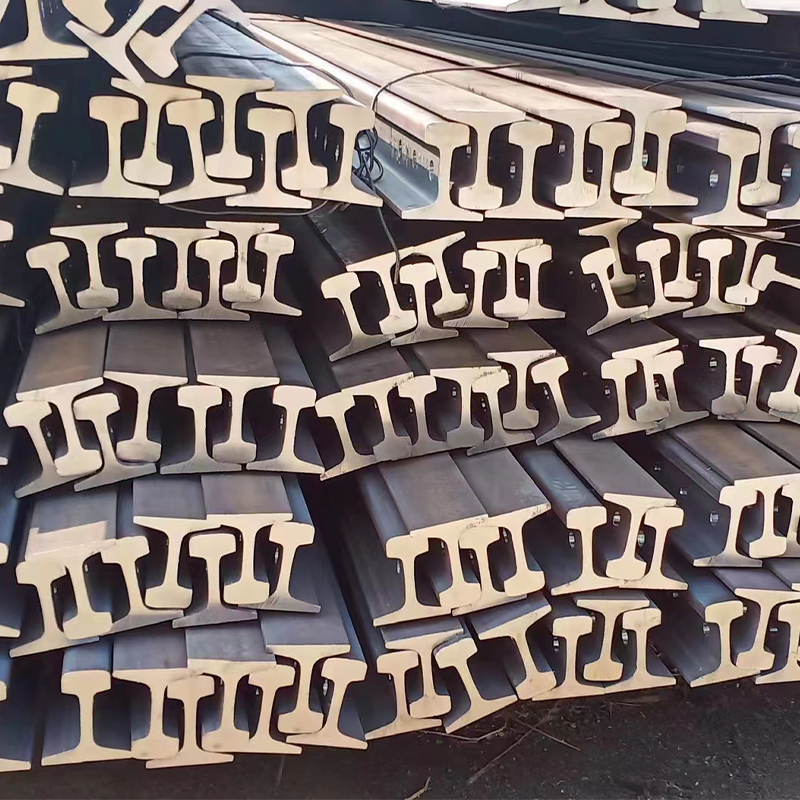

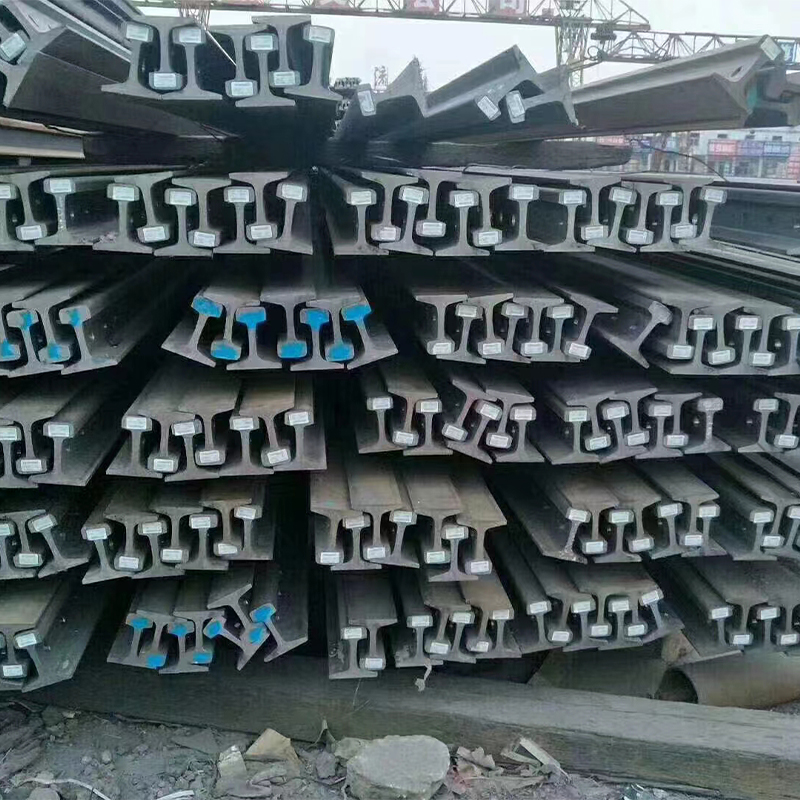

Product Description
Product parameters
product name | crane track | ||||||||||
standard | AiSi, ASTM, bs, DIN, GB, JIS | ||||||||||
grade | U71Mn 50Mn | ||||||||||
application | Railway Railway, Mining Industry | ||||||||||
Rail type | size (mm) | Theoretical weight KG/m | |||||||||
Rail height | base width | head width | Waist Thickness | ||||||||
heavy rail | 38 kg | 134 | 114 | 68 | 13 | 38.733 | |||||
43 kg | 140 | 114 | 70 | 14.5 | 44.653 | ||||||
45 kg | 145 | 126 | 67 | 14.5 | 45.546 | ||||||
50 kg | 152 | 132 | 70 | 15.5 | 51.514 | ||||||
60 kg | 176 | 150 | 73 | 16.5 | 60.64 | ||||||
product name | Specification | Material (Steel Grade) | Product Standards | Theoretical weight (kg/m) | Size Length (M) | Bundle with wire (piece/bundle) |
Light Rail | 4 kg/m | Q235 | Q/YG001-2014 | 4 kg/m | 6,8 | 75 |
8 kg/m | Q235 | Q/YG001-2014 | 8.42 kg/m | 55 | ||
12 kg/m | Q235 | GB11264-2012 | 12.2 kg/m | 36 | ||
15kg/m | Q235/55Q | GB11264-2012 | 15.2 kg/m | 6,8,9,10 | 28 | |
18 kg/m | Q235/55Q | Q/YG001-2014 | 18.06 kg/m | twenty one | ||
22 kg/m | Q235/55Q | GB11264-2012 | 22.3 kg/m | twenty one | ||
24 kg/m | Q235/55Q | Q/YG001-2014 | 24.46 kg/m | twenty one | ||
30kg/m | Q235/55Q | GB11264-2014 | 30.1 kg/m | 15 | ||
heavy rail | 38 kg/m | U71Mn | GB2585-2007 | 38.733 kg/m | 12,12.5 | 10 |
43 kg/m | U71Mn | GB2585-2007 | 44.653 kg/m | 10 | ||
50kg/m | U71Mn | GB2585-2007 | 51.514 kg/m | 10 | ||
45/50 manganese | Q/YYG002-2008 | 31/34/36/39/41 kg/m | 12,12.5 | 10 | ||
crane track | QU70 | U71Mn | YB/T5055-93 | 52.8 kg/m | 12 | 10 |
QU80 | YB/T5055-93 | 63.69 kg/m | 10 | |||
QU100 | YB/T5055-93 | 88.96 kg/m | 5 | |||
QU120 | YB/T5055-93 | 118.1 kg/m | 5 |
Product advantages
Applications
