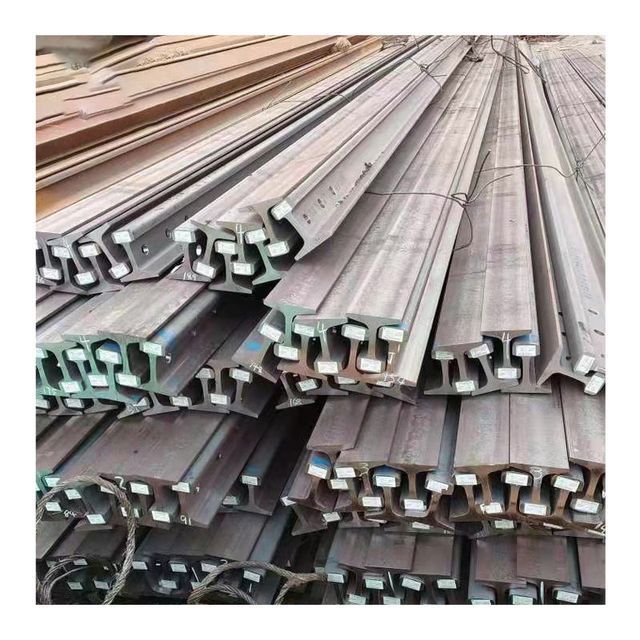

Factory supply railway road steel rail heavy duty train track

  • $730.00 / 1 - 19 pieces
    $680.00 / 20 - 49 pieces
    $630.00 / >=50 pieces
  • 1 piece
  • Shandong Xinpeng Steel Co., Ltd.
  • Shandong, China
  • Mr Jianwang Cui

Product Detail

Serve:24-hour serviceport:Shanghai/Tianjin/Qingdao/Rizhao
Material:Production of steel DIN railsapplication:railway railway
type:heavy railtolerant:±1%
grade:U71Mn 50Mndelivery time:8-14 days
size:custom requestSecondary or not:non-secondary
Packaging Details:Standard export waterproof packaging, suitable for various transportation, or as required.brand:Xinpeng
Bolt hole diameter:30mmpayment terms:L/C, Western Union, D/P, D/A, T/T, MoneyGram
Certification:ISO9001-2008weight:50kg/month, 8.42-118.1kg/month
Bottom width:114/132/150/120 mmmodel:RL-001
Whether alloy:UnalloyedRail height:134/140/152/176mm
Web Thickness:13/14.5/15.5/16.5 mmOrigin:Shandong Province, China
product name:Railway rail application heavy railPackage preview:
usage:railway miningpack:Airworthy standard packaging
standard:Ace, ASTM, DIN, GB, JIS, EN, bs, Acelength:12.5-25m
Supply capacity:10000 tons per monthHead Width:68/70/73/80/100mm
MOQ:1 ton
"Light rail" in urban rail transit corresponds to "subway". The trams and rail wheel trains in the urban public transport system are completely different from the light rail trains in the urban rail transit technology, so they do not belong to the light rail system. Light rail in urban rail transit refers to a train that uses an automatic signal system to run on a straddle-type monorail train.

1. Knowledge of heavy rails: rails with a nominal weight of more than 30kg per meter. Both railway rails and crane rails are heavy rails.Railway rails: used for laying railways. To withstand the pressure, impact load and friction of train operation, it needs sufficient strength and certain toughness. The quality requirements are strict. In addition to the guarantee of its chemical composition, it also requires the inspection of mechanical properties, drop weight test and acid leaching of low-magnification tissue.Crane track:That is, the crane track, which has a lower height and a larger head width and waist thickness, only requires checking the chemical composition and tensile strength. For laying crane and trolley tracks.2. Light rail knowledge:The nominal weight per meter is less than or equal to 30kg rail. The quality requirement of light rail is lower than that of steel rail, only its chemical composition, tensile strength, hardness and drop weight test are required to be tested.
The main purpose:Light rail is mainly used to lay temporary transportation lines and light locomotive lines in forest areas, mining areas, factories, and construction sites.
(1) Light rail type, material: Q235, 55q; specifications: 30kg/m, 24kg/m, 22kg/m, 18kg/m, 15kg/m, 12kg/m, 8kg/m. (2) Heavy rail type, material: 45mn, 71mn; specifications: 50 kg/m, 43 kg/m, 38 kg/m, 33 kg/m. (3) Lifting track type, material: U71mn; specification: Qu70 kg/m, QU80 kg/m, QU100 kg/m, QU120 kg/m.
Product Description
Product parameters
product name
crane track
standard
AiSi, ASTM, bs, DIN, GB, JIS
grade
U71Mn 50Mn
application
Railway Railway, Mining Industry
Rail type
size
(mm)
Theoretical weight KG/m
Rail height
base width
head width
Waist Thickness
heavy rail
38 kg
134
114
68
13
38.733
43 kg
140
114
70
14.5
44.653
45 kg
145
126
67
14.5
45.546
50 kg
152
132
70
15.5
51.514
60 kg
176
150
73
16.5
60.64
product name
Specification
Material (Steel Grade)
Product Standards
Theoretical weight (kg/m)
Size Length (M)
Bundle with wire (piece/bundle)
Light Rail
4 kg/m
Q235
Q/YG001-2014
4 kg/m
6,8
75
8 kg/m
Q235
Q/YG001-2014
8.42 kg/m
55
12 kg/m
Q235
GB11264-2012
12.2 kg/m
36
15kg/m
Q235/55Q
GB11264-2012
15.2 kg/m
6,8,9,10
28
18 kg/m
Q235/55Q
Q/YG001-2014
18.06 kg/m
twenty one
22 kg/m
Q235/55Q
GB11264-2012
22.3 kg/m
twenty one
24 kg/m
Q235/55Q
Q/YG001-2014
24.46 kg/m
twenty one
30kg/m
Q235/55Q
GB11264-2014
30.1 kg/m
15
heavy rail
38 kg/m
U71Mn
GB2585-2007
38.733 kg/m
12,12.5
10
43 kg/m
U71Mn
GB2585-2007
44.653 kg/m
10
50kg/m
U71Mn
GB2585-2007
51.514 kg/m
10
45/50 manganese
Q/YYG002-2008
31/34/36/39/41 kg/m
12,12.5
10
crane track
QU70
U71Mn
YB/T5055-93
52.8 kg/m
12
10
QU80
YB/T5055-93
63.69 kg/m
10
QU100
YB/T5055-93
88.96 kg/m
5
QU120
YB/T5055-93
118.1 kg/m
5
