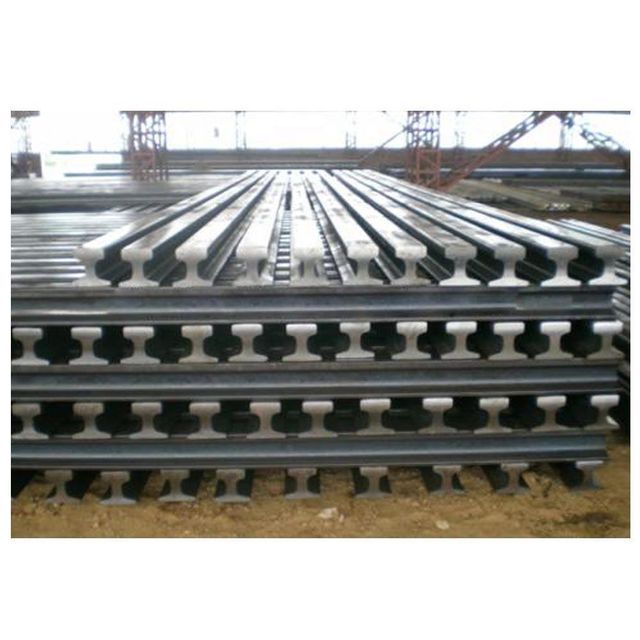

The new Q235 material 9Kg/M light rail safe operation assured product railway rail

Product Detail

Height (mm):50.8Bolt hole diameter:National standard
Material (mm):Q235Bport:any port in China
Package preview:Bottom width:54-107.95mm
Lift(mm):25.4Length (mm):6-12
Web Thickness:10.72-40mmweight:4-30kg/m
Rail height:69.85-185.74mmBottom (mm):50.8
Origin:Shandong Province, Chinasize:National standard 6KG
Head Width:25-120 mmWeight (kg/m):5.98
type:Light Railstandard:National standard
Supply capacity:10,000 tons of light rail steel Q235 material per weekWeb (mm):4.76
application:railway railwaypayment terms:L/C, Western Union, T/T, PayPal, Alibaba Trade Assurance
brand:China and Americamodel:light rail
tolerant:±3%delivery time:within 7 days

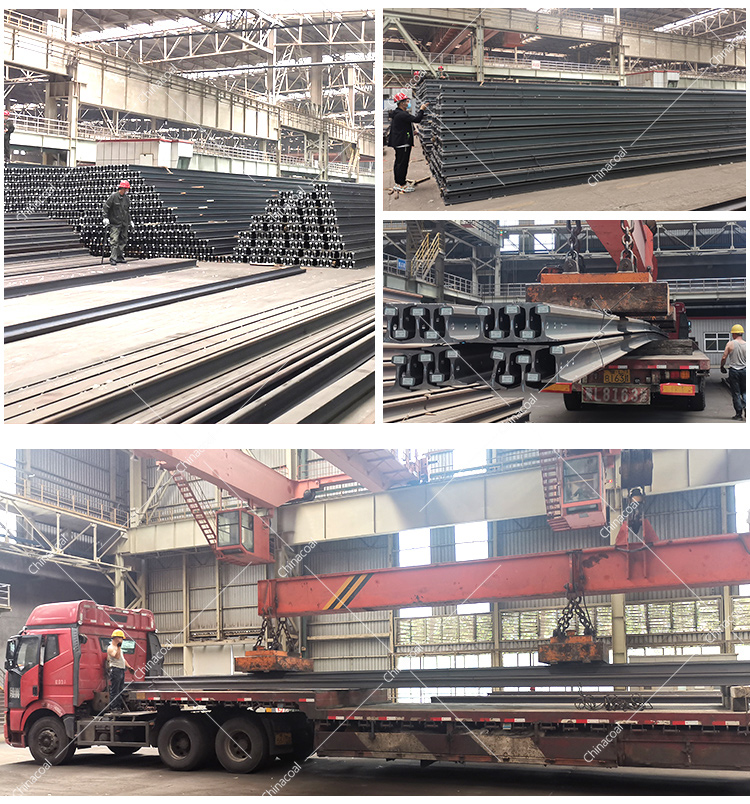

Packaging Details:Light Rail Rail Heavy Rail Rail Container TransportationSecondary or not:non-secondary
length:6-12mgrade:Q235/55Q/U71Mn/75V/50Mn/45Mn
Whether alloy:Unalloyed



Introduction of new light steel rails for sale of railway tracks

Generally, steel rails are divided into light rail, heavy rail and crane rail

1) Light rail: 6kg/m, 9kg/m, 12kg/m, 15kg/m, 18kg/m, 22kg/m, 24k/mg, 30kg/m
Material: Q235B/50Q/55Q
Length of each piece: 6m~12m
Executive standard: refer to GB11264-89

2) Heavy rail: 38kg/m, 43kg/m, 50kg/m, 60kg/m
Material: U71Mn/50Mn/44Mn
Length of each piece: 12m, 12.5m
Executive standard: refer to GB2585-2007

3) Crane track: QU70, QU80, QU100, QU120

Material: U71Mn
Length of each piece: 12m, 12.5m
Executive standard: refer to GB3426-82 zmwm06

Main parameters of new light steel rail for railway track for sale

Standard: GB11264-89

size

Lift (mm)

high

(mm)

bottom

(mm)

network

(mm)

weight

(kg/m)

Material

(mm)

length

(mm)

National standard 6KG

25.4

50.8

50.8

4.76

5.98

Q235B

6-12

GB9KG

32.1

63.5

63.5

5.9

8.94

Q235B

6-12

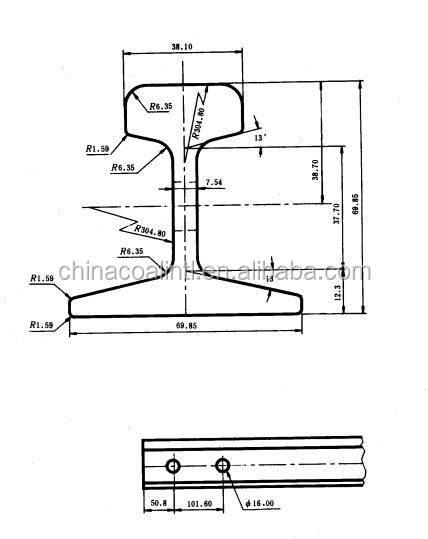

National standard 12KG

38.1

69.85

69.85

7.54

12.2

Q235B/55Q

6-12

National standard 15KG

42.86

79.37

79.37

8.33

15.2

Q235B/55Q

6-12

National standard 22KG

50.3

93.66

93.66

10.72

22.3

Q235B/55Q

6-12

National standard 30KG

60.33

107.95

107.95

12.3

30.1

Q235B/55Q

6-12

Standard: YB222-63

8 kg

25

65

54

7

8.42

Q235B

6-12

18 kg

40

90

80

10

18.06

Q235B/55Q

6-12

24 kg

51

107

92

10.9

24.46

Q235B/55Q

6-12
