Gouging carbon rods, arc gouging electrodes, copper-plated gouging carbon rods

  • $0.08 / 100 - 99999 pieces
    $0.08 / 100000 - 799999 pieces
    $0.08 / 800000 - 999999 pieces
    $0.08 / >=1000000 pieces
  • 100 pieces
  • Shandong Utlet New Materials Co., Ltd.
  • Shandong, China
  • Ms Shandong UTLET

Product Detail

model:carbon rodApparent Density (g/cm3):65
Bending strength (N/㎡):25type:TIG welding, electrode powder
Packaging Details:Gouging carbon rod, arc gouging electrode copper plated gouging carbon rodpayment terms:L/C, D/A, D/P, T/T, Western Union
product name:Gouging Rod DC Gouging CarbonOrigin:Shandong Province, China
MOQ:100 piecesthermal expansion:32
Supply capacity:300000 boxes per monthport:Qingdao, China
application:Arc gouging carbon rodgrade:HP (high power)
Key words:Round Copper Carbon Electrode (DC)length:305 mm
Resistance (μΩ.m):220brand:Sandel Welding Industries



Gouging carbon rod, arc gouging electrode copper plated gouging carbon rod

Key words:

Round Copper Carbon Rod (DC)
Copper Electrodeposition on Carbon Film Electrodes
Copper clad carbon electrode, carbon rod
Round Copper Coated Carbon Electrodes
1/4" x 12" Round Copper Clad Carbon Electrode
3/16 X 12 round carbon rod DC-CC copper clad electrode
5/32 X 12" Round Copper Clad Electrode
1/4 X 12 DC CC Copper Clad Tip Electrode
Copper clad round carbon electrode
China joint gouging copper clad carbon electrode





Gouging carbon rod, arc gouging electrode copper plated gouging carbon rod

Technical performance:

Air arc carbon rod gouging technology is mainly used in the metal field

Structural parts, metal casting, shipbuilding, etc., to improve processing efficiency and improve the working environment

Adopt air arc carbon gouging technology to replace the old-fashioned gas chiseling technology.

After the carbon rod gouging treatment, the metal surface is smooth, clean, flat and free of termite damage

It has great influence on metal properties, and has the characteristics of convenient operation, low cost and no noise.



Gouging carbon rod, arc gouging electrode copper plated gouging carbon rod

Precautions for use of arc gouging Caibang electrode:

1. Power supply: ordinary DC power supply for welding machine, which can be used for gas arc gouging carbon electrode.

2. Currency range: The currency range used directly affects the processing quality and results.

If it is too small, it will be difficult to gouging; if it is too large, the heating carbon head will be too long,

This results in thinner bars and poorer machining quality. Therefore, appropriate

The currency ranges shown in the table below should be used according to the model

and the size of the gouged carbon electrode.

3. Air pressure range: the normal air pressure range is 4-6kg/cm2, which should meet the

The diameter of the gouged carbon electrode. In general, the larger the diameter, the higher the air pressure.

Smaller diameter of rod and less pressure. If air pressure is suitable for smaller diameters. If the air pressure is too high,

The arc is unstable; too low, the molten metal is not easy to be blown away, affecting the quality

gouging slots.



Gouging carbon rod, arc gouging electrode copper plated gouging carbon rod

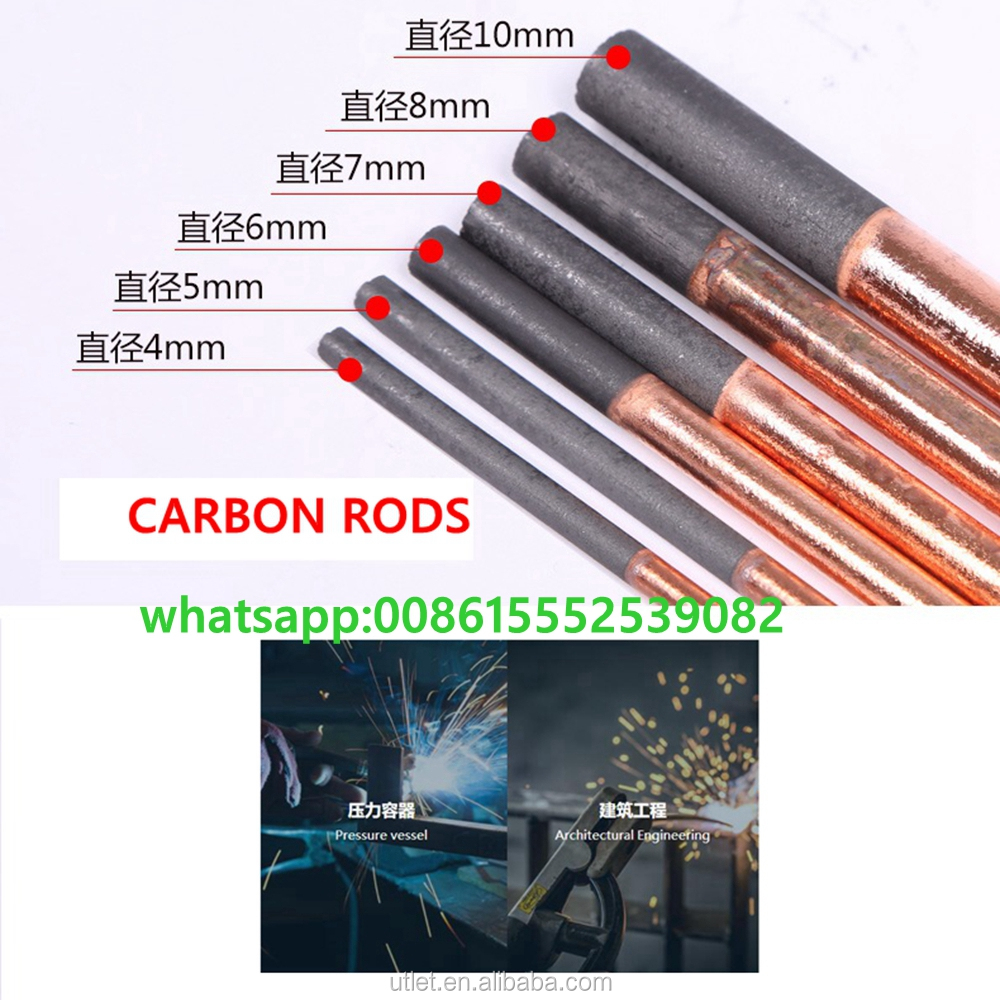

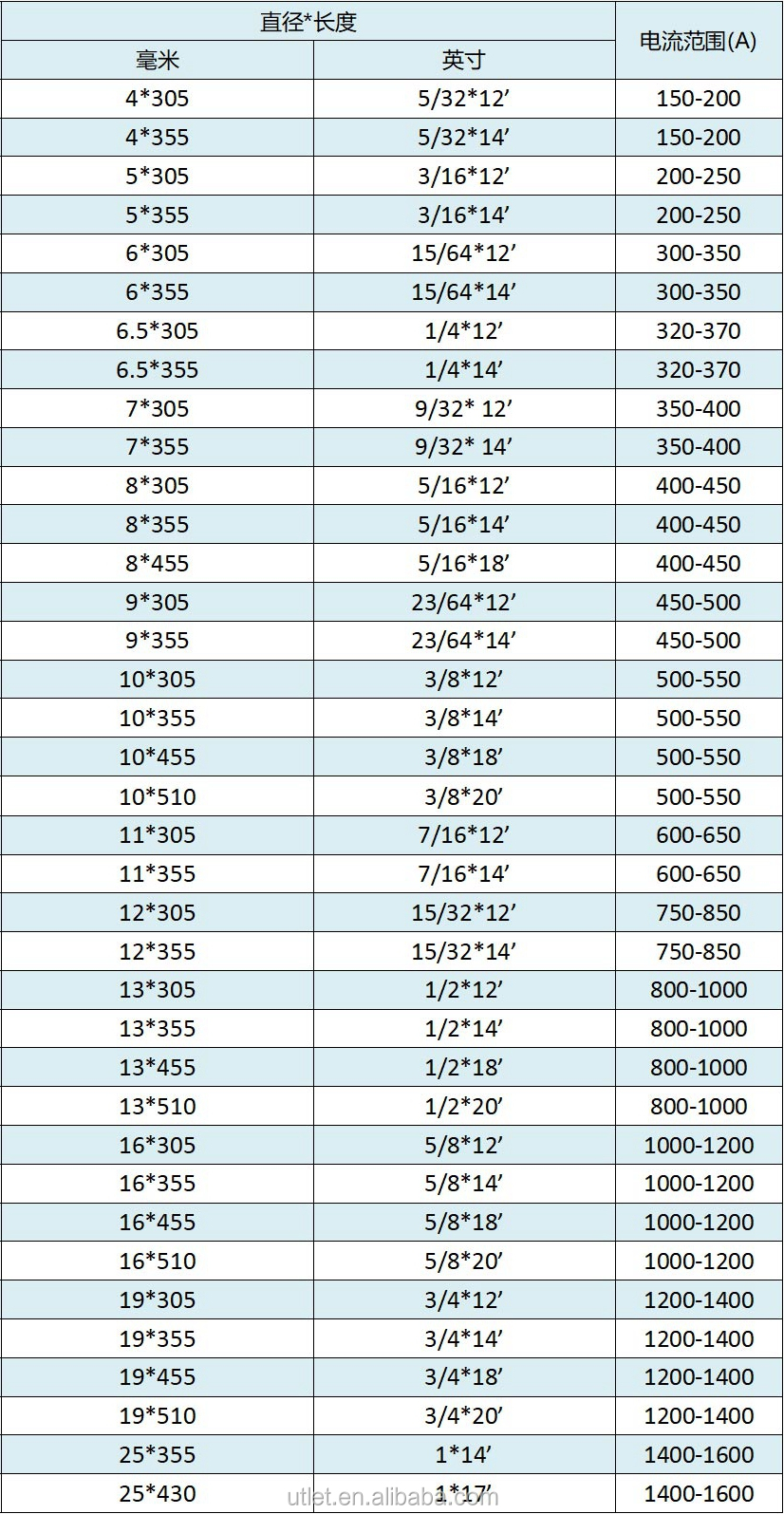

Specifications and Dimensions



Specification

size

Current (A)

(mm)

(inch)

B504

4.0×305(355)

5/32×12(14)

150~200

B505

5.0×305(355)

3/16×12(14)

200~250

B506

6.0x305(355)

15/64×12(14)

300~350

B506.5

6.5×305

1/4×12

320~370

B507

7.0×355

9/32×14

350~400

B508

8.0×305(355)

5/16×12(14)

400~450

B509

9.0×355

11/32×14

450~500

B510

10.0×305(355)

3/8×12(14)

500~550

B511

11.0×305(355)

7/16×12(14)

600~650

B512

12.0×305(355)

15/32×12(14)

750~800

B513

13.0×305(355)

1/2×12(14)

800~900

B516

16.0×355

5/8×14

950~1100

B519

19.0×355(510)

3/4×14(20)

1100~1300



Gouging carbon rod, arc gouging electrode copper plated gouging carbon rod

Why choose our zander brand welding wire and electrodes?

(1) Good quality and competitive price

(2) Provide free samples to test the quality of welding wire

(3) OEM package accepted

(4) Professional Services

Our company's policy is quality first, with the purpose of establishing a business with integrity

Have good and long-term business with every customer.
