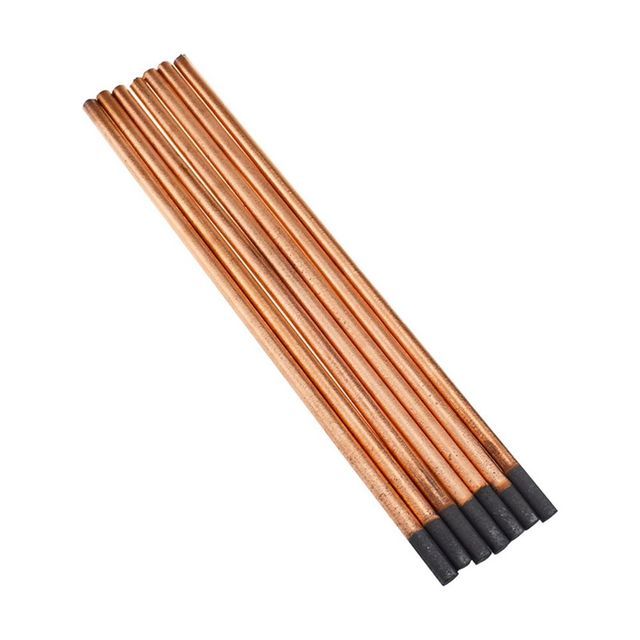

Arc electrode, carbon welding rod
-
$0.085 / 100 - 99999 pieces
$0.084 / 100000 - 799999 pieces
$0.083 / 800000 - 999999 pieces
$0.082 / >=1000000 pieces - 100 pieces
- Shandong Utlet New Materials Co., Ltd.
- Shandong, China
- Ms Shandong UTLET
Product Detail
| length: | 305mm | Resistance (μΩ.m): | 220 |
| grade: | HP (high power) | payment terms: | L/C, D/A, D/P, T/T, Western Union |
| model: | carbon rod | MOQ: | 100 pieces |
| type: | Electrode powder, TIG welding | application: | Arc gouging carbon rod |
| Supply capacity: | 300000 boxes per month | Bending strength (N/㎡): | 25 |
| Key words: | Round Copper Carbon Electrode (DC) | Packaging Details: | Arc gouging electrode, welding carbon rod |
| Origin: | Shandong Province, China | thermal expansion: | 32 |
| brand: | Sandel Welding Industries | port: | Qingdao, China |
| Apparent Density (g/cm3): | 65 | product name: | Gouging Rod DC Gouging Carbon |
Arc gouging electrode, welding carbon rod
Key words:
Round Copper Carbon Rod (DC)
Copper Electrodeposition on Carbon Film Electrodes
Copper clad carbon electrode, carbon rod
Round Copper Coated Carbon Electrodes
1/4" x 12" Round Copper Clad Carbon Electrode
3/16 X 12 round carbon rod DC-CC copper clad electrode
5/32 X 12" Round Copper Clad Electrode
1/4 X 12 DC CC Copper Clad Tip Electrode
Copper clad round carbon electrode
China joint gouging copper clad carbon electrode
Arc gouging electrode, welding carbon rod
Technical performance:
Air arc carbon rod gouging technology is mainly used in the metal field
Structural parts, metal casting, shipbuilding, etc., to improve processing efficiency and improve the working environment
Adopt air arc carbon gouging technology to replace the old-fashioned gas chiseling technology.
After the carbon rod gouging treatment, the metal surface is smooth, clean, flat and free of termite damage
It has great influence on metal properties, and has the characteristics of convenient operation, low cost and no noise.
Arc gouging electrode, welding carbon rod
Precautions for use of arc gouging Caibang electrode:
1. Power supply: ordinary DC power supply for welding machine, which can be used for gas arc gouging carbon electrode.
2. Currency range: The currency range used directly affects the processing quality and results.
If it is too small, it will be difficult to gouging; if it is too large, the heating carbon head will be too long,
This results in thinner bars and poorer machining quality. Therefore, appropriate
The currency ranges shown in the table below should be used according to the model
and the size of the gouged carbon electrode.
3. Air pressure range: the normal air pressure range is 4-6kg/cm2, which should meet the
The diameter of the gouged carbon electrode. In general, the larger the diameter, the higher the air pressure.
Smaller diameter of rod and less pressure. If air pressure is suitable for smaller diameters. If the air pressure is too high,
The arc is unstable; too low, the molten metal is not easy to be blown away, affecting the quality
gouging slots.
Arc gouging electrode, welding carbon rod
Specifications and Dimensions
Specification | size | Current (A) | |
(mm) | (inch) | ||
B504 | 4.0×305(355) | 5/32×12(14) | 150~200 |
B505 | 5.0×305(355) | 3/16×12(14) | 200~250 |
B506 | 6.0x305(355) | 15/64×12(14) | 300~350 |
B506.5 | 6.5×305 | 1/4×12 | 320~370 |
B507 | 7.0×355 | 9/32×14 | 350~400 |
B508 | 8.0×305(355) | 5/16×12(14) | 400~450 |
B509 | 9.0×355 | 11/32×14 | 450~500 |
B510 | 10.0×305(355) | 3/8×12(14) | 500~550 |
B511 | 11.0×305(355) | 7/16×12(14) | 600~650 |
B512 | 12.0×305(355) | 15/32×12(14) | 750~800 |
B513 | 13.0×305(355) | 1/2×12(14) | 800~900 |
B516 | 16.0×355 | 5/8×14 | 950~1100 |
B519 | 19.0×355(510) | 3/4×14(20) | 1100~1300 |
Arc gouging electrode, welding carbon rod
Why choose our zander brand welding wire and electrodes?
(1) Good quality and competitive price
(2) Provide free samples to test the quality of welding wire
(3) OEM package accepted
(4) Professional Services
Our company's policy is quality first, with the purpose of establishing a business with integrity
Have good and long-term business with every customer.
