Large diameter graphite electrode manufacturer in China Kfcc UHP650
-
$2880.00 / 5 - 99 pieces
$2520.00 / >=100 pieces - 5 pieces
- Gongyi Rongxin Carbon Products Co., Ltd.
- Henan, China
- Mr Thomas Yang
Product Detail
| Place of origin: | Henan, China | model: | Ultra high pressure 650 |
| Apparent density (g/cm3): | 1.68-1.74 | payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram, PayPal |
| Package preview: | Bending strength (N/㎡): | 10-14 days | |
| application: | electric arc furnace | Thermal expansion: | 1.1-1.4 |
| Packaging details: | Packed in wooden boxes with steel straps | nipple: | 3TPI/4TPI/4TPIL |
| product name: | Ultra high voltage grade graphite electrode | Supply capacity: | 80,000 tons/year |
| brand: | Rong Xin | type: | Electrode bolt |
| port: | Tianjin, Qingdao | length: | 2100-2700mm |
| grade: | UHP (Ultra High Power) | Resistance (μΩ.m): | 4.6-5.8 |

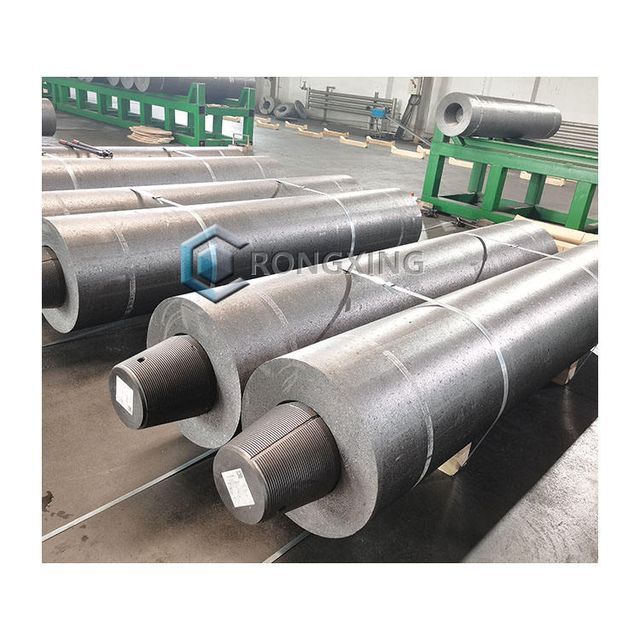

UHP650 graphite electrode
Technical data
| Ultra high pressure 650 | |||||||
| thing | unit | thing | unit | ||||
| Resistivity | electrode | micro ohms | 4.6-5.8 | Bulk density | electrode | grams/cubic centimeter | 1.68-1.74 |
| nipple | 3.5-4.0 | nipple | 1.78-1.84 | ||||
| modulus of rupture | electrode | MPa | 10.0-14.0 | Thermal expansion coefficient (100-600℃) | electrode | 10-6/℃ | 1.1-1.4 |
| nipple | 22.0-26.0 | nipple | 0.9-1.2 | ||||
| Young's modulus | electrode | grade point average | 10.0-14.0 | moment | nanometer | 5000 | |
| nipple | 16.0-19.0 | normal diameter | maximum. diameter | minute. diameter | length | ||
| Ash | % | 0.3 | 650mm | 663mm | 657mm | 2100-2700mm | |
| Nominal diameter | actual diameter | Nominal length(mm) | ||
| mm | inch | Max(mm) | Min(mm) | |
| 75 | 3 | 78 | 73 | 1000 |
| 100 | 4 | 103 | 98 | 1200 |
| 150 | 6 | 154 | 149 | 1500-1800 |
| 200 | 8 | 205 | 200 | 1500-1800 |
| 225 | 9 | 230 | 225 | 1500-2100 |
| 250 | 10 | 256 | Chapter 251 | 1500-2100 |
| 300 | 12 | 307 | Chapter 302 | 1500-2100 |
| 350 | 14 | Chapter 357 | Chapter 352 | 1500-2400 |
| 400 | 16 | 409 | 403 | 1500-2400 |
| 450 | 18 | Chapter 460 | Chapter 454 | 1500-2400 |
| 500 | 20 | 511 | 505 | 1800-2700 |
| 550 | twenty two | Chapter 562 | Chapter 556 | 1800-2700 |
| 600 | twenty four | 613 | 607 | 2100-2700 |
| 650 | 26 | Chapter 663 | Chapter 657 | 2100-2700 |
| 700 | 28 | Chapter 714 | 708 | 2100-2700 |
| 750 | 30 | Chapter 765 | Chapter 759 | 2400-2700 |
| 800 | 32 | 816 | 810 | 2400-2700 |
Surface quality of ultra-high voltage graphite electrodes
1. There should be no less than 2 defects or holes on the electrode surface, and their maximum size is as shown in the table below.
2. There should be no transverse cracks on the electrode surface. For longitudinal cracks, the length should be less than 5% of the electrode circumference and the width should be between 0.3-1.0mm.
1. There should be no less than 2 defects or holes on the electrode surface, and their maximum size is as shown in the table below.
2. There should be no transverse cracks on the electrode surface. For longitudinal cracks, the length should be less than 5% of the electrode circumference and the width should be between 0.3-1.0mm.
Product Description
Graphite electrodes mainly use petroleum coke and needle coke as raw materials, coal pitch as binder, and are calcined.It is made by batching, kneading, shaping, baking, graphitizing and mechanical processing, and is released in the form of arc conductor in the electric arc furnace to heat and melt the charge.
Product advantages
* High output and guaranteed delivery time
Annual output: 80,000 tons
* Low resistivity, high packing density, low internal defects
* Good thermal and electrical conductivity
* Low resistivity, high packing density, low internal defects
* Good thermal and electrical conductivity
* High mechanical strength and not easily broken;
* Low ash content
* Low ash content
(UHP: Max 0.3%; HP: Max 0.2%; RP: Max 0.5%)
* Low graphite electrode consumption.
* Good antioxidant properties
* Needle coke content accounts for 80%,
* Low graphite electrode consumption.
* Good antioxidant properties
* Needle coke content accounts for 80%,
Imported from Japan and South Korea
application
1. Electric arc steelmaking furnace.
1. Electric arc steelmaking furnace.
2. Ore heating furnace.
3. Resistance furnace.

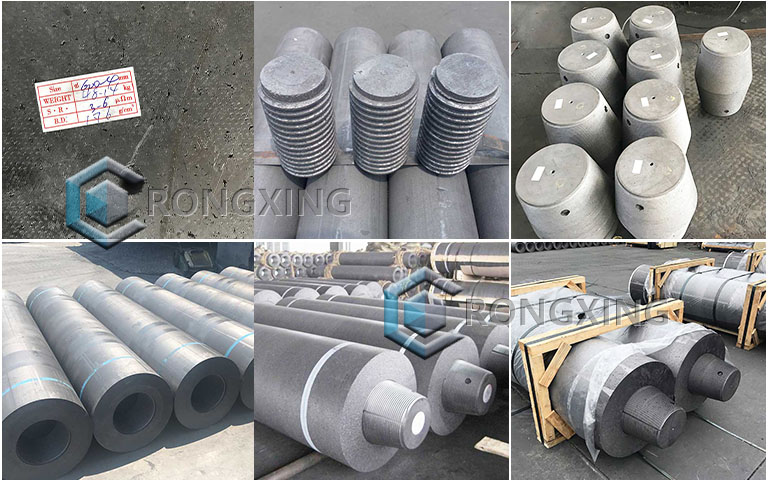

Packaging and shipping
