Metal foil cutting teeth laminated reinforced graphite plate

Product Detail

thickness:client needsThermal conductivity (Z-axis):15-20W/mic
Thermal diffusion:9.09-9.94 square meters/secondSupply capacity:500000 kg per month
Certification:ISO9001:2015hardness:85 Shore A
port:Ningbo/Shenzhen/Shanghaiwidth:500-1500mm
sample:usablepayment terms:L/C, Western Union, T/T, MoneyGram
application:Graphite gasket, sealtype:Reinforcement board
grade:Industrial gradePackaging details:Roll or sheet packaging + standard export wooden box
Thermal conductivity (XY axis):1100-1900 watts/meterC content (%):99.9%
Place of origin:Zhejiang, Chinalength:50-100m
model:Table 1005brand:veterinary
density:1.6-2.15g/cubic centimeter
Product Description

Flexible laminated reinforced graphite sheet with metal foil



Reinforced graphite sheets are selected from high purity natural flake graphite and SS304/316/316L/tinplate tang, flat foil or wire mesh inserts. There are two basic types: mechanical bonding (tang insertion) and adhesive bonding.
Temperature: -240~850℃ in non-oxidizing environment, 650℃ in oxidizing environment.



scope:

thing N level Industrial grade
Density allowable deviation g/cm3 ±0.05 ±0.06
Carbon content≥% 99.5 98/99
Tensile strength≥Mpa 5 4
Compression rate≥% 30 30
Recovery rate≥% 15 15
Sulfur content≤% 400 1200
Chlorine content≤% 25 50
Stress relaxation rate % 10 10
Loss on ignition≤% 0.5 2


aspect:

thing sheet roll
Density g/cm3 1 1
Length mm 1000, 1500 mm 30~100m
Width mm 1000, 1500mm 1000~1500
Thickness mm 0.5~3 0.2~1.1

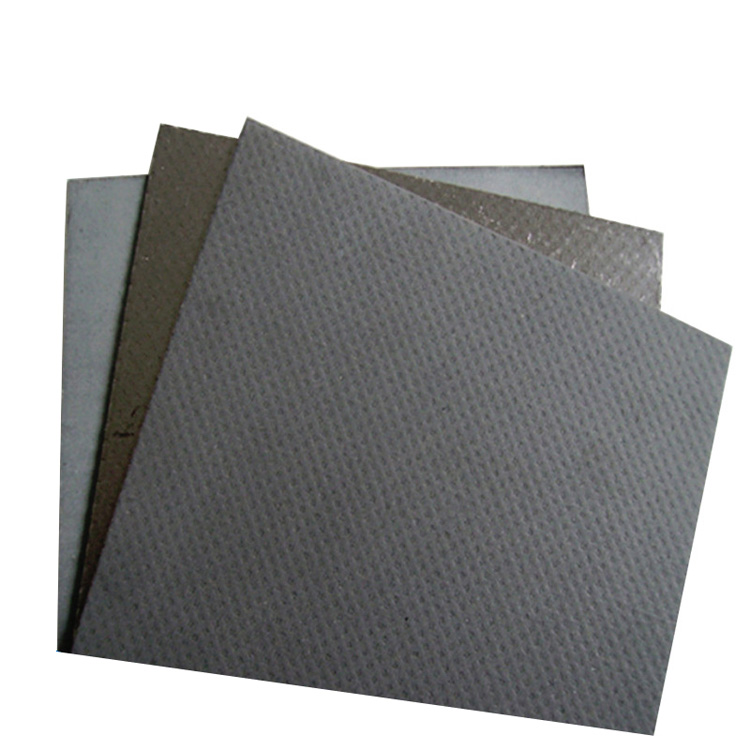

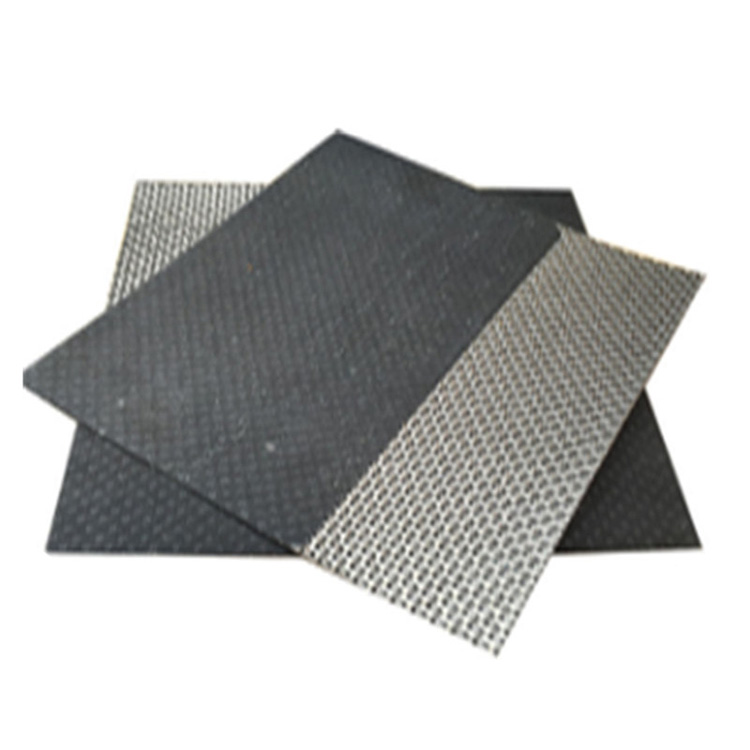

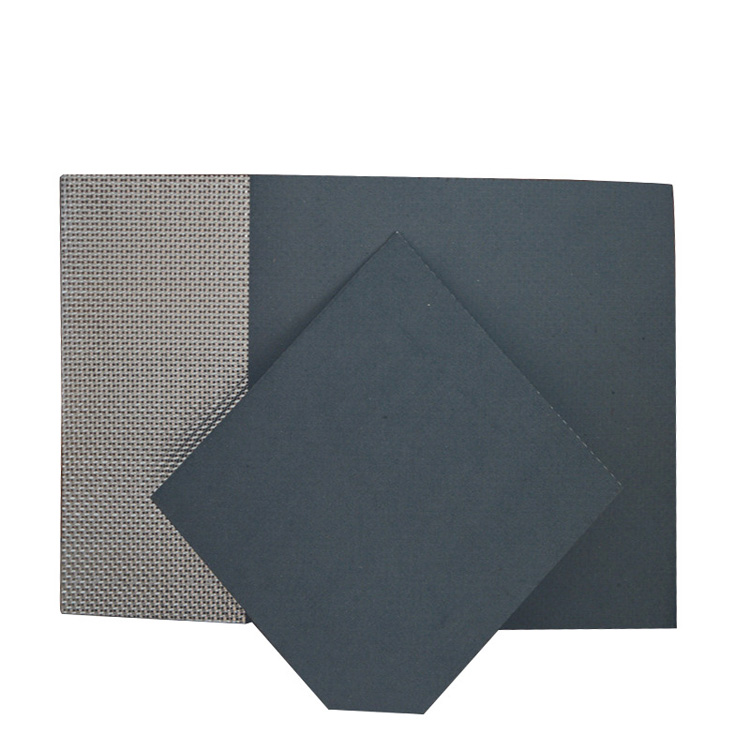

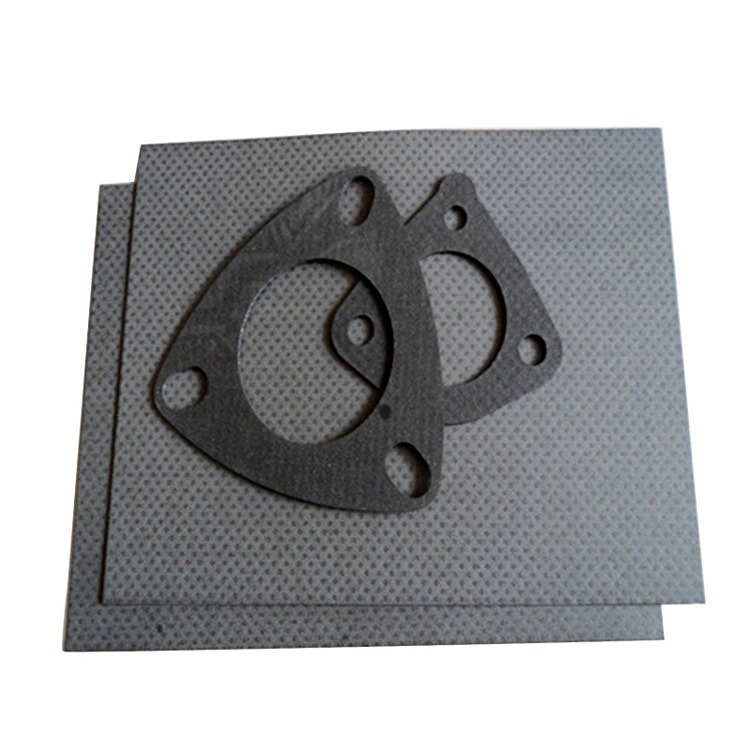

detailed image
