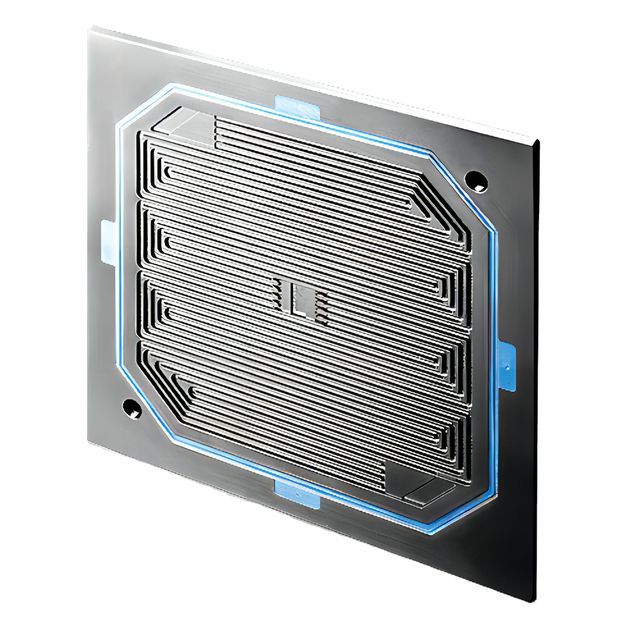

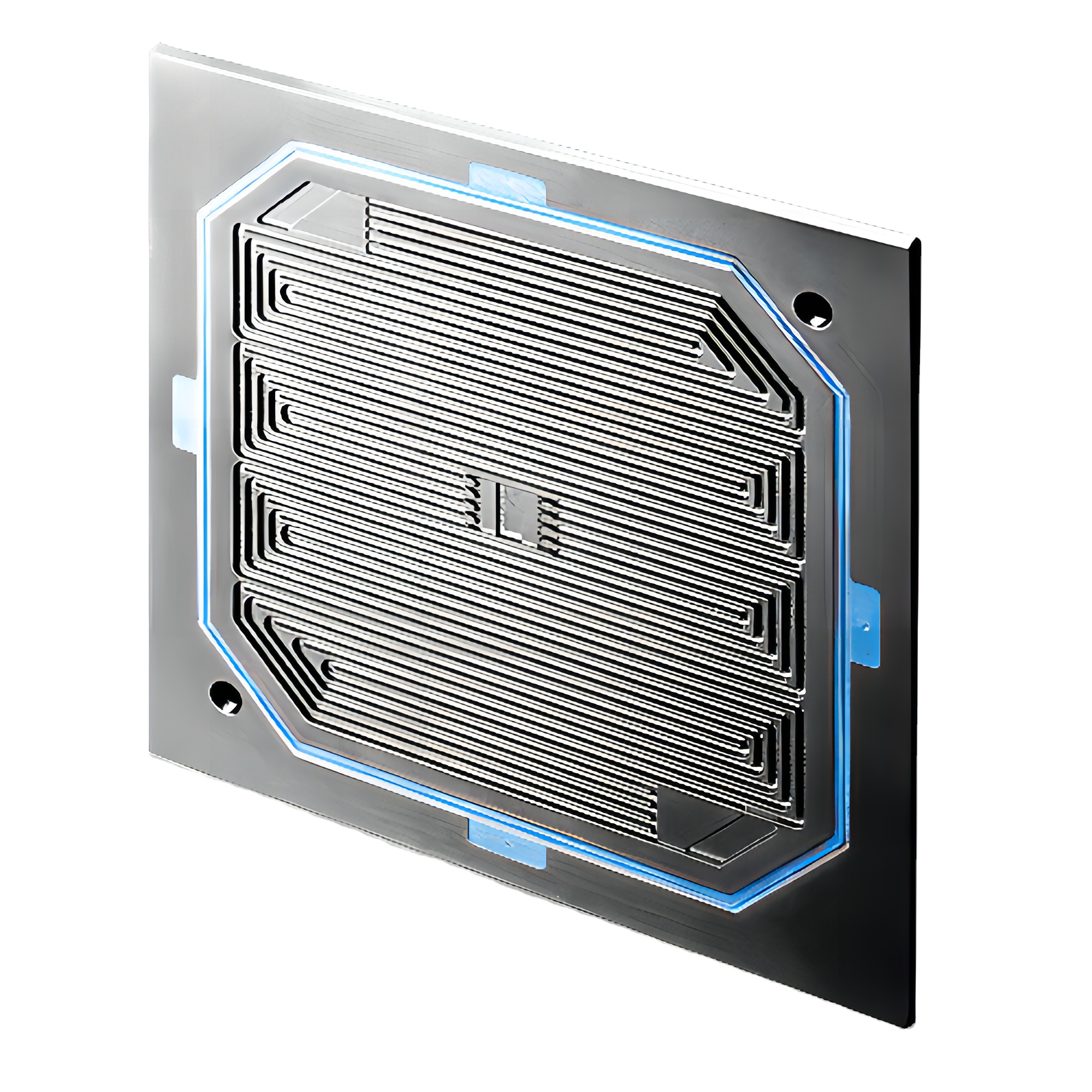

Molded Carbon Composite Bipolar Plates/Separators

Product Detail

C content (%):100%Packaging Details:Box.
model:BPPpayment terms:wire transfer
product name:graphite plateport:Shanghai
Supply capacity:1000 pieces per daytype:composite sheet
grade:industrial gradeMaterial:High purity graphite
Origin:Jiangsu, Chinabrand:ride the dragon
application:The fuel cell
Bipolar plate material name:

1. Molded carbon composite bipolar plate.
2. Resin-free 100% sintered carbon bipolar plates.



the difference:

Unlike other carbon manufacturers, we start production from toner powder, and we can design the formula of carbon to meet customers' needs.



Production Process:

1. Raw material processing.
2. Molded according to the drawings provided.
3. The carbon composite material is heat treated. Resin-free carbon is directly sintered at around 2200°C.
4. Cleaning, testing, packaging.



density:

Carbon composite bipolar plate: ≥1.70 g/cm3.
Resin-free 100% sintered carbon bipolar plates: ≥1.80 g/cm3.



Air leakage detection: no air leakage within 0.1Mpa



feature:



Carbon Composite Bipolar Plates:

1. It can be formed directly without CNC.
2. Much cheaper than impregnated carbon.
3. The total thickness can be as low as 2mm.



Sintered Carbon Bipolar Plates:

1. Pure carbon, no resin, no resin impregnation, no pores, density 1.80.
2. It can be used above 500℃.
3. Depending on the size, small size can be formed directly, large size may need CNC machining.



If you have any questions, please feel free to contact me.



Key comparisons:



  composite carbon Sintered carbon
density 1.80 1.80
Shore hardness 40 110
maximum temperature 150°C 500℃
