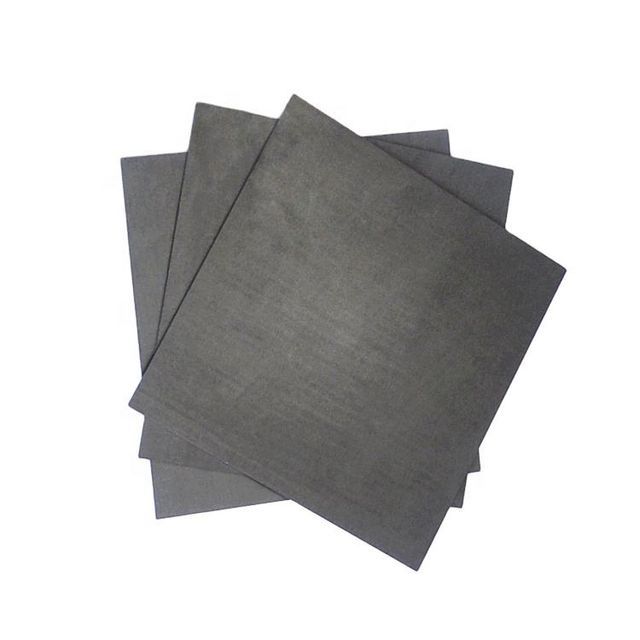

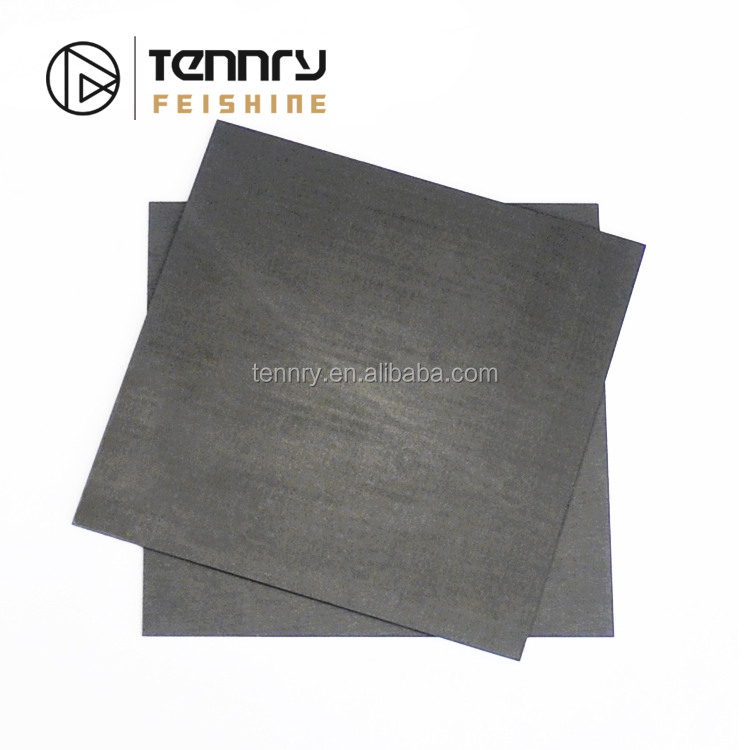

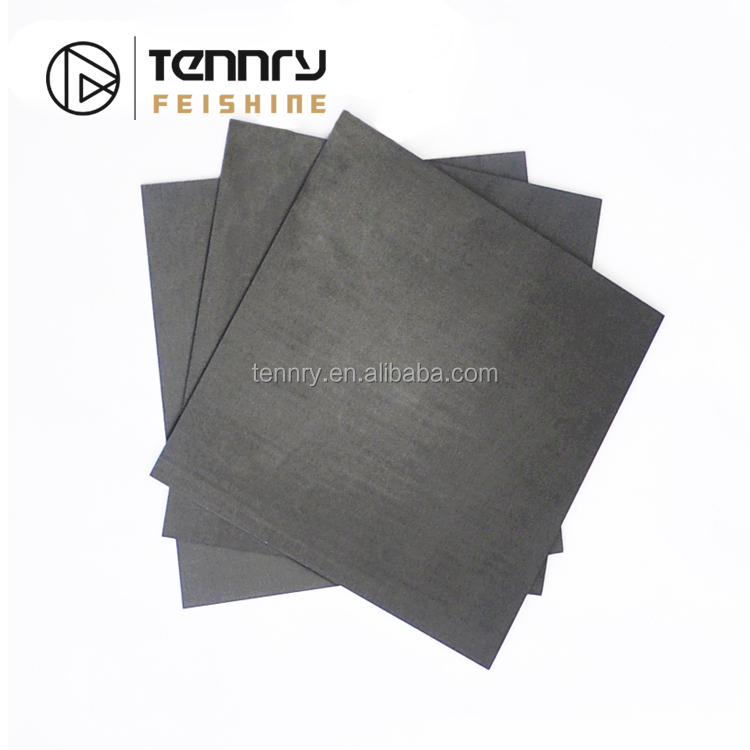

Carbon negative electrode graphite plate for battery
- $1.50 / >=5 kilograms
- 5 kilograms
- Qingdao Tennry Carbon Co., Ltd.
- Shandong, China
- Ms shirley yuan
Product Detail
| C content (%): | 99% | Origin: | Shandong China |
| Resistivity: | 13 max | product name: | Carbon negative electrode graphite plate for battery |
| Supply capacity: | 10000 kg per month | Ash content: | 0.30% |
| grade: | industrial grade | payment terms: | Western Union, T/T |
| application: | Anode/fuel cell/battery, widely used in industry | Bulk density: | 1.72 g/cm3 |
| Packaging Details: | Plywood enclosure. | brand: | Tianrui |
| type: | Reinforcing plate | model: | TX172 |
| port: | Qingdao | Material: | Graphite with/without resin impregnation |
China price graphite plate for electrodes
We can manufacture high-quality products according to customers' requirements or drawings
Fuel cells, batteries, etc.
features.
1. Graphite anode plate for electrolysis with excellent performance.
2. Excellent electrical conductivity, the resistivity is 6.5-14μΩm.
3. High thermal stability and low thermal expansion coefficient.
4. Good pressure resistance and long service life.
5. High heat resistance, the melting point of graphite is as high as 3650°C, and it will not deform under high temperature.
6. Used in batteries, waste water treatment, etc., and electrolysis
Graphite bipolar plates for fuel cells, using impregnated resin materials
Anode graphite plate, density 1.72g/cm3, good resistance.
Physical and chemical indicators of graphite plate:
| No. | density | anti-stress | curved | Resistivity | Ash | particle size |
| g/cm3 | MPa | MPa | μΩm | % | mm | |
| ≥ | ≥ | ≥ | ≤ | ≤ | ||
| TH172 | 1.72 | 48 years old | 26 | 7 | 0.3 | 2 mm |
| TH180 | 1.80 | 52 | 30 | 6 | 0.3 | 325 mesh |
| TH210 | 2.1 | 120 | 66 | 13 | 0.3 | 325 mesh |
