Chemicals for passivating aluminum surfaces before powder coating

Product Detail

Applicable:Aluminum alloy surfacetype:Aluminum Treatment Chemicals
appearance:dark green transparent liquidFocus:5-8%
Name:Aluminum cover coatingPackaging Details:200Kg/plastic bucket
port:Qingdao, ShanghaiSupply capacity:100 tons per month
temperature:30 to 40 °Cplace of origin; place of origin:Shandong
payment terms:L/C,T/T,Western Union

Environmentally friendly aluminum passivator

IC-2012



Environmentally friendly aluminum passivator-----liquid, chromium-free+6



Performance and application areas

IC-2012It is a liquid product for passivation treatment, suitable for chemical conversion coating process of aluminum and its alloys, and does not contain Cr+6. When mixed with water, it forms an amorphous inorganic coating on metal surfaces in dipping and spraying applications. The coating has the following functions:



* Good adhesion to paint coating and good corrosion resistance.

* Bare coating has strong corrosion resistance.

* The coating has a lower conductive resistance.



IC-2012 can be used in dipping or spraying process.

IC-2012 coatings are colored, depending on alloy composition and operating conditions



  IIfeature

Appearance: dark green transparent liquid

Specific gravity: 20°C 1.015-1.017

Dissolved in water.

Acidity Products





Preparation: 1000L, mix with deionized water.

Concentration: 5-8% (spraying) 10-15% (dipping)
Temperature: 30 to 40 °C
Processing time: 2 -4 min (spraying) 5 -10 min (dipping)
Spraying pressure 1-1.5bar

Adjust metrics as needed.



Fourth, the process: impregnation

1. Pre-degreasing - 2. Degreasing - 3. Water washing - 4. Water washing - 5. Degrease - 6. Water washing - 7. Pure water rinse - 8. Passivation - 9. Water Rinse - 10. Deionized Water Rinse - 11. Drying







fivedrying

After the components of the bath liquid react with the aluminum surface completely, rinse the excess surface with deionized water until the water conductivity on the surface of the workpiece is less than 25us/cm. Finally, dry the workpiece (5-20 minutes, 60~90℃) before painting. Gloves must be worn to remove marks from the workpiece after painting. The finished workpiece should be painted during the day.





 sixHandling safety

IC-2012 is a fluorine-containing acid product. A splash accident or contact with skin or eyes can cause burns.

In case of accidental contact with skin, rinse immediately with water, then massage with 2.5% calcium gluconate gel for a few minutes. In case of splashing into eyes, rinse immediately with water, and then use 2% triethanolamine eye drops to seek medical attention.

It is recommended to wear gloves, protective glasses, protective clothing and safety shoes during operation.

Install showers and eyewashes near the workplace.

Do not use glass or silicone containers.



7. Storage

IC-2012 must be kept in its original airtight container and stored in a well-ventilated environment.

This product is sensitive to cold, it can still be used with heating and stirring after freezing without affecting the performance.

Stay away from alkaline products.



Eight sewage treatment

The procedure is as follows:

* Neutralize precipitated fluorine and metal salts with lime, PH is controlled at 6.5~9

* Let settling at the bottom.

Check the indicators for compliance with local regulations after processing.





Nine pack

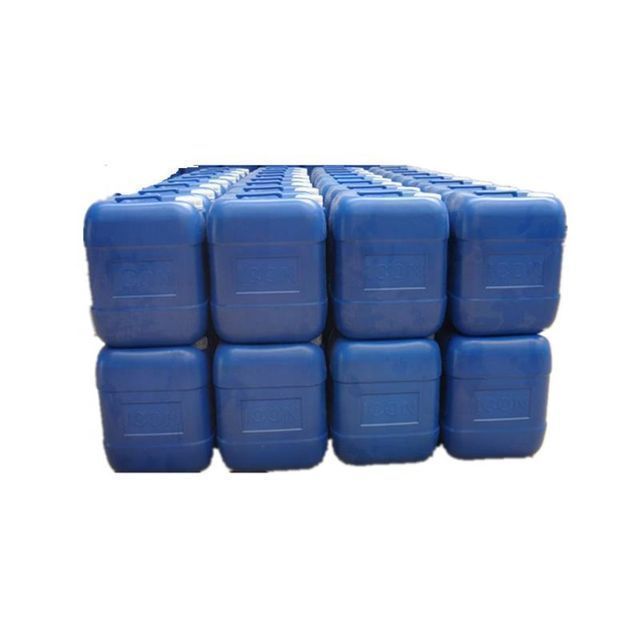

  25KG or 200KG plastic drum
