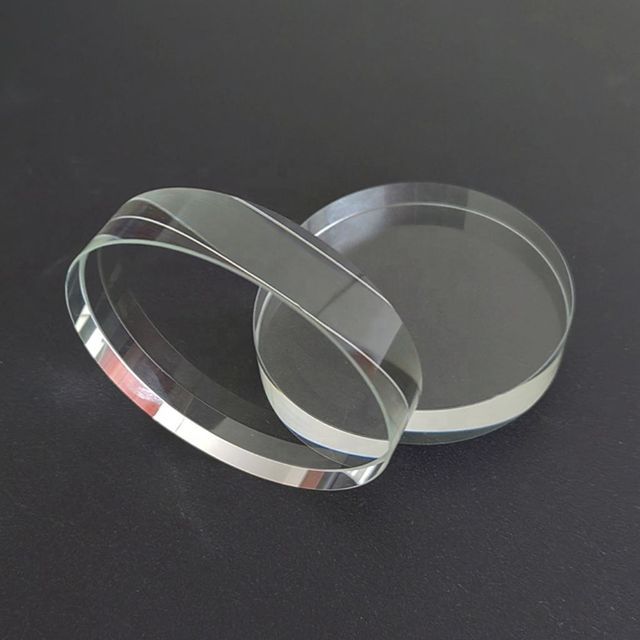

Customized high purity round ultra-clear borosilicate glass plate observation glass dish with polished edges
-
$2.00 / 200 - 499 pieces
$1.00 / 500 - 999 pieces
$0.80 / >=1000 pieces - 200 pieces
- Xinxiang Qianxuan Glass Products Co., Ltd.
- Henan, China
- Mr Alisa
Product Detail
| application: | Optics/semi-finished products/industrial | diameter: | 50-400 |
| connect: | flange | Header code: | circle, steps |
| brand: | Gather goods | Visible Light Transmission (VLT): | >90% |
| Packaging details: | Standard export packaging of quartz glass plates, with a carton inside and a wooden box outside. | Processing services: | Bending, welding, punching, cutting |
| thickness: | Accept customization, 2-30mm | feature: | High temperature and high pressure resistance |
| usage: | glass | port: | Qingdao |
| Supply capacity: | 6000 pieces per quarter | shape: | round shape |
| type: | Transparent quartz plate | Serve: | OEM; ODM |
| payment terms: | L/C, Western Union, D/P, D/A, T/T | Place of origin: | Henan |
| product name: | Tempered sight glass piece | Strain temperature: | 520+/-10 |
Overview
We are manufacturer of quartz glass fused silica plates/sheets.

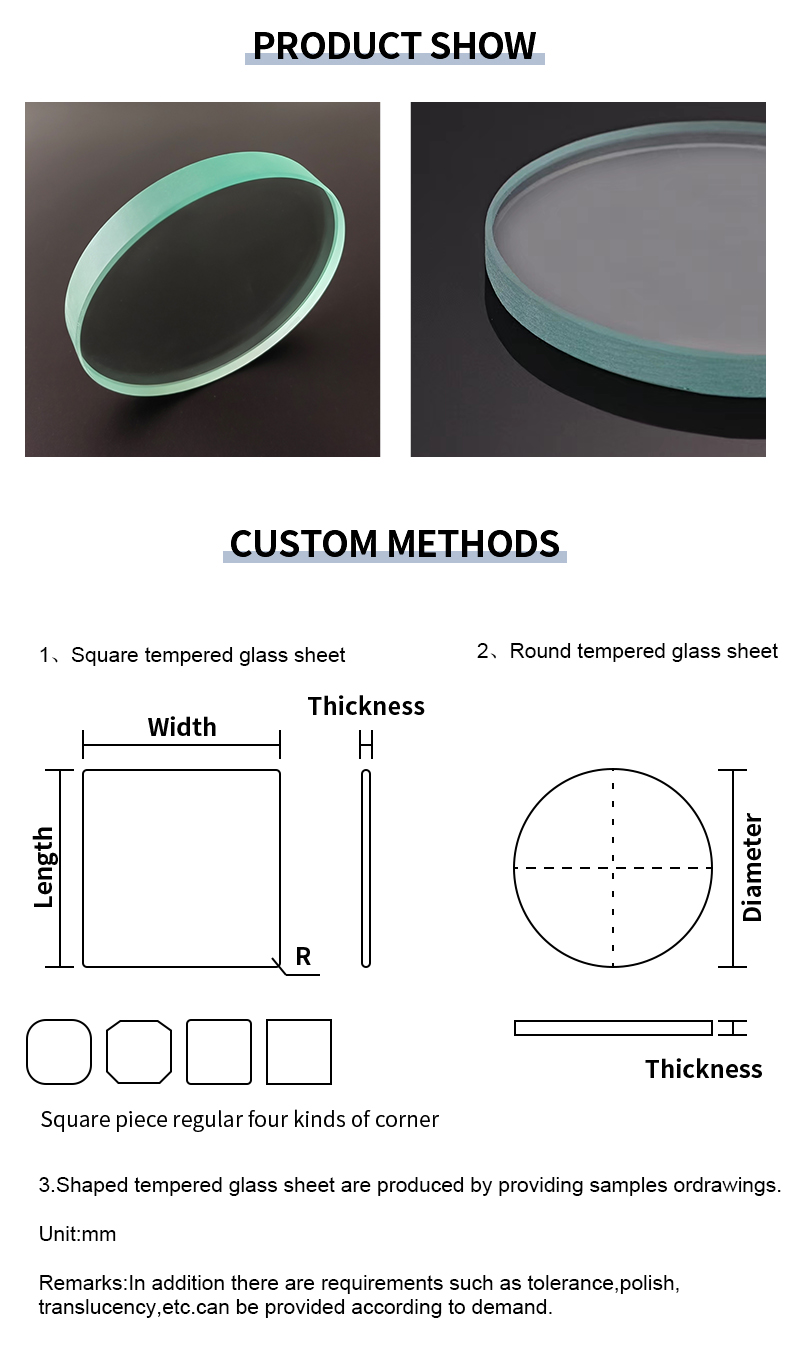

Size and design: Accept customization according to different diameters, thicknesses, lengths or send your drawings.
Size and design: Accept customization according to different diameters, thicknesses, lengths or send your drawings.
product specifications
Φ50x10 | Φ60x10 | Φ70x10 | Φ80x10 | |||
Φ95x10~13 | Φ95x15~16 | Φ100x15~16 | Φ100x18~20 | |||
Φ120x15~16 | Φ120x18~20 | Φ130x15~16 | Φ130x18~20 | |||
Φ140x15~16 | Φ140x80~20 | Φ150x15~16 | Φ150x18~20 | |||
Φ160x18~20 | Φ165x18~20 | Φ180x18~20 | Φ180x24~26 | |||
Φ200x18~20 | Φ200x24~26 | |||||
Note: All products with diameter ≤500mm and thickness 2~30mm can be customized according to user requirements | ||||||
Compressive strength table corresponding to different specifications of tempering regulations
work pressure Specification Nominal pressure (Dg) | Maximum allowable working pressure, unit: bar | ||||
10 (bar) | 16(bar) | 25(bar) | |||
50 (dry weight) | Φ70X10 | Φ70X10 | Φ70X12 | ||
80 (dry weight) | Φ100X15 | Φ100X15 | Φ100X20 | ||
100 (dry weight) | Φ130X15 | Φ130X15 | Φ130X25 | ||
125 (dry weight) | Φ150X20 | Φ150X20 | Φ150X25 | ||
150 (dry weight) | Φ180X20 | Φ180X25 | Φ180X30 | ||
Xinxiang Qianxuan Quartz Glass Co., Ltd. is a modern high-tech manufacturing enterprise integrating development, design, production, sales and after-sales service. Our company has more than 20 years of production and sales experience and can solve customer problems very well. We have the most advanced raw tea equipment and multiple production lines to produce high-quality, diverse chemical glass instruments. Our main products are quartz sight glasses, quartz glass tubes, high borosilicate glass mirrors, high borosilicate glass tubes, tempered sight glasses, liquid level gauge glass plates, stainless steel flange sight glasses, and 3.3 glass plates. Standard manufacturing of radiation resistant high lead optical glass is produced to strict international standards to comply with safety regulations. "Quality-oriented, sincerity and trustworthiness, customer first" is the company's business purpose.
FAQ
Q1. How quickly can I get a quote? A: We usually quote within 24 hours after receiving the inquiry. If you are very urgent to get the price, please call us or send us an email. Q2. What are your delivery terms? A: We accept EXW, FOB, CIF, etc. You can choose the most convenient or cheapest way. Q3. Can I test your quality by samples? A: Yes, we can provide samples for your reference. Q4. What are your payment terms? A: If the payment exceeds USD 5000, you can pay 30% deposit in advance and 70% balance before delivery. You can send money via wire transfer, PayPal, Western Union. Q5. What is the lead time for mass production? A: Usually, the delivery time is about 15 working days. Honestly, it depends on the quantity you order.
Our advantage
1. Effective OEM&ODM services 2. Highly competitive prices 3. Most advanced technology products 4. Good quality control
How to orderStep 1, please select the product with a link or picture, click to contact the supplier or chat with me, or send an inquiry directly. When we receive your inquiry, we will give you a quotation within 24 hours. Step2, please send us your design drawings or shopping list via email, we will reply immediately after receiving your email
Send your inquiry details below to get free samples, click "Send" now.
