Heat-resistant transparent 6mm wall thickness square quartz plate

Product Detail

Processing services:bending, cuttingOperating temperature:1100 degrees Celsius
brand:OEM productionshape:square, square
Processing:Chamfering processmodel:OEM production
Surface Quality:40/20 60/40 80/50Material:Fused Silica
payment terms:L/C, Western Union, T/T, MoneyGramPackage preview:
color:to cleartype:Transparent Quartz Plate
port:Shanghai, Qingdao, Ningbo, Shenzhenapplication:Chemistry/Semiconductor
thickness:0.5-30mmSoftening Point:1680 degrees Celsius
Wall thickness:2mmpack:Carton/wooden box
Origin:Jiangsu, ChinaPackaging Details:standard meal
purity:99.99%Supply capacity:2000 pieces per month
Product Description

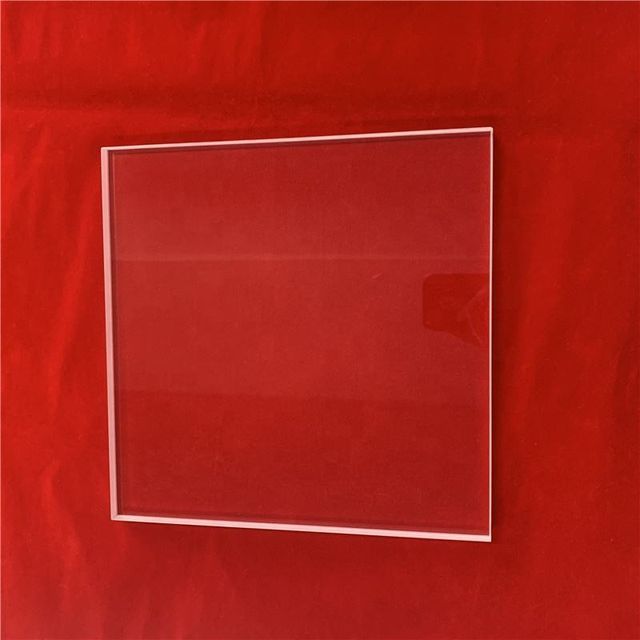

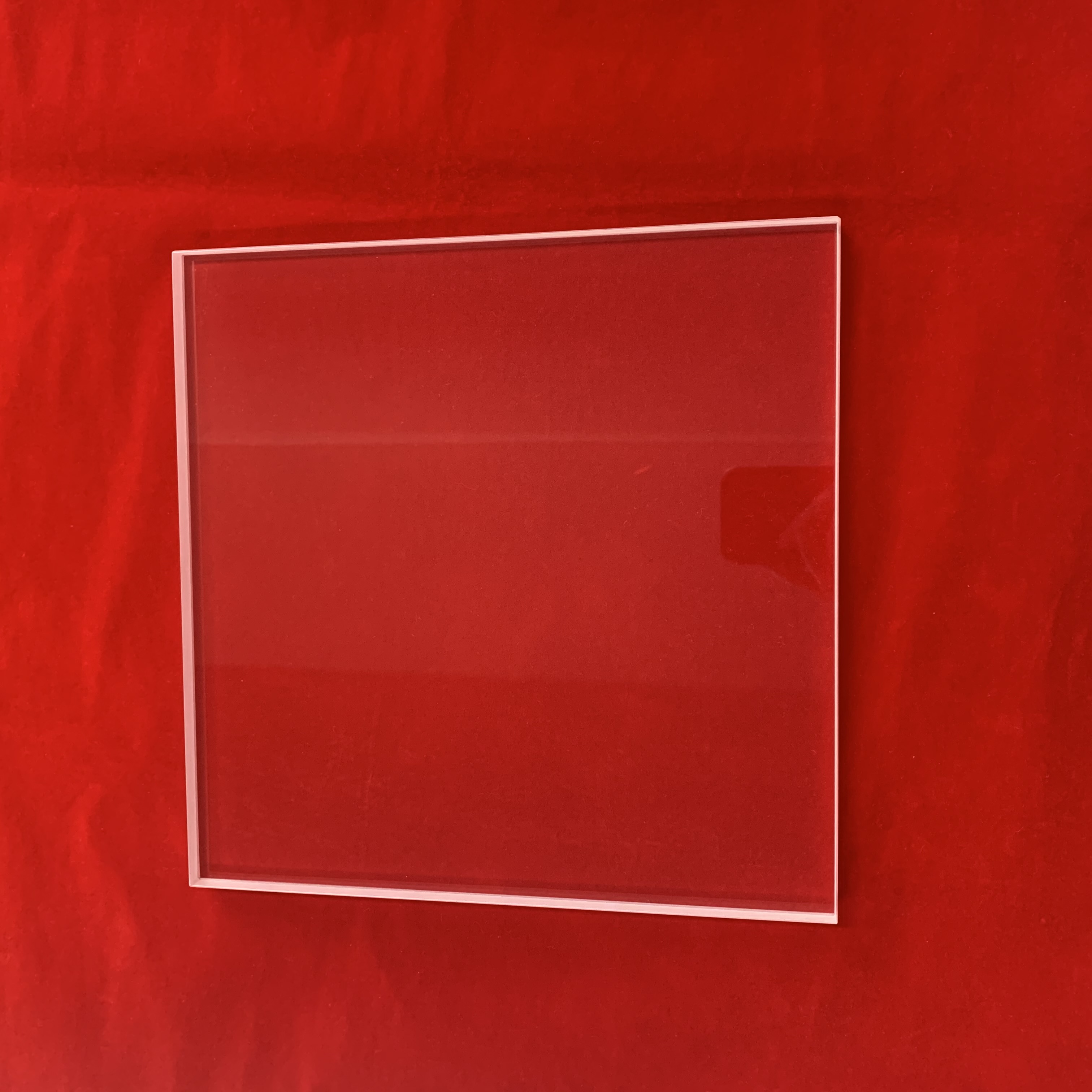

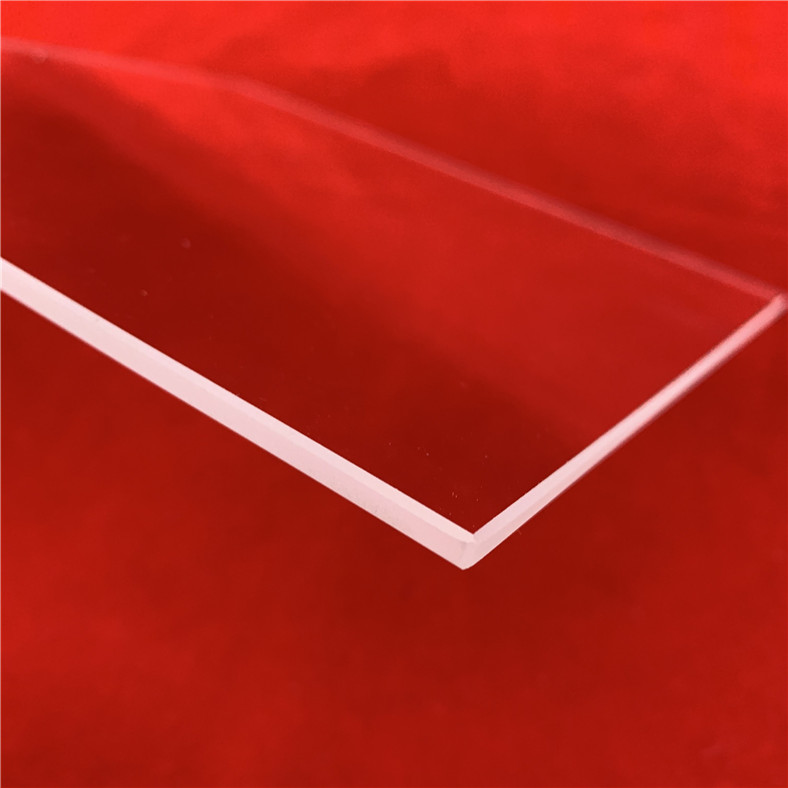

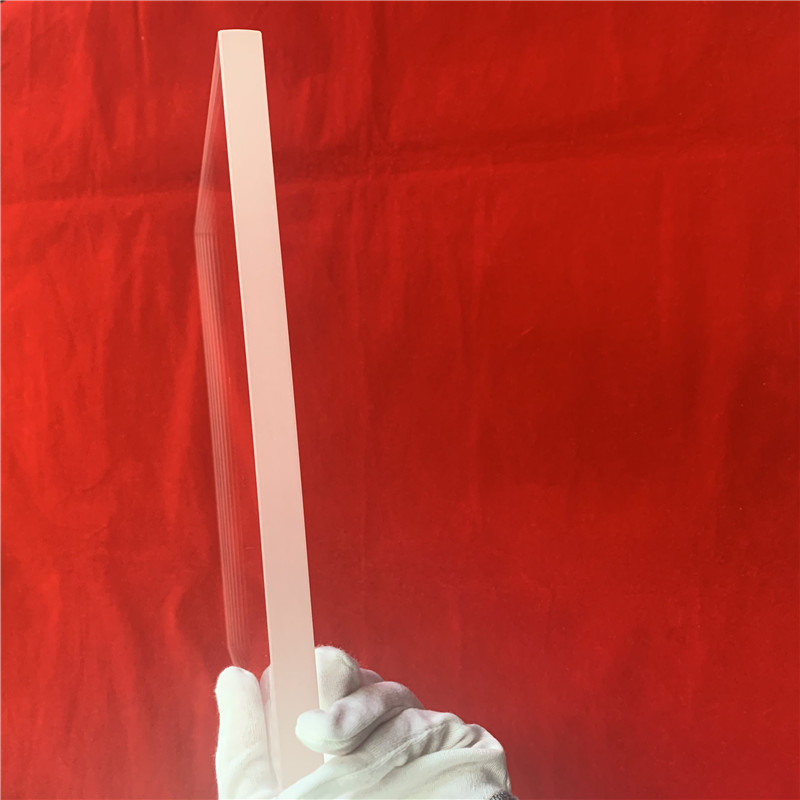

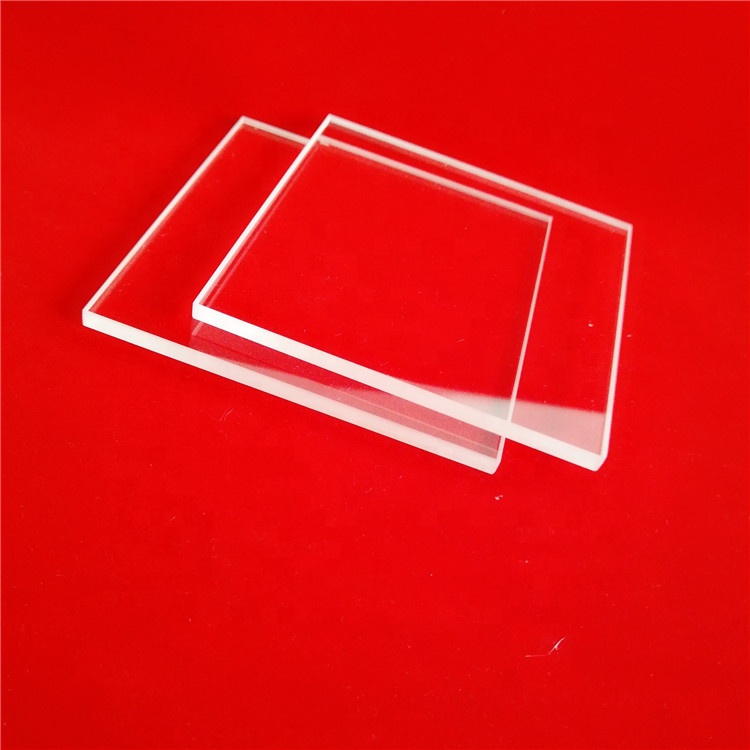

6mm wall thickness rectangular quartz plate

1. Material properties
high corrosion resistance

Visible light transmission>90%

no bubbles, no airlines

Round, square, arc, etc.
2. Size and shape
Thickness: 0.5-30mm
Available in round, square, rectangular and various shapes.
Maximum size of square fused silica box: square 1000mm×2000mm
We can supply a maximum length of 3000mm if the width does not exceed 205mm.

3. use
Quartz glass plates used in medical treatment, electronic instruments, scientific research, optical industry, etc.
Product parameters
property content
property index
density
2.2×103kg/cm³
strength
580KHN100
tensile strength
4.9×107Pa(Newton/㎡)
Compressive strength
>1.1×109Pa
Thermal expansion coefficient
5.5×10-7cm/cm℃
Thermal Conductivity
1.4W/m ℃
specific heat
670J/kg℃
Softening Point
1680°C
Annealing point
1215°C
Chemical element composition (unit: ppm)
Al
iron
Potassium
plum
copper
sodium
calcium
Second
magnesium
oh
14
0.2
0.7
0.4
0.07
0.66
0.13
0.02
0.33
15-120
