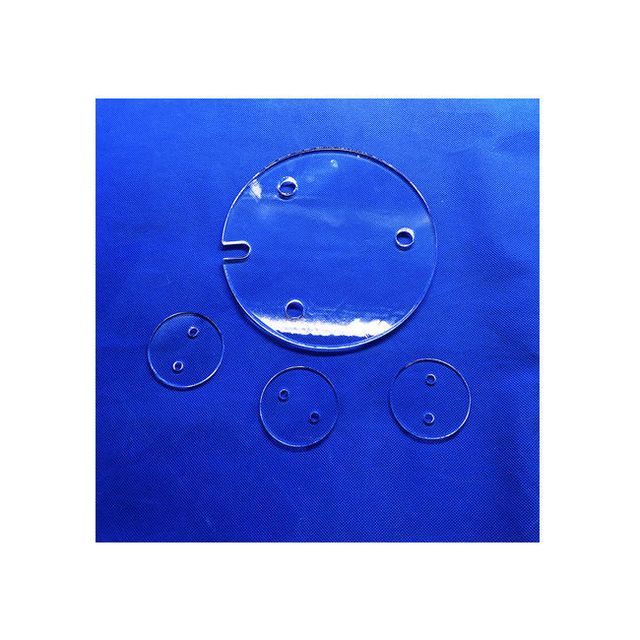

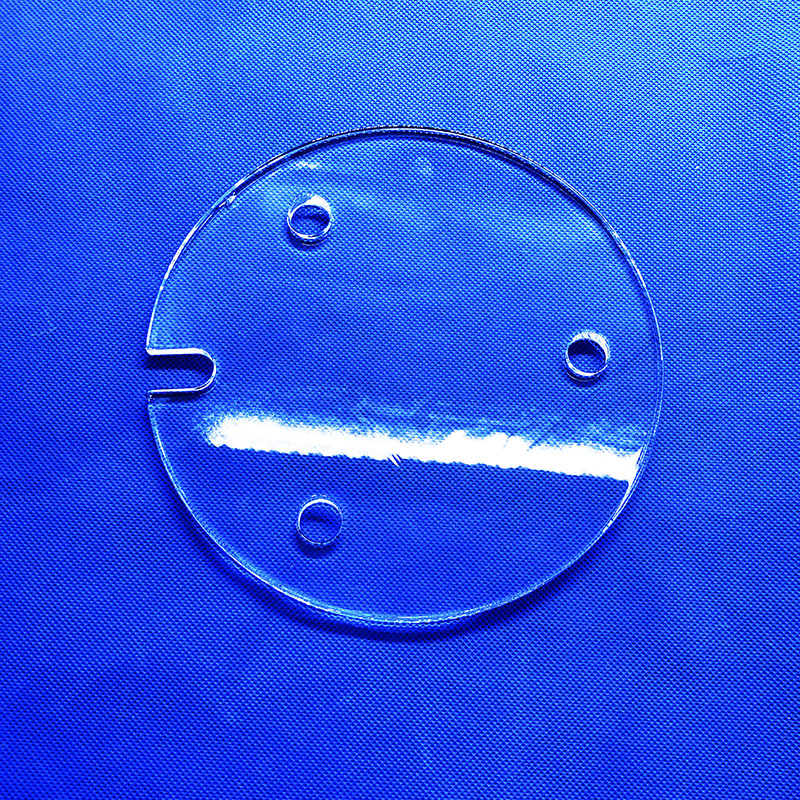

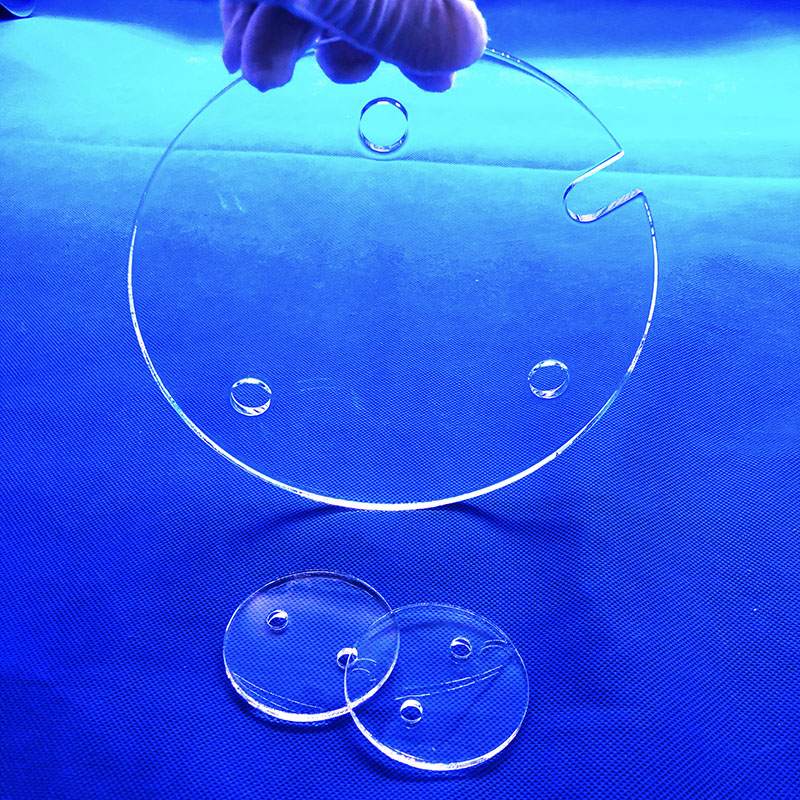

Optical Quartz Wafer Laser Drilled Round Transparent Fused Silica Wafer with Holes
-
$20.00 / 1 - 9 pieces
$5.00 / >=10 pieces - 1 piece
- Donghai County Tengjun Quartz Products Co., Ltd.
- Jiangsu, China
- Ms yang ningning
Product Detail
| density: | 2.2 g/cm3 | Strain point: | 1120°C |
| Material: | Quartz glass | shape: | round shape |
| model: | TJ-0002 | Annealing point: | 1210°C |
| Origin: | Jiangsu, China | port: | Shanghai Port, Lianyungang Port, Suzhou Port, Rizhao Port, Qingdao Port |
| payment terms: | L/C, Western Union, T/T, MoneyGram | brand: | Teng Jun |
| Processing services: | Welding, punching, decoiling, cutting, forming | thickness: | 0.1mm-20mm |
| application: | Optics and Observation | purity: | 99.99% |
| Packaging Details: | Inner bubble film/carton F: Shipping carton/wooden case/according to customer requirements. | Supply capacity: | 30000 pieces per month |
| type: | Transparent Quartz Plate | Softening Point: | 1680°C |
| Package preview: |
Kind tips
Please contact us before placing an order. Product prices are for reference only and do not represent specific selling prices. Due to the large size of the product, parameters need to be provided for processing. The outer diameter, thickness, length and number of quartz tubes. For the length, width, thickness and quantity of the square, it is best to provide the drawing mailbox so that we can quote accurately
Quartz plate
Transparent quartz glass plate, opaque quartz glass plate, quartz observation window, optical quartz glass, optical coating,
Infrared quartz glass, UV quartz glass, far ultraviolet (JGS1), near ultraviolet (JGS2) and infrared (JGS3) quartz glass
Plates used in optical long-line processing, electronics, chemical industry, military industry and other industries.
Infrared quartz glass, UV quartz glass, far ultraviolet (JGS1), near ultraviolet (JGS2) and infrared (JGS3) quartz glass
Plates used in optical long-line processing, electronics, chemical industry, military industry and other industries.
purity | >99.99% |
density | 2.2 (g/cubic centimeter) |
Moh's hardness | 6.6 |
melting point | 1732°C |
Operating temperature | 1100°C |
Maximum temperature can be reached in a short time | 1450°C |
acid resistance | 30 times that of ceramics, 150 times that of stainless steel |
Visible light transmittance | More than 93% |
Transmittance in UV spectral region | 80% |
Resistance | 10,000 times that of ordinary glass |
Annealing point | 1215°C |
Softening Point | 1730°C |
Mechanical behavior:
Mechanical behavior | Reference | Reference | Reference | |
density | 2.203 g/cm3 | Refractive index | 1.45845 | |
Compressive strength | >1100Mpa | Thermal expansion coefficient | 5.5×10-7cm/cm.℃ | |
Bending strength | 67Mpa | Hot working temperature | 1750~2050℃ | |
tensile strength | 48.3Mpa | short temperature | 1300°C | |
Poisson's ratio | 0.14~0.17 | prolonged temperature | 1100°C | |
Elastic Modulus | 71700Mpa | Resistivity | 7×107Ω.cm | |
Shear modulus | 31000Mpa | Dielectric strength | 250~400Kv/cm | |
Moth hardness | 5.3~6.5 (moth scales) | Dielectric constant | 3.7~3.9 | |
inflection point | 1280°C | Dielectric absorption coefficient | 4×104 | |
Specific heat (20~350°C) | 670 J/kg°C | Dielectric Loss Coefficient | 1×104 | |
Thermal conductivity (20°C) | 1.4W/m°C | Typical Mechanical Properties of Fused Silica | ||
