FKM B-651C rubber premix containing curing agent Excellent mold flow Very good tear resistance Adhesion to metal inserts
-
$50.00 / 25 - 999 kilograms
$40.00 / 1000 - 9999 kilograms
$35.00 / >=10000 kilograms - 25 kilograms
- Shanghai Nebula International Trade Co., Ltd.
- Shanghai, China
- Mr feng guo
Product Detail
color: | Transparent to light yellow translucent | Packaging details: | 25kg carton packaging |
brand: | fluororubber | application: | car |
Supply capacity: | Annual output 100 tons | Featured industries: | Automotive\Aerospace |
payment terms: | L/C, Western Union, D/P, D/A, T/T, MoneyGram | Package preview: | |
Place of origin: | Netherlands | port: | Shanghai Port |
model: | B-651C |
purchase guide
Things to note before purchasing
Due to material price fluctuations and inventory quantity changes, please contact customer service before placing an order. Thank you for your understanding and support!
Product Description
Key performance differences among Viton products
The main difference between the Viton™ product families is fluid resistance, which is dependent on the fluorine content of the polymer.
This property is determined by the type and relative amounts of the specific monomers that make up the polymer.
Fluid resistance generally increases with increasing fluorine content (see table below). As the fluorine content increases,
However, low temperature flexibility is reduced. This helps designers and engineers balance fluid resistance and
Low temperature flexibility of final cure.
The choice of which Viton product to use for any given application will be determined by the end use service. choose
The appropriate fluoroelastomer will ultimately be determined based on the required situation:
* Resistant to amines or corrosives
* Resistant to hydrocarbon fluids
* Flexibility at low temperatures (ability to maintain seal at low temperatures)
See the table below for general performance differences. For more details, see the complete product selection guide, chemical resistance guide, or contact us.
TDS (chemical technical data sheet)
Fluid resistance: % volume increase after 168 hours | Basic resistance: % loss in elongation at break. | ||||||||||||||
Low temperature. Flexibility TR-10, ⁰C (°F) | Compare. Kit: O-ring, 70 hours at 200 ⁰C (392 °F) | Toluene @ 40 ⁰C (104°F) | Fuel C/MeOH (85/15) @ 23 ⁰C (73°F) | Methanol @ 23 ⁰C (73°F) | Concentrated H2SO4 @ 70 ⁰C (158°F) | 33% KOH solution: 336 hours @ 40 ⁰C (104 °F) | ASTM Reference Oil 105: 500 hours @ 150 ⁰C (302°F) | ||||||||
GLT-S | -30 (-22) | 30-35 | 20-25- | 35-40 | 90-100 | 3-5 | -35 | -65 | |||||||
AL | -19 (-2) | 20-25 times | 20-25 times | 35-40 | 85-95 | 12-15 | -50 | -80 | |||||||
A | -17 (-1.4) | No. 12 - 17 | 20-25 times | 35-40 | 85-95 | No. 10 - 12 | -45 | -80 | |||||||
GBL-S | -16 (3.2) | 25-40 | 12-15 | 20-25 times | 25-35 | 3-5 | -25 | -65 | |||||||
Second | -14 (6) | 25-30 | 12-15 | 18-23 | 25-35 | 8-10 | -25 | -70 | |||||||
GFLT-S | -24 (-11) | 35-40 | 8-12 | 10-15 | 3-5 | 3-5 | -30 | -40 | |||||||
F | -8 (17.6) | 30-35 | 8-12 | 5-10 | 3-5 | 7-9 | -50 | -55 | |||||||
GF-S | -8 (17.6) | 30-45 | 8-12 | 5-10 | 3-5 | 7-9 | -45 | -50 | |||||||
ETP-S | -11 (12) | 45-50 | 6-8 | 8-10 | 1-2 | 4-6 | 0 | -10 |

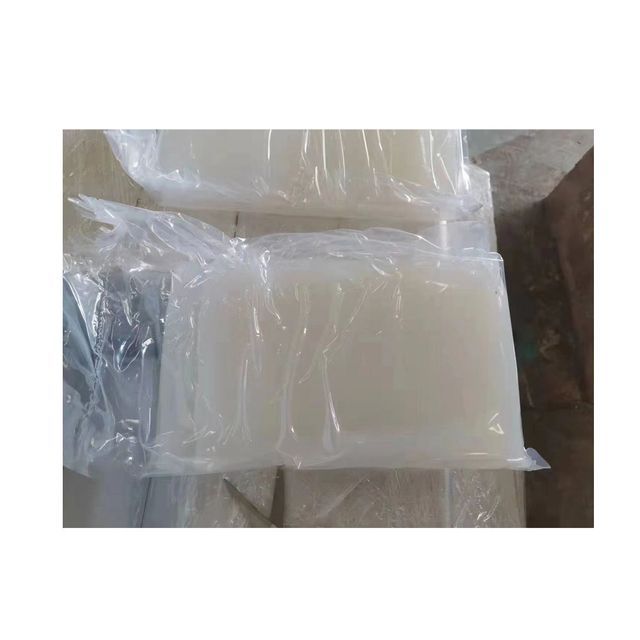

detailed picture
Regular packaging: 25kg/bag
The exact quantity depends on the material.
