High fluorine fluoroelastomer fkm fpm oring compound cured incorporation terpolymer seal rubber material

  • $18.10 / 20 - 999 kilograms
    $17.70 / 1000 - 9999 kilograms
    $16.00 / >=10000 kilograms
  • 20 kilograms
  • Sichuan Fudi New Energy Co., Ltd.
  • Sichuan, China
  • Ms Doris Xie

Product Detail

Name:Viton compoundPackaging Details:25kg/carton 500kg/pallet
color:custom madeSupply capacity:100,000 kg per month
Certificate:ISO 9001Heal Mechanism:Bisphenol AF
brand:Fudimodel:FD246
Origin:Sichuan, Chinapayment terms:wire transfer
MOQ:20KGPackage preview:
port:Shanghai, Shenzhen
Product Description

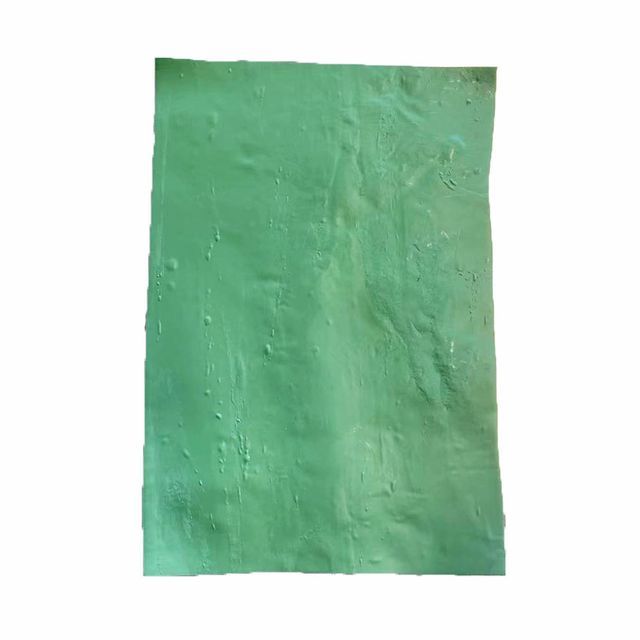

FD 246Is a cured bonded terpolymer consisting of vinylidene fluoride (VDF), hexafluoropropylene (HFP) and tetrafluoroethylene (TFE). Terpolymers have a higher fluorine content (typically 68 to 69 weight percent fluorine) than copolymers, resulting in better chemical and thermal resistance.
The general properties of the FD 246 are:
* Excellent chemical and oil resistance
* Excellent mold release
* Excellent mold flow
* Good compression set
* Processing: transfer molding and compression molding.

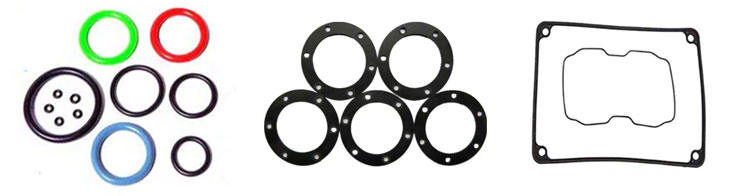

FD 246Can be used for oring or other sealing products.

FD 246
FD 246B
360 round the clock
Fluorine content
68
68
68
Density 23ºC (g/cm³)
1.98±0.02
1.98±0.02
1.98±0.02
MDR at 177 °C 6 minutes arc 0.5°
Minimum torque(N*m)
0.28
0.18
0.25
Maximum torque(N*m)
2.2
1.65
2.0
Ts2
1′24″
1′18″
1′25″
T90
2′45″
2′30″
2′40″
Pressure cure: 170 °C for 10 minutes, post cure: 230 °C for 24 hours
Tensile strength (Mpa)
≥15
≥15
≥15
Elongation at break (%)
≥200
≥260
≥200
Shore A Hardness
75±2
72±2
75±2
Compression set (%) 200ºC 70H compression rate 20%
≤20
≤20
≤20
Please contact our customer service for detailed specifications
application
Due to the excellent performance of FKM, it is widely used in different fields, including:
* Chemical processes and petroleum refining, where they are used in seals, pumps, gaskets, etc. due to their resistance to chemicals;
* Analytical and process instruments: diaphragms, cylindrical fittings, ferrules, gaskets, etc.
* Semiconductor manufacturing;
* Food and pharmaceuticals, because of their low degradability, are also in contact with liquids;
Advantage

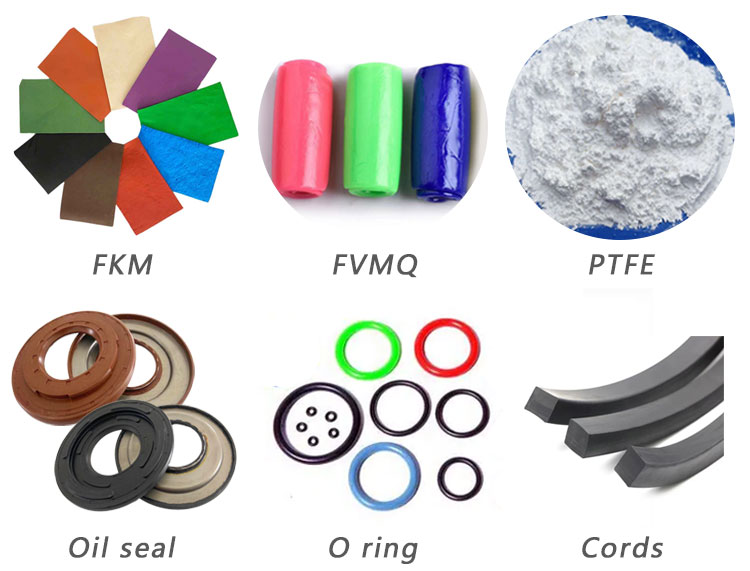

FUDI has focused on fluorine material solutions for more than 20 years. Our products range from basic chemical materials to fluoro products such as FKM FVMQ FFKM PTFE HNBR AEM and various process chemicals.
We focus on continuous improvement in four areas to provide competitive products.
About Fudi
Sichuan Fudi New Energy Co., Ltd. was established in 2001. Fudi has focused on fluorine material solutions for more than 20 years. Our products range from basic chemical materials to fluorine products such as FKM FVMQ FFKM PTFE HNBR AEM and various processing
Chemicals.

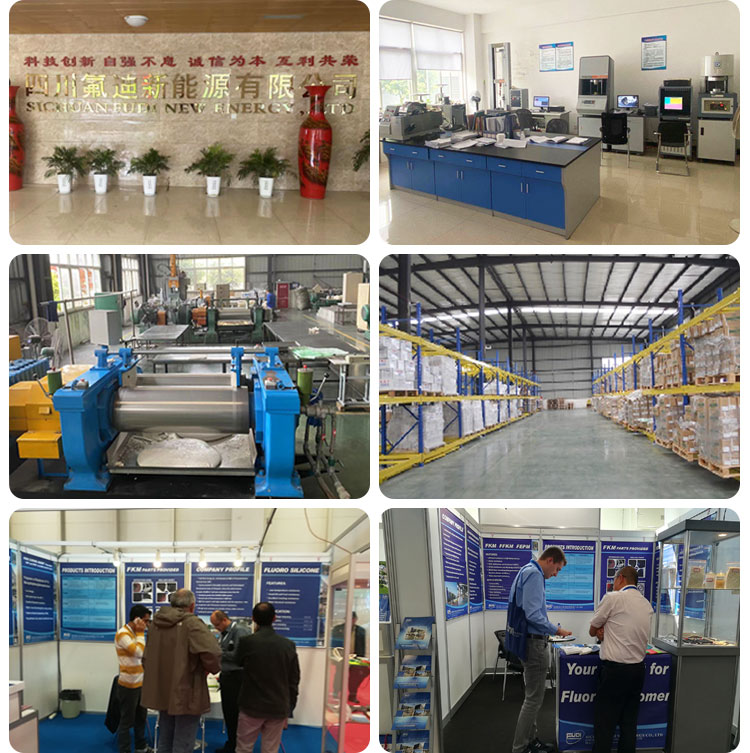

Our factory is located in Chengdu, Sichuan, China. Covering an area of ​​more than 30000 square meters, with more than 50 technicians and experienced employees, we have a production capacity of 1000 tons of various fluorine materials.
